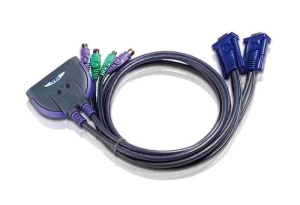

ATEN CS62S 2-Port PS/2 KVM Switch - With 0.9m Cable
Up to 2048 x 1536 Resolution

No Longer Available

Part Number:

409070

(?) Brand:

ATEN

Manuf No:

CS62S

Shipping Weight:

0.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

CS62S, CS62SAT, CS62S-AT, ATCS62S

Overview

CS62S 2-port KVM Switch has a handy design integrating with 0.9m of cable. It can control 2 servers via a single console.

Package Contents

1x 2-Port KVM Switch with Attached Cables
1x User Instructions

Patent No.

TW I285828 , US 6934398 , US 7035112 , US 7283375 , US 7542299 , US D459308

Features

One PS/2 console controls 2 PS/2 computers
Compact design, built in 0.9m cables
All-in-one design
Superior video quality-up to 2048 x 1536; DDC2B
Auto Scan function to monitor computer operation
Non-powered
OS Compatibility includes Windows 2000/XP/Vista,LINUX and FreeBSD

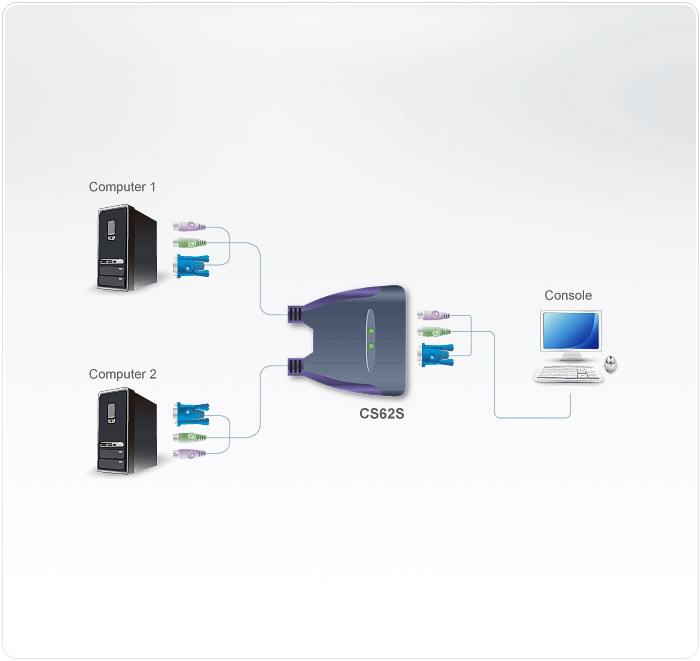

Diagram

CS62S Diagram

Specifications

Computer Connections	2
Port Selection	Hotkey
Connectors
Console Ports	1 x 6-pin Min-DIN Female (Purple)
	1 x 6-pin Min-DIN Female (Green)
	1 x HDB-15 Female (Blue)
KVM Ports	2 x 6-pin Min-DIN Male (Purple)
	2 x 6-pin Min-DIN Male (Green)
	2 x HDB-15 Male (Blue)
LEDs
Selected	2 (Green)
Cable Length
Computer	0.9 m
Emulation
Keyboard / Mouse	PS/2
Video	2048 x 1536; DDC2B
Scan Interval	3, 5, 10, 20 seconds
Environmental
Operating Temperature	0-50C
Storage Temperature	-20-60C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.25 kg ( 0.55 lb )
Dimensions (L x W x H)	7.30 x 6.24 x 2.25 cm
Dimensions (L x W x H)	(2.87 x 2.46 x 0.89 in.)
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
