All stock codes associated to this product
CS72D, 4719264640339
Overview
The CS72D 2-Port USB DVI KVM Switch allows you to control two computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs.
The CS72D comes with ATENs Video DynaSync technology, which eliminates
boot-up display problems and optimizes resolution; it carries several convenient
features, such as Power On Detection, 2.1 channel audio capability and USB2.0
peripheral sharing, as well as provides quick and easy methods to access
computers.
Compatible Accessories
DVI Cables
- LIN-32W3-G11G
- LIN7-32W3-G12G
Package Contents
Patent No.
CN ZL 02824593.8 , CN ZL 200810130443.7 , CN ZL200810125108.8 , EP 1451696 ,
JP 4558319 , JP 5232209 , TW 203183 , TW I363980 , TW I403920 , US 6564275 , US
6957287 , US 7472217 , US 7774518 , US 8140734 , US 8176226
Features
-
Fully compliant with DVI specifi
cation (Digital only)
-
Supports multi-function and
wireless mouse/keyboard
-
Audio enabledfull bass response
provides a rich experience for 2.1 channel surround sound systems
-
Superior video quality1920 x
1200@60Hz
-
Multiplatform supportWindows,
Linux, Mac, FreeBSD and Sun
-
HDCP compliant
-
Power on detectionif one computer
is powered off, the switch will automatically switch to the next powered-on
computer
-
Video DynaSyncexclusive ATEN
technology optimizes display resolution and eliminates boot-up display
problems
-
Computer selection via front panel
pushbuttons, hotkeys, and mouse switching function*
-
USB 2.0 mouse port can be used for
USB hub and USB peripheral sharing
-
Complete keyboard emulation for
error-free booting
-
Firmware upgradeable
-
Non-powered
-
Mac/Sun keyboard support and
emulation**
*
Mouse port switching is only functional under mouse emulation mode and USB
3-key wheel mouse
**
PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboard work only
with their own computers

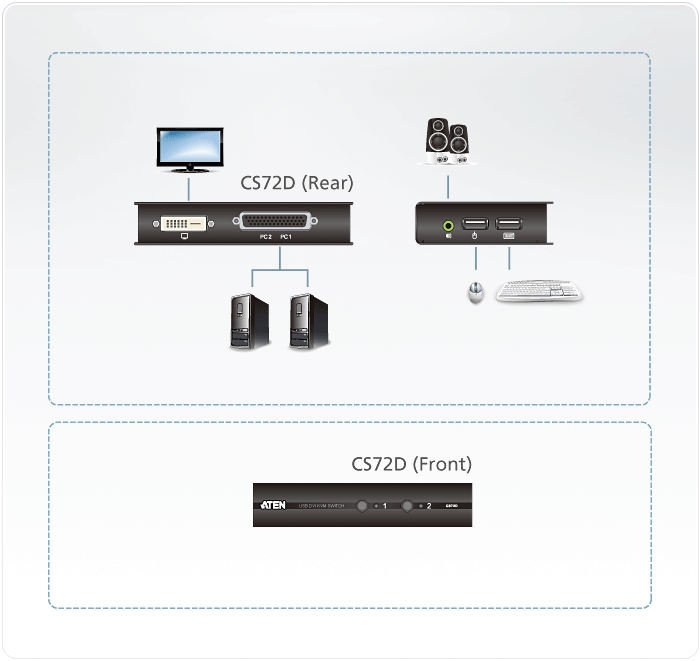

Diagram
Specifications
|
Computer
Connections |
2 |
|
Console
Connections |
1 |
|
Port
Selection |
Hotkey, Pushbutton,
Mouse |
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(Iron) |
|
1 x DVI-D Female
(White) |
|
1 x Mini Stereo Jack
Female (Green) |
|
Computer Port
1 |
1 x 44-pin Connector
Female |
|
LEDs |
|
Selected |
2
(Green) |
|
Pushbuttons |
2 |
|
Cable
Length |
1.2 m x 1 (44
pin) |
|
Power
Consumption |
DC 5.0V,
5.0W |
|
Emulation |
|
Keyboard /
Mouse |
USB |
|
Video |
1920 x 1200 @60Hz; 1920
x 1080 Full HD |
|
Scan
Interval |
3, 5, 10, 20 seconds (5
secs. default) |
|
Environmental |
|
Operating
Temperature |
0 -
50C |
|
Storage
Temperature |
-20 -
60C |
|
Humidity |
0 - 80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.33 kg ( 0.73 lb
) |
|
Dimensions (L x W x
H) |
12.50 x 8.20 x 2.50
cm |
|
(4.92 x 3.23 x 0.98
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
