All stock codes associated to this product
CS72UAT, CS72U-AT, ATCS72U
Overview

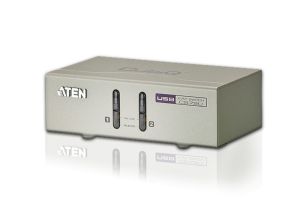

The CS72U 2-Port USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (keyboard and mouse, audio and VGA monitor)
With the CS72U, you can access computers conveniently using port selection
pushbuttons located on the units front panel.
Setup is fast and easy; simply plug cables into their appropriate ports.
There is no software to configure, no installation routines, and no
incompatibility problems. Since the CS72U intercepts keyboard input directly, it
will work on multiple computing platforms
Features
- One VGA console controls two USB VGA interface computers
- Computer selection via front panel pushbuttons
- Multiplatform support - Windows, Linux and Mac
- Audio Enabled full bass response provides a rich experience for 2.1
channel surround sound systems
- Superior video quality – 2048 x 1536; DDC2B
- Supports USB hot-plugging
- Non-powered

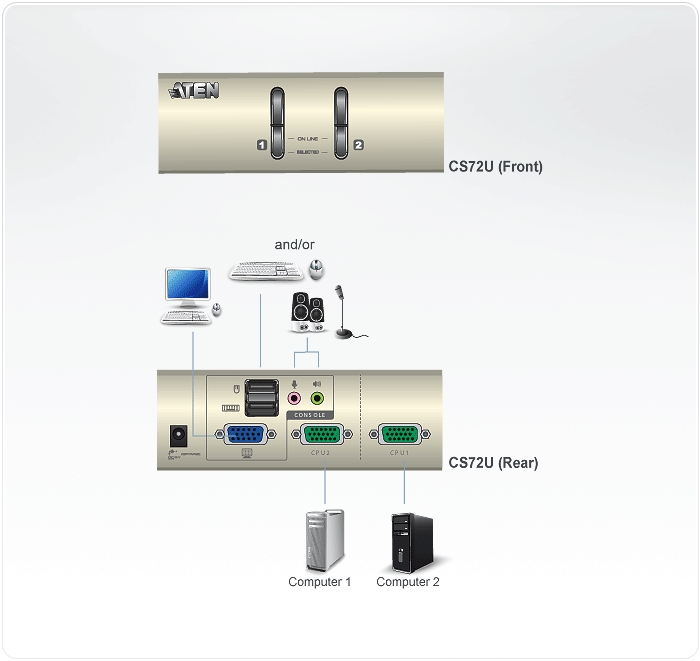

Diagram
Specifications
|
Computer
Connections |
2 |
|
Port
Selection |
Pushbutton |
|
|
|
Connectors |
|
|
Console
Ports |
2 x USB Type A Female
(Black) |
|
1 x HDB-15 Female
(Blue) |
|
1 x mini stereo Jack
Female (Pink) |
|
1 x mini stereo Jack
Female (Green) |
|
KVM
Ports |
2 x SPHD-18 Female
(Green) |
|
Power |
1 x DC 5V Jack
(Spare) |
|
|
|
LEDs |
|
|
Online |
2
(Orange) |
|
Selected |
2
(Green) |
|
|
|
Switches |
|
|
Selected |
2 x
Pushbuttons |
|
|
|
Video |
2048 x 1536 @ 60 Hz;
DDC2B |
|
Power
Consumption |
DC5V,
0.5W |
|
|
|
Environmental |
|
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20-60C |
|
Humidity |
0 - 80% RH,
Non-condensing |
|
|
|
Physical
Properties |
|
|
Housing |
Metal |
|
Weight |
0.45 kg ( 0.99 lb
) |
|
Dimensions (L x W x
H) |
13.00 x 7.65 x 4.40
cm |
|
(5.12 x 3.01 x 1.73
in.) |
|
|
|
Package
Contents |
1x CS72U 2-Port USB KVM
Switch |
|
2x Custom KVM Cable
sets |
|
1x User
Instructions |
