Overview

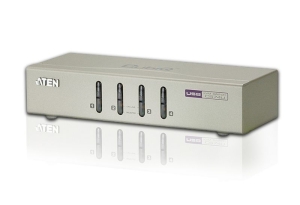

The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users
to access four computers from a single KVM console (keyboard and mouse, audio
and VGA monitor).
With the CS74U, you can access computers conveniently using port selection
pushbuttons located on the units front panel.
Setup is fast and easy; simply plug cables into their appropriate ports.
There is no software to configure, no installation routines, and no
incompatibility problems. Since the CS74U intercepts keyboard input directly, it
will work on multiple computing platforms.
Compatible Products
KVM Extenders
Package Contents
Patent No.
CN ZL 200710181531.5 , TW I285828 , TW I339467 , US 6934398 , US 7269265 , US
7585176
Features
-
One VGA console controls four USB
VGA interface computers
-
Computer selection via front panel
pushbuttons
-
Multiplatform support - Windows,
Linux and Mac
-
Audio Enabled full bass response
provides a rich experience for 2.1 channel surround sound systems
-
Superior video quality 2048 x
1536; DDC2B
-
Supports USB
hot-plugging
-
Non-powered

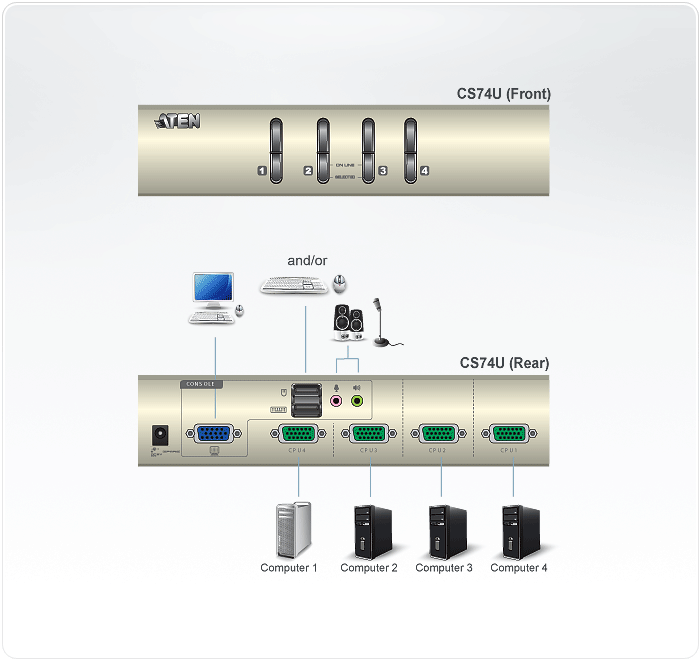

Diagram
Specifications
|
Computer
Connections |
4 |
|
Port
Selection |
Pushbutton |
|
Connectors |
|
Console
Ports |
2 x USB Type A Female
(Black) |
|
1 x HDB-15 Female
(Blue) |
|
1 x mini stereo Jack
Female (Pink) |
|
1 x mini stereo Jack
Female (Green) |
|
KVM
Ports |
4 x SPHD-18 Female
(Green) |
|
Power |
1 x DC 5V Jack
(Spare) |
|
LEDs |
|
Online |
4
(Orange) |
|
Selected |
4
(Green) |
|
Switches |
|
Selected |
4 x
Pushbuttons |
|
Video |
2048 x 1536 @ 60 Hz;
DDC2B |
|
Power
Consumption |
DC5V,
0.5W |
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20-60C |
|
Humidity |
0 - 80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.64 kg ( 1.41 lb
) |
|
Dimensions (L x W x
H) |
20.00 x 7.65 x 4.40
cm |
|
(7.87 x 3.01 x 1.73
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
