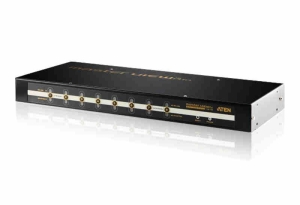

ATEN CS78 8-Port KVM Switch - Rackmountable

Overview

The CS78 KVM switch is a control unit that allows access to 8 computers from a single console (keyboard, monitor, and mouse). It provides pushbuttons and hotkey combinations for convenient computer selection. Setup is fast and easy; plugging cables into their appropriate ports is all that is entailed. A powerful Auto Scan feature also permits auto scanning and monitoring the activities of all computers on the installation one by one.

Compatible Accessories

KVM Cables

• 2L-1001P / C - Length: 1.8m
• 2L-1003P / C - Length: 3.0m
• 2L-1006P / C - Length: 6.0m
• 2L-1010P / C - Length: 10m
• 2L-1010P / C - Length: 10m
• 2L-1020P / C - Length: 20m
• 2L-1020P / C - Length: 20m
• 2L-1030P / C - Length: 30m
• 2L - 1040P / C - Length: 40m
• 2L-5001P /C - Length: 1.2m
• 2L-5002P / C - Length: 1.8m
• 2L-5003P / C - Length: 3m
• 2L - 5005P / C - Length: 5m
• 2L-5506UP - Length: 6m
• 2L-5502UP - Length: 1.8m
• 2L-5503UP - Length: 3m

Compatible Products

KVM Extenders

• CE350
• CE252
• CE250A

Package Contents

• 1 x CS78 KVM Switch
• 1 x Power Adapter
• 1 x Rack Mount Kit
• 1 x Foot Pad Set (4 pcs.)
• 1 x User Guide

Patent No.

US 6552914

Features

• One PS/2 console controls 8 computers
• Computer selection via front panel pushbuttons or hotkeys
• Keyboard and mouse emulation for error free booting
• Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse
• Auto Scan function to monitor computer operation
• Superior video quality: up to 1920 x 1440; DDC2B
• SVGA, VGA, and Multisync Monitor Support
• Hot Pluggable - Add or remove computers for maintenance without powering down the switch
• LED display for easy status monitoring
• Rack mountable in 19" (1U) system rack

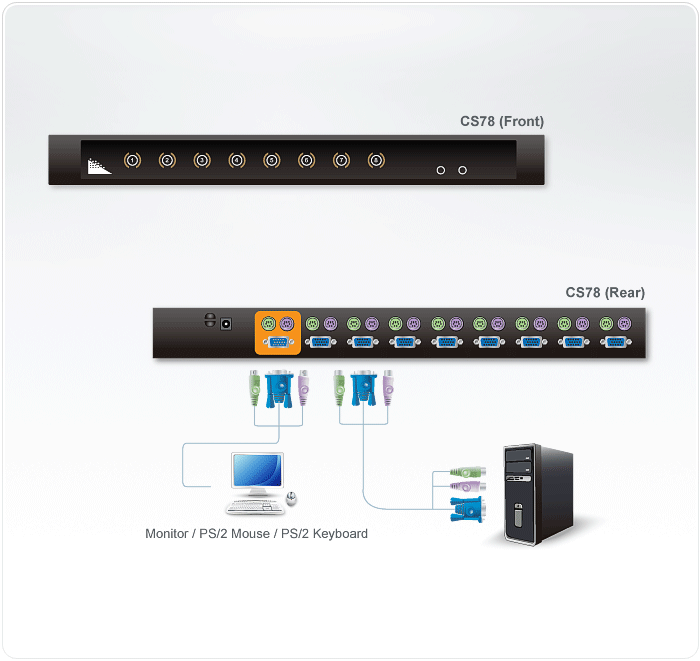

Diagram

Specifications
