All stock codes associated to this product
US434AT, US434-AT, USAUS434, USA-US-434, 4719264643798
Overview

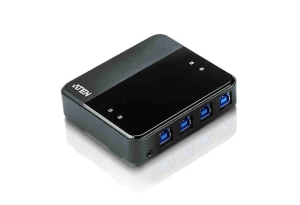

ATEN US434 is a 4-port USB 3.0 peripheral sharing device that allows users to
share four USB devices between 4 different computers. US434 is USB 3.0
compliant, which can support data transfer rate up to 5Gbps and backwards
compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices,
such as USB docking stations or HD cameras.
In addition, US434 also features an external remote port selector that can
simplify desktop layout, and select which computer needs to use the USB devices.
With its compact and all-in-one design, you can create a space saving,
convenient and productive work environment.
Package Contents
Patent No.
US 6564275
Features
-
Enables 4 computers to share 4 USB
3.0 devices
-
Simple port selection via remote
port selector for convenient switch placement
-
USB 3.0 compliant, supporting data
transfer rates of up to 5Gbps
-
LEDs indicates which computer is
active
-
Over-current
protection
-
Multiplatform support Windows,
Linux and Mac
-
Bus-powered
-
Micro USB power jack for
additional power supply
-
Hot pluggable, no driver or
software required

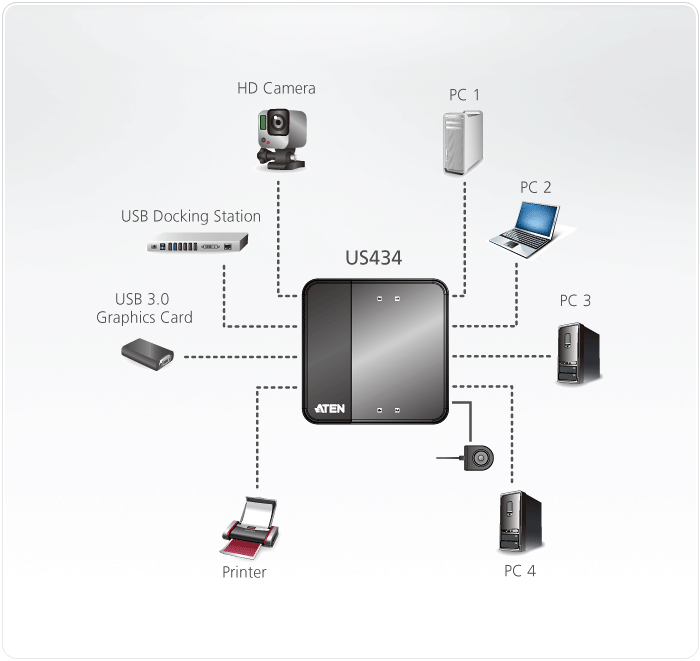

Diagram
Specifications
|
Computer
Connections |
4 |
|
Port
Selection |
Remote port
selector |
|
Connectors |
|
Computer |
4 x USB Type B Female
(Blue) |
|
Device |
4 x USB Type A Female
(Blue) |
|
Power
(Optional) |
1 x USB micro B Female
(Black) |
|
Cable
Length |
|
USB
Cable |
2 x 1.2 m / 2 x 1.8
m |
|
Remote Port
Selector |
1.8
m |
|
LEDs |
|
Selected |
4
(White) |
|
Environmental |
|
Operating
Temperature |
040C |
|
Storage
Temperature |
-2060C |
|
Humidity |
080% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.13 kg ( 0.29 lb
) |
|
Dimensions (L x W x
H) |
9.37 x 9.30 x 2.68
cm |
|
(3.69 x 3.66 x 1.06
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
