All stock codes associated to this product
STRIXX99GAMING, STRIX X99 GAMING, 3271405
Overview
The Gamer's Edge for X99
- Intel Core i7 X-Series processors on LGA 2011-v3 socket
| Quad-channel
DDR4 3333 (OC) support |
| OC Socket,
5-Way Optimization and second-generation T-Topology: Easy and stable
overclocking |
| Aura RGB
illumination, Aura 4-pin RGB-strip header and customizable color decals: True
gaming aesthetics |
| SupremeFX and
Sonic Radar II: Flawless audio with stealthy, game-dominating overlay |
| Top-speed
protected networking: Intel Gigabit Ethernet, LANGuard and GameFirst
technology |
| Gamer's
Guardian: SafeSlot and smart DIY features |
| Ultra-speedy
transfers for faster gaming: 2x2 802.11ac MU-MIMO Wi-Fi, U.2 and M.2, USB 3.1
Type A+C, RAMCache |

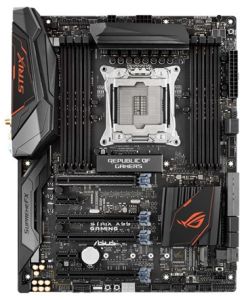

Strix is the newest recruit into the Republic of Gamers(ROG) and ROG Strix
X99 Gaming is the first ROG Strix motherboard. ROG Strix X99 delivers premier
performance, innovation, and confident dynamism to release your inner rebel. The
bold design and bright colors channel your spirit of fierce individualism,
charging every gaming experience with thrilling energy. Want to dominate with
epic speed and agility? Join the Republic with ROG Strix X99 Gaming!
GAMING AESTHETICS
MIX AND MATCH RGB WITH COLOR DECALS
Gaming is about your style, your personality, and your passion. ROG Strix X99
Gaming is the gaming motherboard that lets you inject passion to project your
style and personality in full color!
AURA LIGHTING CONTROL
Customize your own favorite LED effects with Aura, the intuitive
lighting-control software, to cast a stunning multi-color glow across your build
via the motherboard's powerful built-in RGB LEDs or attached RGB strips via the
onboard 4-pin header, or both and in perfect synchronization! Fire up Aura and
then enjoy the creative freedom of 10 different lighting schemes. You're even
able to sync your lighting style with the ever-growing portfolio of Aura-capable
gear, and mix and match your Aura effects with the included color decals!
Static
/ Always on
Breathing
/ Fades in and out
Strobing
/ Flashes on and off
Color
Cycle / Fades between the colors of the rainbow
Music
Effect / Pulses to the beat of your music
CPU
/ Changes color with CPU load
Rainbow
/ A rolling multi-color glow
Comet
/ A stream of light with a tail
Flash
and Dash / Single-color stepped flashes
Glowing
Yoyo / A rebounding elastic beam
AURA 4-PIN RGB-STRIP
Forget the faff of external RGB controllers! With Aura RGB Strip header, it's
quick and easy to cast brilliant colors across your rig and room: Just slide
standard 12V RGB strips onto the 4-pin Aura RGB-strip headers, then weave your
lighting any way you like.
*The Aura RGB-strip header supports standard 5050 RGB LED strips
with a maximum power rating of 2A (12V). For maximum brightness, strip length
should not exceed 2m.
*One extension cable is included. RGB LED strip need to be
purchased separately
FLAWLESS AUDIO
THAT MAKES YOU PART OF THE GAME!
ROG Strix X99 Gaming's truly immersive SupremeFX sound is so alive with
realism that it hands you the vital competitive edge on every battlefield. With
near-lossless delivery and exclusive Sonic Radar II technology to pinpoint
enemies before they spot you, SupremeFX sounds stupendous and puts both your
ears and frags in front of everyone else!
SUPREMEFX
SHIELDED AUDIO, SUPERIOR SOUND
SupremeFX technology delivers high-fidelity, near-lossless audio no matter
how frantic your game becomes. The purity and stability of the remarkable 115dB
signal-to-noise ratio (SNR) is assured, with a shielded design,
electromagnetic-interference (EMI) cover and voltage-protected 5V power supply.
Supreme FX's superior components, including the trusted Realtek ALC1150 codec,
maximize acoustic performance and eliminate interference so you hear only the
very best from your gaming headset or speakers!
EMI Cover
Effective shielding against electromagnetic interference preserves the
integrity of audio signals for the best quality.
Dual Op Amplifiers
With two op-amps onboard you're able to pump exceptional audio to your
favorite cans, with 32-300-headphone impedance for great flexibility.
Premium Nichicon audio capacitors
Effective shielding against electromagnetic interference preserves the
integrity of audio signals for the best quality.
Audio line shielding
Blocks electromagnetic interference from the motherboard or add-ons to
provide cleaner audio.
SONIC RADAR II
SCAN AND DETECT TO DOMINATE!
Sonic Radar II displays a stealthy overlay that shows what your opponents and
teammates are up to on the battlefield, all managed via a simple control panel
and customizable game list. See the direction and origin of key in-game sounds,
and practice your enemy-pinpointing skill, plus Audio Enhancement technology
clarifies every last sound so you hear the distant sound of enemy footsteps and
become the hunter, not the hunted!
TOP-SPEED PROTECTEDNETWORKING
Only the quickest shot survive, so ROG Strix X99 Gaming banishes lag —
letting you annihilate your foes as fast as your trigger finger! Our engineers
pack in only the best networking technology, including tournament-level Intel
Gigabit Ethernet and ASUS-exclusive LANGuard and GameFirst technologies to keep
your connection fast, so always fire first and watch your enemies fall.
INTEL GIGABIT ETHERNET
MORE THROUGHPUT, LESS CPU USAGE AND GREAT GAMING EXPERIENCES
ROG Strix X99 Gaming features the very latest Intel Ethernet (I218-V) for
faster, smoother gaming always. Intel's LAN has the serious double advantage of
reducing CPU overhead and offering exceptionally high TCP and UDP throughput.
This significantly reduces the processor's workload, so there's more power for
your game and your gameplay.
LANGUARD
PUMPED-UP THROUGHPUT. BEST SURGE PROTECTION
LANGuard means safer, more reliable connections for your battles! Advanced
signal-coupling technology and premium surface-mounting processes join forces to
protect your ROG Strix X99 Gaming's connection and deliver pumped-up throughput,
plus electrostatically-guarded and surge-protected components (ESD Guards) for
1.9X-greater tolerance to static electricity and 2.5X-greater protection (up to
15KV) against surges!
GAMEFIRST
TEAM UP TO BANISH LAG
GameFirst IV optimizes network traffic for faster, lag-free online gaming and
now we've added Multi-Gate Teaming to team all your networks for maximum
bandwidth and the smoothest-ever gameplay. You'll also enjoy all-new Intelligent
mode, which automatically compiles a database by parsing new app data to ensure
that every game is optimized for the best performance.
MULTI-GATE TEAMING
Team all your network gateways for maximum bandwidth and assign connections
to every application for the smoothest-ever gameplay.
LEVEL-UPPERFORMANCE
Maxed-out performance means maximum gaming thrills, and with ASUS exclusive
OC socket and AI Suite 3's dashboard-style control panel, you'll fine-tune
almost every aspect of your ROG Strix X99 Gaming -based system. Get the best
balance between performance, cooling, stability, efficiency and aesthetics all
via a simple and intuitive interface.
|
UNLEASH THE TRUE PERFORMANCE OF NEW INTEL CORE I7 PROCESSOR FAMILY FOR
SOCKET LGA 2011-V3 IN FUTURE
ROG Strix X99 Gaming motherboards are engineered from the ground up to
get the most from new Intel Core i7 processor family for socket LGA
2011-v3 and extract every ounce of performance from Intel's latest
architecture. ASUS delivers the BEST of motherboards for gamers,
enthusiasts, content creation professionals and passionate
DIYers. |
ASUS PIONEERED OC SOCKET DRIVE CPU AND DDR4 PERFORMANCE BEYOND ALL
EXPECTATIONS
Designed to break performance barriers, ASUS OC Socket utilizes extra pins to
connect a proprietary circuit to contacts found on land grid array (LGA).
Combined with our customized UEFI, this exclusive feature enables higher DDR4
memory frequencies, lower latencies and enhanced stability while overclocking,
extending all the way to extreme overclocking conditions, such as liquid
nitrogen (LN2). OC Socket is 100% compatible with all LGA 2011-v3 CPUs, ensuring
the ideal combination of overclocking performance and compatibility.
Reference design
Fewer Pins
ROG Strix X99 Gaming
Extra Pins
Under 100% load with CPU voltage set to extreme 1.825v
UNIQUE CACHE BUS VOLTAGE ADJUSTMENT
The cache bus links areas such as CPU cores, DDR4 memory controllers, system
agent and the shared L3 cache so it's a critical interconnect for the whole CPU
subsystem. A higher cache-bus frequency directly accelerates subsystem
performance, so ASUS OC Socket exclusively provides an adjustable cache-bus
voltage to reach higher cache bus frequencies.
- Reference tuning ratio range is up to 30. ASUS OC Socket tuning ratio
range is 45+!
- Cache bus links all the essential CPU areas together. Higher cache bus
frequency boosts PC performance!
MAKE YOUR MEMORY GO FASTER
DRIVE YOUR MEMORY FREQUENCIES TO 3333MHZ AND BEYOND
ASUS-exclusive T-Topology circuit design plus OC Socket provides a superb
memory-overclocking capability to unleash the full power of DDR4 by minimizing
coupling noise and signal reflection. With innovative equidistant memory
channels, it delivers the most balanced control and powerful overclocking
compatibility. ASUS works with almost every DDR4 memory vendor to ensure the
best compatibility.
ONE
CLICK OVERCLOCK AND COOLING, DONE!
GET PERFORMANCE, EFFICIENCY,
DIGITAL POWER, FAN CONTROL AND EVEN NETWORKING AND AUDIO TUNING TAILORED FOR YOU
AND THE WAY YOU PLAY! |
You don't need to be an expert to max out gaming performance on your ROG
Strix X99 Gaming build's gaming performance because 5-Way Optimization sorts all
the complex settings with a click, for instant, highly-controllable performance
boosts! Our exclusive technology dynamically optimizes essential aspects of your
system based on real-time use, so you get superb CPU performance, everyday
energy savings, ultra-stable digital power, cool and quiet fans and even
networking and audio settings that are tailored for the apps that you are using.
In short, 5-Way Optimization ensures that your PC is perfect for gaming,
entertainment, productivity or just about anything else!
| Games run
swiftly and smoothly with high performance, prioritized bandwidth and vivid
sound. |
| Fans stay
whisper-quiet for everyday computing, and ensure extreme cooling efficiency
when gaming. |
| Stutter is
eliminated for smooth-running apps, even under heavy loading. |
| Energy
waste is reduced so you'll save money. |
AWARD-WINNING BIOS DESIGN
The smoothest, slickest mouse-controlled graphical BIOS has been improved to
make it even more appealing. Whether you're a PC novice or a seasoned
overclocker, the EZ and Advanced Modes help you find your way. In EZ Mode you
can get set up very quickly, applying the date and time, fan profiles and Intel
Extreme Memory Profile (XMP) memory profiles. Switch to Advanced Mode to set up
favorites and shortcuts, record and review recent changes with Last Modified or
make notes in Quick Notes.
CrashFree BIOS 3
Never again worry about corrupted BIOS, as CrashFree BIOS 3 lets you restore
a PC to working order even when it won't boot!
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.
RAMCACHE
SPEED YOUR GAME LOADS
Uniquely-intelligent technology that effectively caches an entire storage
device so that favorite games and apps launch at breakneck speeds, getting to
work the moment it's activated. RAMCache turns milliseconds into microseconds to
boost game-load times to stratospheric levels!
ULTRA-FAST GAMINGCONNECTIVITY
With the fastest 802.11 ac MU-MIMO Wi-Fi, the newest U.2 socket for
lightning-speed NVM Express devices and the pace and convenience of reversible
USB 3.1 Type-C, Strix X99 kicks every game into top gear.
U.2
Join the NVMe revolution with built-in U.2 connector
Unlock the full potential of your storage with NVM Express (NVMe), the
revolutionary specification that lets your SSDs scream at top speed. Just attach
your drive to the built-in U.2 connector with plug-and-play ease to experience
data-transfer speeds of up to 32Gbit/s and free up a PCIe slot for another
expansion card!
USB 3.1 type A+C
Ultimate-speed 10Gbps with two USB 3.1 onboard
With one USB 3.1 Type-A port, and one reversible USB 3.1 Type-C, you'll
experience data-transfer speeds of up to 10Gbps or twice as fast USB 3.0. USB
3.1 is completely backward-compatible with your existing USB devices, and you'll
be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost
technology automatically accelerates USB 3.1 performance even further!
M.2 22110
Speed up with onboard M.2 up to 32Gbit/s
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s
data-transfer speeds. It is the perfect choice for an operating system or
application drive, making your whole PC or professional apps work as fast as
possible.
2x2 WiFi with MU MIMO
2X2 802.11AC WI-FI WITH MU-MIMO
ROG Strix X99 Gaming has next-level 802.11ac Wi-Fi with 2x2 dual-band
2.4/5GHz antennas for up to 867Mbit/s* transfer speeds and the very latest
Multi-User MIMO (MU-MIMO) technology to ensure that every connected user**
experiences the best wireless and online speeds!
* Actual speed varies, and Wi-Fi hotspot feature operates at
802.11a/b/g/n. Windows 10 does not currentlysupport Wi-Fi hotspot
functionality.
** Requires MU-MIMO-ready client.
GAMING GRAPHICS
3-WAY SLI /CROSSFIREX SUPPORTS
With support for both NVIDIA SLI and AMD CrossFireX 2/3-WAY
configurations, ROG Strix X99 Gaming motherboards enable multi-GPU setups so you
can harness the full power of the latest graphics technologies to drive games at
4K and beyond.
GAMER'S GUARDIAN FOR REAL-WORLDPROTECTION
Protect your back in the game and let ROG Strix X99 Gaming protect all sides
in the real world! Motherboard self-protection with loads of brilliant defenses,
including our unique smart DIY features ensures long-term gaming is in your
future.
PATENT
PENDING SAFESLOT
PROTECT YOUR GRAPHICS CARD INVESTMENT |
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide
superior retention and shearing resistance. Manufactured in a single step using
a new Insert-molding process integrates the slot with the fortifying metal for
an inherently stronger slot, which is then firmly anchored to the PCB through
additional solder points.
Digi+ VRM
Digi+ VRM voltage-regulator module (VRM) is one of the finest in the
industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all
times!
DRAM Over-current Protection
All connection ports and DRAM are protected against overcurrent and
short-circuit damage by onboard resettable fuses, extending your motherboard's
life.
Q-Code
Instantly recognizes and displays the POST status for precise
troubleshooting. Just check the code in the user guide to solve.
Stainless steel back I/O
Crafted from chromium-plated, corrosion-resistant stainless steel, the
input/output (I/O) panel is three times longer than ordinary panels!
CPU installation tool
1 Layer protection from socket-pin damage
Q-shield
0pain!
Protect your hands from nicks and cuts.
Q-Slot
1clip
to swap or secure your graphics card
Q-DIMM
1-sided
clips mean handling memory modules is a cinch super simple and super
secure.
Q-LED
4LEDs
indicate problems with the CPU, memory, graphics card or boot device for
quick diagnosis.
Q-connector
1piece
sorts all front-panel cables.
ESD
GUARDS
2X-GREATER ESD PROTECTION FOR EXTENDED COMPONENT
LIFESPAN |
ASUS ESD Guards actively protect against sudden electrostatic discharge
(ESD), meaning the components will last much longer and you get protection
that's up to twice as resilient as industry standards!
Audio connector
Capacitor protection on both front and back audio-output circuits.
WHAT'S IN THE BOX !
Customizable color decals - 3 sets for endless
customization
ROG cable stickers - 12 labels for your cables
ROG fan stickers - 3 badges of honor for your fans
Cable ties - 7 ties for better cable management
SATA Cable - 4 cables for greater storage
BEYONDVR READY
ROG Strix X99 Gaming isn't just VR Ready it goes way beyond! The ASUS ROG
Beyond VR Ready marque means that ROG Strix X99 Gaming has been tested with
loads of class-leading components to ensure that your productivity, gaming and
entertainment needs are tuned for maximum performance after you've taken off the
headset. ASUS Beyond VR Ready opens up a new way to configure and build your
dream system with total confidence.
THE POWER OF INTEL
Intel Core i7 Processor LGA2011-v3 Ready
This motherboard supports Intel Core i7 processors in the LGA2011-v3
package, with memory and PCI Express controllers integrated to support 4-channel
(8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.
Intel X99 Chipset
The Intel X99 Chipset is a single-chipset design that supports new Intel
Core i7 processor family for socket LGA 2011-v3 processors. It provides
improved performance by utilizing serial point-to-point links, allowing
increased bandwidth and stability. Additionally, X99 provides a maximum 6 USB
3.0 ports, 10 SATA 6Gbps ports and 32Gbps M.2 support for faster data
retrieval.
Specifications
|
CPU
|
Intel Socket 2011-v3
Core i7 X-Series Processors |
|
Supports Intel 14 nm
CPU |
|
Supports Intel Turbo
Boost Technology 3.0 |
|
* Refer to www.asus.com for CPU
support list |
|
|
|
Chipset
|
Intel
X99 |
|
|
|
Memory
|
8 x DIMM, Max. 128GB, DDR4 3333(O.C.)/3300(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/
2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory |
|
Quad Channel Memory
Architecture |
|
Supports Intel Extreme
Memory Profile (XMP) |
|
* Hyper DIMM support is
subject to the physical characteristics of individual
CPUs. |
|
* Refer to www.asus.com for the
Memory QVL (Qualified Vendors
Lists). |
|
|
|
Multi-GPU Support
|
Supports NVIDIA 3-Way
SLI Technology |
|
Supports NVIDIA 2-Way
SLI Technology |
|
Supports AMD 3-Way
CrossFireX Technology |
|
Supports AMD 2-Way
CrossFireX Technology |
|
|
|
Expansion Slots
|
3 x PCIe 3.0/2.0 x16 ( x16, x16/x16, x8/x16/x8 mode with 40-LANE CPU;
x16, x16/x8, x8/x8/x8 mode with 28-LANE CPU) |
|
1 x PCIe 2.0 x16 (x4
mode) |
|
2 x PCIe 2.0 x1
*1 |
|
|
|
Storage
|
New Intel Core i7
X-Series Processors : |
|
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support
(Support PCIE SSD only) |
|
1 x U.2 port, support
PCIe 3.0 x4 NVM Express storage |
|
|
|
Intel X99 chipset
: |
|
1 x SATA Express port,
Compatible with 2 x SATA 6.0 Gb/s ports |
|
8 x SATA 6Gb/s
port(s), |
|
Supports Intel Smart
Response Technology, Intel Rapid Recovery
Technology*2 |
|
|
|
LAN
|
Intel I218V, 1 x
Gigabit LAN Controller(s) |
|
|
|
Wireless Data
Network |
Wi-Fi 802.11
a/b/g/n/ac |
|
Supports dual band
frequency 2.4/5 GHz |
|
Supports
MU-MIMO |
|
|
|
Bluetooth
|
Bluetooth
V4.1 |
|
|
|
Audio
|
ROG SupremeFX 8-Channel
High Definition Audio CODEC |
|
- Supports :
Jack-detection, Multi-streaming, Front Panel
Jack-retasking |
|
|
|
Audio Feature
: |
|
- SupremeFX Shielding
Technology |
|
- Optical S/PDIF out
port(s) at back panel |
|
- Audio amplifier:
Provides the highest-quality sound for headphone and
speakers |
|
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with
exceptional clarity and fidelity |
|
- Sonic Radar
II |
|
|
|
USB Ports
|
Intel X99 chipset
: |
|
5 x USB 3.0 port(s) (1
at back panel, blue, 4 at mid-board) |
|
|
|
Intel X99 chipset
: |
|
8 x USB 2.0 port(s) (4
at back panel, , 4 at mid-board) |
|
|
|
ASMedia USB 3.0
controller : |
|
3 x USB port(s) (3 at
back panel, blue) |
|
|
|
ASMedia USB 3.1
controller : |
|
2 x USB 3.1 port(s) (2
at back panel, , Type-A + Type-C) |
|
|
|
ROG Exclusive
Features |
ROG
RAMCache |
|
Overwolf |
|
GameFirst
IV |
|
USB BIOS
Flashback |
|
Special Features
|
|
5-Way Optimization
by Dual Intelligent Processors 5 |
|
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4,
and Turbo Core App |
|
Gamer's
Guardian: |
|
- ESD Guards on LAN,
Audio, KBMS and USB3.1/3.0/2.0 ports |
|
- DRAM Overcurrent
Protection |
|
- Stainless Steel Back
I/O |
|
- Highly Durable
Components |
|
- DIGI+
VRM |
|
ASUS Exclusive
Features : |
|
- USB BIOS
Flashback |
|
-
MemOK! |
|
- AI Suite
3 |
|
- Ai
Charger+ |
|
- ESD
Guards |
|
- USB 3.0
Boost |
|
- USB 3.1
Boost |
|
- Disk
Unlocker |
|
- Mobo
Connect |
|
- PC
Cleaner |
|
ASUS Quiet Thermal
Solution : |
|
- ASUS Fan Xpert
4 |
|
ASUS EZ DIY
: |
|
- ASUS CrashFree BIOS
3 |
|
- ASUS EZ Flash
3 |
|
- Push
Notice |
|
ASUS Q-Design
: |
|
- ASUS
Q-Shield |
|
- ASUS
Q-Code |
|
- ASUS Q-LED (CPU,
DRAM, VGA, Boot Device LED) |
|
- ASUS
Q-Slot |
|
- ASUS
Q-DIMM |
|
- ASUS
Q-Connector |
|
RAMCache |
|
AURA: RGB Lighting
Control |
|
|
|
Operating System
Support |
Windows 10 ,
64bit |
|
Windows 8.1 ,
32bit/64bit |
|
Windows 7 ,
32bit/64bit |
|
|
|
Back I/O Ports
|
1 x PS/2 keyboard/mouse
combo port(s) |
|
1 x LAN (RJ45)
port(s) |
|
1 x USB 3.1
(red)Type-A |
|
1 x USB 3.1
(black)Type-C |
|
4 x USB 3.0
(blue) |
|
4 x USB 2.0 (one port
can be switched to USB BIOS Flashback) |
|
5 x Audio
jack(s) |
|
1 x USB BIOS Flashback
Button(s) |
|
1 x ASUS Wi-Fi GO!
module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0 |
|
|
|
Internal I/O Ports
|
1 x U.2
port |
|
1 x AAFP
connector |
|
1 x Aura RGB Strip
Header |
|
2 x USB 3.0
connector(s) support(s) additional 4 USB 3.0
port(s) |
|
2 x USB 2.0
connector(s) support(s) additional 4 USB 2.0 port(s) |
|
1 x SATA Express
connector: , Compatible with 2 x SATA 6.0 Gb/s ports |
|
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support
(Support PCIE SSD only) |
|
8 x SATA 6Gb/s
connector(s) |
|
1 x CPU Fan
connector(s) |
|
1 x CPU OPT Fan
connector(s) |
|
2 x Chassis Fan
connector(s) |
|
1 x Thunderbolt
header(s) |
|
1 x 24-pin EATX Power
connector(s) |
|
1 x 8-pin ATX 12V Power
connector(s) |
|
1 x 4-pin ATX 12V Power
connector(s) |
|
1 x EZ XMP
switch |
|
1 x 5-pin
EXT_FAN(Extension Fan) connector |
|
1 x DRCT
header(s) |
|
1 x MemOK!
button(s) |
|
1 x Thermal sensor
connector(s) |
|
1 x CPU
OV |
|
1 x Power-on
button(s) |
|
1 x Reset
button(s) |
|
1 x Clear CMOS
jumper(s) |
|
1 x Water Pump header
(4-pin) |
|
1 x ROG extension
(ROG_EXT) header(s) |
|
1 x 14-1 pin TPM
connector |
|
1 x COM port
header |
|
1 x High AMP Fan header
(4-pin) |
|
|
|
Accessories
|
User's
manual |
|
I/O
Shield |
|
4 x SATA 6Gb/s
cable(s) |
|
1 x M.2 Screw
Package |
|
1 x CPU installation
tool |
|
1 x Supporting
DVD |
|
1 x ASUS 2T2R dual band
Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac
compliant) |
|
1 x Cable ties
pack(s) |
|
ROG Fan
Label |
|
1 x Extension Cable for
RGB strips (80 cm) |
|
|
|
BIOS
|
128 Mb Flash ROM, UEFI
AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language
BIOS, |
|
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control,
F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD
(Serial Presence Detect) memory information. |
|
|
|
Manageability
|
WfM 2.0, WOL by PME,
PXE |
|
|
|
Form Factor
|
ATX Form
Factor |
|
12 inch x 9.6 inch (
30.5 cm x 24.4 cm ) |
|
|
|
Note
|
*1 The PCIEX4_1, PCIEX1_2, and USB3.1_EC1EA2 connectors share the same bandwidth.
By default, the PCIEX4_1 slot and PCIEX1_2 slot automatically run at x1 mode with USB3.1_EC1 and
USB3.1_EA2 enabled for best resource optimization. |
|
*2 These functions will
work depending on the CPU
installed. |
