All stock codes associated to this product
DCH100KT, DCH-100KT, DL20312, 790069417047
Overview
This clever little starter kit gives you the ability to set, control, monitor
and automate your home from anywhere. The Smart Home HD Starter Kit includes a
Smart Plug (DSP-W215), a Wi-Fi Motion Sensor (DCH-S150) and a Monitor HD
(DCS-935L).
These devices talk to each other and with the mydlink Home smartphone and
tablet app you can decide what it is you would like them to do. This is clever
stuff implemented to make your life easier and safer with added peace of mind.
It is smart home technology at its most futuristic.
Easy To Set Up
Simply download the mydlink Home app and the step by step setup wizard will
help you set up all the devices in the kit
Your mydlinkâ„¢ Home
mydlinkâ„¢ Home allows you to start with this convenient starter kit and add
more when you want to. The unique mydlinkâ„¢ Home App1 for iOS and Android
smartphone and tablet puts you in control of all your mydlinkâ„¢ Home smart
devices. You can even setup automation rules to make your home smarter.

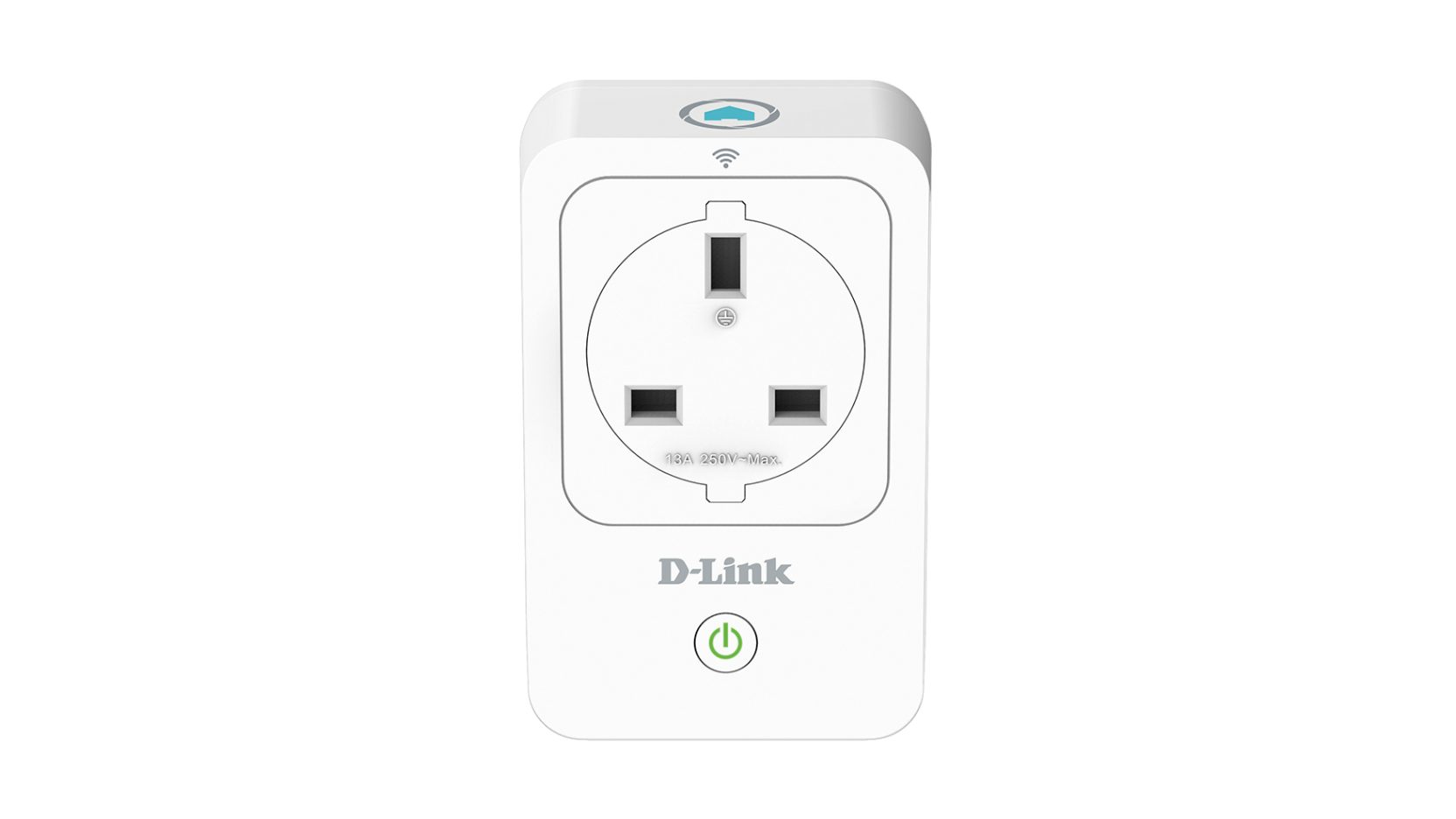

mydlink Home Smart Plug DSP W215
Turn Devices On/Off with Smart Plug
Instantly turn devices on or off from your iOS or Android smartphone or
tablet using the mydlinkâ„¢ Home app, wherever you are
Create on/off schedules to have your appliances work for you when you
want them to.
The integrated thermal sensor automatically turns off overheating power
sockets, giving you peace of mind2.
Automatic alerts to notify you when an appliance has
been:
mydlink Home Monitor HD DCS 935L
View From Anywhere with Monitor HD
Alerts you with push notification whenever motion or sound is detected.
Built-in night vision function allows you to see up to 5 metres even in
complete darkness
Enhanced Motion Detection with Wi-Fi Motion Sensor
The passive Infrared (PIR) motion sensor greatly reduces false alarms to
ensure you are alerted only when needed.
Motion detection up to 8 metres (100° horizontal / 80° vertical). Automatic
alerts to notify you when motion is detected.
Specifications
|
DSP-W215 Smart
Plug |
|
|
Device
Interface |
802.11b/g/n wireless
with WPA/WPA2 encryption |
|
WPS button / reset
button |
|
|
|
LEDs |
Power/Status |
|
|
|
Functionality |
|
|
Support
Functions |
Smart remote
control |
|
Push
notifications |
|
Energy usage
statistics |
|
Power
scheduling |
|
Overheat
protection |
|
|
|
Physical |
|
|
Dimensions |
96.5 x 62 x 76.7
mm |
|
|
|
Weight |
180 g
(EU) |
|
173 g
(UK) |
|
|
|
Power |
Input: 100 to 240 V
AC |
|
|
|
Maximum
Load |
16A,
250V |
|
|
|
Power
Consumption |
Maximum 5
W |
|
|
|
Temperature |
Operating: 0 to 40 C
(32 to 104 F) |
|
Storage: -20 to 65 C
(-4 to 149 F) |
|
|
|
Humidity |
Operating: 10% to 90%
non-condensing |
|
Storage: 5% to 95%
non-condensing |
|
|
|
Certifications |
FCC |
|
UL |
|
|
|
DCH-S150 Wi-Fi
Motion Sensor |
|
|
Device
Interfaces |
802.11b/g/n wireless
with WPA/WPA2 encryption |
|
WPS button / reset
button |
|
|
|
LED |
Status/WPS |
|
|
|
PIR
Sensor |
8 metres (100
horizontal / 80 vertical) detection range
|
|
|
|
Antennas |
One internal
antenna |
|
|
|
Plug
Type |
Region
dependent |
|
|
|
Physical |
|
|
Dimensions |
58 x 54 x 43.5 mm (2.28
x 2.13 x 1.71 inches) |
|
|
|
Weight |
80 grams (2.82
ounces) |
|
|
|
Power |
Input: 220 to 240 V AC,
50/60 Hz |
|
|
|
Temperature |
Operating: 0 to 40 C
(32 to 104 F) |
|
Storage: -20 to 65 C
(-4 to 149 F) |
|
|
|
Humidity |
Operating: 10% to 90%
non-condensing |
|
Storage: 5% to 95%
non-condensing |
|
|
|
Certifications |
FCC,
CE |
|
UL,
CE/LVD |
|
|
|
|
|
DCS-935L Monitor
HD |
|
|
Camera Hardware
Profile |
1/4 Megapixel
progressive CMOS sensor |
|
5 metre IR illumination
distance |
|
Minimum illumination: 0
lux with IR LEDs on |
|
Built-in Infrared-Cut
Removable (ICR) Filter module |
|
4X digital
zoom |
|
Lens: Fixed length 2.38
mm |
|
Aperture:
F2.4 |
|
Angle of
view: |
|
(H)
78.44 |
|
(V)
47.9 |
|
(D)
85.98 |
|
Minimum object
distance: 434 mm |
|
Exposure Time: 1/7.5 to
1/24,000 sec. |
|
Built-in
microphone |
|
|
|
Features |
Time stamp and text
overlays |
|
Configurable motion
detection windows |
|
|
|
Video
Compression |
Simultaneous
H.264/MJPEG format compression |
|
JPEG for still
images |
|
|
|
Video
Resolution |
1280 x 720 at frame
rates up to 30 fps |
|
|
|
Audio
Compression |
AAC |
|
G.711 |
|
|
|
Connectivity |
802.11b/g/n/ac wireless
with WEP/WPA/WPA2 encryption |
|
|
|
Advanced
Features |
|
|
Event
Management |
Motion
detection |
|
Sound
detection |
|
|
|
General |
|
|
Dimensions |
58.0 x 84.5 x 124.9 mm
(2.28 inches x 3.33 inches x 4.92 inches) |
|
|
|
Weight |
160.0 g (5.6 ounces)
5% |
|
|
|
Power |
5 V DC 1.2 A, 50/60
Hz |
|
|
|
Power
Consumption |
3.5 watts
maximum |
|
|
|
Temperature |
Operating: 0 to 40 C
(32 to 104 F) |
|
Storage: -20 to 70 C
(-4 to 158 F) |
|
|
|
Humidity |
Operating: 20% to 80%
non-condensing |
|
Storage: 20% to 80%
non-condensing |
|
|
|
Certifications |
CE |
|
CE
LVD |
|
FCC Class
B |
|
C-Tick |
|
|
|
1 mydlink
Home app is available for iOS and Android devices. Please refer to the
mobile apps store page to check whether your device is
compatible. |
