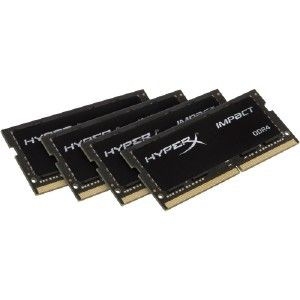

Kingston 64GB (4x16GB) PC4-2400MHz DDR4 SO-DIMM RAM Memory Kit - 15-15-15 - Hyper X Impact Series - Black
  • 2400Mhz, 64GB (4x16GB) 260-Pin DIMM, 15-15-15, Unbuffered, 1.2v

IMG 1 of 1
No Longer Available
Part Number:
409671
(?) Brand:
Kingston Web Site
Manuf No:
HX424S15IBK4/64
Shipping Weight:
0.25 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
HX424S15IBK4/64

Description

HyperX HX424S15IBK4/64 is a kit of four 2G x 64-bit (16GB) DDR4-2400 CL15 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit DDR4 FBGA components. Total kit capacity is 64GB. Each module supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. This module has been tested to run at DDR4-2400 at a low latency timing of 15-15-15 at 1.2V. Additional timing parameters are shown in the PnP Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:

PnP JEDEC TIMING PARAMETERS:

  • JEDEC/PnP: DDR4-2400 CL15-15-15 @1.2V,  DDR4-2133 CL14-14-14 @1.2V
  • XMP Profile #1: DDR4-2400 CL15-15-15 @1.2V

Features

  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP - 2.5V Typical
  • VDDSPD = 2.25V to 3.6V
  • On-Die termination (ODT)
  • 16 internal banks; 4 groups of 4 banks each
  • Bi-Directional Differential Data Strobe
  • 8 bit pre-fetch
  • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
  • Height 1.18 (30.00mm)

Specifications

CL(IDD)

:

15 cycles

Row Cycle Time (tRCmin)

:

46.75ns (min.)

Refresh to Active/Refresh
Command Time (tRFCmin)

:

350ns (min.)

Row Active Time (tRASmin)

:

29.125ns (min.)

Maximum Operating Power

:

TBD W*

UL Rating

:

94 V - 0

Operating Temperature

:

0o C to +85o C

Storage Temperature

:

-55o C to +100o C

*Power will vary depending on the SDRAM used.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Kingston) web site.
