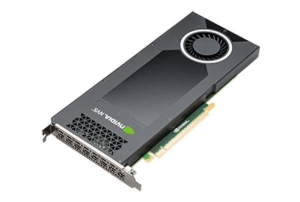

Leadtek Nvidia Quadro NVS810 - 4GB, DDR3 - Retail Pack

Overview

The NVIDIA® NVS™ 810 graphics board delivers exceptional display connectivity, cost-effective scalability, and advanced image management capabilities that make it easy to drive any kind of multi-display digital signage setup. It’s the first of its kind to offer eight display outputs, combined with the world’s most advanced GPU architecture—all in a single-slot form factor.

Technical Specifications

Supported Platforms

• Microsoft Windows 10 (64-bit and 32-bit)
• Microsoft Windows 8.1 (64-bit and 32-bit)
• Microsoft Windows 7 (64-bit and 32-bit)
• Linux - Full OpenGL implementation, complete with NVIDIA and ARB extensions (64-bit and 32-bit)
• 3D Graphics Architecture

• Scalable geometry architecture
• Hardware tessellation engine
• FXAA/TXAA dedicated anti-aliasing engine¹
• Shader Model 5.0 (OpenGL 4.5 and DirectX 12)
• Up to 16K x16K texture and render processing
• Transparent multisampling and super sampling
• 16x angle independent anisotropic filtering
• 32-bit per-component floating point texture filtering and blending
• Up to 64x full scene antialiasing (FSAA)
• Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
• Dedicated H.264 Encoder¹
• NVIDIA GPU Boost (Automatically increases GPU engine throughput to maximize application performance.)
• Parallel Computing Capabilities

• Streaming Multi-Processor Design (SM 5.0) delivers high performance and energy efficiency
• Support for all the latest CUDA 7.5 features
• Programming support for CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Python, and Fortran
• Advanced Display Features

• Simultaneously drive up to eight displays when connected natively or when using DisplayPort 1.2 Multi-Stream
• Eight DisplayPort 1.2 outputs including Multi-Stream and HBR2 support (capable of supporting resolutions such as 4096x2160 @30Hz when all eight displays are connected)
• DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables available (resolution support based on dongle specifications)
• DisplayPort 1.2, HDMI, and DVI support HDCP
• 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
• Underscan/overscan compensation and hardware scaling
• Support for NVIDIA Mosaic, NVIDIA nView multi-display technology, NVIDIA Enterprise Management Tools
• DisplayPort and HDMI Digital Audio

Support for the following audio modes:

• Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), DTS-HD, TrueHD
• Output data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz (HDMI only), and 192 KHz (HDMI only)
• Word sizes of 16-bit, 20-bit, and 24-bit
• NVIDIA nView Desktop Management Software
• Boosts productivity by delivering maximum flexibility for single and multi-display set-ups, and provides unprecedented end-user control of the desktop experience.
• Seamless integration within the Windows environment
• Easy to use Setup Wizard
• Extended Windows Taskbar to spread the application buttons across displays
• Get virtual sub-displays with Gridlines to make best use of large display setups
• Create Virtual Desktops to maximize work area and reduce application clutter
• Complete set of Hot Keys
• User Profiles for easier system deployments

• NVIDIA Mosaic Technology

• Enhance your workspace over multiple displays (up to 16 displays when used with multiple NVS 810 Graphics Cards)
• Enables seamless taskbar spanning as well as transparent scaling of any application over multiple displays

• NVIDIA Enterprise Management Tools³

• Monitor, access & configure graphics and display information of remote machines using industry standard WMI Interface
• Scriptable using WMI Command Line interface for integration with System level Management tools
• Scalable Enterprise-Class tools to remotely install & configure graphics drivers across your entire organization
