All stock codes associated to this product
326M2004100, QK1200DVI, Q-K1200DVI, K1200-DVI, LT20190
Overview
Accelerate your creativity with NVIDIA® Quadro® K1200—the world’s
most powerful workstation graphics for small form factor
workstations.

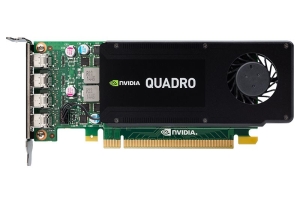

The NVIDIA Quadro K1200 offers incredible 3D application performance in a
compact footprint. Its flexible single-slot and low-profile form factor makes it
compatible with even the most space and powerconstrained workstation chassis. 4
GB of GDDR5 GPU memory with fast bandwidth enables you to create large, complex
3D models, and an all-new display engine drives up to four displays natively
with DisplayPort 1.2 support for true 4K resolutions like 3840x2160 @ 60 Hz with
30-bit color.
Quadro cards are certified with a broad range of sophisticated professional
applications, tested by leading workstation manufacturers, and backed by a
global team of support specialists. This gives you the peace of mind to focus on
doing your best work. Whether youre developing revolutionary products or telling
spectacularly vivid visual stories, Quadro gives you the performance to do it
brilliantly.
Features
- Four Mini DisplayPort 1.2 Connectors
- DisplayPort with Audio
- VGA and DVI Support
- NVIDIA nViewâ„¢ Desktop Management Software Compatibility
- HDCP Support
- NVIDIA Mosaic
Specifications
GPU
Memory |
4 GB
GDDR5 |
Memory
Interface |
128-bit |
Memory
Bandwidth |
80
GB/s |
NVIDIA CUDA
Cores |
512 |
System
Interface |
PCI Express 2.0
x16 |
Max Power
Consumption |
45
W |
Thermal
Solution |
Ultra-Quiet Active
Fansink |
Form
Factor |
2.7 H 6.3 L, Single
Slot, Low Profile |
Display
Connectors |
4x Mini DP
1.2 |
Max Simultaneous
Displays |
4 direct, 4 DP 1.2
Multi-Stream |
Max DP 1.2
Resolution |
3840 x 2160 at 60
Hz |
Max DVI-I DL
Resolution |
2560 1600 at 60
Hz |
Graphics
APIs |
Shader Model 5.0,
OpenGL 4.5, DirectX 12.0 |
Compute
APIs |
CUDA, DirectCompute,
OpenCL |
Accessory: |
|

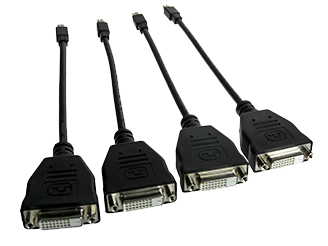

Option A: MDP-DVI X 4

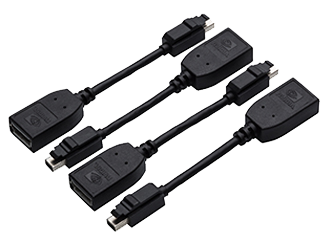

Option B: MDP-DP X 4
Braket : Only contain Low Profile bracket in color box
