All stock codes associated to this product
M4000, VCLM4000, VCL-M4000, 4710918138028, 4710918137854
Overview
Get real interactive expression with NVIDIA® Quadro®—the world’s most
powerful workstation graphics.

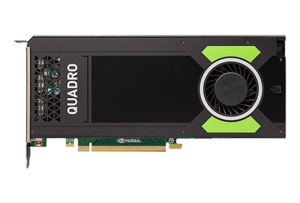

The NVIDIA Quadro M4000 is accelerated by NVIDIA Maxwell GPU architecture,
letting you easily tackle your most demanding visualization workloads with
extreme performance and the flexibility of a single-slot form factor. 8 GB of
GDDR5 GPU memory with fast bandwidth allows you to create and render large,
complex models and compute massive datasets. Plus, theres a new display engine
that drives up to four 4K resolution displays natively with DisplayPort 1.2
support for ultrahigh resolutions like 4096 x 2160 @ 60 Hz with 30-bit color.
Pair up two or more outputs to drive displays greater than 4K, and take
advantage of NVIDIA Quadro Sync support to frame-lock up to 16 4K displays in a
single system. Quadro cards are certified with a broad range of sophisticated
professional applications, tested by leading workstation manufacturers, and
backed by a global team of support specialists. This gives you the peace of mind
to focus on doing your best work. Whether youre developing revolutionary
products or telling spectacularly vivid visual stories, Quadro gives you the
performance to do it brilliantly.
Features
-
Four DisplayPort 1.2 Connectors
-
DisplayPort with Audio
-
VGA Support
-
3D Stereo Support
-
NVIDIA GPUDirect Support
-
Quadro Sync Compatibility
-
Stereo Connector
-
NVIDIA nView Desktop
Management
Software
Compatibility
-
HDCP Support
-
NVIDIA Mosaic
1 NVIDIA Quadro Sync board sold separately. Learn more at
www.nvidia.com/quadro | Via adapter/connector/bracket | Windows 7, 8, 8.1, 10
and Linux
Specifications
|
GPU
Memory |
8 GB
GDDR5 |
|
Memory
Interface |
256-bit |
|
Memory
Bandwidth |
192
GB/s |
|
NVIDIA CUDA
Cores |
1664 |
|
System
Interface |
PCI Express 3.0
x16 |
|
Max Power
Consumption |
120
W |
|
Thermal
Solution |
Active |
|
Form
Factor |
4.4 H 9.5 L,Single
Slot, Full Height |
|
Display
Connectors |
4x DP
1.2 |
|
Max Simultaneous
Displays |
4 direct, 4 DP 1.2
Multi-Stream |
|
Max DP 1.2
Resolution |
4096 2160 at 60
Hz |
|
Max VGA
Resolution |
2048 1536 at 85
Hz |
|
Graphics
APIs |
Shader Model 5.0,
OpenGL 4.5, DirectX 12.0 |
|
Compute
APIs |
CUDA, DirectCompute,
OpenCL |
