All stock codes associated to this product
M2870VQ, 4717385942042
Overview

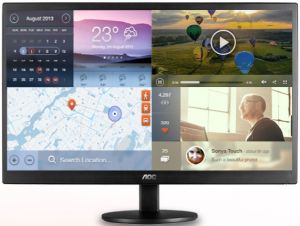

Built upon the advanced technology of the AOC 70Series, the M2870VQ comes
equipped with a stunning 28 MVA wide-view display panel. The 8-bit True
Colorscreen is capable of displaying 16.7 million hues.A high contrast ratio of
3,000:1 ensures that images look brighter, sharper, more detailed and vivid.The
hair-line textured casing provides a luxurious finish, adding a touch of
refinement to any living space. Inputs include VGA, DVI, DisplayPort and HDMI,
ensuring the AOC M2870VQ is well equipped for current and future digital video
and sound connections.
Features
MVA Panel
- Wide View-No changes in brightness or color from any viewing angle.
- Real Color- Consistent, unifonn color at all points on the screen.
- High contrast ratio (3000:1) image look brighter, sharper, more detailed
and vivid.
Screen + Software
The bundled Screen+ software splits the PC workspace into four self-contained
panes to group application windows for easier viewing. Screen+ also supports
multiple monitors.
16.7 Million Colors
FRC 8-bit panel can display 0.5 million more colors than the typical TN 6-bit
panel.
Ultra Low Power Consumption
The LED backlight panel requires 50% less energy than typical 4CCFL
monitors.
i-Menu
Included PC software allows the user to change the OSD settings using their
mouse.
e-Saver
Software enables the user to set a low power configuration of the monitor
when the PC is in screen saving, PC off, and user absence. User can choose the
time to turn the monitor off, to save power consumption.
Off Timer
To save power, a timer can be set to automatically turn off the monitor after
a user-defined interval.
Hair-line Texture
Brushed surface textures provide a luxury look and feel.
Display Port
DisplayPort is designed to be the future digital video and sound connection
standard, capable of higher performance and convenience than older fonnats.
Multimedia-Ready with HDMI Input
HDMI (High-Definition Multimedia Interface) is the digital video and sound
standard for connecting the latest consumer electronics like Blu-ray players and
game consoles.
Specifications
|
Panel
Size |
28" |
|
Screen
Ratio |
16:09 |
|
Response Time
(Typical) |
4ms |
|
Recommended
Resolution |
1920x1080 |
|
Contrast
Ratio |
3,000:1
(Typical) |
|
20,000,000:1(DCR) |
|
Brightness
(Typical) |
300
cd/m |
|
Display
Color |
16.7M |
|
Viewing Angle
(H/V) |
176/176 |
|
Viewable Image Size
(mm) |
711 |
|
Display Area
(mm) |
620.9 (H) 336.31
(V) |
|
Pixel Pitch
(mm) |
0.32 (H) 0.32
(V) |
|
Scan Frequency
(H/V) |
30-83KHz/50-76Hz |
|
Pixel
Frequency |
148.5MHz |
|
Input
Signal |
Analog & DVI &
HDMI & DisplayPort |
|
Input
Connectors |
D-Sub 15-pin & DVI
24pin |
|
& HDMI &
DP |
|
Built-in
Speakers |
YES |
|
HDCP
Compatible |
YES |
|
Input
Power |
100-240VAC,
50/60Hz |
|
Power
Supply |
internal |
|
Operatiog Pode
(W) |
41 |
|
Standby Pode
(W) |
<0.5 |
|
Wall
Mount |
VESA
100x100mm |
|
Cabinet
Color |
Black |
|
Phys. (WHD)
mm |
642.4x449.3x241.9 |
|
Package Box (WHD)
mm |
730x500x145 |
|
Plug &
Play |
VESA DDC2B &
DDC2B/CI |
|
User
Control |
Source/Auto/Exit,
Left/Clear Vision, |
|
Right/Volume,
Menu/Enter, Power |
|
OSD
Languages |
16 |
|
Safety
Regulation |
CCC, CB, CE, FCC,
C-Tick N26268, |
|
cTUVus, EPA, TUV-GS,
ISO9241-307, |
|
Windows 8, CECPERGO, EU
RoHS Doc, |
|
BSMI, VCCI, J-Moss,
e-Standby, CU, |
|
TCO 6, KCC,
KC |
