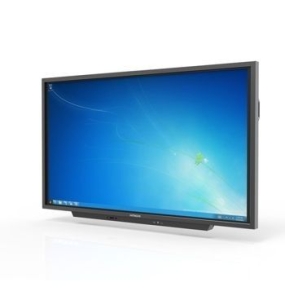

Hitachi HILF75101 75" FHD Interactive LCD Display
  • 75" TFT LCD (1920 x 1080 Resolution), 120Hz, 400 cd/m2, 5000:1, 10-Points Touch Screen, OSD, 3.5mm Audio, VGA, USB, HDMI, RS232, Speaker

IMG 1 of 1
No Longer Available
Part Number:
409776
(?) Brand:
Hitachi
Manuf No:
HILF75101
Shipping Weight:
90 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
HILF75101, MNHHILF75101, MNH-HILF75101

Overview

Experience the freedom and simple efficiency of running your next lesson, meeting, or presentation using an interactive LED backlit, LCD display. This 75 inch display will form the centre piece of even the most aesthetic spaces, while providing you with an incredibly useful and engaging way to run your sessions. The panel uses integrated infra-red sensors to detect contact with the screen and gives you the unique ability to control your computer by touching the image.

What's more, it's available with an OPS slot that allows it to be used with an optional built in OPS compliant PC, which eliminates the need for connecting to any external sources. Simply walk in, turn it on and use, to experience the most effective and engaging presentations, lessons or team brainstorming you've ever been a part of.

Key Features

  • 75 FULL HD interactive LCD display
  • Anti-glare screen, ideal for interactive use
  • Up to 10 points of touch (simultaneously)
  • Plugnplay Just plug in your Windows 7, Windows 8.1 or Windows 10 PC via USB and start interacting immediately
  • OPS slot for OPS compliant PCs and card options
  • Fully Mac Compatible with downloadable driver incl all Mac gestures
  • Powerful front facing stereo speakers (10w + 10w)
  • 3 x Digital inputs
  • Front USB and HDMI input
  • RS232 Contol
  • 3 Year On-site Warranty*

Specifications

  • LCD Component 75" TFT LCD [74.54 inches (189.3 cm) diagonal]
  • Backlight LED Backlight
  • Max. Resolution 1920 x 1080
  • Max. Colours 16.7 million colours
  • Brightness 400 cd/m2
  • Contrast Ratio 5000:1
  • Viewing Angle (H/V) 178 /178
  • Video Colour System 480i,480P,576P,720P,1080i,1080P
  • Signal (Analog) VGA,SVGA,XGA,WXGA,FULL-HD
  • Panel Life Time Up to 30000 hours
  • Frequency 120Hz
  • Touch Screen Infrared Touch Screen 10 points support
  • Glass Anti Glare
  • Input Terminals (Front) USB A x 1, USB B x 1, HDMI x 1
  • Input Terminals (Rear) Digital HDMI x 2 supporting HDCP decoding. HDMI 2 - shared with front
  • terminal, Display port x 1
  • Analog VGA x 1 D-Sub 15 pin.
  • Audio PC Audio in 3.5mm x 1
  • Control (RS-232C) D-Sub 9pin x1 for device control
  • USB Type B USB x 1 (for external usage of Touch screen)



  • Output Terminals
  • Audio Line out (3.5mm mini jack) x 1
  • For External Speaker Total 20W speaker support
  • OSD (Support 16 languages) English + 15 others
  • Screen Freeze Screen Freeze Capability
  • Speaker 10W + 10W



  • TouchPanel
  • Detection Method Infrared blocking detection method
  • Detection Area 1650.24mm (W) x 928.26mm (H)
  • Touch Accuracy 2mm(over 90% Area)



  • PC Connector USB 2.0
  • Driver Win7/8 32/64bits & Mac OS drivers for touch screen calibration
  • Touch Pen Passive stylus, finger or any IR opaque object.
  • Power Requirement 100-240V AC, 50/60Hz, 4 A
  • Operating/Storage Temperature Operating temperature: 0 - 40 degrees Celsius;
  • Storage temperature: -20 to 60 degrees Celsius
  • Operating/Storage Humidity Operating Humidity: 90% relative humidity non-condensing
  • Power Consumption Operating/Standby Max 333W / 1W
  • Dimensions (mm) 1,765 x 1,052 x 99



  • Weight 84kg
  • Colour Black Bezel
  • Main Accessories Power Cable, Remote Controller and Battery, USB cable (5M),
  • HDMI Cable (5M), Stylus Pen x 2, Driver DVD
  • Certification RoHs, CB, S-Mark, RCM









No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 Month Manufacturers Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Please note: Most LCD monitors are covered by a 'dead pixel' policy that is manufacturer and model dependent, please contact the manufacturer for exact policy specifications.
