PRODUCT NAME |
Epson EH-TW6600W |
PRODUCT CODE |
V11H652053 |
WHAT'S IN THE BOX |
|
EH-TW6600W Projector, Power Cable, Remote
Control + Batteries, 3D Glasses + USB cable for charging x 2, WirelessHD
Transmitter Set, User Manual |
TECHNOLOGY |
Projection System |
RGB liquid crystal shutter projection system |
LCD Panel |
0.61-inch wide panel with MLA (D9.8, C2Fine, 12Bit) |
OPTICAL |
Zoom |
1-1.6 (Optical Zoom) |
Screen Size |
30" to 300" [0.87 to 8.9m] (Zoom: Wide)
30" to 300" [1.42 to 14.5m] (Zoom: Tele) |
Projection Distance |
100" screen 2.95 - 4.8 m |
Throw Ratio |
1.32 (Zoom: Wide), 2.15 (Zoom: Tele) |
Projection Lens F Number |
1.51-1.99 |
Projection Lens Focal Length |
18.2mm-29.2mm |
Focus Method |
Manual |
IMAGE |
Colour Light Output |
2,500 Lumens |
White Light Output |
2,500 Lumens |
Resolution |
1080p |
Native Aspect Ratio |
16:9 |
Contrast Ratio |
70,000:1 |
Lamp Type |
230 W UHE |
Colour Reproduction |
Up to 1.07 billion colours |
Colour Processing |
10 bit |
Keystone Correction |
Vertical : -30 to +30 degrees
Horizontal: -30 to +30 degrees |
Lens Shift |
Vertical: -60% to +60%
Horizontal: -24% to +24% |

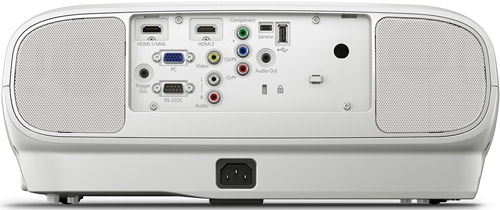

CONNECTIVITY |
Input: Video |
1 x RCA (Yellow), 1 x Component Video |
Input: Computer |
1 x D-sub 15-pin (RGB) |
Input: Digital |
2 x HDMI (1 x MHL) |
Input: USB |
1 x USB A (Photo Viewer) |
Input: Control |
1 x RS232C |
ADVANCED FEATURES |
WirelessHD |
Yes |
Super Resolution |
Yes |
3D Formats |
Top-and-Bottom, Side-by-Side, Frame Packaging |
2D to 3D Conversion |
Off / Weak / Medium / Strong |
Internal Speakers |
2 x 10W |
Split Screen |
Yes |
Direct Power On |
Yes |
Security |
Kensington®-style lock provision |
Colour Modes |
2D: Dynamic, Living room, Natural, Cinema, Auto
3D: 3D Dynamic, 3D Cinema |
GENERAL |
Dimensions D x W x H |
304 × 410 × 157 mm |
Weight |
Approx. 6.8kg |
Lamp Warranty |
12 months or 750 hours* |
Projector Warranty |
2 Years |
Power Consumption: Lamp on |
366W |
Power Consumption: Standby |
0.43W |
Noise Level |
Normal/Eco: 32/24 dB |
|
|
PRODUCT OPTIONS |
|
V13H010L85 |
ELPLP85 Projector Lamp |
|
V13H134A39 |
ELPAF39 Air Filter |
|
V12H003B22 |
ELPMB22 Ceiling Mount |
|
V12H526040 |
ELPMB30 Flush Ceiling mount |
|
V12H003P13 |
ELPFP13 Extension Pole – 450mmr |
|
V12H003P14 |
ELPFP14 Extension Pole – 918mm to 1,168mm |
|
V12H548001 |
ELPGS03 3D Glasses |
|
V12H564C12 |
ELPAC01 Charger for 3D Glasses |
|
V12H002S2Y |
ELPSC21B 80" Portable tripod screen |
