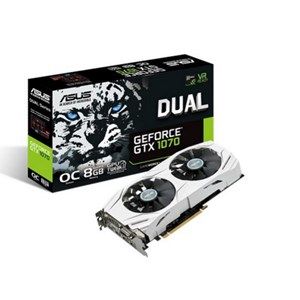

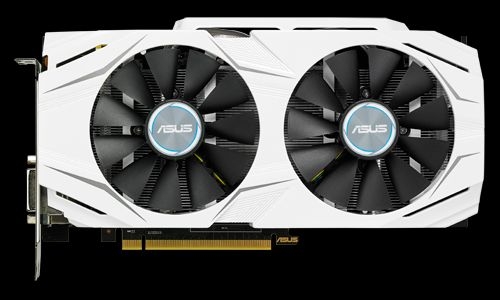

ASUS Dual GeForce GTX 1070 graphics card and X99-A II motherboards share perfectly matching color themes and are ready for Windows 10. Dual GeForce GTX 1070 is equipped with DirectX 12 to squeeze more graphics performance from the CPU and prevent GPU bottlenecks.

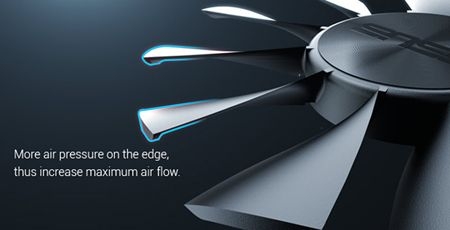

Patented Wing-Blade Fans
Max Air Flow with 105% More Air Pressure
A patented wing-blade design that delivers maximum air flow and improved 105% static pressure over the heat sink, while operating at 3X quieter volumes than reference cards.
Auto-Extreme Technology with
Super Alloy Power II
Premium quality and best reliability
ASUS graphics cards are produced using Auto-Extreme technology, an industry-first 100% automated production process, and feature premium Super Alloy Power II components that enhance efficiency, reduce power loss, decrease component buzzing under load, and lower thermal temperatures for unsurpassed quality and reliability.
VR-Friendly HDMI Ports
Enjoy immersive virtual reality experience
ASUS Dual GeForce GTX 1070 graphics cards have two HDMI ports for connecting a VR device and display at the same time, so you can enjoy immersive virtual reality experiences anytime without having to swap cables.
GPU Tweak II with XSplit Gamecaster
GPU Tweak II:
Intuitive performance tweaking
Adjust clock speeds, voltages and fan speeds to tune your graphics
card(s) exactly how you want to. Select between GPU Tweak’s Standard or
Advanced modes depending on your level of experience.
Choose Standard Mode to access Intuitive options for easy tweaking. This is great for those learning how to tune graphics cards. Alternatively try out the Advanced Mode for sophisticated and extensive tuning options that enable complete control for experienced overclockers.
Specifications
- Graphics Engine
NVIDIA GeForce GTX 1070
- Bus Standard
PCI Express 3.0
- OpenGL
OpenGL®4.5
- Video Memory
GDDR5 8GB
- Engine Clock
OC Mode - GPU Boost Clock : 1797 MHz , GPU Base Clock : 1607 MHz
Gaming Mode (Default) - GPU Boost Clock : 1771 MHz , GPU Base Clock : 1582 MHz
*Retail goods are with default Gaming Mode, OC Mode can be adjusted with one click on GPU Tweak II
- CUDA Core
1920
- Memory Clock
8008 MHz
- Memory Interface
256-bit
- Resolution
Digital Max Resolution:7680x4320

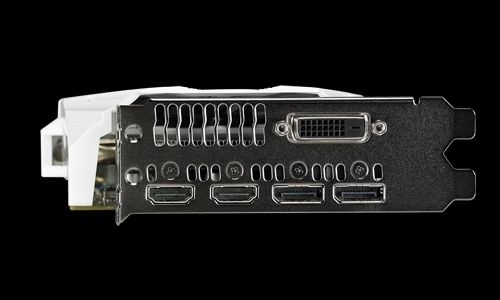

- Interface
DVI Output : Yes x 1 (Native) (DVI-D)
HDMI Output : Yes x 2 (Native) (HDMI 2.0)
Display Port : Yes x 2 (Native) (Regular DP)
HDCP Support : Yes
- Software
ASUS GPU Tweak II & Driver
- Dimensions
9.45 " x 5.08 " x 1.63 " Inch
24 x 12.9 x4.15 Centimeter
- Note
.
To have the best cooling performance, ASUS DUAL-GTX1070-O8G extends the
fansink to 2 slots. Please double check you Chassis and Motherboard
dimension prior to purchase to make sure it fits in your system!
.
Note that the actual boost clock will vary depending on actual system
conditions. For more information, please visit https://www.geforce.com/
