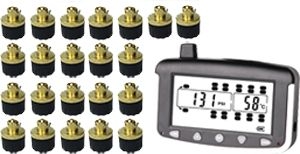

AXIS External Cap TPMS Tyre Pressure Monitoring System - 22 Sensors, Heavy Vehicle
  • LCD Screen, Pressure Range 0-188 PSI, Operating Temperature -40C - 80C, Fast Leakage Alert

IMG 1 of 1
No Longer Available
Part Number:
410357
(?) Brand:
AXIS
Manuf No:
EK215H22
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
EK215H22, 9321886012774

Overview

Enjoy peace of mind on the road. Save time & money by prolonging tyre lifespan, improving fuel efficiency and protecting passengers. Designed for ease of use, this 12-24V tyre pressure monitor system is ideal for heavy vehicles such as trucks, caravans & RVs

Features

  • For Heavy Duty Vehicles
  • Water Resistant Cap Type Sensors
  • Easy Installation

Specifications

Monitor

  • Reliable & easy to install
  • Large LCD screen
  • Can detect up to 22 Sensors
  • 8~30V DC Power
  • Built in rechargable lithium battery
  • Auto backlight
  • Configurable high/low pressure warnings
  • Configurable high temperature warnings
  • Visible and audible alerts
  • Selectable pressure units
  • Long range between sensors and monitor
  • Per axle measurements can be configured on tractor
  • On-glass holder
  • Operating Temperature: -20C - 80C
  • Charger Input Voltage: DC 8 - 30V
  • Transmission Frequency: 433.92MHz
  • Size: 116(L) x 68(W) x 25(H)mm
  • Weight: 138g

Sensors

  • Reliable cap type
  • Easy to install
  • Water resistant
  • Replaceable sensor batteries (approx 2 year battery life)
  • Fast leakage alert
  • Individually coded sensors
  • Anti-theft design
  • Pressure range: 0 to 188 PSI
  • Operating Temperature: -40C - 80C
  • Pressure Accuracy: 1.5 psi
  • Temperature Accuracy: 3C
  • Transmission Power < 10dBm
  • Transmission Frequency: 433.92MHz
  • Size: 24mm (diameter), 19.5mm (height)
  • Weight: 30g

Optional Repeater (RP02)

  • Operating Temperature: -20C - 80C
  • Working Voltage: 12-24V
  • Transmission Power < 18dBm
  • Transmission Frequency: 433.92MHz
  • Size: 91(L) x 38(W) x 15(H)mm
  • Weight: 42g

For trailer-exchange application

  • Maintains signal stability
  • Records sensor ID, trailer ID and
  • tyre pressure & temperature limits
  • Supports truck & trailer exchange
  • Transferable trailer sensor data between monitor
  • Visible and audible alerts
  • Fixed alerts for high temp (90)

For signal booster application

  • Enhance the signal from sensors and ensure that the stablility of receiving signal from sensors

Included

  • 12/24V Cig Power Lead
  • On-Glass Monitor Holder
  • Installation Accessories

Optional

  • Transceiver for Trailer (RP02)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
