All stock codes associated to this product
OR600ELCDRM1U, CP85201, 4712364143564
Overview

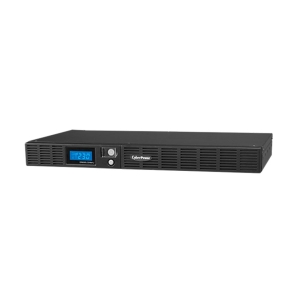

CyberPower OR600ELCDRM1U Line-Interactive UPS offers
simulated Sine Wave output power for office system devices including PCs,
workstations, networking devices, and peripherals. Its typically integrated in
the back office, server room, and data center environment to ensure a reliable
backup power supply during power failures. In addition, the rackmount / tower
convertible design gives it enhanced flexibility for installation and operation
in almost any environment.
The UPS has a large multifunction LCD display offers real-time information,
including input and output voltage levels, load and battery levels, battery
runtime, overload warning, and a silent mode. With the network ports on the UPS,
it prevents network devices from being subjected to sudden power surges caused
by lightning, thereby avoiding potential system damage. As for battery
maintenance, the UPS allows battery hot-swapping, which enables users to perform
normal battery maintenance without significant interruption.
Features
- Energy Saving Technology
- Simulated Sine Wave Output
- Automatic Voltage Regulation (AVR)
- Overload Protection
- Hot-swappable Battery Packs
- Surge and Spike Protection
- Phone/ Fax/ Modem/ DSL/ Network Protection
- LCD Status Display
- USB Connectivity Port
- Serial Connectivity Port
- PowerPanel Management Software
- SNMP/ HTTP Remote Management Capability
- Rack Mount Form Factor
FEATURE
FOCUS
Automatic Voltage Regulation (AVR) |
UPS with AVR function is capable of regulating unstable voltage fluctuation
in order to provide constant safe power to connected devices without resorting
to battery power. By adopting AVR to the UPS can significantly increases battery
life and reduces the chances of data loss, memory freezes, and system
crashes.
Data
Line Protection |
The network ports on the UPS are used to protect network devices (phones,
faxes, Ethernet devices, and other communication equipment) from sudden power
surges caused by lightning. With its data line protection, the UPS can help
isolate any power surge that travels through phone lines and wires, thereby
avoiding potential system damage.
Specifications
|
GENERAL |
|
|
UPS
Topology |
Line-interactive |
|
Energy Saving
Technology |
GreenPower UPS Bypass
Technology |
|
|
|
INPUT |
|
|
Nominal Input
Voltage (Vac) |
230 |
|
Input Voltage
Range (Vac) |
160 ~
263 |
|
Input
Frequency (Hz) |
50
3 |
|
60
3 |
|
Input Frequency
Detection |
Auto-sensing |
|
Rated Input
Current (A) |
10 |
|
Input Connector
Type |
IEC
C14 |
|
Detachable Power Cord
Plug Type |
IEC
C14 |
|
|
|
OUTPUT |
|
|
Capacity
(VA) |
600 |
|
Capacity
(Watts) |
360 |
|
On Battery
Waveform |
Simulated Sine
Wave |
|
On Battery
Voltage(s) (Vac) |
230
10% |
|
On Battery
Frequency (Hz) |
50
1% |
|
60
1% |
|
Automatic Voltage
Regulation (AVR) |
Single
Boost |
|
Overload
Protection |
Internal Current
Limiting , Circuit Breaker |
|
Outlets -
Total (Socket) |
6 |
|
Outlet
Type (Socket) |
IEC
C13 x 6 |
|
Outlets - Battery &
Surge Protected (Socket) |
4 |
|
Typical Transfer
Time (ms) |
4 |
|
|
|
BATTERY |
|
|
Runtime at Half
Load (min) |
12 |
|
Runtime at Full
Load (min) |
4 |
|
Typical Recharge
Time (Hours) |
8 |
|
Start On
Battery |
Yes |
|
User
Replaceable |
Yes |
|
Hot-Swappable |
Yes |
|
Battery
Type |
Sealed
Lead-acid |
|
Replacement Battery
Pack |
RBP0019 |
|
RBP
Quantity (pcs) |
1 |
|
|
|
SURGE PROTECTION
& FILTERING |
|
|
Surge
Suppression (Joules) |
405 |
|
Phone/Network
Protection RJ11/RJ45 (Combo) |
1-in,
1-out |
|
|
|
MANAGEMENT &
COMMUNICATIONS |
|
|
LCD
Panel |
Yes |
|
LCD Information
Display |
Operation
Type , Power Status , Battery Status , Load
Status , Other Information |
|
LCD Setting &
Control |
Mode
Setting , Alarm Setting , Input &
Output |
|
LED
Indicators |
Power
On |
|
HID Compliant USB
Port (pcs) |
1 |
|
Serial
Port |
Dry
Contact |
|
Audible
Alarms |
Battery
Mode , Low Battery , Overload |
|
Power Management
Software |
PowerPanel Business
Edition |
|
SNMP / HTTP Remote
Monitoring |
Yes - with optional
RMCARD20x |
|
|
|
PHYSICAL |
|
|
Form
Factor |
Rack |
|
Enclosure
Construction |
Metal |
|
Color |
Black |
|
Rackmount
Ears |
Yes |
|
|
|
PHYSICAL SIZE - UPS
MODULE |
|
|
Dimensions (WxHxD)
(mm.) |
433 x 44 x
235 |
|
Weight
(kg.) |
8.1 |
|
Installed Rack
Height (U) |
1 |
|
|
|
SHIPPING
DIMENSIONS |
|
|
Dimensions (WxHxD)
(mm.) |
530 x 155 x
315 |
|
Weight
(kg.) |
10.6 |
|
|
|
ENVIRONMENTAL |
|
|
Operating Temperature
(C) |
0 ~
40 |
|
Operating Relative
Humidity (Non-condensing) (%) |
0 ~
95 |
|
Operating
Elevation (feet/meters) |
0-10,000 feet (0-3,000
meters) |
|
Storage Temperature
(C) |
-15 ~
45 |
|
Storage Relative
Humidity (Non-condensing) (%) |
0 ~
95 |
|
Online Thermal
Dissipation (BTU/hr) |
20 |
|
|
|
CERTIFICATIONS |
|
|
Certifications |
CE , EAC , RCM |
|
RoHS |
Yes |
