Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.
90mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
WINDFORCE 2X Cooling System- Heat Pipe
Composite heat-pipe
The composite heat-pipe combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
Heat Pipe Direct Touch
The pure copper heat pipe is shaped to maximize the direct contact area to the GPU.
WINDFORCE Cooling System- protection back plate
Protection back plate
Glorious black back plate provides the solid protection, strengthens the structure and inspires the passion for gaming.
Performance
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
Durability
Ultra Durable Components
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
Built for OverClocking with 4+1 power phases
Compared to founders edition, the 4+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. (*founders edition:3+1)
Specifications

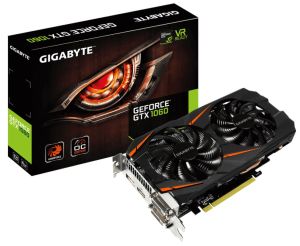

| Graphics Processing | GeForce GTX 1060 |
| Core Clock | Boost: 1797MHz/ Base: 1582MHz in OC Mode
Boost: 1771MHz/ Base: 1556MHz in Gaming Mode |
| Memory Clock | 8008 MHz |
| Process Technology | 16 nm |
| Memory Size | 6 GB |
| Memory Type | GDDR5 |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 3.0 x 16 |
| Output | Dual-link DVI-D *2
HDMI-2.0b*1 (Max Resolution: 4096x2160 @60 Hz)
Display Port-1.4 *1 (Max Resolution: 7680x4320 @60 Hz)
|
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | H=39 L=223 W=121 mm |
| PCB Form | ATX |
| DirectX | 12 |
| OpenGL | 4.5 |
| Recommended PSU | 400W |
| Power Connectors | 6 pin*1 |
