Gigabyte GA-H81M-S2H (Rev. 1.0) Motherboard - OEM Packaging
  • Intel LGA1150, Intel H81, 2xDDR3 DIMM, VGA(1), DVI(1), HDMI(1), GbE LAN(1), PCI-Ex16(1), SATA-III(2), USB3.0(4), mATX

IMG 1 of 1
No Longer Available
Part Number:
410884
(?) Brand:
Gigabyte Web Site
Manuf No:
GA-H81M-S2H-BULK
GAH81MS2HBULK
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
GAH81MS2HBULK, GA-H81M-S2H-BULK, MBGH81MS2HBK, MBG-H81M-S2H-BK

Overview

  • Supports 4thGeneration IntelCore processors
  • GIGABYTE Ultra Durable Technology
  • Audio Noise Guard with High Quality Audio Capacitors
  • GIGABYTE UEFI BIOS
  • GIGABYTE On/Off Charge for USB devices
  • LAN with high ESD Protection
  • HDMI, DVI, D-SUB port on rear panel
  • Solid capacitors for CPU VRM design

GIGABYTE 8 Series Motherboards

GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.

Next Gen Intel® 8 Series Platform

The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide significantly higher frame rates in the latest DX11 3D game titles.

GIGABYTE Ultra Durableâ„¢



GIGABYTE Ultra Durableâ„¢ debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.

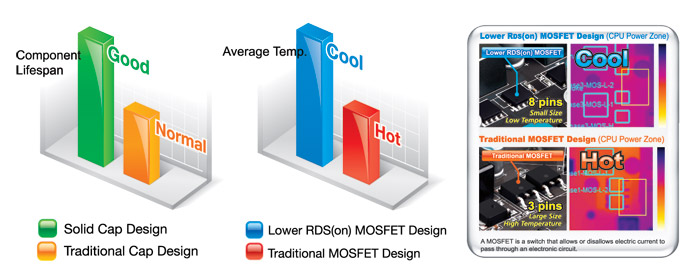

Ultra Performance

GIGABYTE uses Solid Caps (Capacitors) for CPU VRM and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.

High Quality Audio Capacitors

GIGABYTE Ultra Durableâ„¢ motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for user experience.

Dedicated Audio Hardware Zone



+ Separation on the PCB layer protects the board's sensitive analog audio components.

+ Separate analog and digital ground to protect against Electromagnetic Interference (EMI).

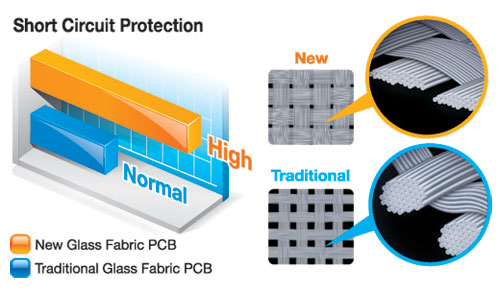

Humidity Protection

Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

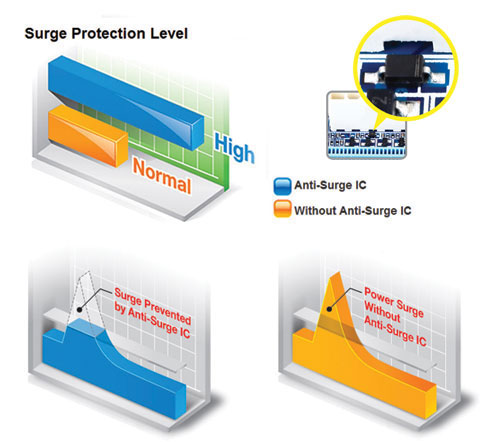

Power Failure Protection

GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

Electrostatic Protection

GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.

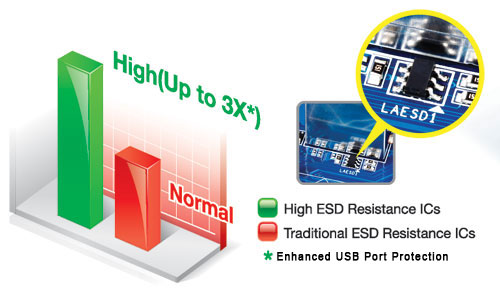

High ESD Protection for USB and LAN (USB 3.0 only)

GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE 8 series motherboards provide native 4K support with integrated IntelHD Graphics via HDMI.

HDMIâ„¢-The Next Generation Multimedia Interface

HDMIâ„¢ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMIâ„¢ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMIâ„¢ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

On/Off Charge Technology

GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger

*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.

On/Off Charge Driver download

LAN Optimizer - Intelligent optimization network management tool

GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.

GIGABYTE App Center

GIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.

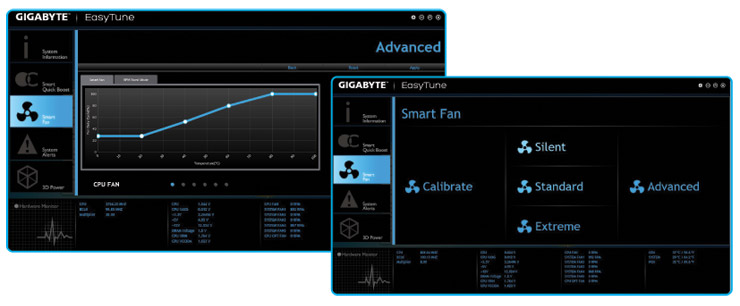

GIGABYTE EasyTune

GIGABYTE EasyTune provides a simple and easy-to-use interface that allows users to fine-tune their system settings.

GIGABYTE Smart Fan 2

As well as offering more system fans than ever before, GIGABYTE 8 Series motherboards feature updated and improved CPU and system fan speed controls, with individual airflow and speed settings available via a dedicated digital controller. GIGABYTE Smart Fan 2 allows you to configure CPU fans and system fans.

GIGABYTE @BIOS

The new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.

GIGABYTE EZ Setup

GIGABYTE EZ Setup combines several key utilities designed to simplify install and configuration procedures for several exclusive GIGABYTE apps including Disk Mode Switch, Smart Connect, EZ Rapid Start and EZ Smart response.

Specifications

CPU

1. Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/IntelCeleron processors in the LGA1150 package

2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

1. Intel H81 Express Chipset

Memory

1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2. Dual channel memory architecture

3. Support for DDR3 1600/1333 MHz memory modules

4. Support for non-ECC memory modules

5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor - Intel HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200

2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

3. 1 x HDMI port, supporting a maximum resolution of 4096x2160

* Support for HDMI 1.4a version.

4. Maximum shared memory of 1 GB

Audio

1. Realtek ALC887 codec

2. High Definition Audio

3. 2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

1. Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16

2. 2 x PCI Express x1 slots

(The PCI Express slots conform to PCI Express 2.0 standard.)

Storage Interface

Chipset:

1. 2 x SATA 6Gb/s connectors (SATA3 0/1)

2. 2 x SATA 3Gb/s connectors (SATA2 2/3)

USB

Chipset:

1. 2 x USB 3.0/2.0 ports (available through the internal USB header)

2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

VIA VL805 chip:

1. 4 x USB 3.0/2.0 ports on the back panel

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2. 1 x 4-pin ATX 12V power connector

3. 2 x SATA 6Gb/s connectors

4. 2 x SATA 3Gb/s connectors

5. 1 x CPU fan header

6. 1 x system fan header

7. 1 x front panel header

8. 1 x front panel audio header

9. 1 x USB 3.0/2.0 header

10. 2 x USB 2.0/1.1 headers

11. 1 x Trusted Platform Module (TPM) header

12. 1 x serial port header

13. 1 x Clear CMOS jumper

Back Panel Connectors

1. 1 x PS/2 mouse port

2. 1 x PS/2 Keyboard port

3. 1 x D-Sub port

4. 1 x DVI-D port

5. 1 x HDMI port

6. 4 x USB 3.0/2.0 ports

7. 2 x USB 2.0/1.1 ports

8. 1 x RJ-45 port

9. 3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

1. iTE I/O Controller Chip

H/W Monitoring

1. System voltage detection

2. CPU/System temperature detection

3. CPU/System fan speed detection

4. CPU/System overheating warning

5. CPU/System fan fail warning

6. CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 1 x 32 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for Q-Flash

2. Support for Xpress Install

3. Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.

@BIOS

EasyTune

EZ Setup

USB Blocker

4. Support for ON/OFF Charge

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Windows 10/8.1/8/7

Form Factor

1. Micro ATX Form Factor; 22.6cm x 17.4cm



No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Gigabyte) web site.
