All stock codes associated to this product
9H.JFC77.13P, 9HJFC7713P, MNBMX528, MNB-MX528, 4718755063275
Overview
Best Choice at Class-leading Value for Small-Medium
Space
Featuring a brightness of 3300 ANSI lumens and a high contrast ratio of
13000:1, the cost-effective and eco-friendly MX528 offers a stunning full-screen
presentation with the finest details regardless of the ambient light level.
Key Features
SmartEco
Technology for Power Saving |
Blu-ray
Full HD 3D Support |
LampSave
Mode for Lower Replacement Cost |
Saving More on Power Consumption with BenQ's SmartEcoâ„¢
Technology
Offering lower TCO and optimized projection through dynamic power saving,
uncompromised brightness, exquisite picture quality and optimized lamp
life-SmartEcoTechnology has perfected what a DLP projector can do. With this
innovation, schools and corporates are able to save up to 70% of lamp power
consumption and lower maintenance costs through dynamic power saving features
while bringing an ultra-vivid viewing experience into every presentation.
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power
saving by delivering the best contrast and brightness performance using only as
much light as needed.
Normal Mode
296W Projector Power Consumption by Average
SmartEco Mode
Enhanced Details in Darkened Scenes. 163W Projector Power Consumption by
Average
LampSave Mode
Projector lamp replacement costs make up the biggest part of the total cost
of projector ownership. The LampSave Mode is designed to adjust the lamp power
dynamically by content brightness level to extend projector lamp life
significantly by 50%! The lamp replacement frequency is also reduced by up to
50% to lower the replacement costs.
Eco Blank Mode
The Eco Blank mode allows teachers to blank the projection screen whenever
they need to direct their students' focus back on them or simply when the
projector is not in use. When activated, this special feature dims the lamp
power automatically, lowering the total power consumption by 70%.
- Full Power
- 100% Lamp Power
- Attention on the Projection Screen
- Eco Blank Mode On
- 30% Lamp Power at the Lowest
- Attention on the Class Instructor
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for
over three minutes without a display source, eliminating unnecessary energy
waste and prolonging the life of the projector lamp.
- Source Detected
- 100% Lamp Power
- No Source Detected
- 30% Lamp Power
0.5W in Standby Mode
When inactive, the MX528 keeps power consumption to a minimum with 0.5W
standby power, achieving what was once a challenge for ealier projector models.
This technological advancement in energy saving certainly helps extend the
projector lamp life and lower energy costs.
Blu-ray Full HD 3D Supported
BenQ MX528 is built with latest DLP technology to support 3D functionality,
allowing schools to bring an immersive learning experience to their students
with a simple preparation of 3D glasses and 3D content from your blu-ray
player.

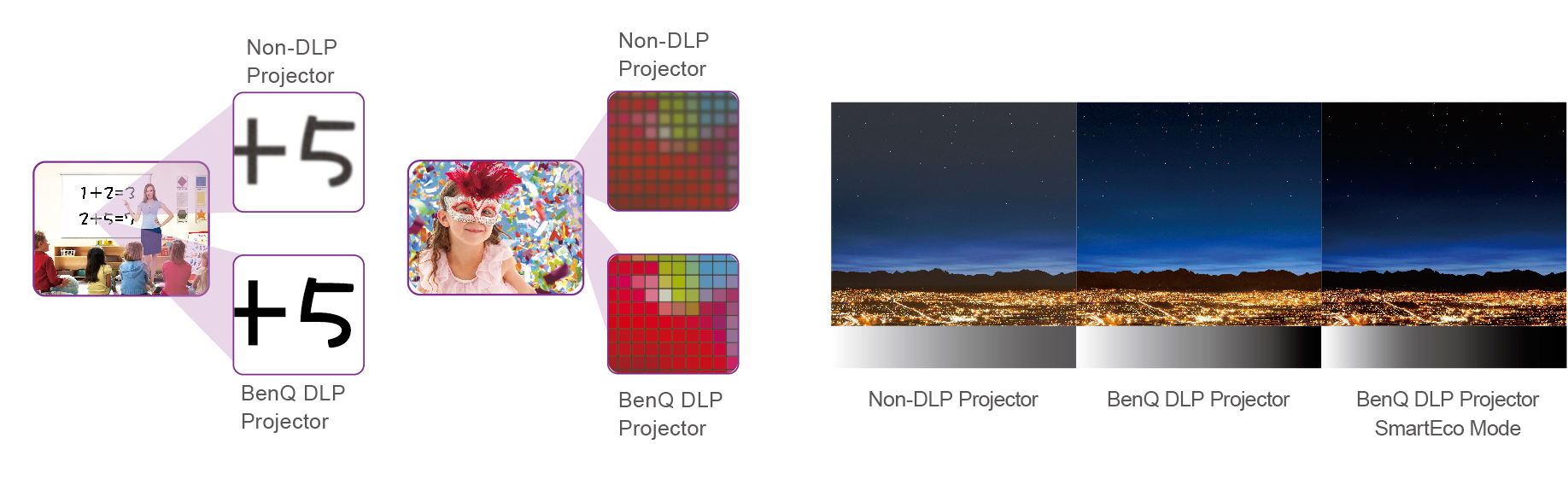

BenQ DLP® Projectors Perfectly Long Lasting Picture Quality with DLP
Projection Technology
Digital Light Processing (DLP), awarded 2015 Academy Award of Merit (Oscar®
statuette), is the leading projection technology used in 90% of world's digital
cinemas and 100% of IMAX theaters. With DLP dominating the worldwide projector
market with over 50% share, BenQ is today the #1 bestselling DLP projector
brand, delivering unmatched world-class performance.
Accurate
BenQ DLP Projectors produce the most intensely realistic colors and vivid
images possible. It also combine pioneering BenQ innovations such as
interchangeable six-segment color wheels with DLP BrilliantColorâ„¢
Technology.
Long Lasting
The incredibly durable micro-mirrors of the DLP chip and the nearly-sealed
DLP engine design mean that BenQ DLP Projectors stand the test of time without
any loss in picture quality. Eliminating dust buildup and heat damage, BenQ
projectors shine year after year and look as good as new with a simple lamp
change.
Razor -Sharp
Critically acclaimed for industry-leading high contrast, BenQ DLP Projectors
also produce the most crisply defined sharpness for crystal-clear details and
legible text by maximizing the fill ratio of individual pixels and employing
exclusive BenQ SmartEcoTM Technology.
Specifications
Projection
System |
DLP |
Native
Resolution |
XGA (1024 x 768)
|
Brightness (ANSI
Lumens) |
3300AL |
Contrast
Ratio |
13000:1 |
Display
Color |
1.07 Billion Colors
|
Lens |
F=2.56-2.8, f=21-23.1
mm |
Aspect
Ratio |
Native 4:3 (5 aspect
ratio selectable) |
Throw
Ratio |
1.96-2.15 (78"@3.1m)
|
Image Size
(Diagonal) |
36"~300"
|
Zoom
Ratio |
1.1:1 |
Lamp
Type |
190W |
Lamp Mode
(Normal/Economic)* |
4500/6000/6500/10000
hours |
Keystone
Adjustment |
1D, Vertical +/- 40
degrees |
Projection
Offset** |
120% 5% |
Resolution
Support |
VGA(640 x 480) to
WUXGA_RB(1920X1200) *RB=Reduced blanking |
Horizontal
Frequency |
15~102KHz |
Vertical Scan
Rate |
23~120Hz |
HDTV
Compatibility |
480i, 480p, 576i, 576p,
720p, 1080i, 1080p |
Video
Compatibility |
NTSC, PAL, SECAM
|
Interface |
Computer in (D-sub
15pin) x 2 (Shared with component) |
Monitor out (D-sub
15pin) x 1 |
S-Video in (Mini DIN
4pin) x 1 |
HDMI x
1 |
Audio in (Mini Jack) x
1 |
Audio out (Mini Jack) x
1 |
Speaker 2W x
1 |
USB (Type mini B) x
1 |
RS232 (DB-9pin) x
1 |
IR Receiver x 1 (Front)
|
Dimensions (W x H x
D mm) |
283 x 95 x 222 mm (with
feet) |
283 x 88.7 x 222 mm
(without feet) |
Weight (Without
Packing / With Packing) |
1.9kg |
Audible Noise
(Normal/Economic Mode) |
33/28 dBA
(Normal/Economic mode) |
Power
Supply |
AC100 to 240 V, 50 to
60 Hz |
Power
Consumption |
Normal 270W, Eco 220W,
Standby<0.5W |
3D Support and
Compatibility |
Frame Sequential: Up to
720p |
Frame Packing: Up
to1080p |
Side by Side: Up to
1080i/p |
Top Bottom: Up to
1080p |
On-Screen Display
Languages |
Arabic/Bulgarian/
Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/
Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/
Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/
Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
Modes |
Dynamic/Presentation/sRGB/Cinema/(3D)/User
1/User 2 |
Accessories
(Standard) |
Remote Control w/
Battery |
Power Cord (by
region) |
UM Download Instruction
and Regulatory Statements |
Quick Start
Guide |
Warranty Card (by
region) |
VGA(D-sub 15pin) Cable
|
Accessories
(Optional) |
Spare Lamp
Kit |
Ceilling
Mount |
3D
Glasses |
Carry bag |
Environmental
Notice |
Lamp in this product
contains mercury. |
To dispose of the
product or used lamps, consult your local environment authorities for
regulations or see www.lamprecycle.org. |
