Overview

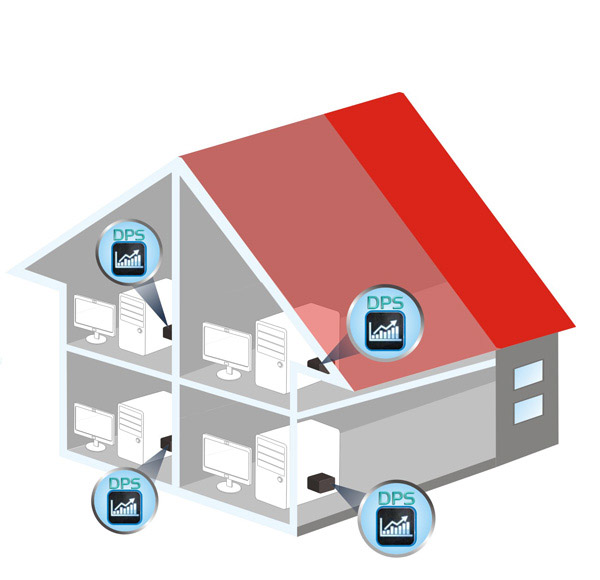

An intelligent platform of energy management
The combination of Toughpower DPS power supply and DPSAppSoftware becomes an
intelligent platform featuring:
1. Monitor the electricity cost of your PC it helps you manage your
expense.
2.
Record the status of your PC it helps you monitor and organize the quantitative
database.
3.
Sharing in the cloud it provides user an impeccable function to share with
friends.
Toughpower DPS power supply simply offers a way to more accurately monitor
and manage the power consumption and electricity cost for the PCs, enabling an
energy-saving solution for the environment.

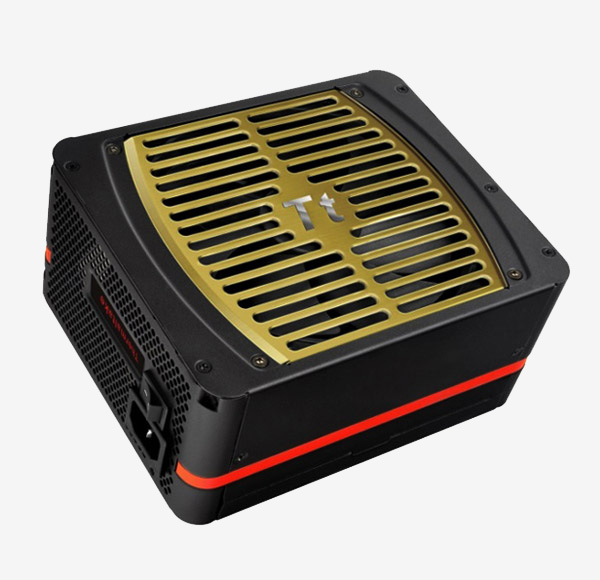

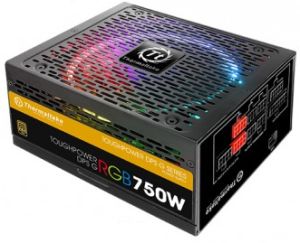

Digital Power Supply with DPSApp
New revolutionary Thermaltake Toughpower DPS is an innovative digital-
controlled power supply with software. The implementations come with better
voltage regulation and improved light-load efficiency to provide your system
with clean, stable, and economical energy.
Smart DPSApp Software
The easy-to-use DPSAppis available for download as the link below. The
software enables user to digitally calculate the electricity cost, monitoring
efficiency, wattage and voltage on power supply with innovative technology.

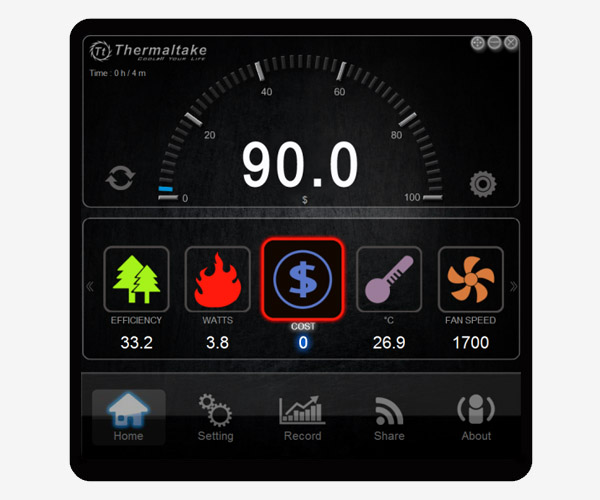

Calculate the electricity cost
As the software digitally calculates the electricity cost, it can be helpful
for expense control and management.

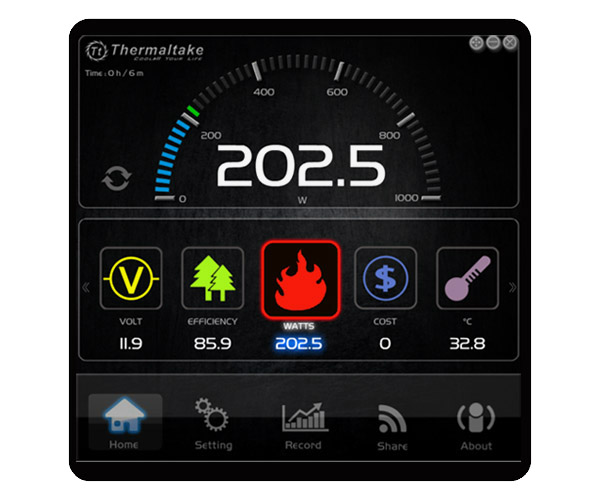

Monitor the Wattage

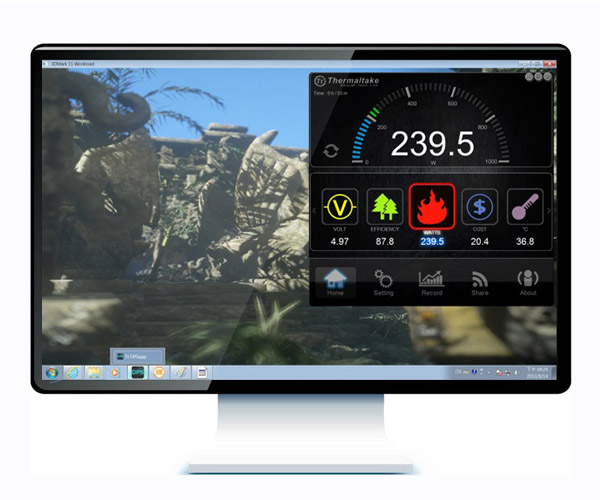

The software enables user to monitor the wattage change when using computer
such as playing games, internet browsing, etc.

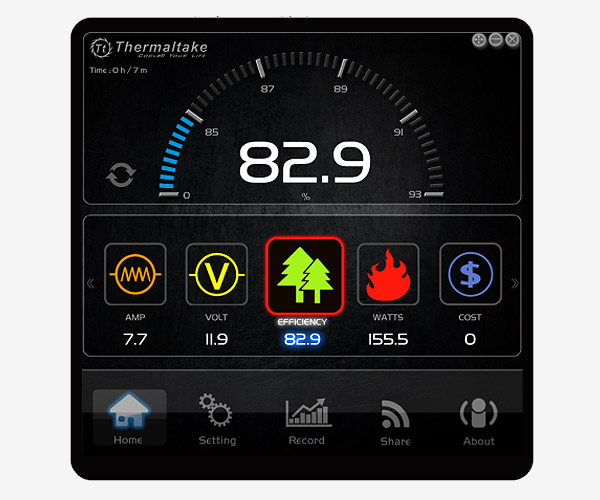

Monitor the Efficiency
The software enables user to monitor the efficiency when using computer.
Monitor the Voltage
The software enables user to monitor the voltage when using computer.
Sharing in the cloud
With no connecting boundaries, DPSAppalso provides user an impeccable
function to share power usage results with friends through social network
applications such as Facebook, Twitter, and Weibo, or by sending reports via
e-mail.

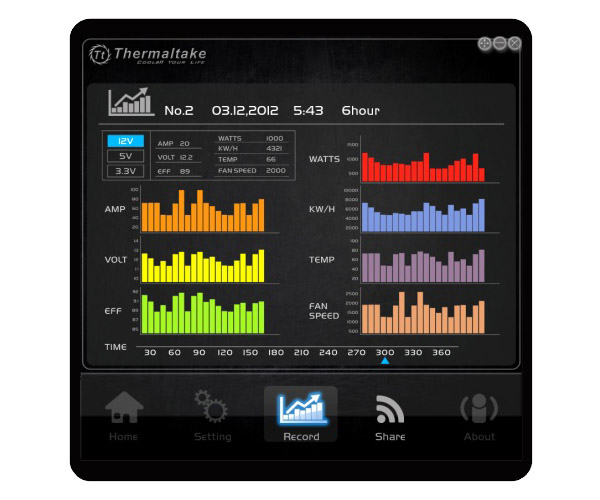

Quantitative Data Management
Organizing and save records to view database of usage in detail. Each record
contains usage up to 6-hour period.

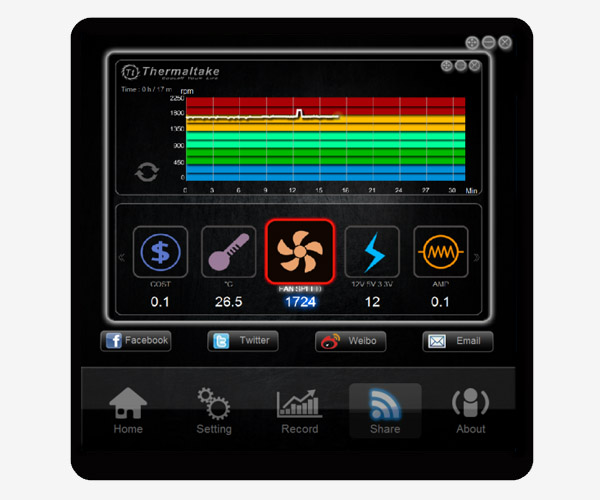

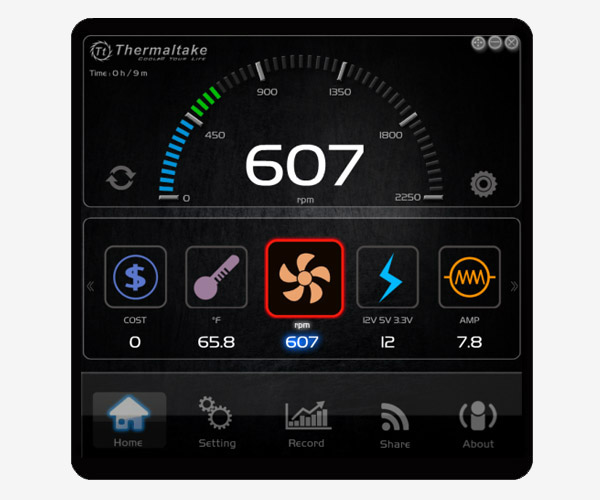

Digital Fan Control
Monitor and adjust the fan speed of the Power Supply in either silent or
performance mode through DPSApp.
Fully Modular Cable Design
The fully modular cabling design allows use of cables users need resulting in
improved optimal airflow and reduced system clutter.
80 PLUS Gold Certified and Haswell Ready
Deliver up to 87%-92% efficiency under real world load conditions to promise
lowest power losses. Besides, Toughpower DPS is already prepared for the new
Intel processors Haswell to deliver stable voltages to achieve maximum energy
savings.
Specifications
|
P/N |
TPG-0750D |
|
Model |
PS-TPG-0750DPCGAU-1 |
|
Type |
Intel ATX 12V 2.31
& SSI EPS 12V 2.92 |
|
Max Output
Current |
750W |
|
Peak Output
Capacity |
850W |
|
Color |
Black |
|
Dimension
W
/ H / D |
150mm(W) x 86mm(H) x
180mm(L) |
|
PFC Power
Factor Correction |
Active
PFC |
|
Power Good
Signal |
100-500
msec |
|
Hold Up
Time |
> 16ms at full
load |
|
Input
Current |
10A -
4A |
|
Input Frequency
Range |
47Hz -
63Hz |
|
Input
Voltage |
100V -
240V |
|
Operating
Temperature |
0 to
+40 |
|
Operating
Humidity |
20% to
90%,non-condensing |
|
Storage
Temperature |
-40 to
+70 |
|
Storage
Humidity |
5% to 95%,
non-condensing |
|
Cooling
System |
14cm dual ball bearing
Fan: 1900RPM 10% |
|
Efficiency |
MEET 80 Plus GOLD at
115Vac input. |
|
MTBF |
120,000 hrs
minimum |
|
Safety
Approval |
CE, TUV, FCC, UL/CUL,
BSMI, CCC |
|
PCI-E
Connector |
PCI-E 6+2pin x
4 |
