All stock codes associated to this product
GVN1060IXOC6GD, GV-N1060IXOC-6GD, VCGVN1060IXOC6GD, VCGV-N1060IXOC-6GD, 4719331330293

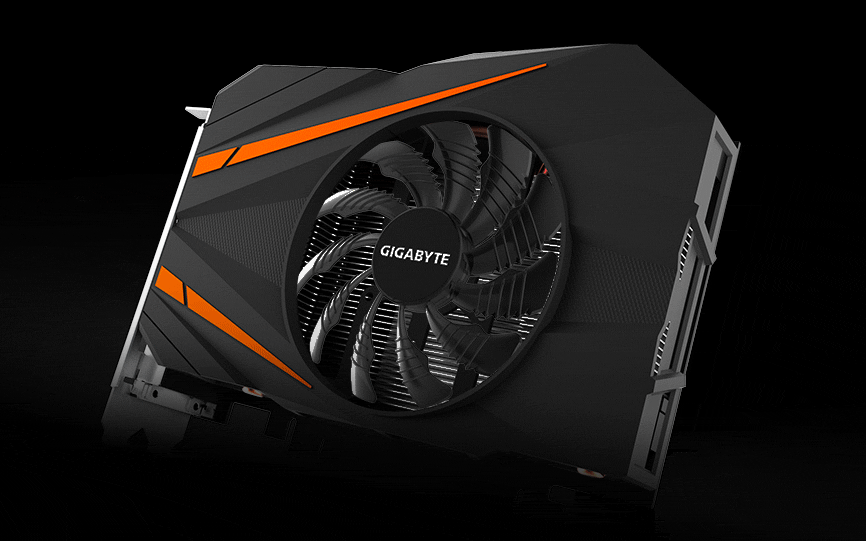

Overview
- Powered by GeForce GTX 1060
- Integrated with 6GB GDDR5 192bit memory
- 90mm cooler with 3D active fan
- One-click Super Overclocking
- 17cm Compact Card Size
Core Clock
- Boost: 1771MHz/ Base: 1556 MHz in OC Mode
- Boost: 1746 MHz/ Base: 1531 MHz in Gaming Mode

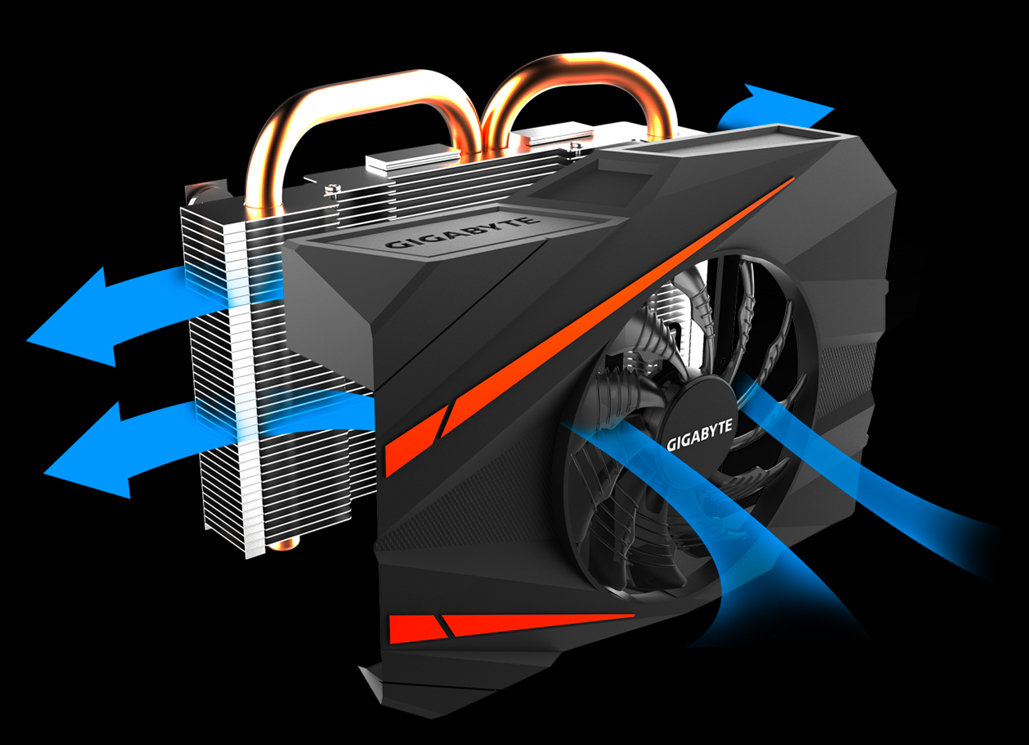

Custom-designed Cooling System
Equipped with 2 pure copper heat-pipes and 90 mm unique-blade fan with 3D
active functionality, and heat pipes direct touch technology, the cooler can
dissipate heat effectively from the GPU while keeping the fan at lower speed and
noise.
Cooling System-Fan

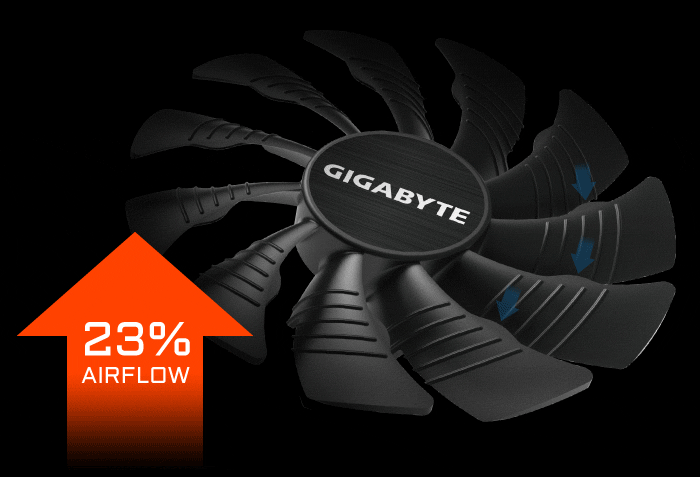

Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through
the 3D stripe curve on the fan surface, effectively enhancing the air flow by
23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or
temperature for low power gaming. It allows gamers to enjoy gameplay in complete
silence when the system is running light or idle.
Cooling System- Heat Pipes

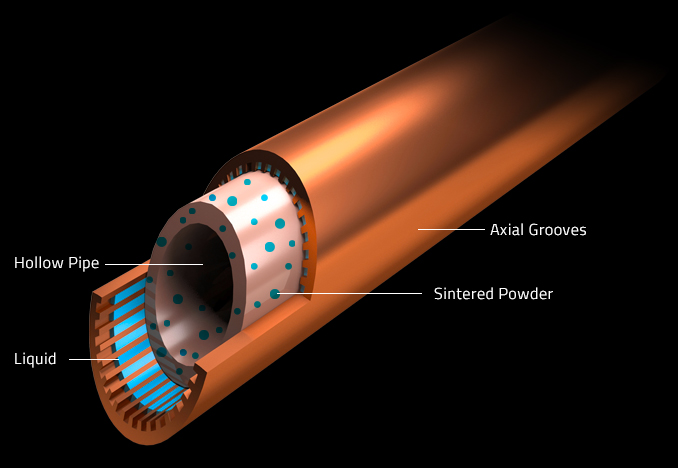

Composite heat-pipes
The composite heat-pipes combines both thermal conductivity and phase
transition for efficiently managing the transfer of heat between two solid
interfaces which increases 29% of cooling capacity.

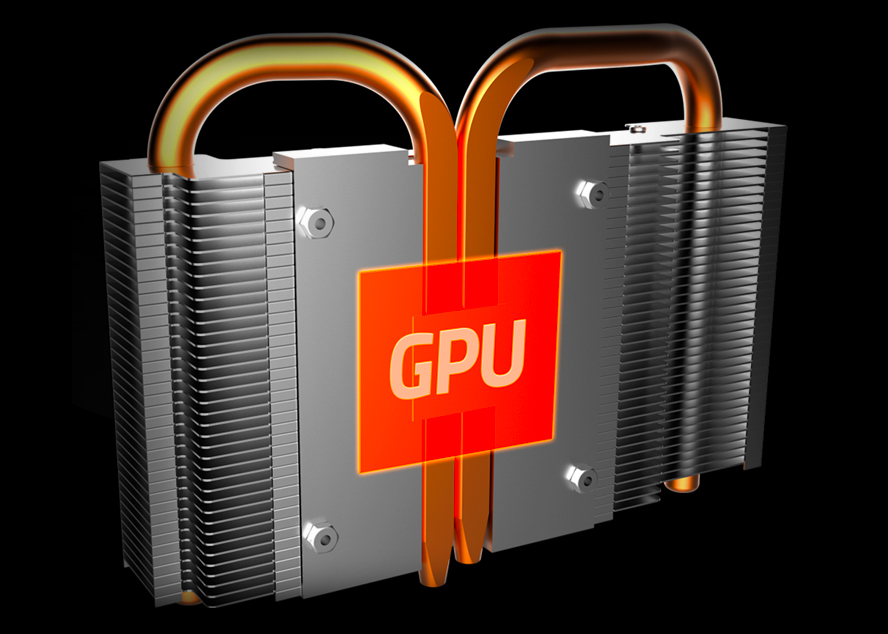

Heat Pipe Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to
the GPU.

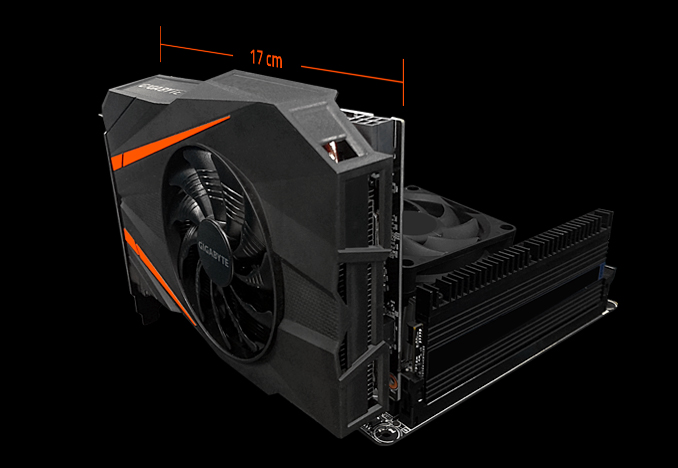

Compact Card Size
Measuring merely 17cm in length, the card, perfectly compatible for building
most of the PCs from ATX to mini-ITX.
Performance
One-click Super overclocking

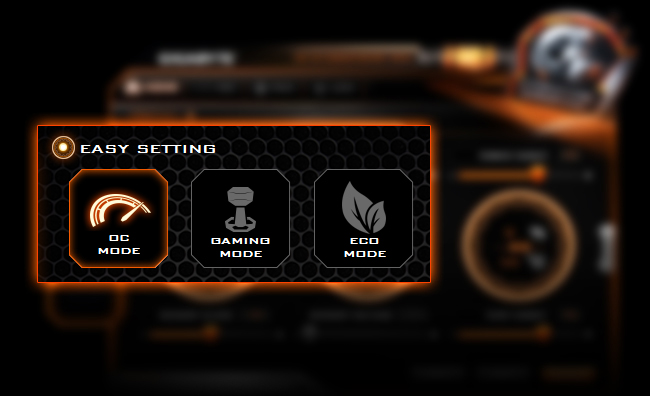

With a simple click on XTREME engine utility, gamers can easily tune the card
to meet their various gaming requirements without any overclocking knowledge,
while saving the hassle of manual adjustment.
Durability

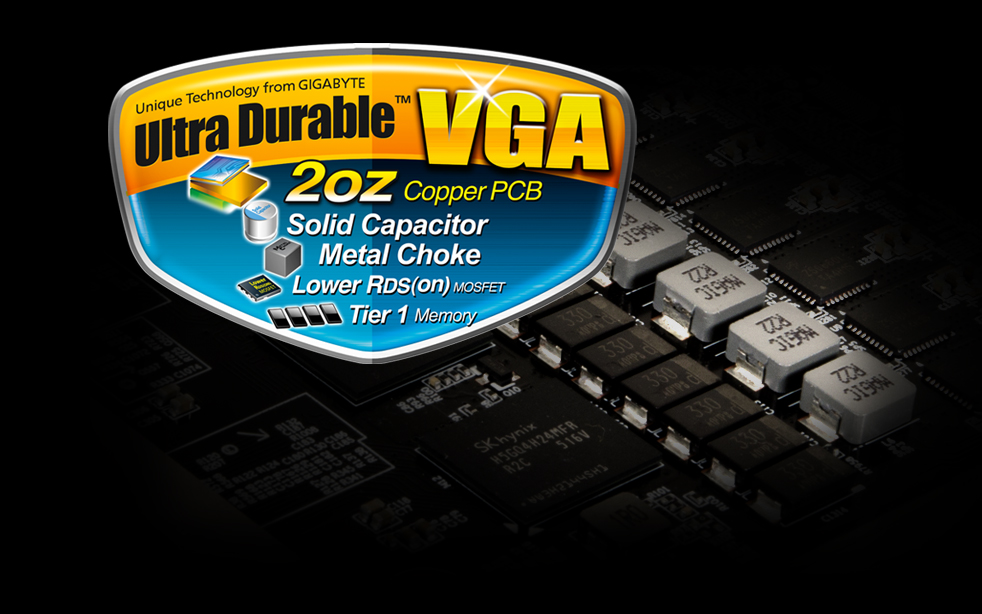

Ultra Durable Graphic Components
Engineered with the highest-grade chokes and capacitors, this graphic card
delivers outstanding performance and durable system lifespan.
Intuitive Utility

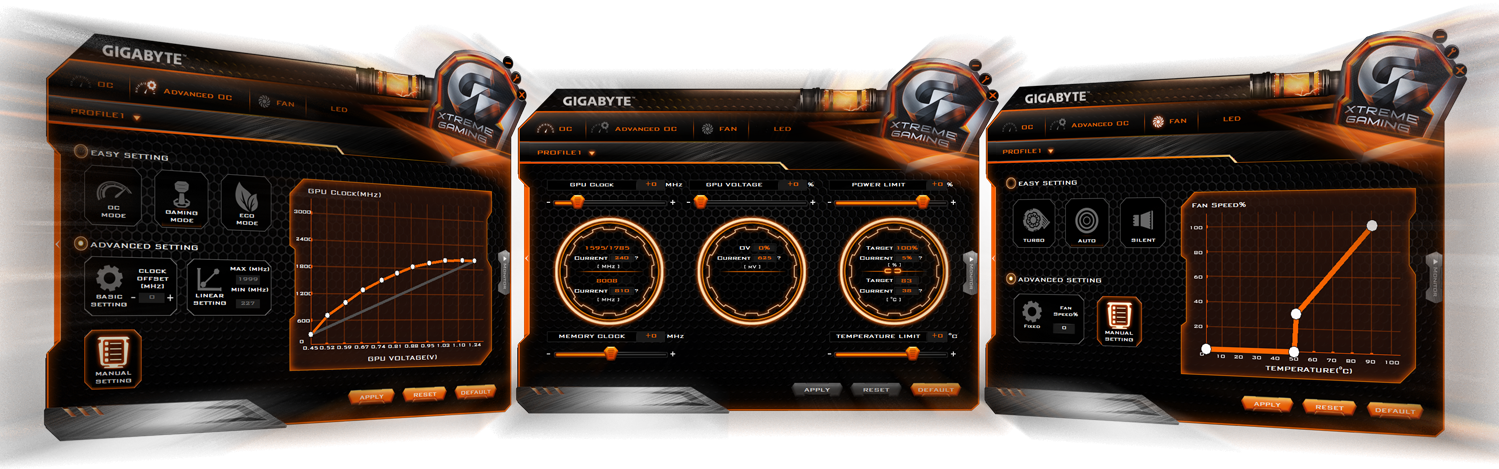

Intuitive XTREME Engine Utility
Adjust clock speeds, voltage, fan performance, power target can be monitored
and tuned in real-time according to your own preference through this intuitive
interface.
Specifications
|
Graphics
Processing |
GeForce GTX
1060 |
|
|
|
Core
Clock |
Boost: 1771MHz/ Base:
1556 MHz in OC Mode |
|
Boost: 1746 MHz/ Base:
1531 MHz in Gaming Mode |
|
|
|
Process
Technology |
16
nm |
|
|
|
Memory
Clock |
8008
MHz |
|
|
|
Memory
Size |
6
GB |
|
|
|
Memory
Type |
GDDR5 |
|
|
|
Memory
Bus |
192
bit |
|
|
|
Card
Bus |
PCI-E 3.0 x
16 |
|
|
|
Output |
Dual-link DVI-D *2
|
|
HDMI-2.0b*1 (Max
Resolution: 4096x2160 @60 Hz) |
|
Display Port-1.4 *1
(Max Resolution: 7680x4320 @60 Hz) |
|
|
|
Digital max
resolution |
7680x4320 |
|
|
|
Multi-view |
4 |
|
|
|
Card
size |
H=37 L=169 W=131
mm |
|
|
|
PCB
Form |
ATX |
|
|
|
DirectX |
12 |
|
|
|
OpenGL |
4.5 |
|
|
|
Recommended
PSU |
400W |
|
|
|
Power
Connectors |
6
pin*1 |
