Overview
7.1 PCIe gaming sound card set with an audiophile-grade DAC and 116dB
SNR
- Instant-on Raid Mode: Customize in-game audio with one click
- 116dB signal-to-noise ratio (SNR) and audiophile-grade DAC: Enjoy
high-fidelity, immersive sound
- Sonic Studio utility: Take full control over loads of sound technologies
via an intuitive, one-page interface
- Sonic Radar Pro: Lets you pinpoint the exact location of in-game sounds
and enhances critical audio details like enemy footsteps for an aural
advantage
- 600ohm headphone amplifier: For enhanced bass and clear, detailed
sound
SHARPEN YOUR HEARING TAKE CONTROL

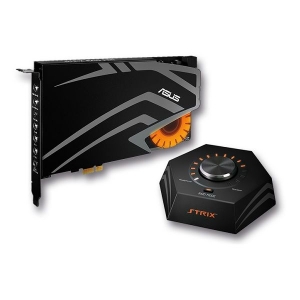

Strix Raid Pro is a premium sound card set built with audiophile-grade
components to satisfy gamers who demand ultimate audio performance. Strix Raid
Pro features rich, immersive, and clear sound with an incredible 116dB
signal-to-noise ratio (SNR), and a 600ohm headphone amplifier for deep, tight
bass. The simple yet powerful Sonic Studio sound utility and control box
provides complete sound card control and allows instant in-game audio
adjustments.
GAMER-FRIENDLY DESIGN
Instant in-game audio adjustment
with Raid Mode
ASUS exclusive Raid Mode can be turned on right in the heat of gaming action
with just one-click on the audio control box to provide the exact audio
adjustment you want. With this powerful combination of Raid Mode and the audio
control box, gamers no longer need to pause the game and open sound software to
adjust their audio, ensuring they never miss a single moment of gaming action.
Gamers can save their favorite or most frequently-used audio adjustments —
Equalizer, Bass Boost, Virtual Surround, and Mic Volume — into custom presets
that they can instantly turn on or off with the dedicated Raid Mode button on
the audio control box. It also has a convenient knob to adjust the Raid Mode
intensity level.
TOTAL AUDIO CONTROL
Take complete control of your audio with Sonic Studio
Strix Raid Pro features the latest Sonic Studio software suite for full
control over every sound technology, from equalization (EQ) to 7.1-speaker
level-balancing. Sonic Studio has a single navigation page that puts everything
in front of you, with an intuitive point-and-click interface that allows you to
pre-set audio profiles to suit different audio requirements.
Gain the gaming edge with Sonic Radar Pro! Modern games are more than
graphics – precise audio positioning gives gamers a distinct edge over enemies.
That's why Strix Raid Pro includes Sonic Radar Pro, an ASUS exclusive technology
that visualizes and enhances in-game sounds, giving you a vital edge in
first-person shooters.
Fire up your favorite game and Sonic Radar Pro displays a ‘radar' HUD
(heads-up display) that pinpoints in-game actions relative to your position, so
you'll know exactly where you are on the battlefield and what's happening around
you!
Multiple radar-enhancers can be enabled in order to visualize and boost
specific sounds such as footsteps, gunshots, and call-outs. Sounds are plotted
on the 360-degree HUD, even when there's no clear line of sight, so invisibility
is no barrier to pinpointing opponents, giving you a distinct advantage over
other players!
What's more, Sonic Radar's on-screen appearance and position is completely
customizable, so you can make it work just the way you want, with whatever game
you want!
GAME WITH CRYSTAL-CLEAR AUDIO
Winning formula for exceptional audio quality
116dB signal-to-noise ratio (SNR) clarity
High-fidelity grade ESS SABRE9006A DAC delivers unrivalled, jitter-free
sound and an exceptional 116dB signal-to-noise ratio (SNR) for 32 times greater
clarity than average onboard audio.
Sound detail boost with 600ohm integrated headphone
amplifier
The powerful TI-TPA6120 headphone amp lets you experience the full potential
of your gaming headset. A 600ohm headphone amplifier provides enhanced bass and
clear, detailed sound.
Hyper Grounding Technology
Noise-blocking multi-layer PCB developed with decades of ASUS professional
layout expertise
Lighting effects
Express your gaming style with Strix Raid Pro. Its owl-eye design even lights
up in the dark.
Unleash your gaming instincts
Taken from the ancient Roman and Greek word for owl, Strix means the keenest
hearing and sharpest eyesight. Strix means feeling your environment so that you
detect and react to the slightest movement. Strix means survival on the very
edge of instinct. Strix is in your blood, as it is in ours.
Specifications
|
Audio Interface
|
|
|
PCI
Express |
|
Audio Performance
|
|
|
Output
Signal-to-Noise Ratio (A-Weighted) (Front-out) : |
|
116
dB |
|
Output
Signal-to-Noise Ratio (A-Weighted) (Headphone-out)
: |
|
110
dB |
|
Input
Signal-to-Noise Ratio (A-Weighted) : |
|
110
dB |
|
Output THD+N at 1kHz
(Front-out) : |
|
0.001 %(-100
dB) |
|
Output THD+N at 1kHz
(Headphone-out) : |
|
0.003 %(-90
dB) |
|
Input THD+N at 1kHz
: |
|
0.000316 %(-110
dB) |
|
Frequency Response
(-3dB, 24bit/96KHz input) : |
|
10 Hz to 48
KHz |
|
Output/Input
Full-Scale Voltage : |
|
Line output (RCA, 3.5)
: 2 Vrms (5.65 Vp-p) |
|
Chipset
|
|
|
Audio Processor
:C-Media USB2.0 6632AX High-Definition
Sound Processor (Max. 384KHz /
24bit) |
|
Digital-to-analog
Converter(DAC) |
|
|
ESS SABRE9006A Premier
8 Channel Audio DAC |
|
Sample Rate and
Resolution |
|
|
Analog Playback
Sample Rate and Resolution : |
|
44.1K/48K/88.2K/96K/176.4K/192KHz
@ 16bit/24bit |
|
Analog Recording
Sample Rate and Resolution : |
|
44.1K/48K/88.2K/96K/176.4K/192KHz
@ 16bit/24bit |
|
S/PDIF Digital
Output : |
|
44.1K/48K/96K/192KHz @
16bit/24bit |
|
ASIO 2.0 Driver
Support : |
|
44.1K/48K/96K/192KHz @
16bit/24bit with very low latency |
|
Connectivity
|
|
|
Analog
Output |
|
5 x 3.5 mm jack (1/8")
(Headphone out /Front out/Side out/Center-Subwoofer out/Rear
out) |
|
Analog
Input |
|
1 x 3.5 mm jack (1/8")
(Line-in/ Mic-in combo) |
|
Digital |
|
1 x S/PDIF out ((combo
with side out)) |
|
Special Features
|
|
|
Sonic
Studio |
|
Operating System
|
|
|
Windows 10 ,
32bit/64bit |
|
Windows 8.1 ,
32bit/64bit |
|
Windows 8 ,
32bit/64bit |
|
Windows 7 SP1,
32bit/64bit |
|
Accessories
|
|
|
Control box x
1 |
|
S/PDIF optical adaptors
x 1 |
|
Driver CD x
1 |
|
Quick start guide x
1 |
|
Box link cable x
1 |
|
Dimensions
|
|
|
190 x 130 x 22 mm ( L x
W x H ) |
