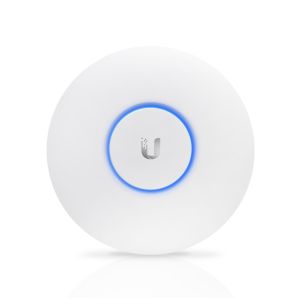

The Ubiquiti UAP-AC-LITE UniFi Indoor 802.11ac Dual Radio Access Point is a great addition to any home or office network. This access point features two radios for increased coverage and speeds of up to 867 Mbps. It also includes a Gigabit Ethernet port for wired connections. The sleek design is perfect for any environment and the included mounting kit makes installation a breeze.
The UniFi AC Lite AP features an ultra-compact design, delivering a cost-effective combination of value and performance in a reduced footprint: 25% smaller than the standard UniFi AP. The UniFi AC Lite AP provides simultaneous, dual-band, 2x2 MIMO technology and is available in single- and five-packs.* Four- or five-packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi Switch instead.

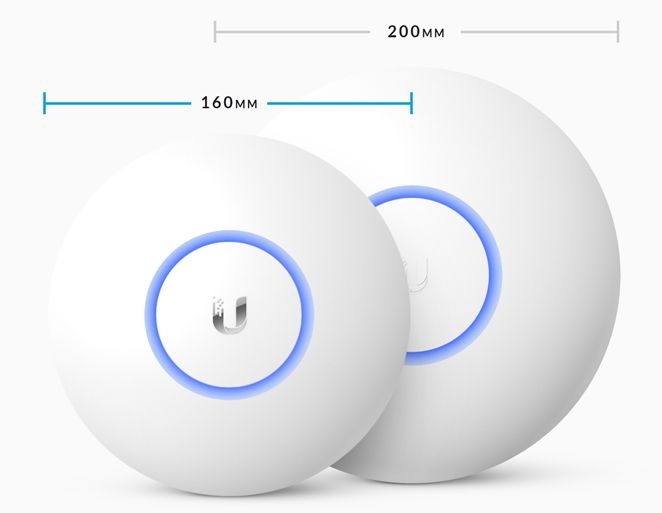

- Sleek, Ultra-Compact Design. The UniFi AC Lite AP features a cleaner design in a reduced footprint – half the size compared to the standard UniFi AP.
- PoE Standards. The UniFi AC EDU, Pro, and Outdoor APs are compatible with an 802.3at PoE+ compliant switch, while the UniFi AC Pro AP can also use 802.3af PoE.
- Power over Ethernet (PoE) Includes Power over Ethernet (PoE) functionality. Each single-pack includes a PoE adapter.
- Advanced Acoustic Speaker.The UniFi AC EDU AP provides high-quality sound with accurate voice reproduction for announcements over Wi-Fi.
- Designed for the Great Outdoors. The UniFi AC Pro and UniFi AC Outdoor APs feature weatherproof casing designed specifically for outdoor applications.
- Easy Mounting. Sleek design for seamless integration into any environment (all accessories included).

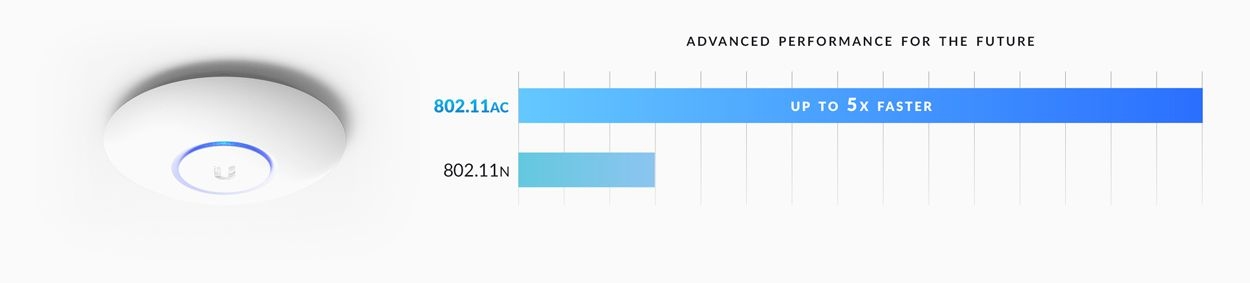

The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy. Designed for Optimal RF Performance. The newly redesigned UniFi Controller optimizes RF performance:
Scalable Enterprise Wi-Fi Management The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
Dual-Radio Performance, Gigabit Speeds
Indoor AC Model Comparison Chart
Specifications
|
UniFi AP AC LITE
|
|
Dimensions
|
160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")
|
|
Weight
With Mounting Kits
|
170 g (6.0 oz)
185 g (6.5 oz)
|
|
Networking Interface
|
(1) 10/100/1000
Ethernet Port
|
|
Buttons
|
Reset
|
|
Power Method
|
Passive Power over Ethernet
(24V),
(Pairs 4, 5+; 7, 8 Return)
|
|
Power Supply
|
24V, 0.5A Gigabit
PoE Adapter*
* Only the single-pack of the UAP-AC-LITE includes a PoE
adapter.
|
|
Maximum Power Consumption
|
6.5W
|
|
Maximum TX Power
2.4 GHz
5GHz
|
20 dBm
20 dBm
|
|
Antennas
|
(2) Dual-Band Antennas, 3 dBi Each
|
|
Wi-Fi Standards
|
802.11 a/b/g/n/ac
|
|
Wireless Security
|
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
|
|
BSSID
|
Up to Four Per Radio
|
|
Certifications
|
CE, FCC, IC
|
|
Mounting
|
Wall/Ceiling (Kits
Included)
|
|
Operating Temperature
|
-10 to 70° C (14 to
158° F)
|
|
Operating Humidity
|
5 - 95%
Noncondensing
|
|
Advanced Traffic Management
|
|
VLAN
|
802.1Q
|
|
Advanced QoS
|
Per-User Rate Limiting
|
|
Guest Traffic Isolation
|
Supported
|
|
WMM
|
Voice, Video, Best Effort,
and Background
|
|
Concurrent Clients
|
200+
|
|
Supported Data Rates (Mbps)
|
|
Standard
|
Data Rates
|
|
802.11a
|
6, 9, 12, 18, 24, 36, 48, 54 Mbps
|
|
802.11n
|
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
|
|
802.11ac
|
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
|
|
802.11b
|
1, 2, 5.5, 11 Mbps
|
|
802.11g
|
6, 9, 12, 18, 24,
36, 48, 54 Mbps
|
