All stock codes associated to this product
TD2740, 766907719512
Overview
- 27" 10-point projected capacitive touch enabled LED monitor with Windows 8
Touch Certification to deliver best in class experience
- VApanel technology with1920x1080 Full HD resolution to provide stunning
image and picture quality for photography and entertainment
- Advanced ergonomic stand designed for optimal touch experience
- Versatile connectivity with DisplayPort, HDMI(MHL), and VGA
- 7H scratch resistant surface hardness helps ensure high touch accuracy and
durability
- Stereo speakers with SRS Premium Sound for crystal clear sound performance
- VESA-mountable design and Kensington lock slot-ready for enterprise
applications and public environments
- Backed by ViewSonic's 3-year limited warranty, highest grade panel and
industry leading pixel performance policy
Description
The ViewSonic TD2740 is an ideal solution for both commercial and consumer
touch screen applications. With an intuitive 10-point multi-touch display and
full 1080p HD resolution, the 27-inch TD2740 delivers a versatile solution for
use in the office or at home, as well as for use as an information kiosk in
public areas, or as a teaching tool in interactive learning environments. The
bookstand support of the TD2740 provides advanced ergonomics and allows the
display to be tilted or laid flat on a tabletop for more comfortable use.
SuperClear VAtechnology with ultra-wide viewing angles and 20M:1 MEGA Dynamic
Contrast Ratio bring greater definition and clarity to multimedia content. As a
complete package, the display also includes a pair of integrated 2W speakers,
anHD webcam, and a microphone for video chatting. VGA, HDMI (MHL),and
DisplayPort inputs provide flexible and future-proof connectivity, while
MHL-enabled mobile devices can be plugged into the monitor for large screen
viewing of HD content.
Touch the Difference with the ViewSonic TD2740 interactive multi-touch
display.

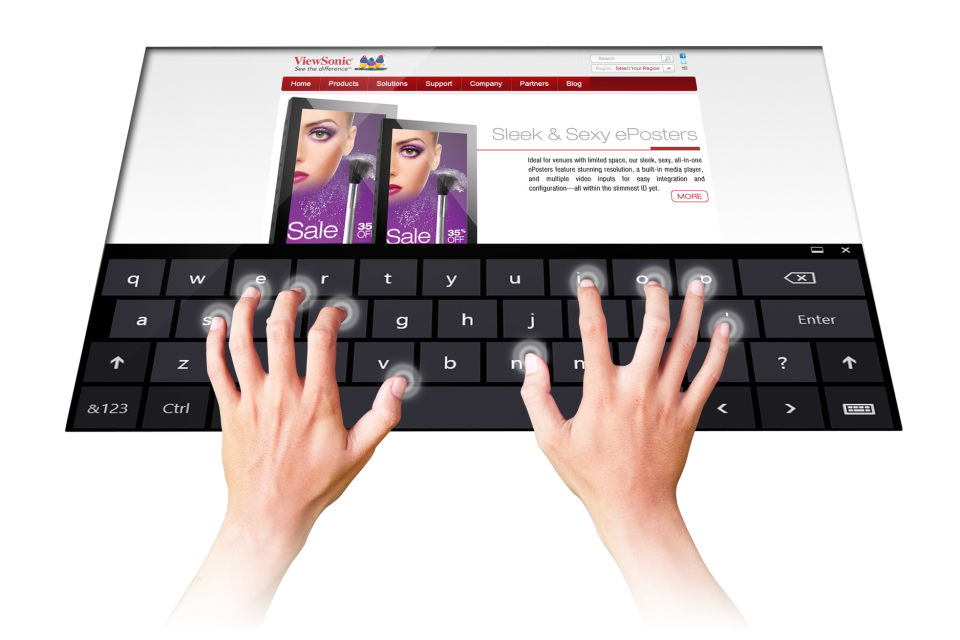

10-point Multi-touch
Touch screens with projected capacitive touch can recognize up to 10 points
of simultaneous contact, allowing for a highly accurate and ultra-responsive
touch experience. With smooth and responsive touch capabilities, this touch
display is ideal for home entertainment, office work, education, and commercial
use.
SuperClear MVA Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no
matter the vantage point. With SuperClear MVA panel technology, this monitor
delivers the same image quality whether you are looking at the screen from
above, below, the front, or the side.
178°/178° Ultra-wide viewing angles

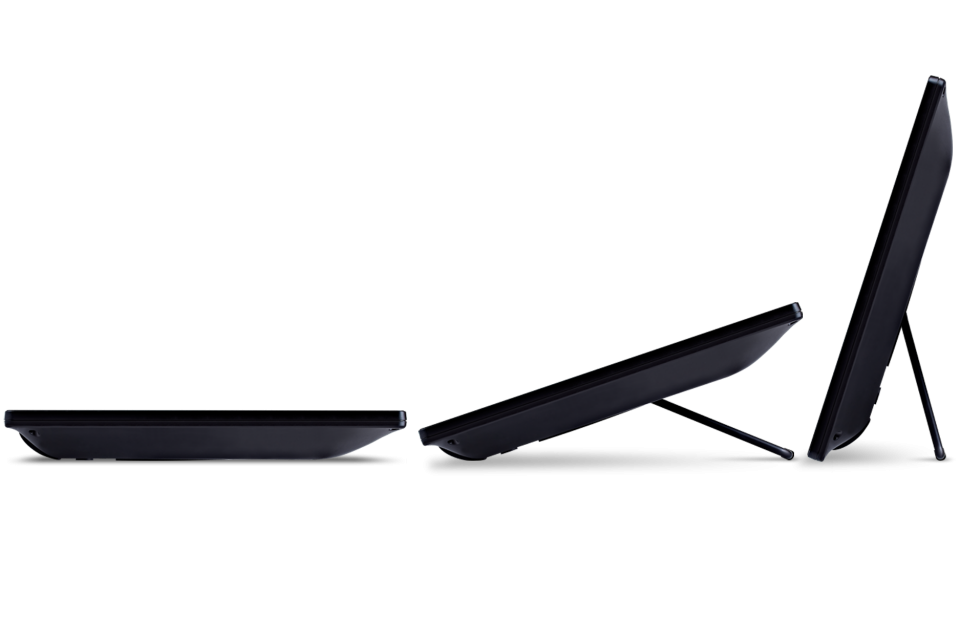

Stable Bookstand Design
A stable, integrated bookstand design makes it easy to adjust the angle of
this display for a better user experience. The display can be adjusted from
between 15 to 70 degrees, or laid completely flat on a tabletop for a more
comfortable work environment.
Easy Adjust Bookstand base
Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable
pixel-by-pixel image performance. Youll experience the most amazing clarity and
detail whether it be while working, gaming, or enjoying the latest in multimedia
entertainment.
The image contained herein is simulated to reflect an image under different
resolution (or scheme) for demonstration purposes only, and may not be the
actual image displayed from the product.

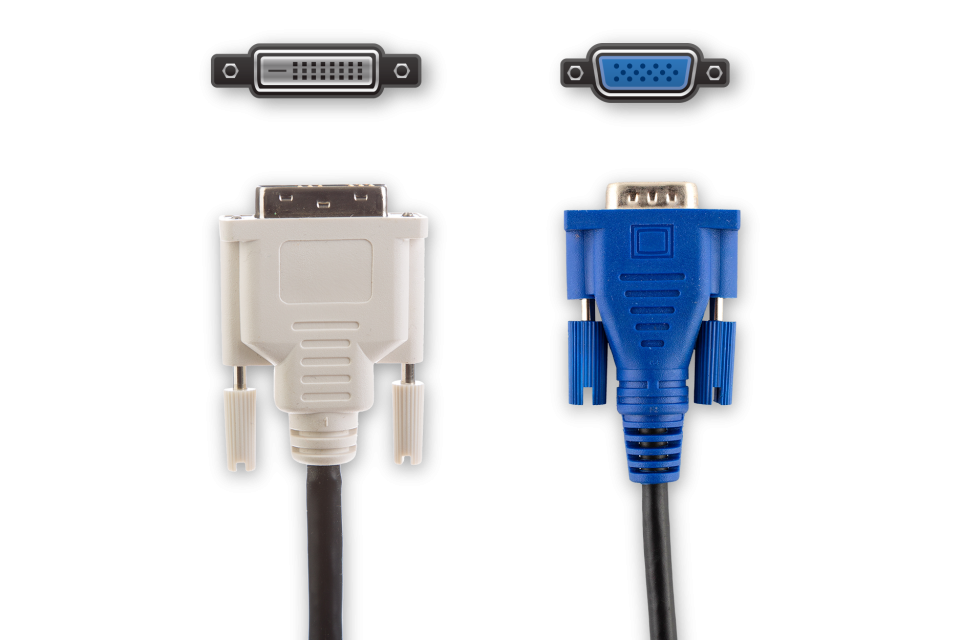

Versatile Connectivity
DVI and VGA inputs give you the freedom to connect your monitor to a variety
of devices.
Specifications
|
Full
Specifications |
|
|
Display |
|
|
TYPE |
|
|
MVA |
|
STATIC CONTRAST
RATIO |
|
|
3000:01:00 |
|
VIEWING
ANGLES |
|
|
178 horizontal, 178
vertical |
|
RESOLUTION |
|
|
1920 x
1080 |
|
DYNAMIC CONTRAST
RATIO |
|
|
20,000,000:1 |
|
BACKLIGHT LIFE
(HOURS) |
|
|
30,000 |
|
RESPONSE TIME
(GTG) |
|
|
12ms |
|
LIGHT
SOURCE |
|
|
LED |
|
BRIGHTNESS |
|
|
260
cd/m2 |
|
PANEL
SURFACE |
|
|
7H Scratch Resistant
Surface Hardness |
|
DISPLAY SIZE
(IN.) |
|
|
27 |
|
Compatibility |
|
|
PC RESOLUTION
(MAX) |
|
|
1920 x
1080 |
|
Connector |
|
|
USB 2.0 TYPE
A |
|
|
2 |
|
3.5MM AUDIO
IN |
|
|
1 |
|
3.5MM AUDIO
OUT |
|
|
1 |
|
HDMI |
|
|
1 |
|
VGA |
|
|
1 |
|
HDMI
1.4 |
|
|
1 |
|
HDMI
MHL |
|
|
1 |
|
DISPLAY
PORT |
|
|
1 |
|
Touch |
|
|
TECHNOLOGY |
|
|
Capacitive |
|
TOUCH
POINTS |
|
|
10 |
|
Audio |
|
|
INTERNAL
SPEAKERS |
|
|
2-watt
(x2) |
|
Power |
|
|
ECO MODE
(CONSERVE) |
|
|
28W |
|
ECO MODE
(OPTIMIZED) |
|
|
33.5W |
|
CONSUMPTION
(TYPICAL) |
|
|
39W |
|
CONSUMPTION
(MAX) |
|
|
52W |
|
VOLTAGE |
|
|
AC 100-240V
(universal), 50-60Hz |
|
Additional
Hardware |
|
|
KENSINGTON LOCK
SLOT |
|
|
1 |
|
WEBCAM |
|
|
1MP |
|
Controls |
|
|
PHYSICAL
CONTROLS |
|
|
1, 2, Down, Up,
Power |
|
ON SCREEN
DISPLAY |
|
|
Auto Image Adjust,
Contrast/Brightness, Input Select, AudioAdjust, Color Adjust, Information,
Manual Image Adjust,Setup Menu, Memory Recall (See user guide for
completeOSD functionality) |
|
Operating
Conditions |
|
|
TEMPERATURE |
|
|
32-104 F (040
C) |
|
HUMIDITY
(NON-CONDENSING) |
|
|
20-90% |
|
Mount |
|
|
VESA
COMPATIBLE |
|
|
100 x 100
mm |
|
Video
Signal |
|
|
FREQUENCY
HORIZONTAL |
|
|
24~82kHz |
|
FREQUENCY
VERTICAL |
|
|
50~75Hz |
|
Video
Input |
|
|
SYNC |
|
|
Separate
Sync |
|
Ergonomics |
|
|
TILT
(FORWARD/BACK) |
|
|
15 /
70 |
|
Weight
(imperial) |
|
|
NET
(LBS) |
|
|
19.4 |
|
GROSS
(LBS) |
|
|
23.1 |
|
Weight
(metric) |
|
|
NET
(KG) |
|
|
8.8 |
|
GROSS
(KG) |
|
|
10.5 |
|
Dimensions
(imperial) (wxhxd) |
|
|
PACKAGING
(IN.) |
|
|
29.1 x 20.1 x
5.0 |
|
PHYSICAL
(IN.) |
|
|
26.5 x 16.5 x
2.0 |
|
Dimensions (metric)
(wxhxd) |
|
|
PACKAGING
(MM) |
|
|
739 x 510 x
127 |
|
PHYSICAL
(MM) |
|
|
672.6 x 418.9 x
49.9 |
|
General |
|
|
REGULATIONS |
|
|
WEEE, RoHS, CE, CB,
Window 8, FCC-B w/ ICES003,US NRTL w/ CA, cULus/cTUVus,
cETLus/cBVus,Mexico, Mexico Energy |
|
PACKAGE
CONTENTS |
|
|
TD2740 display, power
cable, audio cable, VGA cable, HDMI cable, USB cable, Quick Start
Guide,ViewSonic Wizard CD (available in some countries
only) |
|
RECYCLE/DISPOSAL |
|
|
Please dispose of in
accordance with local, state or federal laws. |
|
WARRANTY |
|
|
Three-year limited
warranty on parts, labor and backlight |
