CPU |
1. Support for
Intel Core i7 processors/Intel Core i5
processors/ Intel Core i3
processors/Intel Pentium processors/IntelCeleron processors
in the LGA1150 package |
|
2. L3 cache varies with
CPU |
|
|
|
(Please refer "CPU
Support List" for more information.) |
|
Chipset |
1.
Intel H81 Express Chipset |
|
|
|
Memory |
1. 2 x DDR3 DIMM
sockets supporting up to 16 GB of system memory |
|
* Due to a Windows
32-bit operating system limitation, when more than 4 GB of physical memory
is installed, the actual memory size displayed will be less than the size
of the physical memory installed. |
|
|
|
2. Dual channel memory
architecture |
|
3. Support for DDR3
1600/1333 MHz memory modules |
|
4. Support for non-ECC
memory modules |
|
5. Support for Extreme
Memory Profile (XMP) memory modules |
|
|
|
(Please refer "Memory
Support List" for more information.) |
|
Onboard
Graphics |
Integrated Graphics
Processor - Intel HD Graphics
support: |
|
|
|
1. 1 x D-Sub port,
supporting a maximum resolution of 1920x1200 |
|
2. 1 x DVI-D port,
supporting a maximum resolution of 1920x1200 |
|
* The DVI-D port does
not support D-Sub connection by adapter. |
|
3. 1 x HDMI port,
supporting a maximum resolution of 4096x2160 |
|
* Support for HDMI 1.4a
version. |
|
4. Maximum shared
memory of 1 GB |
|
|
|
Audio |
1.
Realtek ALC887 codec |
|
2. High Definition
Audio |
|
3.
2/4/5.1/7.1-channel |
|
* To configure
7.1-channel audio, you have to use an HD front panel audio module and
enable the multi-channel audio feature through the audio
driver. |
|
|
|
LAN |
1.
Realtek GbE LAN chip (10/100/1000
Mbit) |
|
|
|
Expansion
Slots |
1. 1 x PCI Express x16
slot, running at x16 |
|
2. 2 x PCI Express x1
slots |
|
(The PCI Express slots
conform to PCI Express 2.0 standard.) |
|
|
|
Storage
Interface |
Chipset: |
|
|
|
1. 2 x SATA 6Gb/s
connectors (SATA3 0/1) |
|
2. 2 x SATA 3Gb/s
connectors (SATA2 2/3) |
|
|
|
USB |
Chipset: |
|
|
|
1. 2 x USB 3.0/2.0
ports (available through the internal USB header) |
|
2. 6 x USB 2.0/1.1
ports (2 ports on the back panel, 4 ports available through the internal
USB headers) |
|
|
|
VIA VL805
chip: |
|
|
|
1. 4 x USB 3.0/2.0
ports on the back panel |
|
|
|
Internal I/O
Connector |
1. 1 x 24-pin ATX main
power connector |
|
2. 1 x 4-pin ATX 12V
power connector |
|
3. 2 x SATA 6Gb/s
connectors |
|
4. 2 x SATA 3Gb/s
connectors |
|
5. 1 x CPU fan
header |
|
6. 1 x system fan
header |
|
7. 1 x front panel
header |
|
8. 1 x front panel
audio header |
|
9. 1 x USB 3.0/2.0
header |
|
10. 2 x USB 2.0/1.1
headers |
|
11. 1 x Trusted
Platform Module (TPM) header |
|
12. 1 x serial port
header |
|
13. 1 x Clear CMOS
jumper |
|
|
|
Back Panel
Connector |
1. 1 x PS/2 mouse
port |
|
2. 1 x PS/2 Keyboard
port |
|
3. 1 x D-Sub
port |
|
4. 1 x DVI-D
port |
|
5. 1 x HDMI
port |
|
6. 4 x USB 3.0/2.0
ports |
|
7. 2 x USB 2.0/1.1
ports |
|
8. 1 x RJ-45
port |
|
9. 3 x audio jacks
(Line In, Line Out, Mic In) |
|
|
|
I/O
Controller |
1.
iTE I/O Controller Chip |
|
|
|
H/W
Monitoring |
1. System voltage
detection |
|
2. CPU/System
temperature detection |
|
3. CPU/System fan speed
detection |
|
4. CPU/System
overheating warning |
|
5. CPU/System fan fail
warning |
|
6. CPU/System fan speed
control |
|
* Whether the fan speed
control function is supported will depend on the cooler you
install. |
|
|
|
BIOS |
1. 1 x 32 Mbit
flash |
|
2. Use of licensed AMI
UEFI BIOS |
|
3. PnP 1.0a, DMI 2.7,
WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
|
|

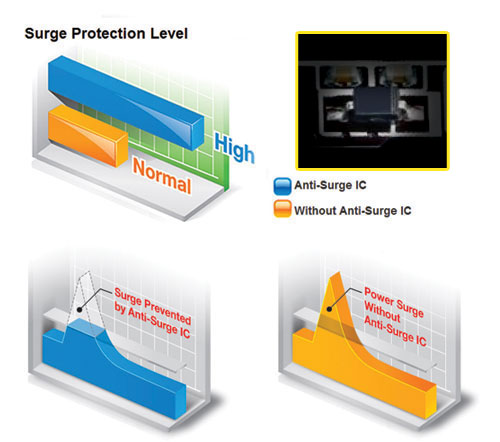

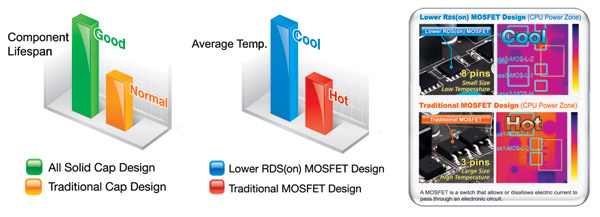

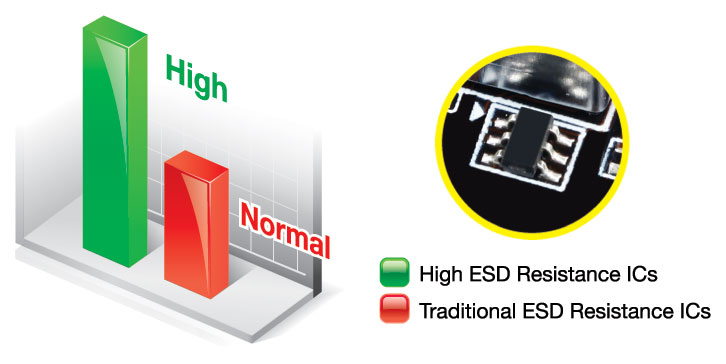

Unique
Features |
1. Support for
Q-Flash |
|
2. Support for Xpress
Install |
|
3. Support for APP
Center |
|
* Available
applications in APP Center may differ by motherboard model. Supported
functions of each application may also differ depending on motherboard
specifications. |
|
@BIOS |
|
EasyTune |
|
EZ
Setup |
|
USB
Blocker |
|
4. Support for ON/OFF
Charge |
|
|
|
Bundle
Software |
1.
Norton Internet Security (OEM
version) |
|
Operating
System |
1. Support for Windows
10/8.1/8/7 |
|
Form
Factor |
1. Micro ATX Form
Factor; 22.6cm x 17.4cm |
