All stock codes associated to this product
GVN1060G1GAMING3GD, GV-N1060G1 GAMING-3GD, VCGVN1060G13GD, VCGV-N1060G1-3GD, 4719331331283, 4719331342210
Overview
- Powered by GeForceGTX
1060
- Integrated with 6GB GDDR5 192bit memory
- WINDFORCE 2X with Blade Fan Design
- Support up to 8K display @60Hz
- 16.8M Customizable Color RGB Lighting
Core Clock
Boost: 1847 MHz/ Base: 1620 MHz in OC Mode
Boost: 1809 MHz/ Base: 1594 MHz in Gami
GIGABYTE G1 Gaming Series graphics cards are crafted for perfection in
pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the
revolutionary NVIDIA Pascal GPU architecture, G1 gaming graphics card brings you
incredible gaming experience.
- Pascal-powered graphics card give you superior performance and power
efficiency
- Support up to 8K display @60Hz
- Outstanding performance for Virtual Reality gaming

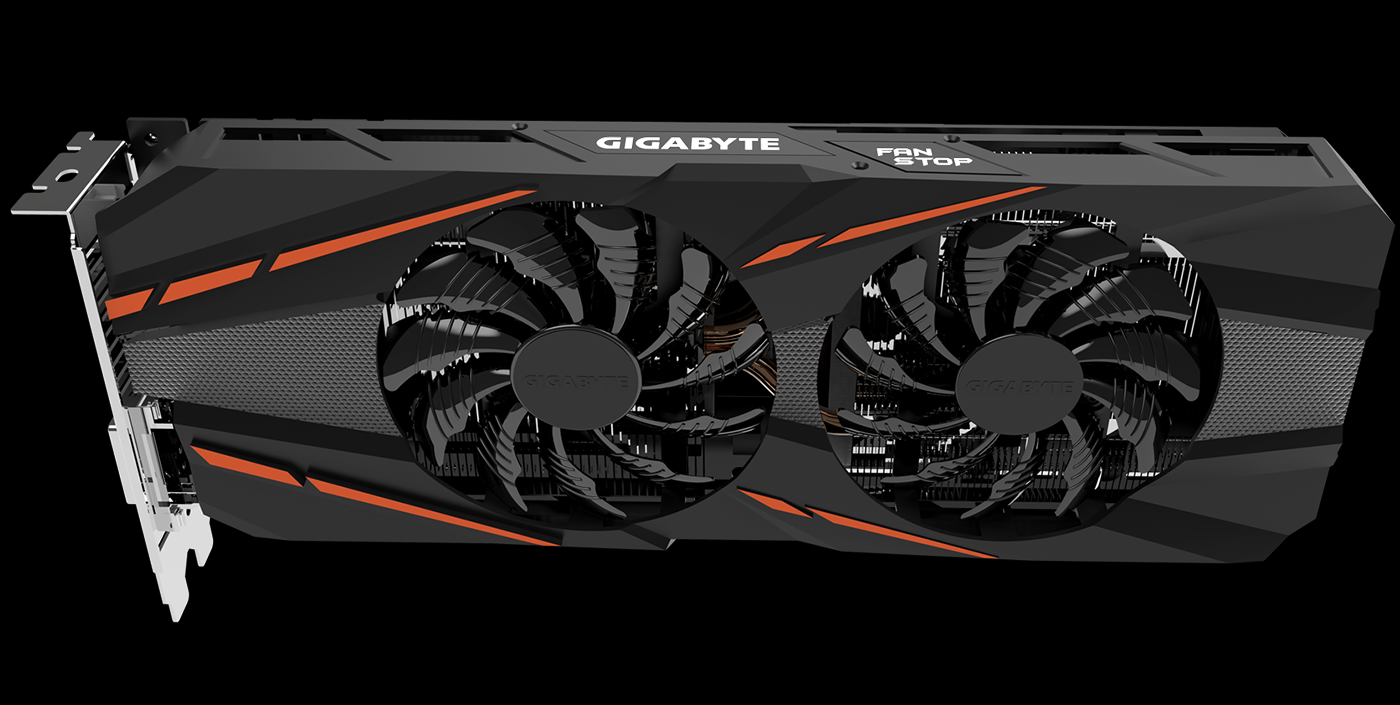

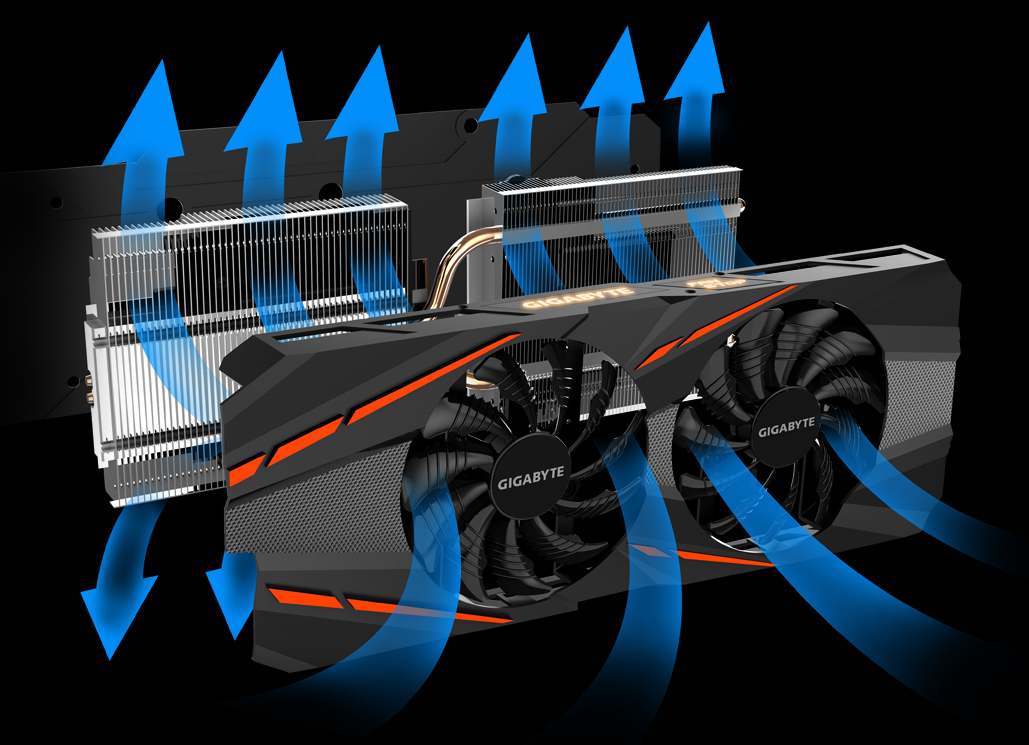

WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features two 90mm unique blade fans, 2 pure
copper composite heat-pipes, alternate spinning fan design, and heat pipes
direct touch technology, together delivering an effective heat dissipation
capacity for higher performance at lower temperatures.
WINDFORCE 2X Cooling System-Fans

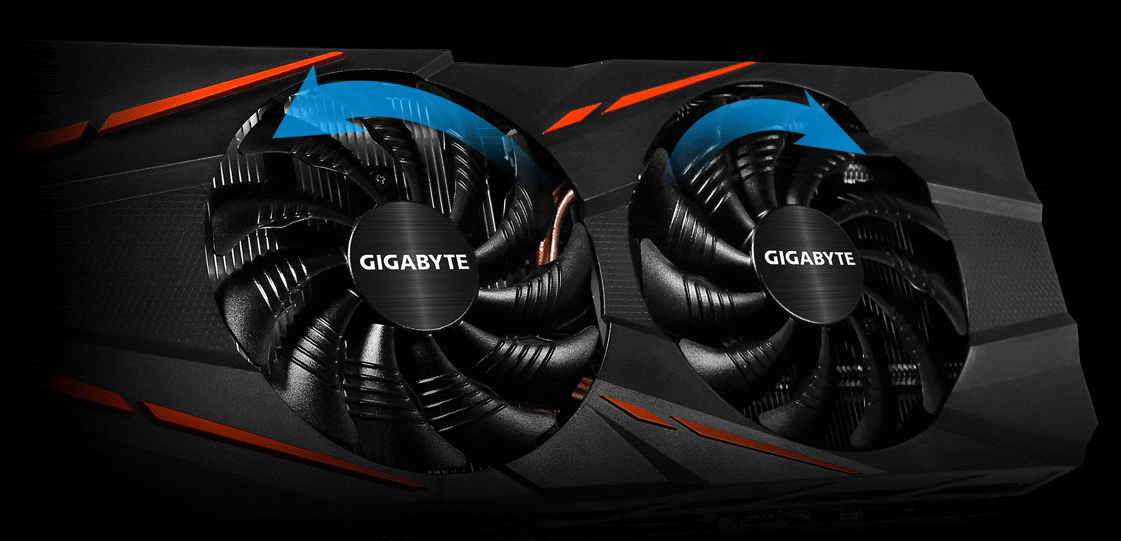

Alternate Spinning Fan Design
Optimize air flow by the alternate spinning fans that reduce air turbulence
and effectively dissipate the heat.

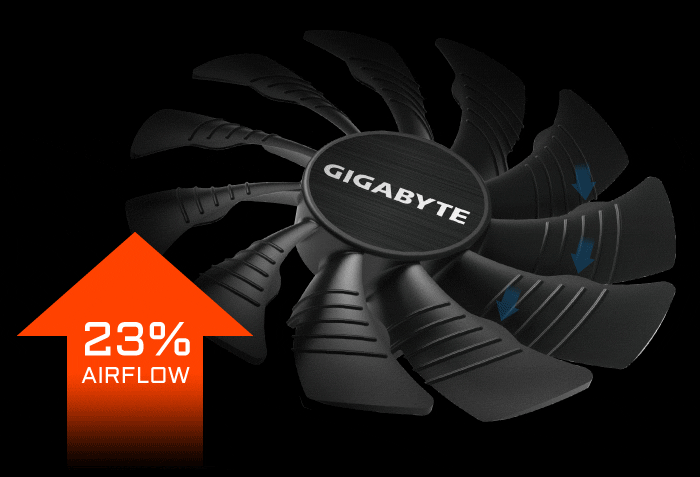

Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through
the 3D stripe curve on the fan surface, effectively enhancing the air flow by
23% over traditional fans.

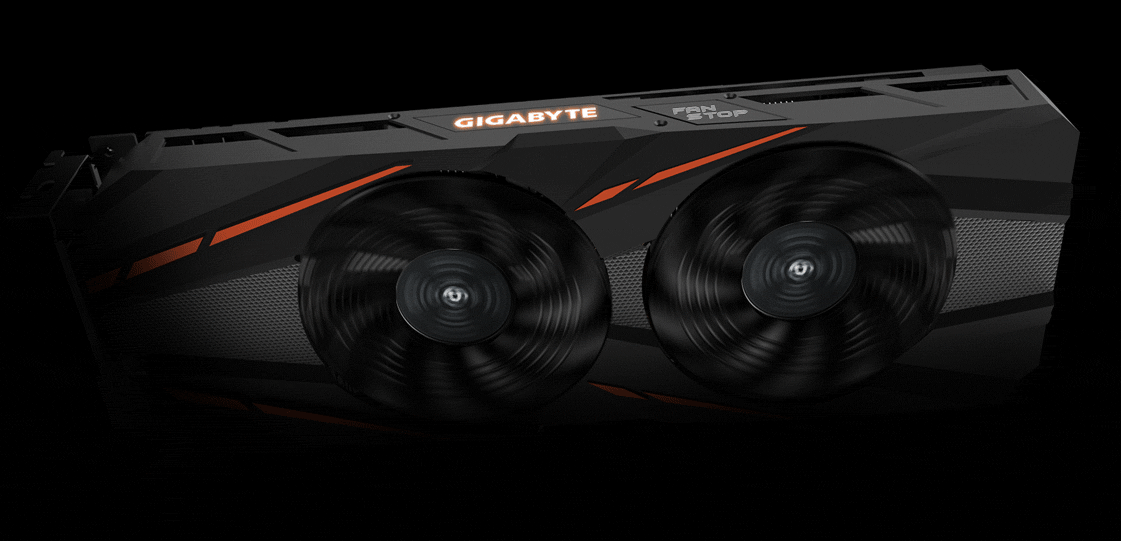

3D Active Fan with LED Indicators
The semi-passive fans will remain off when the GPU is under a set loading or
temperature for low power gaming. The LED fan indicator on the top of the
graphics card provides an instant display of the fan status.
WINDFORCE 2X Cooling System-Heat Pipes

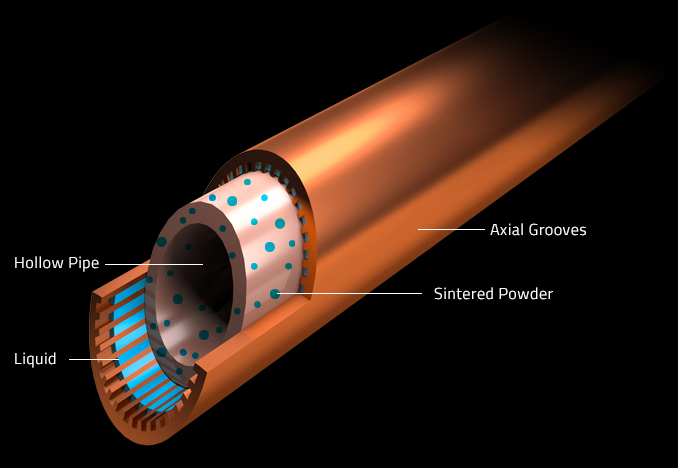

Composite heat-pipes
The composite heat-pipes combines both thermal conductivity and phase
transition for efficiently managing the transfer of heat between two solid
interfaces which increases 29% of cooling capacity.

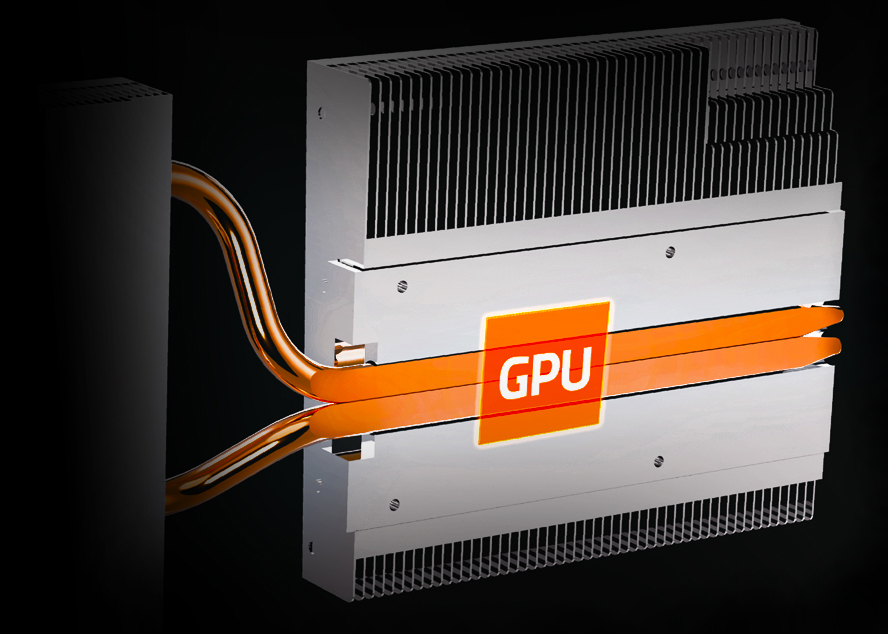

Heat Pipe Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to
the GPU.
G1 Outlook
16.8M Customizable Color Lighting
With 16.8M customizable color options and numerous lighting effects, you
could now choose the right scheme for your gaming rig through XTREME Engine
utility

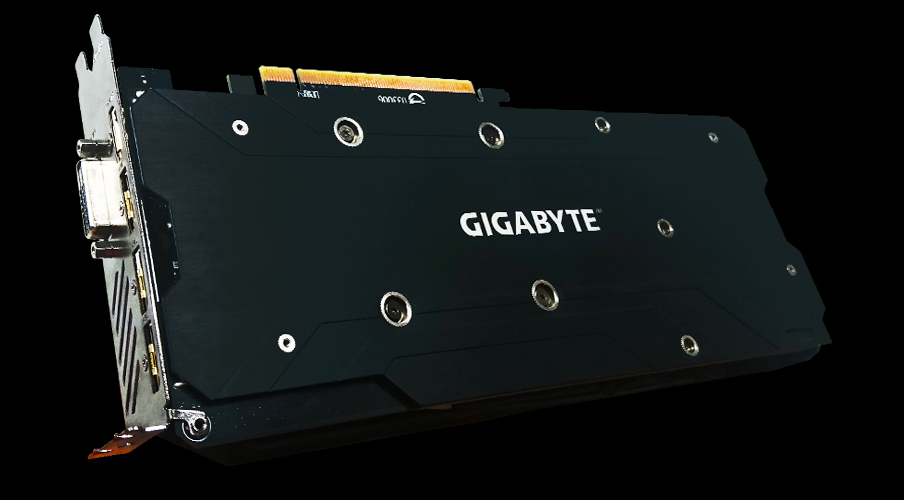

Stylish Metal Back Plate
The metal back plate offers rigidity and protection to the structure, while
adding a sleek, clean look to the product.
Performance

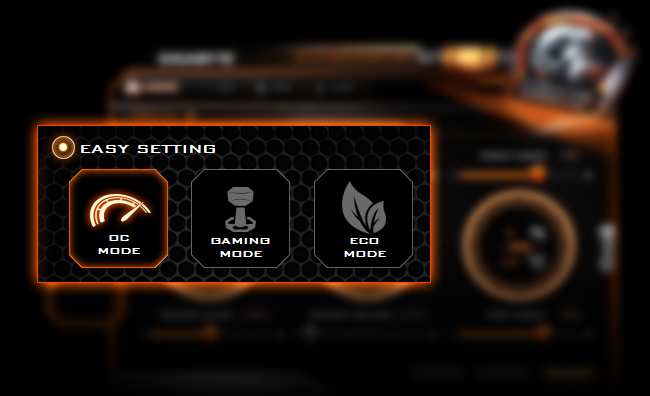

One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card
to meet their various gaming requirements without any overclocking knowledge,
while saving the hassle of manual adjustment.
GPU Gauntletâ„¢ Sorting
Forged with only the top-notch GPU, the Gigabyte G1 GAMING graphics cards
guarantee higher overclocking capability in terms of excellent power switching,
ensuring the highest performance without compromising system reliability.
G1 Durability

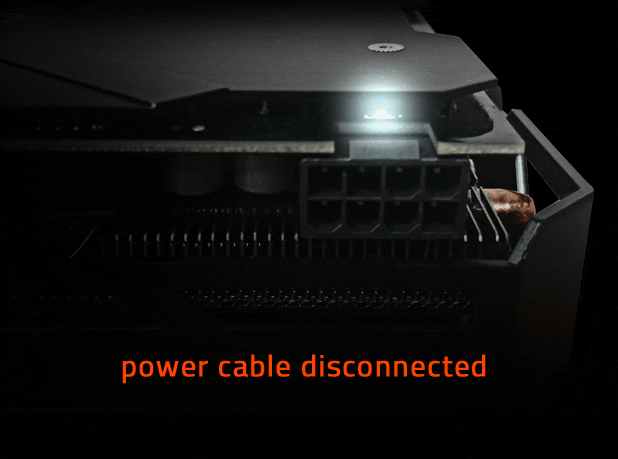

Smart Power LED indicators
Be alert when PCI-E voltage is unstable with the smart power LED
indicator.
Ultra Durable Materials
Engineered with the highest-grade chokes and capacitors, this graphic card
delivers outstanding performance and durable system lifespan.
Built for OverClocking with 6+1 power phases
Compared to reference design, the 6+1 power phases on the card make the
MOSFET working at a lower temperature and provide more stable voltage output.
(*reference design 3+1)

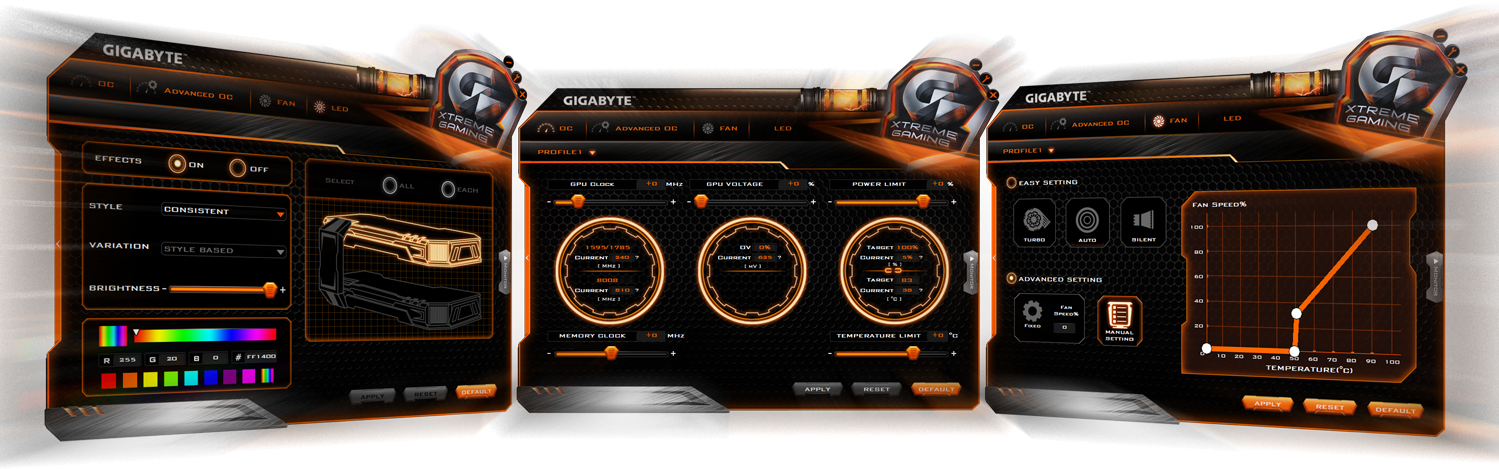

Intuitive XTREME Engine Utility
Adjust clock speeds, voltage, fan performance, RGB lighting effect, power
target can be monitored and tuned in real-time according to your own preference
through this intuitive interface.
Specifications
Graphics
Processing |
GeForce GTX
1060 |
Core
Clock |
Boost: 1847 MHz/ Base:
1620 MHz in OC Mode |
|
Boost: 1809 MHz/ Base:
1594 MHz in Gaming |
Process
Technology |
16
nm |
Memory
Clock |
8008
MHz |
Memory
Size |
6
GB |
Memory
Type |
GDDR5 |
Memory
Bus |
192
bit |
Card
Bus |
PCI-E 3.0 x
16 |
Output |
Dual-link DVI-D
*1 |
|
HDMI-2.0b*1 (Max
Resolution: 4096x2160 @60 Hz) |
|
Display Port-1.4 *3
(Max Resolution: 7680x4320 @60 Hz) |
Digital max
resolution |
7680x4320 |
Multi-view |
4 |
Card
size |
H=40 L=278 W=114
mm |
PCB
Form |
ATX |
DirectX |
12 |
OpenGL |
4.5 |
Recommended
PSU |
400W |
Power
Connectors |
8
pin*1 |
