All stock codes associated to this product
RX480G1GAMING4GD, RX480G1-GAMING-4GD, 4719331330262
Overview
- Powered by Radeon RX 480
- WINDFORCE 2X with Blade Fan Design
- Support up to UltraHD (4Kx2K)
- 16.8M Customizable Color RGB Lighting
- Stylish Metal Back Plate
Core Clock
GIGABYTE G1 Gaming Series graphics cards are crafted for perfection in
pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the
revolutionary AMD Radeon GPU architecture, G1 gaming graphics card brings you
incredible gaming experience.
WINDFORCE 2X Cooling System
The WINDFORCE 2X cooling system features 3 pure copper composite heat-pipes,
heat-pipe direct touch GPU, 90mm unique blade fan design, 3D active fan with LED
indicators, stylish metal back plate, together delivering an effective heat
dissipation capacity for higher performance at lower temperatures.
WINDFORCE 2X Cooling System-Fans
90mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through
the 3D stripe curve on the fan surface, effectively enhancing the air flow by
23% over traditional fans.
3D Active Fan with LED Indicators
The semi-passive fans will remain off when the GPU is under a set loading or
temperature for low power gaming. The LED fan indicator on the top of the
graphics card provides an instant display of the fan status.
WINDFORCE 2X Cooling System-Heat Pipes

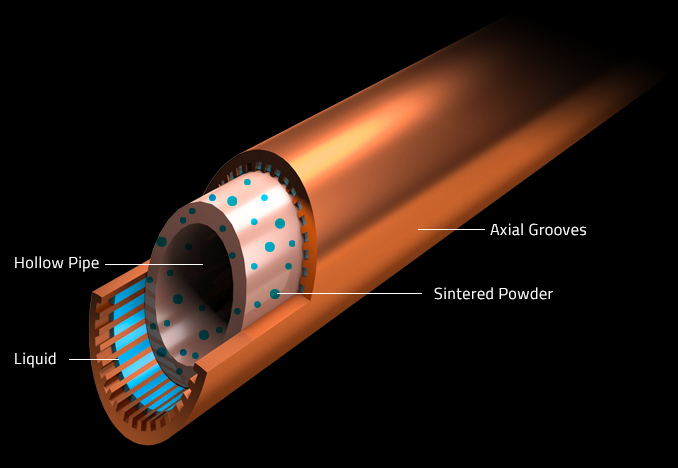

Composite heat-pipes
The composite heat-pipes combines both thermal conductivity and phase
transition for efficiently managing the transfer of heat between two solid
interfaces which increases 29% of cooling capacity.

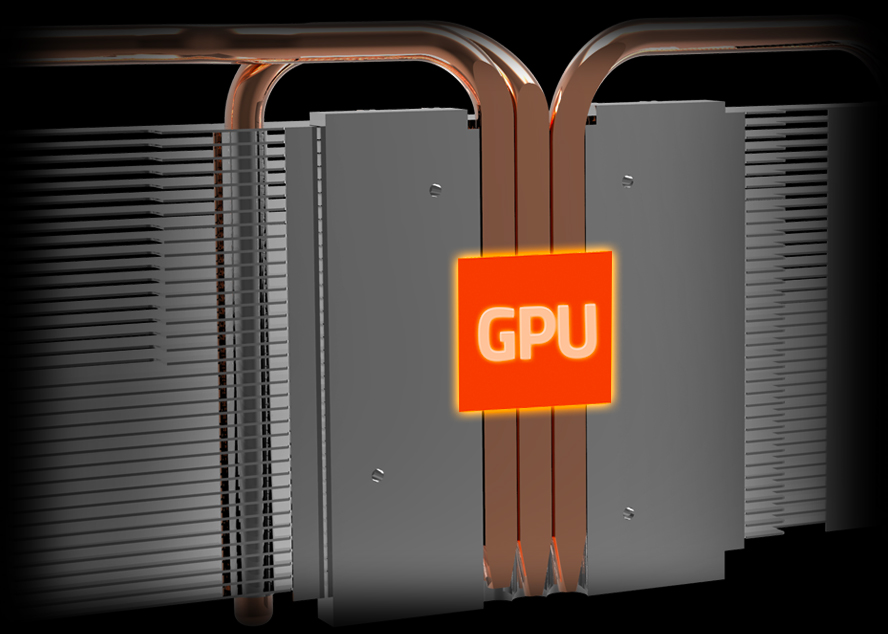

3 Heat-Pipes Direct Touch
The pure copper heat pipes are shaped to maximize the direct contact area to
the GPU.
G1 Outlook
16.8M Customizable Color Lighting
With 16.8M customizable color options and numerous lighting effects, you
could now choose the right scheme for your gaming rig through XTREME Engine
utility.
Cycling
- Smoothly cycles through all colors
Breathing
- Choose a color to fade in and out
Dual Flash
- Choose a color for flash effect
Consistent
- Choose a color for static light
Stylish Metal Back Plate
The metal back plate offers rigidity and protection to the structure, while
adding a sleek, clean look to the product.
Performance
GPU Gauntletâ„¢ Sorting
Forged with only the top-notch GPU, the Gigabyte G1 GAMING graphics cards
guarantee higher overclocking capability in terms of excellent power switching,
ensuring the highest performance without compromising system reliability.
G1
Durability |
Smart Power LED indicators
Be alert when PCI-E voltage is unstable with the smart power LED
indicator.
Ultra Durable Materials
Engineered with the highest-grade chokes and capacitors, this graphic card
delivers outstanding performance and durable system lifespan.
Built for OverClocking with 6+2 power phases
Compared to reference design, the 6+2 power phases on the card make the
MOSFET working at a lower temperature and provide more stable voltage
output.
Intuitive Utility |

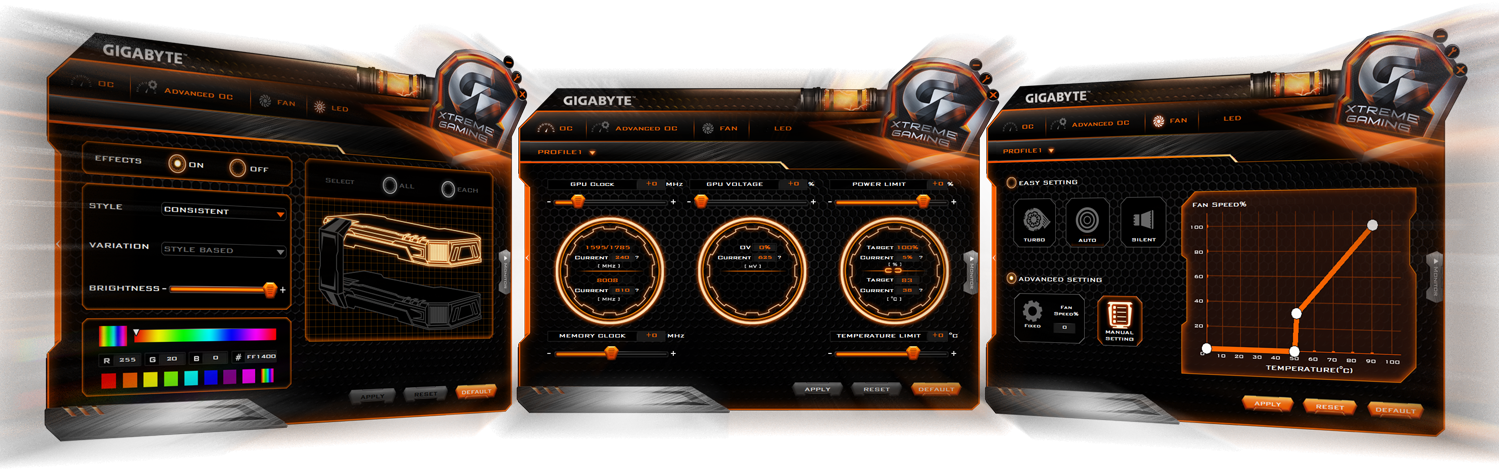

Intuitive XTREME Engine Utility
Adjust clock speeds, voltage, fan performance, RGB lighting effect, power
target can be monitored and tuned in real-time according to your own preference
through this intuitive interface.
Specifications
|
Graphics
Processing |
Radeon
RX480 |
|
Core
Clock |
1290
MHz |
|
Memory
Clock |
7000
MHz |
|
Process
Technology |
14
nm |
|
Memory
Size |
4
GB |
|
Memory
Type |
GDDR5 |
|
Memory
Bus |
256
bit |
|
Card
Bus |
PCI-E 3.0 x
16 |
|
Output |
Dual-link DVI-D
*1 |
|
HDMI
*1
|
|
Display Port
*3 |
|
Digital max
resolution |
7680x4320 |
|
Multi-view |
5 |
|
Card
size |
H=40 L=232 W=116
mm |
|
PCB
Form |
ATX |
|
DirectX |
12 |
|
OpenGL |
4.5 |
|
Recommended
PSU |
500W |
|
Power
Connectors |
8
pin*1 |
