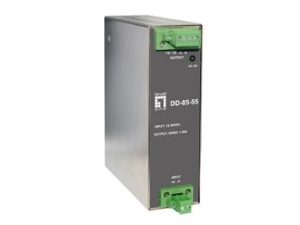

Level 1 POW-5510 DIN-Rail Industrial Power Supply - 55VDC/85W
  • 12-36VDC Input, Short Circuit, Overload/Over Voltage Protection, Isolation Class II, DC to DC Power Converter, Fanless

IMG 1 of 1
No Longer Available
Part Number:
412204
(?) Brand:
Level 1
Manuf No:
POW-5510
POW5510
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
POW5510, POW-5510, 3269304, 4015867183663

Overview

The POW-5510 is a DIN-rail industrial power supply is ruggedized, universal input voltage range and full compliance with all important safety and EMC standards. It can be operated at full load across an ambient temperature range of -10 to 60 Celsius degree without need of additional cooling to guarantee quality for harsh industrial environment. Moreover, this power unit has been designed specifically for use with Infinity Industrial PoE Plus Ethernet series

Features

  • 12-36VDC Input
  • Short Circuit, Overload / Over Voltage Protection
  • Fanless Design
  • Supports DIN-rail installation
  • Isolation Class II
  • 100% Full Load Burn-in Test
  • DC to DC Power Converter

Specifications

Output DC                             55V

Output Current                     1.55A



Output Power                       85W



Input Voltage                        12-36VDC



MTBF                                      114 years



Dimension & Weight            50 x 148 x 165mm @ 1.2kg



Operation Temperature       -10 to 60 Celsius



Operation Humidity             0 to 95% RH Non-condensing



Safety Approval                    IEC60068, EN60950-1, UL60950-1, EN55011,

                                               EN55022 (CISPR22) Class B, EN61000-3-2,

                                               EN61000-3-3, EN61000-4-2/3/4/5/6/8/11,

                                               EN61000-6-2, EN61204, EN55024





No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.
