All stock codes associated to this product

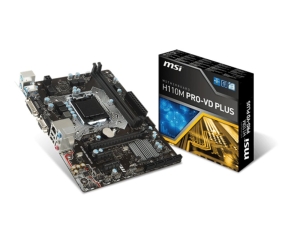

H110MPROVDPLUS, H110M PRO-VD PLUS, MBMH110MPROVDPLUS, MBM-H110MPROVDPLUS, 4719072461058
Overview
- Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA
1151 socket
| Supports
DDR4-2133 Memory |
| DDR4
Boost: Give your DDR4 memory a performance boost |
| USB 3.1
Gen1 + SATA 6Gb/s |
| VGA Armor:
Reinforced Armor slot |
| Click
BIOS: Secure and Reliable UEFI BIOS solution |
| Audio
Boost: Reward your ears with studio grade sound quality |
| Military
Class 4: Top Quality & Stability |
| Guard-Pro:
Improved Protection and Power Efficiency |
- Intel® SBB Support: Improves Productivity, Management and Security
| WHQL
CERTIFIED.WINDOWS 10 READY. |
Overview
Pro Series MAKING YOUR LIFE EASIER IS OUR BUSINESS
The PRO Series motherboards fit in any PC. Quality you can trust with top
performance and clever business solutions are key aspects of these motherboards.
Make your life easier and boost your business with the super stable, reliable
and long-lasting PRO Series motherboards.
PRODUCTIVITY
UNMATCHED MEMORY PERFORMANCE AND STABILITY
With traditional memory design the memory signals are often distorted by
electromagnetic signals from other components, making the system perform slower
or become unstable. MSI introduces DDR4 Boost technology with optimized traces
and fully isolated memory circuitry. This design ensures the memory signals stay
pure for optimal performance and stability.
SECURE AND RELIABLE UEFI BIOS SOLUTION
This next generation UEFI BIOS is completely rebuilt and features a plethora
of system builders favorite options. From M-Flash for easy BIOS flashing to
advanced data protection & system security, CLICK BIOS hands you the tools
to fully protect and optimize the system.
Through smart design and optimizations for Windows 10, CLICK BIOS is faster
than ever. By reducing the use of graphics in the UEFI shell, it boots faster,
reacts faster and adds a smooth experience when changing settings. Smart
categorizing of functions and settings make this the easiest BIOS youll ever
see.
STABLE, SECURE NETWORKING
The Gigabit network adapter on MSI Professional motherboards offers fast,
reliable and secure networking.
Featuring Network Genie for easy to use bandwidth optimizing
M-CLOUD
MSI M-Cloud is a convenient and secure way of saving personal files in the
cloud. M-Cloud simplifies complicated settings with a user friendly interface
and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud
can also turn your PC into an Access Point. You can easily share a wireless
network or internet signal to other devices through just a few simple steps.
RELIABILITY
MILITARY CLASS 4 COMPONENTS
DARK CHOKE
Dark Choke uses the special core design and allows the Dark Choke to run at a
lower temperature with higher capacity and better power efficiency and
stability.
SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are
made for high-end design motherboard. Not only do Solid CAPs could provide lower
Equivalent Series Resistance (ESR), but also work firmly for over-10-year.
HUMIDITY PROTECTION
Reduction in moisture absorption helps prevent "Conductive Anodic Filament".
Untreated PCB's can have 10x higher failure rate.
HIGH TEMPERATURE PROTECTION
All key components used in MSI motherboards have all passed military testing
ensuring stable operation in the harshest environments.
CIRCUIT PROTECTION
Carefully selected materials, multiple PCB layers and shielding result in the
best circuit protection for MSI motherboards.
ESD PROTECTION
Each and every I/O port is protected against the hazards of Electro Static
Discharge.
EMI PROTECTION
All MSI motherboards comply with strict American FCC regulations and
reduce the impact of Electromagnetic Interference.
EASY DIAGNOSTIC
MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU
/ Memory / VGA operation every time you boot up your system. Run into trouble?
Use the LEDs to easily identify the source of your problem and get back into
operation quickly.
ENHANCED CPU OVERVOLTAGE PROTECTION
Onboard overcurrent protection prevents overcurrent and short-circuit damage
of the CPU and other components. There shows a warning message lets you know
that overcurrent protection is activated for easier troubleshooting.
VGA ARMOR: REINFORCED PCI EXPRESS SLOT
With the increased size and weight of modern high end graphics cards,
traditional PCI Express slots often show signs of bending or even breaking. Meet
VGA Armor, strengthened PCI Express slots using more solder points to make sure
you never have to worry about breaking off any of the slots.
PREVENT DAMAGE
NO STRENGHTENING
OTHER BRANDS
NO STRENGHTENING
MSI® VGA ARMOR
REINFORCED, HEAVY SOLDERED CONNECTIONS
TOTAL FAN CONTROL
Total Fan Control gives you complete control of all your fans connected to
the motherboard, through a revolutionary and easy to use interface.
-
Full
control of fans through 4-pin fan headers
-
Real-time
monitor fan speeds & temperatures
-
Intuitive,
easy to use application design
-
Set
profiles
-
Log
fan speed, voltage and temperature status
BENEFIT FROM THE NEW INTEL® SMALL BUSINESS BASICS SOLUTION WITH MSI®
MOTHERBOARDS
Intel® SBB is a unique, customizable solution that helps improve small
businesses data security, maximizes employee productivity and boosts overall
office computers’ performance.
A simple and intuitive interface which improves security and productivity
With USB blocker, screen sharing, file sharing, and chat.
- Connect - Intel® SBB Cloud Connectivity
- Security - USB Blocker
- Share - File Sharing Screen Sharing Chat
WHQL CERTIFIED. WINDOWS 10 READY.
Benefit from great compatibility and a worry-free user experience when using
Microsoft Windows 8 / 8.1 or Windows 10 with MSI PRO Series motherboards.
MSI is worlds first motherboard manufacturer to receive official Microsoft
Windows 10 WHQL certification. With a true testament to compatibility and
performance, the MSI R&D team ensures a worry-free experience when using the
latest version of Microsoft Windows on any MSI PRO Series motherboard.
ENHANCED EXPERIENCE
STUDIO GRADE SOUND WITH AUDIO BOOST
With Audio Boost we're delivering the highest sound quality through the use
of premium quality audio components. That way, you can enjoy breathtaking,
crystal clear sound and music through 6-channel Audio or high impendence
headphones and truly dominate the game.
ISOLATED AUDIO PCB WITH LED LINE
Audio Boost acts like a dedicated soundcard by physically isolating the audio
circuitry to give you a more clear audio signal.
CHEMI-CON AUDIO CAPACITORS
Delivering high fidelity crystal clear sound with exceptional acoustics and
realism.
SEPARATED AUDIO LAYERS |
Equal and perfect sound quality for left & right channel audio through
the use of seperated layers in the PCB.
ANTI-POPCORN NOISE
Audio Boost protects your ears against annoying loud popping sounds when you
plug devices in or out or turn your PC on/off.
5.1 Audio Jacks 7.1 via front
With high quality audio connectors you get the best possible signal output
with less chance of distortion.
FRONT DEDICATED HEADPHONE OUT
Convenient use of the front panel audio output while retaining high quality
amplified sound.
2X FRONT USB 3.1 GEN1
With a clever placed USB 3.1 Gen1 front pin header, available on MSI
motherboards, you can connect up to 2 USB 3.1 Gen1 devices directly to the front
of your PC Chassis. This way you can easily enjoy fast USB speeds without having
to use the hard-to-reach USB ports on the rear.
DOUBLE ESD PROTECTION
The front USB 3.1 Gen1 ports on MSI motherboards are protected by a set of
protective ICs to prevent damage caused by Electrostatic Discharge (ESD) from
plugging/unplugging USB devices.
LEGACY DVI / VGA VIDEO SUPPORT
To support professional monitors, TV's, beamers and other displays, this MSI
motherboard features DVI and a VGA video output. No matter what screen type you
want to connect, using a dedicated graphics card or an onboard connector, MSI
motherboards have you covered.
CONNECTIVITY
Be sure to take full advantage by connecting your devices to the optimized
ports.
- Mouse
- LAN port
- Audio connectors
- Keyboard
- USB 3.1 Gen1 ports
- DVI -D port
- VGA port
- USB 2.0 ports
Specifications
|
Socket
|
1151 |
|
CPU
(Max Support) |
i7 |
|
Chipset
|
Intel®
H110 Chipset |
|
DDR4
Memory |
2133
MHz |
|
Memory
Channel |
Dual |
|
DIMM
Slots |
2 |
|
Max
Memory (GB) |
32 |
|
PCI-Ex16
|
1 |
|
PCI-E
Gen |
Gen3 |
|
PCI-Ex1
|
2 |
|
SATAIII
|
4 |
|
TPM
(header) |
1 |
|
LAN
|
10/100/1000*1 |
|
USB
3.1 ports(Front) |
2(Gen1) |
|
USB
3.1 ports (Rear) |
2(Gen1) |
|
USB
2.0 ports (Front) |
4 |
|
USB
2.0 ports (Rear) |
2 |
|
Audio
ports (Rear) |
3 |
|
VGA
|
1 |
|
DVI
|
1 |
|
DirectX
|
DX12 |
|
Form
Factor |
M-ATX |
Details
|
CPU |
•
Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and
Celeron® processors for Socket LGA1151 |
|
*
Please refer to CPU Support for compatible CPU; the above description is
for reference only. |
|
|
|
|
Chipset |
•
Intel® H110 Chipset |
|
|
|
|
Main
Memory |
•
2 x DDR4 memory slots, support up to 32GB |
|
-
Supports DDR4 2133 MHz |
|
•
Dual channel memory architecture |
|
•
Supports Non-ECC, un-buffered memory |
|
•
Supports Intel® Extreme Memory Profile (XMP) |
|
*
Hyper DIMM support is subject to the physical characteristics of
individual CPUs |
|
*
DDR4 2133 MHz and higher memory modules will only run at maximum of DDR4
2133 MHz on XMP mode due to Intel® chipset
limitation |
|
*
Please refer to Compatibility reports for more information of compatible
memory. |
|
|
|
Slots |
•
1 x PCIe 3.0 x16 slot |
|
•
2 x PCIe 2.0 x1 slots |
|
|
|
|
Onboard
Graphics |
•
1 x DVI-D port, supports a maximum resolution of
1920x1200@60Hz |
|
•
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz,
2048x1280@60Hz, 1920x1200@60Hz |
|
|
|
|
On-Board
SATA |
• Intel®
H110 Chipset |
|
•
4 x SATA 6Gb/s ports |
|
|
|
USB |
• Intel®
H110 Chipset |
|
-
4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2
ports available through the internal USB
connector) |
|
-
6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports
available through the internal USB connectors) |
|
|
|
|
Audio |
•
Realtek® ALC887 Codec |
|
•
7.1-Channel High Definition Audio |
|
|
|
|
LAN |
•
1 x Realtek RTL8111H Gigabit LAN controller |
|
|
|
Back
Panel I/O Ports |
-
1 x PS/2 mouse port |
|
-
1 x PS/2 keyboard port |
|
-
2 x USB 2.0 ports |
|
-
2 x USB 3.1 Gen1 ports |
|
-
1 x DVI-D port |
|
-
1 x VGA port |
|
-
1 x LAN (RJ45) port |
|
-
3 x audio jacks |
|
|
|
|
Internal
I/O Connectors |
-
1 x 24-pin ATX main power connector |
|
-
1 x 4-pin ATX 12V power connector |
|
-
4 x SATA 6Gb/s connectors |
|
-
2 x USB 2.0 connectors (supports additional 4 USB 2.0
ports) |
|
-
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1
ports) |
|
-
1 x 4-pin CPU fan connector |
|
-
1 x 4-pin system fan connectors |
|
-
1 x Front panel audio connector |
|
-
2 x Front panel connectors |
|
-
1 x TPM module connector |
|
-
1 x Serial Port connector |
|
-
1 x Chassis Intrusion connector |
|
-
1 x Clear CMOS jumper |
|
|
|
|
Dimension |
•
8.9 in. x 6.8 in. (22.6 cm x 17.3 cm) Micro-ATX Form
Factor |
|
|
|
Mounting |
•
6 mounting holes |
