All stock codes associated to this product
X99PROFESSIONALGAMINGI7, X99-PROFESSIONAL-GAMING-I7
Overview
- ASRock Super Alloy
- Gaming Armor
- Supports Intel® Core™ i7 and Xeon® 18-Core Processors (Socket
2011-3)
- Digi Power, 12 Power Phase design
- Supports Quad Channel DDR4 3300+(OC)
- 3 PCIe 3.0 x16, 2 PCIe 2.0 x1
- Supports AMD 3-Way CrossFireX™, NVIDIA® 3-Way SLI™
- 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Creative Sound
Blasterâ„¢ Cinema 3
- 10 SATA3, 1 SATA Express, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 2 USB 3.1 10Gb/s (1 Type-A + 1 Type-C), 8 USB 3.0 (4 Front, 4 Rear)
- Dual Intel® Gigabit LAN
- 1 M.2(Key E for WiFi), 802.11a/b/g/n/ac
- XSplit 3-Month license bundled
- SLIâ„¢ HB Bridge free bundled
FOR GAMERS
Motherboards with enhanced audio and graphics design, plus improved
stability, specifically tailored for gamers.
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality.
Before that, you have to make sure everything is qualified, including hardware,
software and drivers. Motherboard is the key to connect every critical
components and ASRocks VR Ready motherboards are definitely the one youre
looking for. The premium qualify is assured by rigorous testing during
development. The sturdy components and rock-slid performance makes you
completely immersive in the VR scenario. Users can be assured to experience VR
enjoyments without any compatibility problems.
Modding PC Simulation
12 Power Phase Design
Designed with a 12 Power Phase design, this motherboard features sturdy
components and completely smooth power delivery to the CPU. Plus, it offers
unmatched overclocking capabilities and enhanced performance with the lowest
temperature for advanced gamers as well.

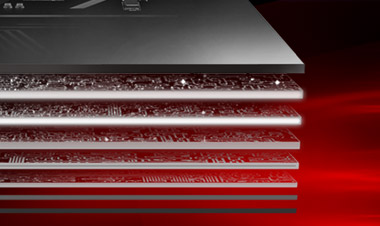

8 Layer PCB (4 x 2oz Copper) & DDR4 3300+(OC)
The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing
stable signal traces and power shapes and delivering lower temperature and
higher energy efficiency for overclocking! Thus, it's able to support the latest
DDR4 memory modules with most extreme memory performance!

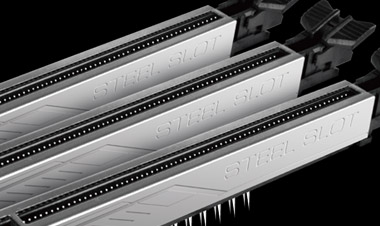

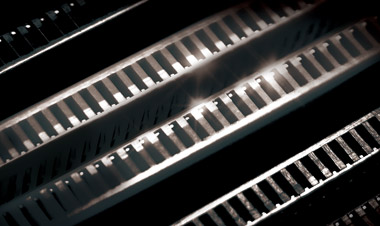

3 PCI-E Steel Slots
Adopts three PCIe Steel Slots, which are built with more solder points on the
PCB for better performance and preventing any signal interference with graphics
cards. Allows your graphics cards with enhanced signals and to be well-installed
in the PCIe slots.
Dual Ultra M.2
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to
32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible
with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3
x4 SSDs.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this
motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports
wireless networks and Bluetooth v4.0.

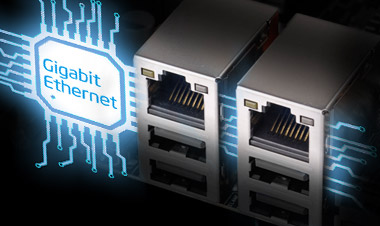

Dual Intel® LAN
Users are able to connect two LAN cables to this motherboard's rear I/O. Dual
LAN with Teaming function enabled on this motherboard allows two single
connections to act as one single connection for twice the transmission
bandwidth, making data transmission more effective.
Dual USB 3.1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 ports built
on the rear i/o for supporting next generation USB 3.1 devices and to deliver up
to 10 Gbps data transfer rates.

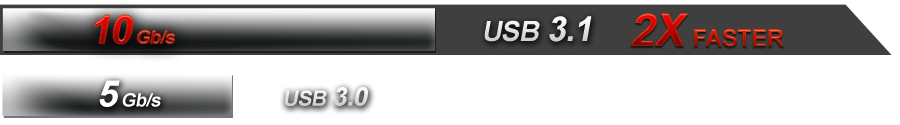

USB 3.1 doubles the data transfer rate
USB 3.1 Type-C doubles the charge speed!
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps!
This header provides a maximum of 1.5A power for supporting the most popular
water pumps. User also can adjust the voltage of water pump to get higher
cooling performance with lower noise.

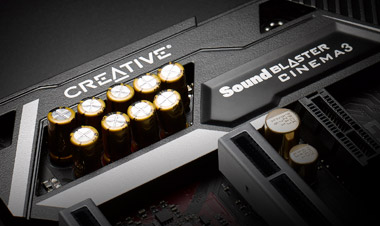

Creative Sound Blasterâ„¢ Cinema 3
Sound Blasterâ„¢ Cinema 3 is the latest software that is designed with SBX Pro
Studio to deliver a holistic audio experience. Whether you're gaming or watching
a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an
additional layer of transience to your listening experience even with just a
pair of headphones or stereo speakers.
SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA®
GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer
bandwidth, thus delivering rock stable gameplay and experiencing surround gaming
in the best way.
XSpilt| Broadcaster V2
XSplit Broadcaster is a desktop application designed to make your multimedia
broadcasting, live-streaming and recording a lot easier and more fun. XSplit
Gamecaster is a simplified version of XSplit Broadcaster. Were giving XSplit
Broadcaster & XSplit Gamecaster 3-month premium license bundle for FREE! A
US$ 24.95 value!
XSplit is provided by SplitmediaLabs, Ltd. Restriction may apply and the
offer is subject to change, termination or discontinuation by SplitmediaLabs,
Ltd. without prior notice
F-Stream Modify Your Weapon
Key Master
Consists of two major features, Sniper Key and Macro Key. It enhances your
mouse and keyboard with customizable macros, sniper modes, key repeat rates and
repeat delay.

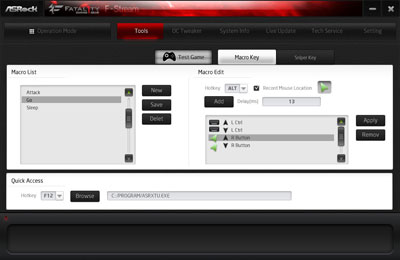

F-Stream
F-Stream is Fatal1ty's multi purpose software
suite with a new interface, more new features and improved utilities.
Fatal1ty Mouse Port
After plugging a USB mouse into the
Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred
mouse polling rate from 125 Hz to 1000 Hz.
Gaming Armor Built to Kill
Allows ASRock to be your most trustworthy ally, providing both hardware and
software support

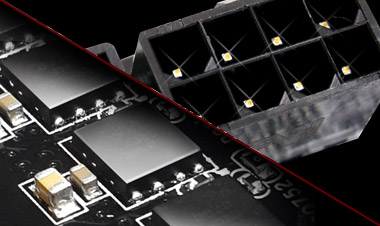

CPU Power
- Hi-Density Power Connector
- Ultra Dual-N MOSFET
Memory
- 15 Gold Contact in DIMM Slots
VGA Card
- 15 Gold Contact in PCI-E Steel Slots
Audio
Creative Sound Blaster Cinema 3
Cooling
- 8 Layer PCB x 2oz Copper
- XXL Aluminum Alloy Heatsink
Internet
Dual IntelLAN

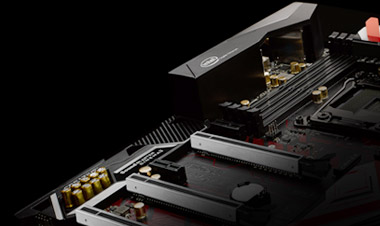

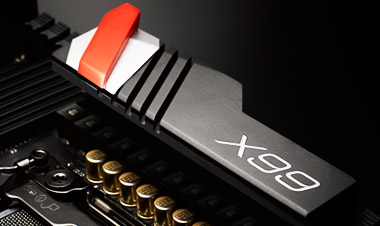

XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from
the MOSFET and chipset so that your whole system may perform more stable.
I/O Armor
A new designed protective cover for all of the crucial parts near the
motherboard's rear I/O, so that they won't easily be damaged by static
electricity.

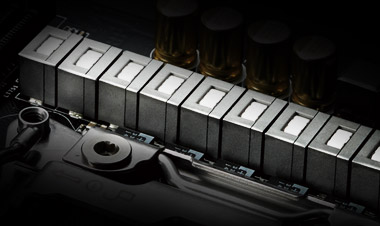

Premium 60A Power Choke
Compared to traditional chokes, ASRocks premium 60A power chokes effectively
make the saturation current up to three times better, thus providing enhanced
and improved Vcore voltage to the motherboard.

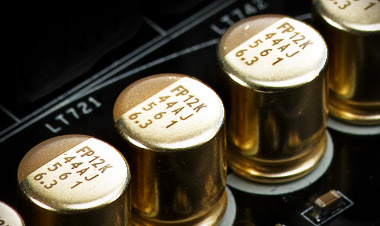

Nichicon 12K Platinum Caps
A combination of 820uF and 100uF capacitors. Together these capacitors
provide clearer, efficient and more responsive CPU Vcore power, and overclockers
may achieve higher scores.

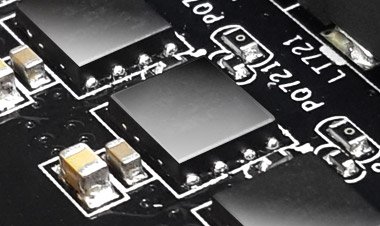

Ultra Dual-N MOSFET (UDM)
Sapphire Black PCB

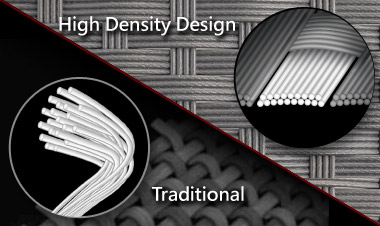

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB
layers to protect the motherboard against electrical shorts caused by
humidity.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses
a next generation digital PWM (Pulse-Width Modulation) design, which provides
CPU Vcore voltage more efficiently and smoothly, so that the stability and
lifespan of the motherboard is greatly enhanced.
Supports DDR4 ECC / RDIMM Memory Modules
This motherboard is capable of supporting DDR4 ECC and RDIMM (Registered
DIMM) memory modules which deliver server-grade performance and durability for
high-powered computing systems.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We
provide various apps and support software for users to download. You can also
easily optimize your system and keep your motherboard up to date with ASRock
Live Update & APP Shop.
Specifications
|
CPU
Power |
Hi-Density Power
Connector |
|
Ultra Dual-N MOSFET
(UDM) |
|
|
|
Memory |
15 Gold Contact in DIMM
Slots |
|
|
|
VGA
Card |
15 Gold Contact in VGA
PCIe Slot (PCIE2 and PCIE4 ) |
|
ASRock Steel
Slot |
|
|
|
Internet |
Intel LAN |
|
|
|
Cooling |
XXL Aluminum Alloy
Heatsink |
|
8 Layer
PCB |
|
4 x 2oz
Copper |
|
|
|
Audio |
Creative Sound Blaster
Cinema 3 |
|
|
|
Unique
Feature |
ASRock USB
3.1 |
|
ASRock USB 3.1 Type-A
Port (10 Gb/s) |
|
ASRock USB 3.1 Type-C
Port (10 Gb/s) |
|
ASRock X Series OC
Socket |
|
ASRock Super
Alloy |
|
XXL Aluminum Alloy
Heatsink |
|
Premium 60A Power
Choke |
|
Ultra Dual-N MOSFET
(UDM) |
|
Nichicon 12K Platinum
Caps (100% Japan made high quality conductive polymer
capacitors) |
|
I/O
Armor |
|
Sapphire Black
PCB |
|
High Density Glass
Fabric PCB |
|
ASRock 802.11ac
WiFi |
|
ASRock Ultra M.2
(PCIe Gen3 x4 & SATA3) |
|
ASRock Full Spike
Protection |
|
ASRock Live Update
& APP Shop |
|
|
|
CPU |
Supports
Intel Core i7 and Xeon 18-Core Processors Family for the LGA
2011-3 Socket |
|
Digi Power
design |
|
12 Power Phase
design |
|
Supports
Intel Turbo Boost Max Technology 3.0* |
|
Supports Untied
Overclocking Technology |
|
|
|
*Intel Core
i7-59xx/58xx processors only support Intel Turbo Boost Max
Technology 2.0. |
|
|
|
Chipset |
Intel X99 |
|
|
|
Memory |
Quad Channel DDR4
Memory Technology |
|
8 x DDR4 DIMM
Slots |
|
Supports DDR4
3300+(OC)*/2933(OC)/2800(OC)/2400(OC)/2133 non-ECC, un-buffered
memory |
|
Supports non-ECC RDIMM
(Registered DIMM) |
|
Supports DDR4 ECC,
un-buffered memory/RDIMM with Intel Xeon processors E5 series in
the LGA 2011-3 Socket |
|
Max. capacity of system
memory: 128GB* |
|
Supports
Intel Extreme Memory Profile (XMP) 2.0 |
|
15 Gold Contact in DIMM
Slots |
|
|
|
BIOS |
2 x 128Mb AMI UEFI
Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup
BIOS) |
|
Supports Secure Backup
UEFI Technology |
|
ACPI 5.0 Compliant wake
up events |
|
SMBIOS 2.7
Support |
|
CPU, DRAM, PCH 1.05V,
PCH 1.5V, VPPM Voltage Multi-adjustment |
|
|
|
Graphics |
n/a |
|
|
|
Audio |
7.1 CH HD Audio with
Content Protection (Realtek ALC1150 Audio Codec) |
|
Premium Blu-ray Audio
support |
|
Supports Surge
Protection (ASRock Full Spike Protection) |
|
Nichicon Fine Gold
Series Audio Caps |
|
115dB SNR DAC with
Differential Amplifier |
|
TI NE5532 Premium
Headset Amplifier (Supports up to 600 Ohm headsets) |
|
Pure
Power-In |
|
Direct Drive
Technology |
|
PCB Isolate
Shielding |
|
Supports Creative Sound
Blaster Cinema 3 |
|
|
|
LAN |
Gigabit LAN 10/100/1000
Mb/s |
|
1 x Giga PHY
Intel I218V, 1 x GigaLAN Intel I211AT |
|
Supports
Wake-On-LAN |
|
Supports Lightning/ESD
Protection (ASRock Full Spike Protection) |
|
Supports Dual LAN with
Teaming* |
|
Supports Energy
Efficient Ethernet 802.3az |
|
Supports
PXE |
|
|
|
Wireless
LAN |
Supports IEEE
802.11a/b/g/n/ac |
|
Supports Dual-Band
(2.4/5 GHz) |
|
Supports high speed
wireless connections up to 433Mbps |
|
Supports Bluetooth 4.0
/ 3.0 + High speed class II |
|
|
|
Slots |
3 x PCI Express 3.0 x16
Slots (PCIE2 @ x16 mode; PCIE4 @ x16 mode; PCIE5 @ x0 mode) (PCIE2 @ x16
mode; PCIE4 @ x8 mode; PCIE5 @ x8 mode)* |
|
2 x PCI Express 2.0 x1
Slots |
|
Supports AMD Quad
CrossFireX, 3-Way CrossFireX and CrossFireX |
|
Supports
NVIDIA Quad SLI, 3-Way SLI and SLI |
|
1 x Vertical M.2 Socket
(Key E), supports type 2230 WiFi/BT module |
|
15 Gold Contact in VGA
PCIe Slot (PCIE2 and PCIE4) |
|
|
|
*If you install CPU
with 28 lanes, PCIE2/PCIE4/PCIE5 will run at x16/x0/x8 or
x8/x8/x8. |
|
Supports NVMe SSD as
boot disks. |
|
|
|
|
|
Storage |
10 x SATA3 6.0 Gb/s
Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10,
Intel Rapid Storage Technology 13), NCQ, AHCI, Hot
Plug* |
|
1 x SATA Express 10
Gb/s Connector (shared with SATA3_4 and SATA3_5)** |
|
1 x Ultra M.2 Socket
(M2_2), support type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*** |
|
1 x Ultra M.2 Socket
(M2_1), support type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2
PCI Express module up to Gen3 x4 (32 Gb/s)*** |
|
|
|
*RAID is supported on
SATA3_0 ~ SATA3_5 ports only. |
|
SSATA3_3 connector is
shared with the M2_1; SSATA3_2 connector is shared with the
M2_2 |
|
|
|
**Support to be
announced |
|
|
|
***Supports ASRock U.2
Kit. |
|
If you install CPU with
28 lanes, the M2_1 only supports SATA type M.2
module. |
|
Supports NVMe SSD as
boot disks. |
|
|
|
|
|
Connector |
1 x COM Port
Header |
|
1 x TPM
Header |
|
1 x Power LED and
Speaker Header |
|
1 x CPU Fan Connector
(4-pin)* (Smart Fan Speed Control) |
|
1 x CPU Optional/Water
Pump Fan Connector (4-pin)** |
|
3 x Chassis Fan
Connectors (4-pin)*** |
|
1 x 24 pin ATX Power
Connector |
|
1 x 8 pin 12V Power
Connector (Hi-Density Power Connector) |
|
1 x Front Panel Audio
Connector |
|
2 x USB 2.0 Headers
(Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike
Protection)) |
|
2 x USB 3.0 Headers
(Support 4 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike
Protection)) |
|
1 x Dr. Debug with
LED |
|
1 x Power Switch with
LED |
|
1 x Reset Switch with
LED |
|
1 x BIOS Selection
Switch |
|
|
|
*The CPU Fan Connector
supports the CPU fan of maximum 1A (12W) fan power. |
|
|
|
**The CPU
Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A
(18W) fan power. |
|
|
|
***CHA_FAN1 and
CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in
use. |
|
|
|
|
|
Rear Panel
I/O |
1 x PS/2 Mouse/Keyboard
Port |
|
1 x Optical SPDIF Out
Port |
|
1 x USB 2.0 Port
(Supports ESD Protection (ASRock Full Spike
Protection)) |
|
1 x Fatal1ty Mouse Port
(USB 2.0) (Supports ESD Protection (ASRock Full Spike
Protection)) |
|
1 x USB 3.1 Type-A Port
(10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike
Protection)) |
|
1 x USB 3.1 Type-C Port
(10 Gb/s) (ASMedia ASM1142) (Supports ESD Protection (ASRock Full Spike
Protection)) |
|
4 x USB 3.0 Ports
(ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike
Protection)) |
|
2 x RJ-45 LAN Ports
with LED (ACT/LINK LED and SPEED LED) |
|
1 x Clear CMOS
Switch |
|
HD Audio Jacks: Rear
Speaker / Central / Bass / Line in / Front Speaker /
Microphone |
|
Software and
UEFI |
|
|
|
Software |
ASRock
F-Stream |
|
ASRock Disk Health
Report |
|
ASRock USB
Key |
|
ASRock APP
Charger |
|
ASRock XFast
LAN |
|
ASRock XFast
RAM |
|
ASRock Restart to
UEFI |
|
ASRock Fast Boot (Fast
Boot, Restart to UEFI)* |
|
|
|
UEFI |
ASRock EZ
Mode |
|
ASRock Full HD
UEFI |
|
ASRock My Favorites in
UEFI |
|
ASRock UEFI
Guide |
|
ASRock Instant
Flash |
|
ASRock Internet
Flash |
|
ASRock Crashless
BIOS |
|
ASRock OMG (Online
Management Guard) |
|
ASRock UEFI System
Browser |
|
ASRock UEFI Tech
Service |
|
ASRock Easy RAID
Installer |
|
ASRock Easy Driver
Installer |
|
|
|
*These utilities can be
downloaded from ASRock Live Update & APP Shop. |
|
|
|
Support
CD |
Drivers, Utilities,
AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar,
Xsplit, Creative Sound Blaster Cinema 3 |
|
|
|
Accessories |
Quick Installation
Guide, Support CD, I/O Shield |
|
4 x SATA Data
Cables |
|
1 x ASRock
SLI_HB_Bridge_2S Card |
|
1 x ASRock
SLI_Bridge_2S Card |
|
1 x ASRock 3-Way
SLI-2S1S Bridge Card |
|
2 x ASRock WiFi 2.4/5
GHz Antennas |
|
2 x Screws for Ultra
M.2 Socket |
|
|
|
Hardware
Monitor |
CPU / Chassis / CPU
Optional/Water Pump temperature sensing |
|
CPU / Chassis / CPU
Optional/Water Pump Fan Tachometer |
|
CPU / Chassis / CPU
Optional/Water Pump Quiet Fan (Auto adjust chassis fan speed by CPU
temperature) |
|
CPU / Chassis / CPU
Optional/Water Pump Fan multi-speed control |
|
Voltage monitoring:
+12V, +5V, +3.3V, CPU Input Voltage, CPU Internal
Voltages |
|
|
|
Form
Factor |
ATX Form Factor:
12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
|
8 Layer
PCB |
|
4 x 2oz
Copper |
|
|
|
OS |
Microsoft Windows 10
64-bit / 8.1 64-bit / 8 64-bit / 7 32-bit / 7 64-bit |
|
|
|
Certifications |
|
|
FCC, CE,
WHQL |
|
ErP/EuP ready (ErP/EuP
ready power supply is required) |
