All stock codes associated to this product
SSTST1000PT, SST-ST1000-PT
Overview
- High efficiency with 80 PLUS Platinum certification
- 139mm Air Penetrator fan with intelligent semi-fanless operation
- FF141 magnetized fan filter included
- 100% modular cables
- 24/7 continuous power output with 40 operating temperature
- Strict 3% voltage regulation and low ripple & noise
- Dual EPS 8pin with multiple individual one-on-one PCI-E 8/6pin
connectors
To meet the ever higher requirements imbued by professional users and
enthusiasts alike, SilverStone created the Strider Platinum series power
supplies. The Strider Platinum models are built on similar platform as the
award-winning Strider Gold series but with even higher efficiency ratings.
In addition to 80 PLUS Platinum level efficiency, the ST1000-PT
andST1200-PTare equipped with SilverStones own Air Penetrator
fan, which has superb cooling ability and an excellentFF141fan
filter with magnets is even included in the package for use to reduce dust
buildup. It is also incredibly quiet with the ability to run in fanless mode. If
the loading condition is below 40%, the fan in the power supply can remain off
for silent operation during idle or low powered computing activities. Designed
for high power consumption graphics cards, multiple individual one-to-one PCI-E
8/6pin connectors and 16 sets of SATA connectors are included for easy component
expansion. Other great features such as 3% regulation, powerful single +12V
rail, and 24/7 continuous power output are standard as well. For users looking
for a power supply with faultless combination of performance, efficiency, and
quality, there is little need to look beyond the Strider Platinum Series.
Remark

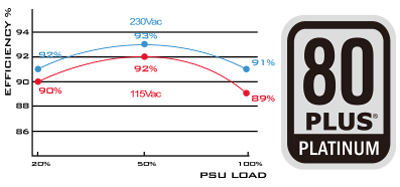

Designed for 80 PLUS Platinum level of efficiency
to reduce wasted heat and save on electricity

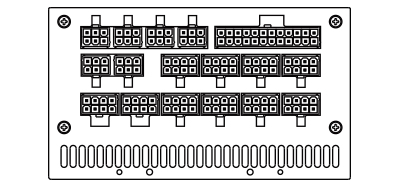

100% moudlar cable design for use with short cable kit such as
SilverStonesPP05-Eor for easy removal in a case with cable
routed and tied down

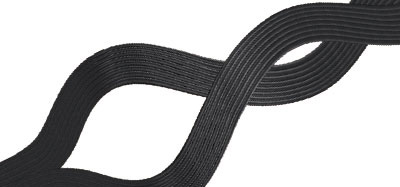

Flat cables have much greater flexibility to allow for tighter folding and
management of cables.

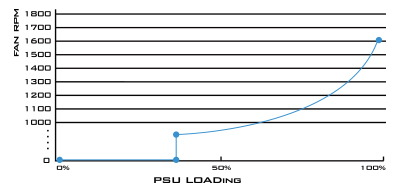

Ultra-quiet 139mm fan with intelligent RPM control guarantees cool
performance and silent operation with minimum of 18dBA during fan operation. The
fanless mode operation deactivates when PSUs loading reaches 40%.
Powerful single +12V rail design, perfect for future high-end component
upgrades or overclocking

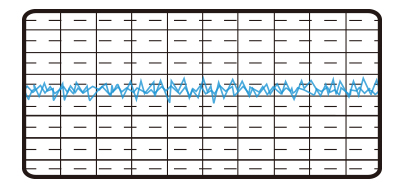

3% regulation and low ripple & noise performance for high stability.

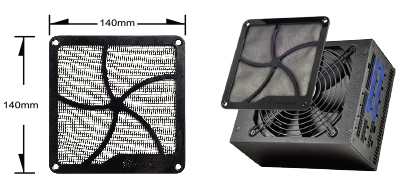

The included FF141 fan filter can help reduce dust buildup;
and with its built-in magnets, its also extremely easy to attach and remove
Installation guide: Please make sure the power supply fan
andFF141filter are properly aligned. The embedded magnet
onFF141can be easily attached to any steel power supply
surface.
Specifications
|
Model
No. |
SST-ST1000-PT |
|
|
|
|
|
Max. DC
Output |
1000W (Peak
1050W) |
|
|
|
|
|
Power
density |
431W per
liter |
|
|
|
|
|
Load
Range |
|
|
|
|
|
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|
Max.(Amps) |
22A |
25A |
83A |
2.5A |
0.3A |
|
Peak
(Amps) |
/ |
/ |
/ |
/ |
/ |
|
Min.(Amps) |
0.1A |
0.2A |
0.15A |
0A |
0A |
|
Range
(%) |
3% |
3% |
3% |
5% |
10% |
|
Line
Reg.(%) |
1% |
1% |
1% |
1% |
1% |
|
Ripple(mVp-p) |
50mV |
50mV |
120mV |
50mV |
120mV |
|
Color |
BlackLead-Free Paint |
|
|
|
|
|
combined +3.3,
+5V |
120W |
|
|
|
|
|
combined
+12V |
996W |
|
|
|
|
|
Input
Voltage |
90V~264V |
|
|
|
|
|
Input Frequency
Range |
47Hz~63Hz |
|
|
|
|
|
PFC |
Active PFCPF>0.9 at full
load |
|
|
|
|
Efficiency |
89%~92% at 20%~100%
loading |
|
|
|
|
MTBF |
100,000
hours |
|
|
|
|
|
Operating
temperature |
0C ~
40C |
|
|
|
|
|
Protection |
Over Current
Protection |
|
|
|
|
|
Over Power
Protection |
|
|
|
|
|
Over Voltage
Protection |
|
|
|
|
|
Short Circuit
Protection |
|
|
|
|
|
Under Voltage
Protection |
|
|
|
|
|
Over Temperature
Protection |
|
|
|
|
|
Connectors |
1 x 24 / 20-Pin
motherboard connector550mm |
|
|
|
1 x 8 / 4-Pin EPS / ATX
12V connector750mm |
|
|
|
1 x 8 / 4-Pin EPS / ATX
12V connector550mm |
|
|
|
6 x 8 / 6-Pin PCIE
connector"550mm" x 6 |
|
|
|
16 x SATA
connector"600mm / 150mm / 150mm / 150mm" x
4 |
|
|
6 x 4-Pin Peripheral
connector"600mm / 150mm / 150mm" x 2 |
|
|
2 x 4-Pin Floppy
connector"600mm / 150mm / 150mm / 150mm" x 2 |
|
Cooling
System |
Single 139mm silent
fan |
|
|
|
|
|
Noise
Level |
0 ~ 36
dBA |
|
|
|
|
|

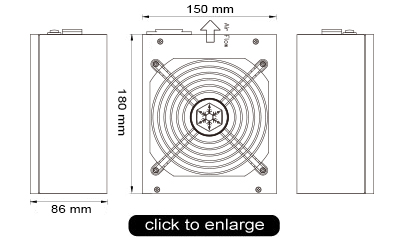

Dimension |
150 mm (W) x 86 mm (H)
x 180 mm (D) |
|
|
|
|
Weight |
3.3
kg |
|
|
|
|
|
Form
factor |
ATX |
|
|
|
|
|
Certification |
80 PLUS
Platinum |
|
|
|
|
|
Other |
GPU Support
list |
|
|
|
|
|
Compatible with ATX12V
v2.4 |
|
|
|
|
