All stock codes associated to this product
AVD4UZ124001608G1COR, AVD4UZ124001608G-1COR, AVXAVD4UZ124001608G1COR, AVX-AVD4UZ124001608G-1COR
Overview
- DDR3 investment is ending at 1866 MT/s, while DDR4 speeds START at 2133
MT/s
- 50% Performance boost in bandwidth
- ADDR/CMD parity on DRAM
- Voltage is 1.2 V lower than DDR3 1.5 V (at lest 20% power savings)
INTEL XMP (Extreme Memory Profile)
XMP is the memory optimization technique developed by INTEL. You can simply
install the modules to supported motherboards and get the performance enhanced
via the BIOS menu just a click away by select XMP in the BIOS and you are ready
to run.
AIST
Every set of memory modules from AVEXIR are all carefully picked by AIST
(AVEXIR IC Sorting Technology) and have to pass hundreds of motherboard
compatibility test and eight hours of reliability test during lab test with
Design of Experiment method (DoE) to ensure the whole system is rock solid
stable and the RAM is sufficient to run constantly.
Pin Protector
Every set of memory modules from AVEXIR are equipped with pin protectors to
avoid air and water oxidation before users opening the package. AVEXIR is the
only RAM manufacturer provides this kind of protector showing our respect to our
products.
Various Choices of LED Colors
To make the RAM and motherboard visually unified, the Core Series provides
six LED colors of Blue, Red, Yellow and White, so you always have the right
choice to suit your motherboard and make them breathing alive.
Description

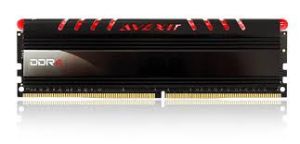

VEXIR AVD4UZ124001604G-1COR Core Series 4GB Kit (4GB x 1) single channel
288-pin DDR4 2400MHz 16-16-16-36 DIMM desktop memory module Avexir Core Series
is designed specifically for the extreme power users who focus on challenging
the excellence in high performance gaming experience. The Core Series is
developed by Avexir R&D team with 10+ years' experience of researching in
memory core technology and designed specifically for the power users and gamers
who demand ultimate performance and extreme reliability gaming modules Avexir
strictly adheres to quality standards set by JEDEC (the Joint Electron Devices
Engineering Council) and ISO9001. With 100% hand-tested extensively in multiple
PC major-brand motherboard environments at its rated speed, Avexir makes sure
that both stability and performance of every memory module reach the highest
quality criteria. JEDEC Standard: DDR4-2133 CL15-15-15-35 1.2v XMP: DDR4-2400
CL16-16-16-36 1.2v
Features
- Power Supply: VDD=1.2V (1.14V to 1.26V)
- VDDQ = 1.2V (1.14V to 1.26V)
- VPP - 2.5V (2.375V to 2.75V)
- VDDSPD=2.25V to 2.75V
- Data transfer rates: PC4-19200
- Programmable CASLatency: 17,16,14,13,12/li>
- Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the
banks in the same or different bank group accesses are available
- Bi-Directional Differential Data Strobe
- 8 bit pre-fetch/li>
- Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
- On-Die Termination (ODT)
- This product is in compliance with the RoHS directive.
- PCB: Height 1.180"(30.00mm), double sided component
Extra Features
- Intel Chipset motherboards Optimized
- Every Avexir Memory is 100% tested on PC motherboard environment
- High performance voltage stabilizing generator
- AIST (every single IC examined by AVEXIR IC Sorting Technology)
- Dynamic red LED light
- High conductive light guide bar
- 10 layers PCB for maximum thermal conduction
- Double Copper PCB to maximized overclocking ability
Specifications
|
CL(IDD) |
16
cycles |
|
Row Cycle Time
(tRCmin) |
46.5ns
(min.) |
|
Refresh
toActive/Refresh / Command Time (tRFCmin) |
260ns |
|
RowActive Time
(tRASmin) |
33ns
(min.) |
|
Power |
TBD
W* |
|
ULRating |
94 V -
0 |
|
Operating
Temperature |
0 to
85 |
|
Storage
Temperature |
-55 to
+100 | |
