Overview
The Sapphire family of RAID enclosure is a compact size, light weight and low
power external multi-bay storage device that is ideal for expanding the storage
on any system.Offering choice of models equipped with different type of
interface, the Sapphire Disk Array offers fast external storage performance via
eSATA, the SuperSpeed USB 3.0, or mini SAS connection to any computer. You can
swap drives in and out of the Sapphire Disk Array, just like using tape cassette
without using any drive tray or special tool. You can also start with as little
as one hard drive and expand to 2, 3 or 4 drives to meet the need of your
application. There is also choice of model with integrated Hardware Port
multiplier that allows the drives to be set up as a high performance RAID group
with redundancy for reliability
Constructed in a light weight sturdy aluminum housing with an integrated
cooling fan for efficient heat dissipation, the Sapphire Disk Array is a great
portable storage solution for a wide range of applications that demand high
performance and large amount of storage out in the field.
About this model

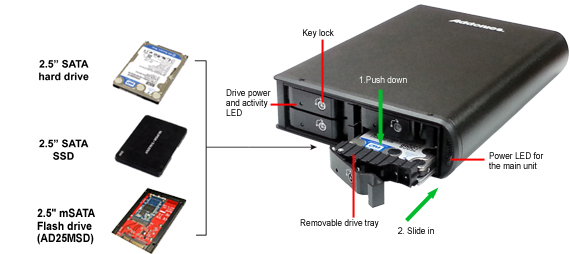

This Sapphire Disk Array comes equipped with a 4-drive tray-load Disk Array
and a SATA to mini SAS bridge that connects four 2.5" hard drives or SSDs to any
computer via a single mini SAS cable. Once connected, four the drives appear as
individual drive to the system. The four drives can also be set as a large
volume and high performance RAID group using the RAID utility of the OS or the
controller. This model is perfect for attaching multiple low power 2.5" hard
drives or high performance SSD to any system using the secure mini SAS
connection

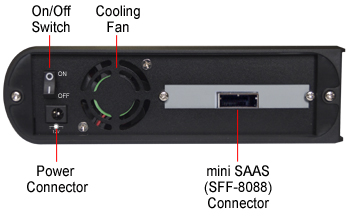

Rear view
Features
- Attach up to four (4)
SATA 2.5" hard drives*, SDDs orAddonics2.5" SATA flash
drivesto any system viaa single mini SAS (SFF-8088) cable (external
mini SAS cable is not included)
- Support SATA I / II /
III or SSD with drive height up to 15 mm.
- The four drives appear
as individual drive to system or set as a RAID group using RAID software from
the OS or the controller
- Maximum throughput up to
600 MB/sec

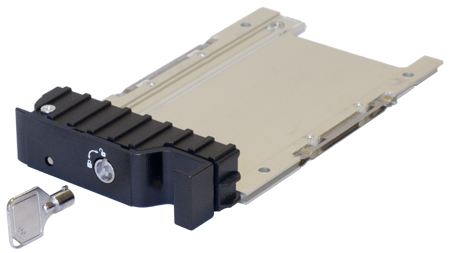

- Drive is mounted onto
removable drive tray that can be added or removed like tape cartridge
- OS independent, can be
connected to any system
- One of the four drives
can be set as external boot drive
- Hard drive can be hot
swap when connecting to controller that supports this feature
- Power and drive activity
LED on each drive tray
- Innovative lock
mechanism for drive insertion/removal
- Strong and light-weight
anodized aluminum housing
maximum drive thickness up to 15 mm, Maximum combined peak current draw of
the four drives not to exceed 2.8A at 5V (equivalent to average 700mA at 5V per
drive)
Specifications
- Black anodized aluminum body for
durability and efficient heat dissipation
- Four 2.5" removable drive bays for
installing 2.5" SATA drive with thickness up to 15 mm.
- Support SATA I, II and III
drive
- External mini SAS (SFF-8088) connector
on the back of the unit
- Maximum transfer rate: 6Gbps
- Maximum combined peak current draw of
the four drives not to exceed 2.8A at 5V
(equivalent to average 700mA at 5V
per drive)
- 110/240 AC/DC 12V 3A power
adapter
- Power and Drive Activity LEDs for each
drive bay
- key lock for each bay
- Point to point, no cable required for
installing hard drive into drive bay
- One 40 x 40 low-noise, ball bearing
and high CFM cooling fans
- Weight: ~ 3.64 lbs. (1.65 kg)
- Attractive aluminum frame with vents
for effective heat dissipation
- Dimensions (L x W x H): 9.88 x 6.88 x
2.00 in ( 251 x 175 x 50.8 mm)
- Operating temperature and humidity:
+5C to +60C, 5% to 95% RH (non-condensing)
- Storage temperature and humidity: -30C
to +70C, 5% to 90%
