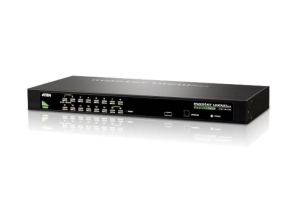

The CS1316 KVM switch allows access and control up to 256 computers from a
single console (keyboard, mouse, and monitor). As many as 16 additional switches
can be cascaded bringing the total number of connected computers to 256
computers that can be controlled from a single keyboard-monitor-mouse console.
The switch supports both USB and PS/2 connections for the console and
computers.
Compatible Accessories
KVM Cables
- 2L-5201P - Lenght: 1.2m
- 2L-5202P - Lenght: 1.8m
- 2L-5702P - Lenght: 1.8m
- 2L-5203P - Lenght: 3m
- 2L-5206P - Lenght: 6m
- 2L-5201U - Lenght: 1.2m
- 2L-5202U - Lenght: 1.8m
- 2L-5203U - Lenght: 3m
- 2L-5206U - Lenght: 5m
KVM Modules & Accessories
Compatible Accessories
- CE800B
- CE790
- CE770
- CE750
- CE700A
- CE370
- CE350
- CE252
- CE250A
KVM over IP Switches
- KN4140v
- KN4132v
- KN4132
- KN4124v
- KN4116v
- KN4116
- KN2116VA
- KN2140v
- KN2132v
- KN2132
- KN2124v
- KN2116v
- KN2116A
- KN1116v
- KN1108v
- KN2132VA
- KN4116VA
- KN4132VA
LCD KVM Switches
Rack KVM Switches
- CS1758
- CS1754
- CS1316
- CS1308
Package Contents
Patent No.
CN ZL 200710181531.5 , TW I339467 , US 7585176
Features
One
USB-PS/2 console controls 16 computers
Cascade up
to 2 levels - control up to 256 computers
Dual
Interface - supports computers with PS/2 or USB keyboards and mice
Multiplatform
support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Video
DynaSync - Exclusive ATEN technology eliminates boot-up display problems and
optimizes resolution when switching between ports
Auto PS/2 and
USB interface detection
USB or PS/2
keyboard and mouse emulation - computers boot even when the console focus is
elsewhere
Superior
video quality - up to 2048 x 1536; DDC2B
Computer
selection via front panel pushbuttons, hotkeys and multilingual on-screen
display (OSD) menu
Two level
password security - only authorized users view and control computers; up to
four users and an administrator with a separate profile for each
Auto Scan
feature for monitoring user-selected computers
Hot pluggable
- add or remove computers without having to power down the switch
Buzzer on/off
via hotkey and OSD
Firmware
upgradeable
No software
installation required
| Designed for
desktop or rack mount (19" system rack,
1U) | | | | | | | | | | | | | | | |

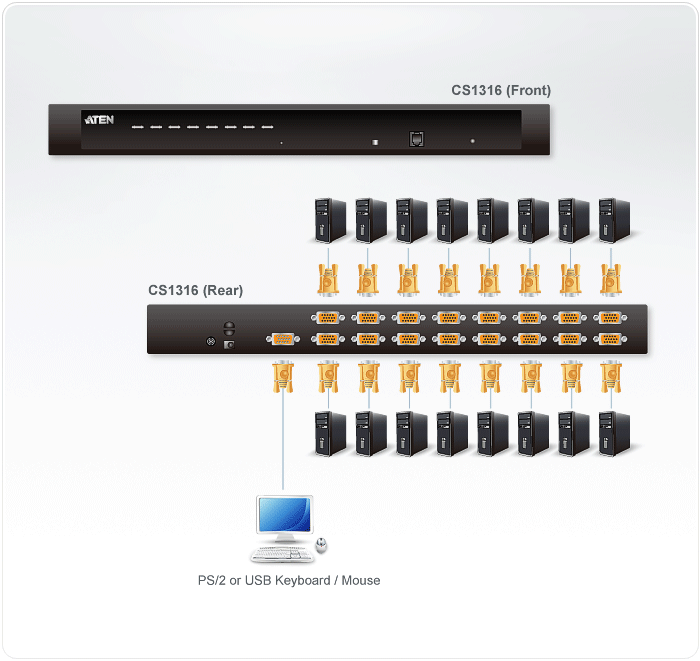

Diagram
Specifications
|
Computer
Connections |
|
Direct |
16 |
|
Maximum |
256 (via
Cascade) |
|
Port
Selection |
OSD, Hotkey,
Pushbutton |
|
Connectors |
|
Console
Ports |
1 x SPHD-18 Male
(Yellow) |
|
Firmware
Upgrade |
1 x RJ-11 Female
(Black) |
|
Power |
1 x DC
Jack |
|
KVM
Ports |
16 x SPHD-15 Female
(Yellow) |
|
Switches |
|
Ports |
16 x
Pushbutton |
|
Firmware
Upgrade |
1 x
Slide |
|
LEDs |
|
Online |
16
(Orange) |
|
Selected |
16
(Green) |
|
Power |
1 (Dark
Green) |
|
Emulation |
|
Keyboard /
Mouse |
PS/2,
USB |
|
Video |
2048 x 1536;
DDC2B |
|
Scan
Interval |
1-255
Seconds |
|
Power
Consumption |
DC 5.3 V; 6.6
W |
|
Environmental |
|
Operating
Temperature |
0-50C |
|
Storage
Temperature |
-20-60C |
|
Humidity |
0-80% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
2.10 kg ( 4.63 lb
) |
|
Dimensions (L x W x
H) |
43.72 x 16.13 x 4.40
cm |
|
(17.21 x 6.35 x 1.73
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
