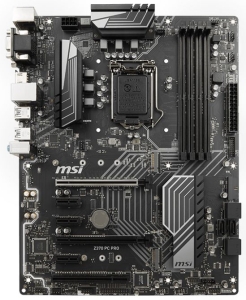

Overview
- Supports 8th Gen Intel Core / Pentium
Celeron processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4000+(OC) MHz
- DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum
compatibility for overclocking performance.
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most
immersive audio experience
- Mystic Light and Mystic Light Sync: Personalize your PC with 7 colors / 5
effects controlled in one click with the Mystic Light APP or a mobile device.
- MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire
- EZ Debug LED: Easiest way to troubleshoot
- Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
- Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A + Type C
- PCI-E Steel Armor: Protecting VGA cards againstbending and EMI
- X-Boost: Great tool to boost your USB &rage performance
- Double ESD Protection: Double layer grounding motherboard mounting holes
- Military Class 5, Guard-Pro: Latest evolution in high quality components
for best protection and efficiency
- Click BIOS 5: Award-winning BIOS with high resolution scalable font,
favorites and search function
- VR Ready: Best virtual reality game experience without latency, reduces
motion sickness
MAKING YOUR LIFE EASIER IS OUR BUSINESS
![](https://asset.msi.com/global/picture/image/feature/mb/Z370/Z370PCPRO/z370PCPRO-LogoBlack.jpg)
Combining quality you can rely on with top performance and clever business
solutions are key aspects of the MSI PRO SERIES motherboards.
Engineered to gratify even the most demanding professional, these motherboards
will fit in any PC. Making your life easier and supporting your business with
super stable, reliable and long-lasting top performance.
BUILT FOR CONTENT CREATORS AND PROFESSIONALS
![](https://asset.msi.com/global/picture/image/feature/mb/Z370/Z370APro/Z370-TuningBlue.jpg)
This motherboard is designed to fully utilize the Intel Coffee Lake 6 core
processors, ready to deliver world class performance when gaming.
Personalize your gaming rig
Customize and set up your own color scheme with MSI Mystic Light utility.
Select the available colors from the palette to match your system style. Bored
of the same colors? Simply change the complete look of your system in 1
second!
Stay cool
Cooling your PC is essential for reliable performance. We've made sure to
include enough fan headers with full control to allow you to cool your system to
the max.
Enjoy the latest video standards
![](https://asset.msi.com/global/picture/image/feature/mb/Z270/SLIPlus/msi-z270-display_4k-hero.jpg)
Supporting the latest display connectors for new technologies (OLED, HDR) and
legacy connectors for beamers, MSI motherboards are designed to make life easier
for any professional user.
Be the first to boot up in the morning
![](https://asset.msi.com/global/picture/image/feature/mb/Z370/Z370PCPRO/z370-pc-pro-storage-3840.jpg)
This MSI product supports all the latest storage standards. This allows you
to connect any ultra-fast storage device, giving you noticeable benefits. Start
programs faster, load data faster and increase productivity.
Professional sound quality
![](https://asset.msi.com/global/picture/image/feature/mb/Z370/Z370PCPRO/z370-pc-pro-audio-3840.jpg)
Get the most immersive sound experience. MSI Audio Boost delivers the highest
sound quality through the use of premium quality audio components. This lets you
enjoy breathtaking, game-changing sound to create the most dynamic
soundscapes.
Immerse yourself into virtual worlds
Integrating the very best of cutting edge technologies on MSI hardware
provides a smooth VR ride. Through joint efforts with major VR brands, combined
with unique MSI features geared to VR, MSI brings gamers and VR professionals a
vivid and realistic experience in which content truly comes alive.
Stable, secure &t networking
![](https://asset.msi.com/global/picture/image/feature/mb/Z270/Pro VH/msi-z270-network-hero-pro.jpg)
Optimized for professional and multimedia use, this generation comes equipped
with a high quality network solution ready to serve you with 24/7 reliability
when transferring big data.
Unmatched memory performance
MSI motherboards are crammed with features to fuel your system's memory with
more speed, higher overclockability and increased stability.
Designed for limitless Tuning
![](https://asset.msi.com/global/picture/image/feature/mb/Z370/Z370PCPRO/z370-pc-pro-tuning-1920.png)
Founded on experience and with a long history of creating the best performing
motherboards packed with smart features, you can count on this motherboard to
deliver the best performance under the most extreme conditions. Countless system
tuning and troubleshooting tools are at your disposal to push your system to new
heights and satisfy even the most demanding tweaker.
Maximize your USB device performance
Transfer lots of data, music and movies over USB faster than ever. MSI offers
a wide variety of options to connect and boost your USB 3.1 devices, delivering
lightning-fast transfer speeds!
APPS TO GREATLY IMPROVE EFFICIENCY
With years of experience in creating performance enhancing tools that are
easy to use, only the highest quality applications are at your disposal. Use
these tools to get the most out of your motherboard and time spent.
Built on everlasting quality
Using only the finest quality components and integrating the latest
technological innovations delivers the best possible professional experience.
Rigorous quality testing under the most extreme conditions ensures a super
reliable, long-lasting and high performance motherboard.
A user-friendly BIOS
![](https://asset.msi.com/global/picture/image/feature/mb/Z370/Z370SLIPLUS/z370pro-bios-11.jpg)
We made sure our BIOS contains all the latest options and is easy to use for
everyone. The extensive features found in CLICK BIOS 5 let you fine-tune your
system to deliver reliable maximum performance.
Specifications
Socket
CPU (Max Support)
Chipset
DDR4 Memory
- 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/
3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-Ex16
PCI-E Gen
PCI-Ex1
PCI
SATAIII
M.2 Slot
RAID
TPM (header)
LAN
USB 3.1 ports (Front)
USB 3.1 ports (Rear)
- 1(Gen2, Type A),1 (Gen2, Type C), 4(Gen1, Type A)
USB 2.0 ports (Front)
USB 2.0 ports (Rear)
Serial ports(Front)
Audio ports (Rear)
DVI-D
VGA
HDMI
DirectX
Form Factor
CrossFire
CPU
Supports 8th Gen Intel Core
processors, and Intel Pentium and Celeron
processors for Socket LGA1151
|
|
Chipset
Intel Z370
Chipset
|
|
Main Memory
4 x DDR4 memory
slots, support up to 64GB - Supports 4000+(OC)/ 3866(OC)/ 3733(OC)/
3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /
2800(OC)/ 2667/ 2400/ 2133 MHz* Dual channel memory
architecture Supports non-ECC, un-buffered memory Supports
Intel Extreme Memory Profile (XMP)** * Please refer to
www.msi.com for more information on compatible
memory.
|
|
Slots
2 x PCIe 3.0 x16 slots (supports
x16/x4 mode)* 3 x PCIe 3.0 x1 slots** 1 x PCI slot * The PCI_E4 slot
will be unavailable when an M.2 PCIe SSD module has been installed in the
M.2_2 slot. ** The PCI_E2/ PCI1 slot will be unavailable when an
expansion card has been installed in the PCI_E3/ PCI_E5
slot.
|
|
Onboard Graphics
1 x HDMI port, supports a
maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz 1 x DVI-D port,
supports a maximum resolution of 1920x1200@60Hz 1 x VGA port, supports
a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz,
1920x1200@60Hz
|
|
Multi-GPU
Supports 2-Way AMD
CrossFire Technology
|
|
Storage
Intel Z370
Chipset 6 x SATA 6Gb/s ports* 2 x M.2 slots (Key M) -
Supports up to PCIe 3.0 x4 and SATA 6Gb/s - Support PCIe 3.0 x4 NVMe
U.2 SSD with Turbo U.2 Host Card** - M2_1 slot supports 2242/ 2260
/2280/ 22110 storage devices - M2_2 slot supports 2242/ 2260 /2280
storage devices - Supports Intel Optane Memory Ready for all
M.2 slots*** * M.2 and SATA ports maximum support 2x M.2 PCIe SSDs + 6x
SATA HDDs. Please refer to page 29 for M.2 slots with examples of various
combination possibilities. ** The Turbo U.2 Host Card is not included,
please purchase separately. *** Before using Intel Optane memory
modules, please ensure that you have updated the drivers and BIOS to the
latest version from MSI
website.
RAID Intel Z370
Chipset - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices - Supports RAID 0 and RAID 1 for M.2 storage
devices* * M.2 PCIe RAID volume can be created with M.2/Optane
Genie.
|
|
USB
ASMedia ASM3142
Chipset - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port
on the back panel - 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A
port on the back panel
Intel Z370
Chipset - 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A
ports on the back panel, 4 ports available through the internal USB
connectors) - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the
back panel, 4 ports available through the internal USB
connectors)
|
|
Audio
Realtek ALC887 Codec -
7.1-Channel High Definition Audio
|
|
LAN
1 x Intel I219-V Gigabit LAN
controller
|
|
Internal I/O Connectors
- 1 x 24-pin ATX
main power connector - 1 x 8-pin ATX 12V power connector - 6 x SATA
6Gb/s connectors - 2 x USB 2.0 connectors (support additional 4 USB 2.0
ports) - 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1
ports) - 1 x 4-pin CPU fan connector - 1 x 4-pin water pump fan
connector - 4 x 4-pin system fan connectors - 1 x Front panel audio
connector - 2 x Front panel connectors - 1 x TPM module
connector - 1 x Chassis Intrusion connector - 1 x Serial port
connector - 1 x Parallel port connector - 1 x Thunderbolt add-on
card connector - 1 x RGB LED connector - 1 x Clear CMOS
jumper
|
|
Back Panel I/O Ports
- 1 x PS/2 mouse &
keyboard combo port - 2 x USB 2.0 Type-A ports - 1 x VGA port - 1
x DVI-D port - 1 x HDMI port - 1 x LAN (RJ45) port - 4 x USB 3.1
Gen1 Type-A ports - 1 x USB 3.1 Gen2 Type-A port - 1 x USB 3.1 Gen2
Type-C port - 3 x audio jacks
|
|
Dimension
12 in. x 9.6 in. (30.4 cm x 24.3
cm) ATX Form Factor
|
|
Mounting
9 mounting holes
|
|
Packing
![](https://asset.msi.com/global/picture/image/feature/mb/Z370/Z370PCPRO/msi-z370_pc_pro-product_photo-accessories1.png) *
MSI does not guarantee the risks or damages caused by changing the
cover. ** These pictures are for reference only and may vary without
notice.
|
- PS/2 Combo Port
- VGA Port
- LAN Port
- USB 3.1 Gen 1
- USB 3.1 Gen2 Type-A
- HD Audio Connectors
- USB 2.0 Port
- DVI-D Port
- HDMI
- USB 3.1 Gen 1
- LIGHTNING USB 3.1 Gen2
Type-C
