All stock codes associated to this product
GAZ370HD3OP, GA-Z370-HD3-OP, MBGZ370HD3OP, MBG-Z370-HD3-OP, 4719331803544

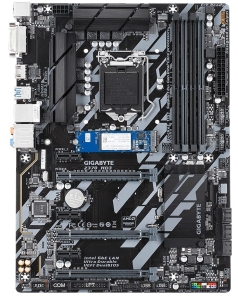

Gigabyte Z370 HD3-OP Motherboard
Ready for Intel Core i7+/i5+ platforms, Intel Z370 Ultra Durable
motherboard with Intel Optane Memory accelerated, CrossFire support, Intel GbE
LAN with 25KV protection, M.2, RGB Fusion, Smart Fan 5, Anti-Sulfur Resistors
- Supports 8th Gen Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Built-in 32GB Intel Optane Memory, the ultimate storage
performance enhancer
- 2-Way CrossFire Multi-Graphics
- Intel Gigabit LAN with cFosSpeed Internet Accelerator Software
- Ultra Durable 25KV ESD and 15KV Surge LAN Protection
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path
Lighting
- Ultra-Fast M.2 with PCIe Gen3 x4 &SATA interface
- RGB FUSION supports RGB LED strips in 7 colors
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
with FAN STOP
- Anti-Sulfur Resistors Design
- APP Center Including EasyTune and Cloud Station Utilities

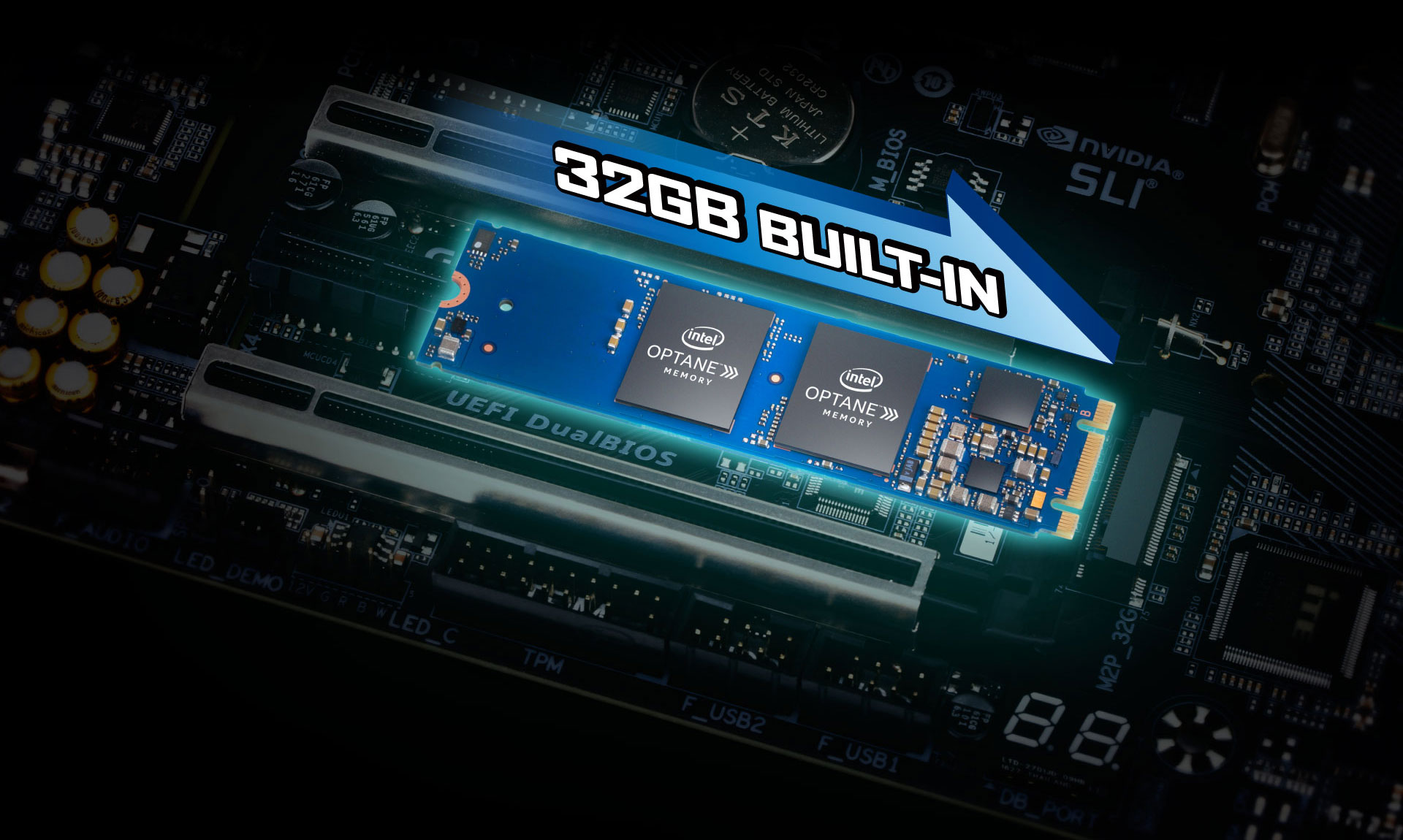

The Z370 HD3-OP is the first Intel Core i7+/i5+ enthusiast platform that
supports built-in 32GB Intel Optane Memory. Optane fuels storage performance by
acting as a cache drive giving users a significant boost compared to traditional
mechanical drives.
COOLING
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying cool. Smart Fan 5 allows users to interchange their
fan headers to reflect different thermal sensors at different locations on the
motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that
support both PWM and Voltage mode fans have been introduced to make the
motherboard more liquid cooling friendly.

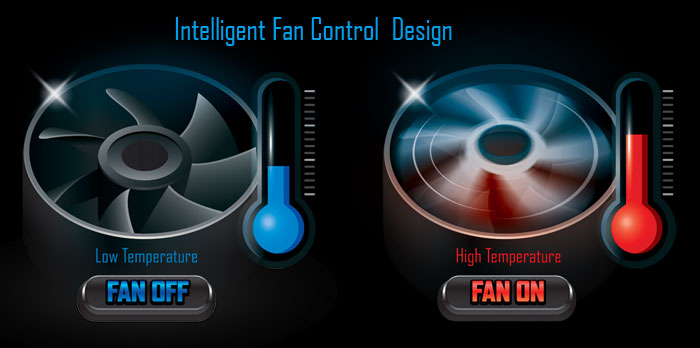

Achieve fan silence. With Fan Stop map any fan to stop completely
when temperatures drop below a specified threshold. Which fan stops, based on
readings from which sensor, and at what temperature—all of it can be customized
to your liking.

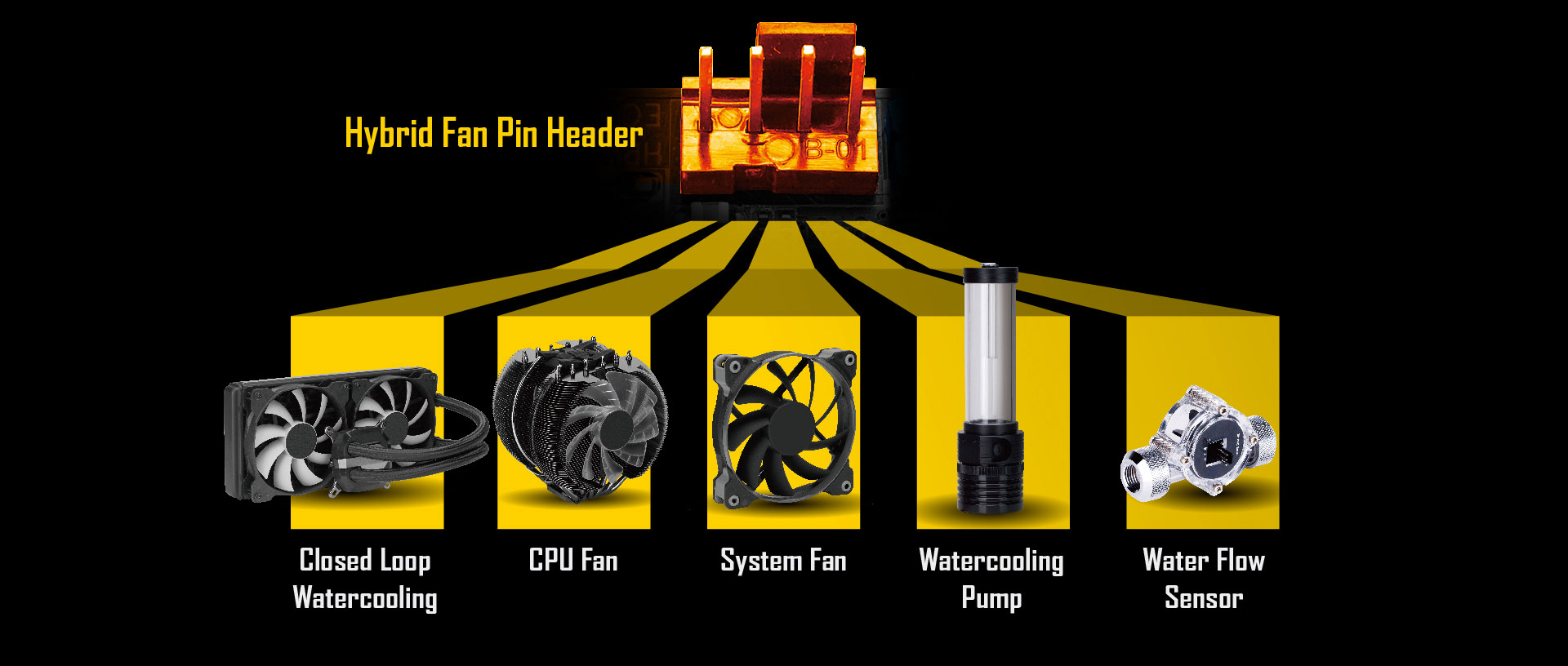

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives
up-to-the-second information on flow-rate through the Hybrid Fan Pin
Headersgiving you absolute mastery over your PC.
All Hybrid Fan Headers can
automatically detect the type of cooling device whether it be fan or pump with
different PWM or Voltage mode.
Intel GbE LAN with cFosSpeed Internet Accelerator
Networking
IntelGbE LAN features cFosSpeed, a network
traffic management application which helps to improve network latency and
maintain low ping times to deliver better responsiveness in crowded LAN
environments.
2-Way CrossFire Multi-Graphics
Multi-graphics configuration offers better graphics
performance for gaming enthusiasts who demand the highest frame rates without
compromising on resolution.
Support for DDR4 XMP Up to 4000MHz and
Beyond*
GIGABYTE is offering a tested and proven platform that
ensures proper compatibility with profiles up to 4000MHz and beyond. All users
need to do to attain this performance boost is to ensure that their memory
module is XMP capable and that the XMP function is activated and enabled on
GIGABYTE motherboard.
What is XMP?
DDR4 memory modules are available at a stock frequency
of 2133MHz, but as frequency tweaking requires a considerable amount of effort
and knowledge, memory vendors encode XMP profiles which can automatically modify
the timings of the supported memory modules to work with your CPU and to achieve
increased performance.
Supports RGB Light Strips in 7 Colors
Personalize your next PC rig to your liking by selecting the color of your
choice to illuminate the external RGB light strip. A total of 7 colors are
available to make your system appearance unique!
GIGABYTE Patented Double Locking Bracket
GIGABYTE Patented DualBIOS Design
GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive
technology from GIGABYTE that protects arguably one of your PC's most crucial
components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a
'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to
virus, hardware malfunction, improper OC settings or power failure during the
update process.
START SULFURIZATION PROTECTION
Sulfur compounds in the air can penetrate tiny onboard resistors creating
chemical change and causing these resistors to open or short. If either of these
occurs the motherboard will fail to function. By equipping resistors with an
Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new
meaning.
Sulfur compounds in the air can penetrate tiny onboard resistors creating
chemical change and causing these resistors to open or short. If either of these
occurs the motherboard will fail to function. By equipping resistors with an
Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new
meaning.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality
capacitors help deliver high resolution and high fidelity audio to provide the
most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE Z370 motherboards feature an audio noise guard that essentially
separates the board’s sensitive analog audio components from potential noise
pollution at the PCB level. LED trace path lighting Illuminates to show the
separation of the PCB layers.
Specifications
CPU
- Support for 8th Generation Intel Core i7
processors/Intel Core i5 processors/Intel Core i3
processors in the LGA1151 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more
information.)
Chipset
- Intel Z370 Express Chipset
Memory
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) /
3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /
3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please
refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel
HD Graphics support:
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
*
The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
*
Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1
GB
Audio
- Realtek ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN
- Intel GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum
performance, if only one PCI Express graphics card is to be installed, be sure
to install it in the PCIEX16 slot.
- 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
- 3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI
Express 3.0 standard.)
Storage Interface
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and
PCIe x4/x2 SSD support)
- 32 GB Intel Optane Memory pre-installed
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7
Internal Connectors," for the installation notices for the M.2 and SATA
connectors.
Intel
Optane Memory Ready
Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire
technologies
USB
Chipset:
- 8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available
through the internal USB headers)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available
through the internal USB headers)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x RGB LED strip header
- 6 x SATA 6Gb/s connectors
- 1 x M.2 Socket 3 connector
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 3.1 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S
module only)
- 1 x parallel port header
- 1 x serial port header
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 3.1 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side
Speaker Out, Line In, Line Out, Mic In)
I/O Controller
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported
will depend on the cooler you install.
BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for APP Center
* Available applications in APP Center may vary
by motherboard model. Supported functions of each application may also vary
depending on motherboard specifications.
3D
OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud
Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF
Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart
Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB
Blocker
V-Tuner
- Support for Q-Flash
- Support for Xpress Install
Bundle Software
- Norton Internet Security (OEM version)
- cFosSpeed
Operating System
- Support for Windows 10 64-bit
Form Factor
- ATX Form Factor; 30.5cm x 22.5cm
Remark
- Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website.
- Most hardware/software vendors may no longer offer drivers to support
Win9X/ME/2000/XP. If drivers are available from the vendors, we will update
them on the GIGABYTE
website.
