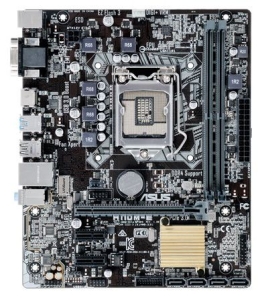

ASUS H110M-E Motherboard

ASUS H110M-E Motherboard

Features

• 5X Protection II Advanced hardware safeguards for all-around protection,
• DDR4 memory compatibility
• Epic gaming audio with LED-illuminated shielding
• Media-acclaimed UEFI BIOS with EZ Flash 3
• Fan Xpert: Active Quiet & Cool

H110M-E Great-value micro-ATX with 5X Protection II for dependable stability, LED-illuminated audio shielding, and DDR4 support

• D-Sub Port
• HDMI
• USB 3.0 Ports
• USB 2.0 Ports
• LAN
• Audio
• PCI Express 3.0(GEN3)
• Gaming Audio
  • LED-illuminated design
  • Audio Shielding
  • Dedicated audio PCB layers
  • Premium Japanese-made audio capacitors
• DIGI+VRM & EPU
• 2 x DDR4 DIMM
• Support 14nm CPU Intel® LGA 1151 Socket
• Intel® H110 Chipset
• SATA 6Gb/s Ports
• 2 x Front USB 3.0

Dependable Stability

• Surge-Protected Networking
• Overvoltage Protection
• Stable Power Supply
• Overcurrent Protection
• Stainless-Steel Back I/O

Advanced Hardware Safeguards

Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build the result of decades of engineering experience from the world's leading motherboard brand.

LANGuard

Pumped-up throughput. 2.5X higher surge tolerance.

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection

Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.

DIGI+ VRM

Precision control for stable power

ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.

ESD Guards

Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. ASUS ESD Guards are tested to very high standards, capable of up to +/- 10kV for air discharge and +/-6kV for contact discharge. We employ an active protective circuit design to guard your system against electrostatic interference and damage, providing greater component longevity.

• LAN port - ESD TVS diode protection on the LAN circuit.
• USB connectors - TVS diodes for surface-mount and dual-inline packages.
• VGA connectors - Additional on-circuit ESD TVS diodes to protect D-Sub functionality.
• Keyboard and mouse connectors - Additional on-circuit ESD transient-voltage-suppression (TVS) diodes.

Superb Performance

DDR4 Support Make your memory go faster

With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.

Enjoy the DDR4 benefits with ASUS 100 series. (DDR4 vs DDR3)

• 2X faster write read speeds
• 2X larger capacity
• 20% lower power consumption

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

EZ Flash 3

Update the latest BIOS via the internet, and from within the BIOS.

S.M.A.R.T.

Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.

Q-Fan Control]

You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!

My Favorites

Quickly find tuning options and add preferred tools to the list.

EZ Mode

• Intuitive Graphical Fan Control: - Fine-tune individual fans simply by dragging a curve with the mouse.
• EZ XMP: - Improve your DRAM performance with a click.
• SATA Information: - View SATA port details for easy device recognition.
• Fast Clock Adjustment: - Use mouse controls to change the time and date.

Advanced Mode

• Last Modified Log: - Track last change and save preferred profiles onto a USB drive.
• SATA Port Renaming: - Rename SATA ports for easy identification.

Ultrafast Transfer Speed

Instant front-panel USB 3.0 Experience

We've put USB 3.0 right where you need it two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

Gaming Audio

Gear up! Win the battlefield

Beautiful LED-illuminated trace paths brighten your build and highlight noise-isolated, precision-shielded, interference-eliminated onboard audio like you've never before experienced!

• LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
• Noise Isolation - Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
  • Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
• Audio Enjoyment - Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.

Easy PC DIY

Q-Slot Effortless PCI Express component removal

The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

Q-DIMM

Easy memory removal

Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out couldn't be simpler!

Optimized Cooling

Fan Xpert

Dedicated CPU and case fan controls

Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!

One-Stop Control

Push Notice Monitor your PC status on the go.

If you've ever wondering how your PC is faring when you're not around, Push Notice will keep you informed in real time! When your PC's status changes, Push Note instantly sends an alert to your tablet or smartphone. You can also throw the webpage you are browsing or memo to your smart device. Everything is under control, no matter where you are

Media Streamer Your digital PC hub for sharing and home theater

Enjoy your PC's multimedia content anywhere! Pipe music from your PC or cloud storage, including ASUS WebStorage, Dropbox, Google Drive and OneDrive while sipping coffee in a caf, or sit back with friends and stream a favorite movie to a smart TV. With ASUS Media Streamer, your entertainment goes wherever you go.

AI Suite 3 One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

Mobo Connect All-in-one control between your PC and smart device

Work with your PC and smart device at the same time through a single keyboard-and-mouse set. A simple hot key lets you switch between your PC and smart device quickly. It even charges your mobile device at the same time.

PC Cleaner Work faster, start quicker and smoother

Your computer is running slow? PC Cleaner cleans up unused and unwanted files and programs that take up spaces in your storage drives, eliminating the clog It also accelerates PC start-up with a click!

Intel CPU and chipset features

Intel H110 Chipset

Intel chipset is a single-chipset design that supports 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to four USB 3.0 ports for up to ten times faster transfer than USB 2.0. Moreover, Intel H110 chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors

This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, dual-channel (2-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
