ATEN VE814A HDMI HDBaseT Extender w. Dual Output
  • Supports up to 4K@70m (Cat 5e/6)/100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)

IMG 1 of 8
Our Price:
$1,064.45
RRP:
$1,402.50
You Save:
$338.05
or quickly purchase this product
Backorder
Part Number:
431425
(?) Brand:
ATEN
Manuf No:
VE814A-AT-U
VE814AATU
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VE814AATU, VE814A-AT-U, KVAVE814A, KVA-VE-814A, 4719264646041

Aten VE814A HDMI HDBaseT Extender w. Dual Output

Features

  • Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible

Superior video quality:

• 4K up to 100 m

• 1080p up to 150 m when in HDBaseT Long Reach Mode

  • Extends Ethernet communication using the Ethernet pass-through port
  • Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
  • ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
  • RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Supports wide screen format
  • Built-in 8 kV/15 kV ESD protection
  • Plug-and-play
  • Rack-mountable

Package Contents

  • 1x VE814AT Transmitter
  • 1x VE814AR Receiver
  • 1x IR Transmitter Cable
  • 1x IR Receiver Cable
  • 2x RS-232 Terminal Blocks
  • 2x Power Adapters
  • 1x User Instructions

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

The VE814A supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.

The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.

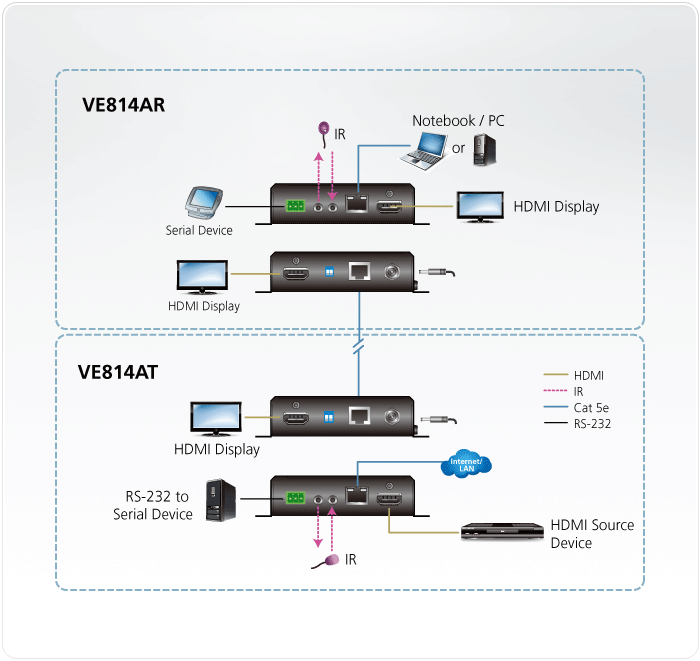

Diagram

Specifications

Video Input

VE814AR

VE814AT

Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance

N/A

100 

Max. Distance

N/A

1.8 m

Video Output

Interfaces

2 x HDMI Type A Female (Black)

1 x HDMI Type A Female (Black)

Impedance

100 

100 

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

340 MHz

Compliance

HDMI (3D, Deep Color, 4K)

HDMI (3D, Deep Color, 4K)

HDCP Compatible

HDCP Compatible

Consumer Electronics Control (CEC)

Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)

*4K supported:

*4K supported:

4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);

4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);

4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

N/A

1 x HDMI Type A Female (Black)

Output

2 x HDMI Type A Female (Black)

1 x HDMI Type A Female (Black)

Connectors

Unit To Unit

1 x RJ-45 Female

1 x RJ-45 Female

Power

1 x DC Jack (Black) with locking

1 x DC Jack (Black) with locking

Control

RS-232

Connector: 1 x Terminal Block, 3 pole

Connector: 1 x Terminal Block, 3 pole

Baud Rate: 19200, Data Bits:8,

Baud Rate: 19200, Data Bits:8,

Stop Bits:1, no parity and flow control

Stop Bits:1, no parity and flow control

IR

2 x Mini Stereo Jack Female (Black)

2 x Mini Stereo Jack Female (Black)

Ethernet

1 x RJ-45 Female

1 x RJ-45 Female

Switches

Long Reach Mode Switch

1 x Slide Switch - ON/OFF

1 x Slide Switch - ON/OFF

Firmware Upgrade

1 x Slide Switch - ON/OFF

1 x Slide Switch - ON/OFF

Power Consumption

DC5V:5.09W:24

DC5V:7.87W:37

Environmental

Operating Temperature

0 - 40°C

0 - 40°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.47 kg ( 1.04 lb )

0.45 kg ( 0.99 lb )

Dimensions (L x W x H) with bracket

14.02 x 12.30 x 3.00 cm

14.02 x 12.30 x 3.00 cm

(5.52 x 4.84 x 1.18 in.)

(5.52 x 4.84 x 1.18 in.)

Dimensions (L x W x H) without bracket

13.60 x 10.10 x 2.90 cm

13.60 x 10.10 x 2.90 cm

(5.35 x 3.98 x 1.14 in.)

(5.35 x 3.98 x 1.14 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
