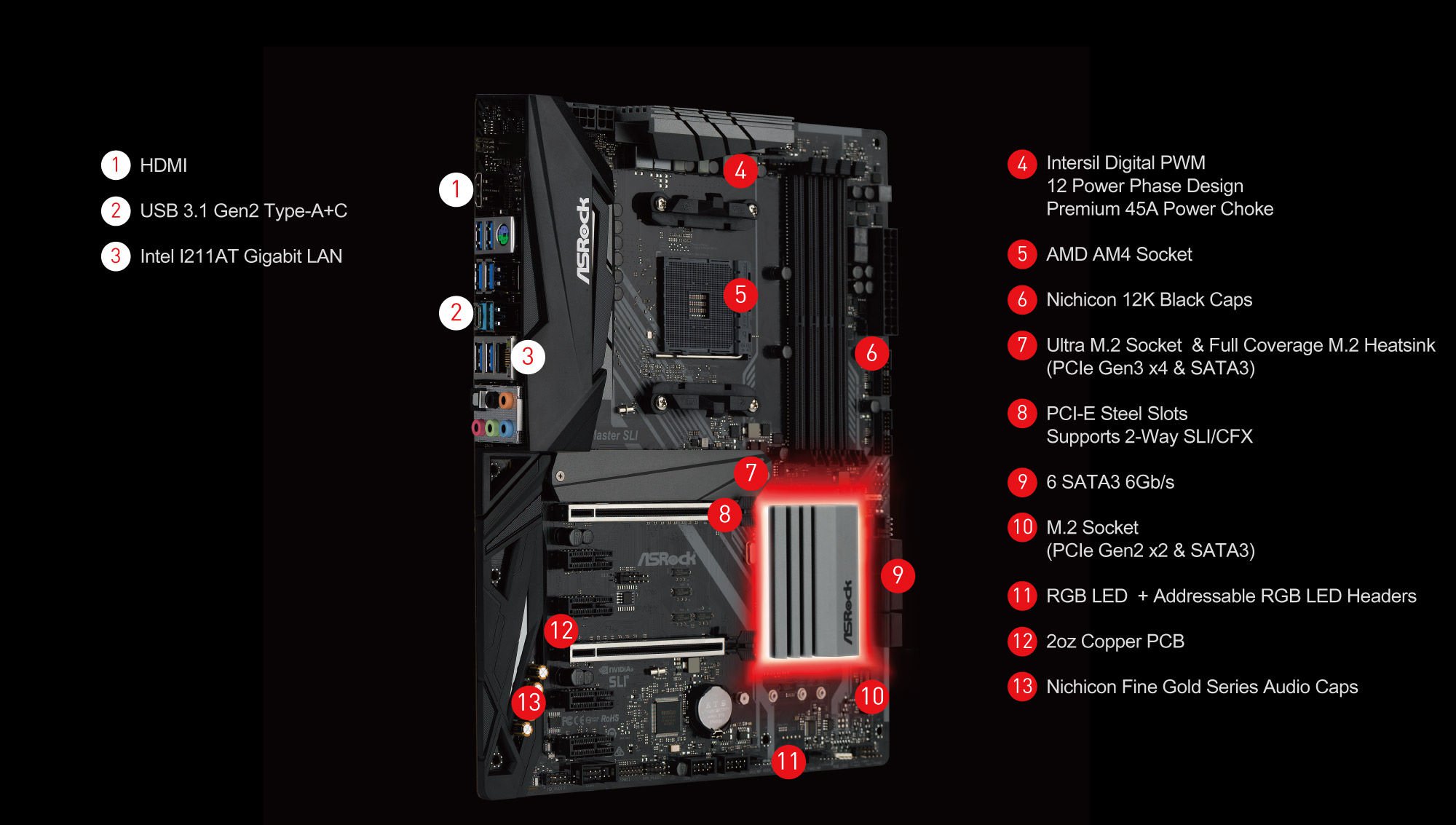

Asrock X470-Master SLI Motherboard
Features
- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and
Pinnacle Ridge)
- Supports DDR4 3466+ (OC)
- 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
- NVIDIA Quad SLI, AMD Quad CrossFireX
- Graphics Output: HDMI
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series
Audio Caps
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 M.2 (PCIe Gen2 x2 &
SATA3)
- 2 USB 3.1 Gen2 (rear Type-A+C), 10 USB 3.1 Gen1 (4 Front, 6 Rear)
- Intel Gigabit LAN
Overview
X470 Master SLI

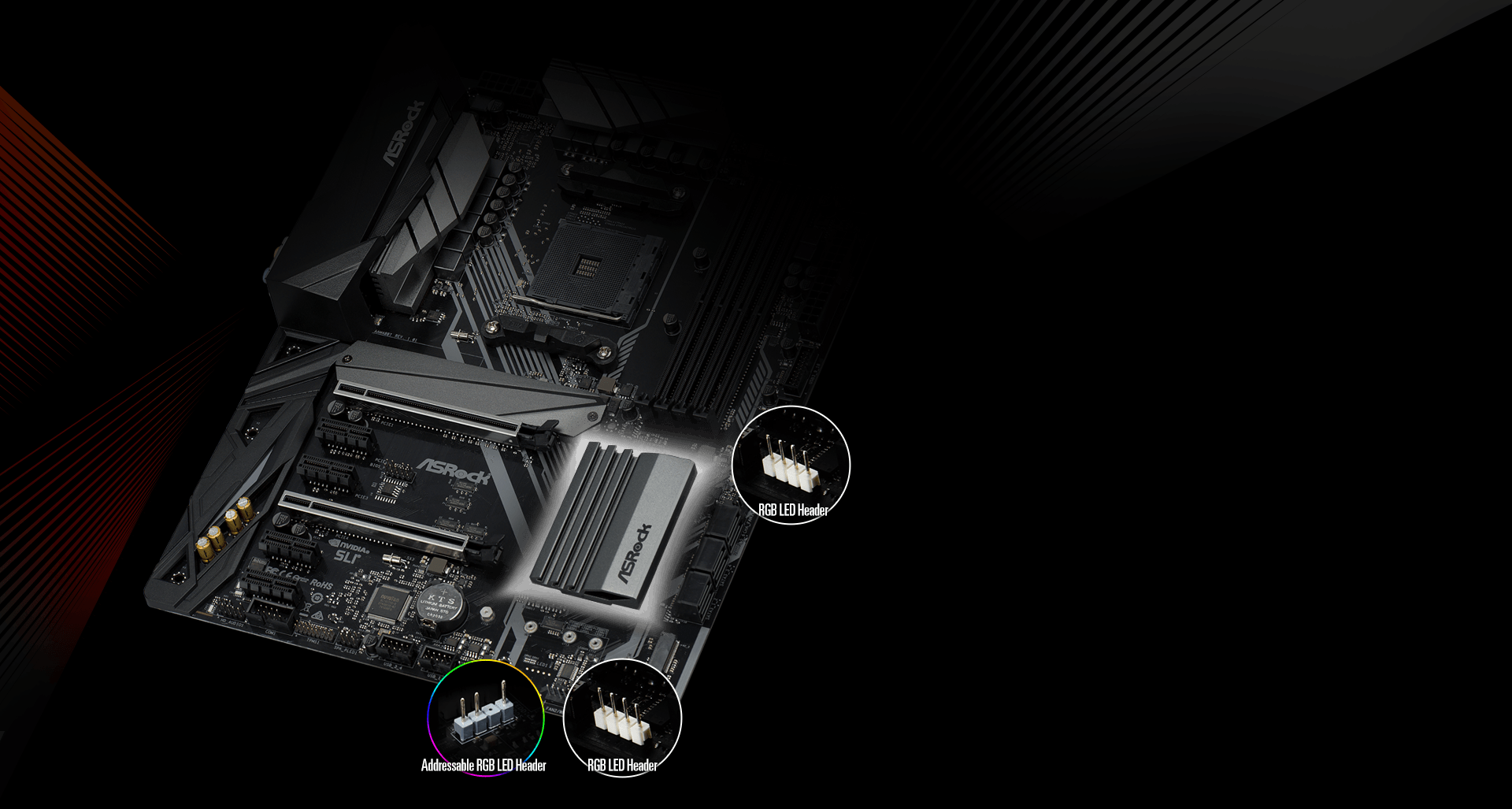

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB
headers and an addressable RGB header that allow motherboard to be connected to
compatible LED devices such as strip, CPU fans, coolers, chassis and so on.
Users may also synchronize RGB LED devices across thePolychrome
RGB Sync-certifiedaccessories to create their own unique lighting
effects.
The addressable RGB LED header supports WS2812B addressable RGB
LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80
LEDs and length within 2 meters.
The RGB LED header supports standard 5050 RGB LED strip
(12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2
meters.
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink can support up to Type 22110
M.2 devices, it is able to dissipate heat efficiently to ensure your high speed
M.2 SSD always working at its best.
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe
Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and
is compatible with ASRocks U.2 Kit for installing some of the worlds fastest U.2
PCIe Gen3 x4 SSD.
PCI-E STEEL SLOTS
The advanced PCI-E Steel Slots packed with solid cover that
prevent any signal interference with graphics cards. It also ensures the heavy
graphics cards to be well-installed in the PCI-E slots safely.
Dual USB 3.1 Gen2 (Type-A +
Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1
Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2
devices and to deliver up to 10 Gbps data transfer rates.
USB 3.1 Gen2 doubles the data transfer
rate
USB 3.1 Gen2 Type-C doubles the charge
speed!
Intel LAN
IntelLAN
provides the best throughput performance, lower CPU utilization, enhanced
stability and is able to deliver ultimate network experience to
users!

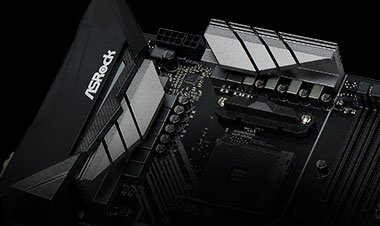

XXL Aluminum Alloy
Heatsink
Extra large aluminum alloy heat sinks that effectively take
away heat from the MOSFET and chipset so that your whole system may perform more
stable.
Premium 45A Power
Choke
Compared to traditional chokes, ASRocks premium 45A power
chokes effectively make the saturation current up to three times better, thus
providing enhanced and improved Vcore voltage to the
motherboard.
Nichicon 12K Black
Caps
Supreme 12K black capacitors with lifespans of at least
12,000 hours. Compared to other counterparts on high-end motherboards that
merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black
Caps that offer 20% longer lifespans and provide more stability and
reliability.
I/O Armor
A new designed protective cover for all of the crucial
parts near the motherboard's rear I/O, so that they won't easily be damaged by
static electricity.
Sapphire Black
PCB
Pure black PCB appearance. The new Sapphire Black PCB
represents rock-solid quality and gives the motherboard a more mysterious
touch.
High Density Glass Fabric
PCB
High Density Glass Fabric PCB design that reduces the gaps
between the PCB layers to protect the motherboard against electrical shorts
caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB
layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency
for overclocking.
Full Spike
Protection
Some sensitive digital components on the motherboard are
vulnerable to power surges, the excessive current may cause your system to
malfunction immediately. ASRock Full Spike Protection includes various
technologies to prevent your motherboards components from being damaged by these
unexpected voltage spikes.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a
new interface, more new features and improved
utilities.
Live Update & APP
Shop
ASRock Live Update & APP Shop is designed for your
convenience. We provide various apps and support software for users to download.
You can also easily optimize your system and keep your motherboard up to date
with ASRock Live Update & APP Shop.
Specifications
|
Unique
Feature |
ASRock
USB 3.1 Gen2 |
|
|
-
ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) |
|
|
-
ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) |
|
|
ASRock
Super Alloy |
|
|
-
XXL Aluminum Alloy Heatsink |
|
|
-
Premium 45A Power Choke |
|
|
-
Nichicon 12K Black Caps (100% Japan made high quality conductive polymer
capacitors) |
|
|
-
I/O Armor |
|
|
-
Sapphire Black PCB |
|
|
-
High Density Glass Fabric PCB |
|
|
-
2oz Copper PCB |
|
|
ASRock
Steel Slots |
|
|
ASRock
Ultra M.2(PCIe Gen3 x4 & SATA3) |
|
|
ASRock
Full Spike Protection(for all USB, Audio, LAN Ports) |
|
|
ASRock
Live Update & APP Shop |
|
CPU |
-
Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and
Pinnacle Ridge) |
|
|
-
Digi Power design |
|
|
-
12 Power Phase design |
|
|
-
Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling
(Summit Ridge); Supports 65W Water Cooling (Raven
Ridge) |
|
Chipset |
-
AMD Promontory X470 |
|
Memory |
-
Dual Channel DDR4 Memory Technology |
|
|
-
4 x DDR4 DIMM Slots |
|
|
-
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) /
2933/2667/2400/2133 ECC & non-ECC, un-buffered
memory* |
|
|
-
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) /
2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered
memory* |
|
|
-
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) /
2933(OC) / 2667/2400/2133 non-ECC, un-buffered
memory* |
|
|
-
Max. capacity of system memory: 64GB** |
|
|
-
15Gold Contact in DIMM Slots |
|
|
For
Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO
CPUs. |
|
BIOS |
-
256Mb AMI UEFI Legal BIOS with GUI support |
|
|
-
Supports "Plug and Play" |
|
|
-
ACPI 5.1 compliance wake up events |
|
|
-
Supports jumperfree |
|
|
-
SMBIOS 2.3 support |
|
|
-
CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage
Multi-adjustment |
|
Graphics |
-
Integrated AMD Radeonâ„¢ Vega Series Graphics in Ryzen Series
APU* |
|
|
-
DirectX 12, Pixel Shader 5.0 |
|
|
-
Max. shared memory 4GB |
|
|
-
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @
30Hz |
|
|
-
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate
Audio) with HDMI Port (Compliant HDMI monitor is
required) |
|
|
-
Supports HDCP with HDMI Port |
|
|
-
Supports 4K Ultra HD (UHD) playback with HDMI Port |
|
|
*Actual
support may vary by CPU |
|
Audio |
-
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio
Codec) |
|
|
-
Premium Blu-ray Audio support |
|
|
-
Supports Surge Protection |
|
|
-
Nichicon Fine Gold Series Audio Caps |
|
LAN |
-
Gigabit LAN 10/100/1000 Mb/s |
|
|
-
GigaLAN Intel®I211AT |
|
|
-
Supports Wake-On-LAN |
|
|
-
Supports Lightning/ESD Protection |
|
|
-
Supports Energy Efficient Ethernet 802.3az |
|
|
-
Supports PXE |
|
Slots |
AMD
Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) |
|
|
-
2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) /
x8 (PCIE4))* |
|
|
AMD
Ryzen series CPUs (Raven Ridge) |
|
|
-
1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1))* |
|
|
-
4 x PCI Express 2.0 x1 Slots |
|
|
-
Supports AMD Quad CrossFireXâ„¢ and CrossFireXâ„¢** |
|
|
-
Supports NVIDIA®Quad SLI™ and SLI™** |
|
|
-
15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
|
*Supports
NVMe SSD as boot disks |
|
|
**This
feature is only supported with Ryzen Series CPUs (Summit Ridge and
Pinnacle Ridge). |
|
Storage |
-
6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10),
NCQ, AHCI and Hot Plug |
|
|
-
1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110
M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32
Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle
Ridge)* |
|
|
-
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3
6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10
Gb/s)* |
|
|
*Supports
NVMe SSD as boot disks |
|
|
Supports
ASRock U.2 Kit |
|
Connector |
-
1 x COM Port Header |
|
|
-
1 x TPM Header |
|
|
-
1 x Power LED and Speaker Header |
|
|
-
1 x AMD Fan LED Header* |
|
|
-
1 x RGB LED Header** |
|
|
-
1 x Addressable LED Header*** |
|
|
-
1 x CPU Fan Connector (4-pin)**** |
|
|
-
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed
Control)***** |
|
|
-
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed
Control)****** |
|
|
-
1 x 24 pin ATX Power Connector (Hi-Density Power
Connector) |
|
|
-
1 x 8 pin 12V Power Connector (Hi-Density Power
Connector) |
|
|
-
1 x 4 pin 12V Power Connector (Hi-Density Power
Connector) |
|
|
-
1 x Front Panel Audio Connector |
|
|
-
1 x AMD LED Fan USB Header |
|
|
-
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD
Protection) |
|
|
-
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD
Protection) |
|
|
*The
AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and
length up to 2.5M. |
|
|
**Supports
in total up to 12V/3A, 36W LED Strip |
|
|
***Supports
in total up to 5V/3A, 15W LED Strip |
|
|
****The
CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan
power. |
|
|
*****The
CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan
power. |
|
|
******The
Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W)
fan power. |
|
|
CPU_FAN2/WP,
CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin
fan is in use. |
|
Rear
Panel I/O |
-
1 x PS/2 Mouse/Keyboard Port |
|
|
-
1 x HDMI Port |
|
|
-
1 x Optical SPDIF Out Port |
|
|
-
1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD
Protection) |
|
|
-
1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD
Protection) |
|
|
-
6 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
|
-
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED) |
|
|
-
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker /
Microphone |
|
Software
and UEFI |
Software |
|
|
-
ASRock A-Tuning |
|
|
-
ASRock Polychrome RGB |
|
|
-
ASRock XFast LAN |
|
|
UEFI |
|
|
-
ASRock Full HD UEFI |
|
|
-
ASRock Instant Flash |
|
|
-
ASRock Easy RAID Installer |
|
|
*These
utilities can be downloaded from ASRock Live Update & APP
Shop. |
|
Support
CD |
-
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome
Browser and Toolbar |
|
Accessories |
-
Quick Installation Guide, Support CD, I/O Shield |
|
|
-
2 x SATA Data Cables |
|
|
-
1 x ASRock SLI_HB_Bridge_2S Card |
|
|
-
2 x Screws for M.2 Sockets |
|
Hardware
Monitor |
-
Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump
Fans |
|
|
-
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump
Fans |
|
|
-
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU,
CPU/Water Pump, Chassis/Water Pump Fans |
|
|
-
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump
Fans |
|
|
-
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH
1.05V, +1.8V, VDDP |
|
Form
Factor |
-
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
|
|
-
2oz Copper PCB |
|
|
OS |
|
|
-
Microsoft®Windows®10
64-bit |
Please refer to below table for DDR4 UDIMM maximum frequency support.
Ryzen
Series CPUs (Pinnacle Ridge):
| UDIMM Memory Slot |
Frequency(MHZ) |
| A1 |
A2 |
B1 |
B2 |
| - |
SR |
- |
- |
2933 |
| - |
DR |
- |
- |
2400 |
| - |
SR |
- |
SR |
2933 |
| - |
DR |
- |
DR |
2400 |
| SR |
SR |
SR |
SR |
2133 |
| SR/DR |
DR |
SR/DR |
DR |
1866 |
Ryzen Series CPUs (Summit Ridge):
| UDIMM Memory Slot |
Frequency(MHZ) |
| A1 |
A2 |
B1 |
B2 |
| - |
SR |
- |
- |
2667 |
| - |
DR |
- |
- |
2667 |
| - |
SR |
- |
SR |
2667 |
| - |
DR |
- |
DR |
2400-2667 |
| SR |
SR |
SR |
SR |
2133-2400 |
| SR/DR |
DR |
SR/DR |
DR |
1866-2133 |
Ryzen Series CPUs (Raven Ridge):
| UDIMM Memory Slot |
Frequency(MHZ) |
| A1 |
A2 |
B1 |
B2 |
| - |
SR |
- |
- |
2933 |
| - |
DR |
- |
- |
2667 |
| - |
SR |
- |
SR |
2667 |
| - |
DR |
- |
DR |
2400 |
| SR |
SR |
SR |
SR |
2133 |
| SR/DR |
DR |
SR/DR |
DR |
1866 |
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR:
Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label
Due to the operating system limitation, the actual memory size may be less
than 4GB for the reservation for system usage under Windows32-bit
OS. For Windows64-bit
OS with 64-bit CPU, there is no such limitation.
