Antec P5 Ultimate Silent Micro-ATX Case
Overview
ABOUT
The P5 micro-ATX case is engineered to ensure an easy building experience -
capable of supporting your high end PC components and your ideal hardware
configurations without breaking the bank.
Front panel with a brushed metallic effect
- NET WEIGHT: 6.5kgs
- GROSS WEIGHT: 7.2kgs
The hinged front panel and side panels are lined with advanced,
sound-absorbing bitumen and noise-insulating foam, so performance and silence
are in perfect balance.

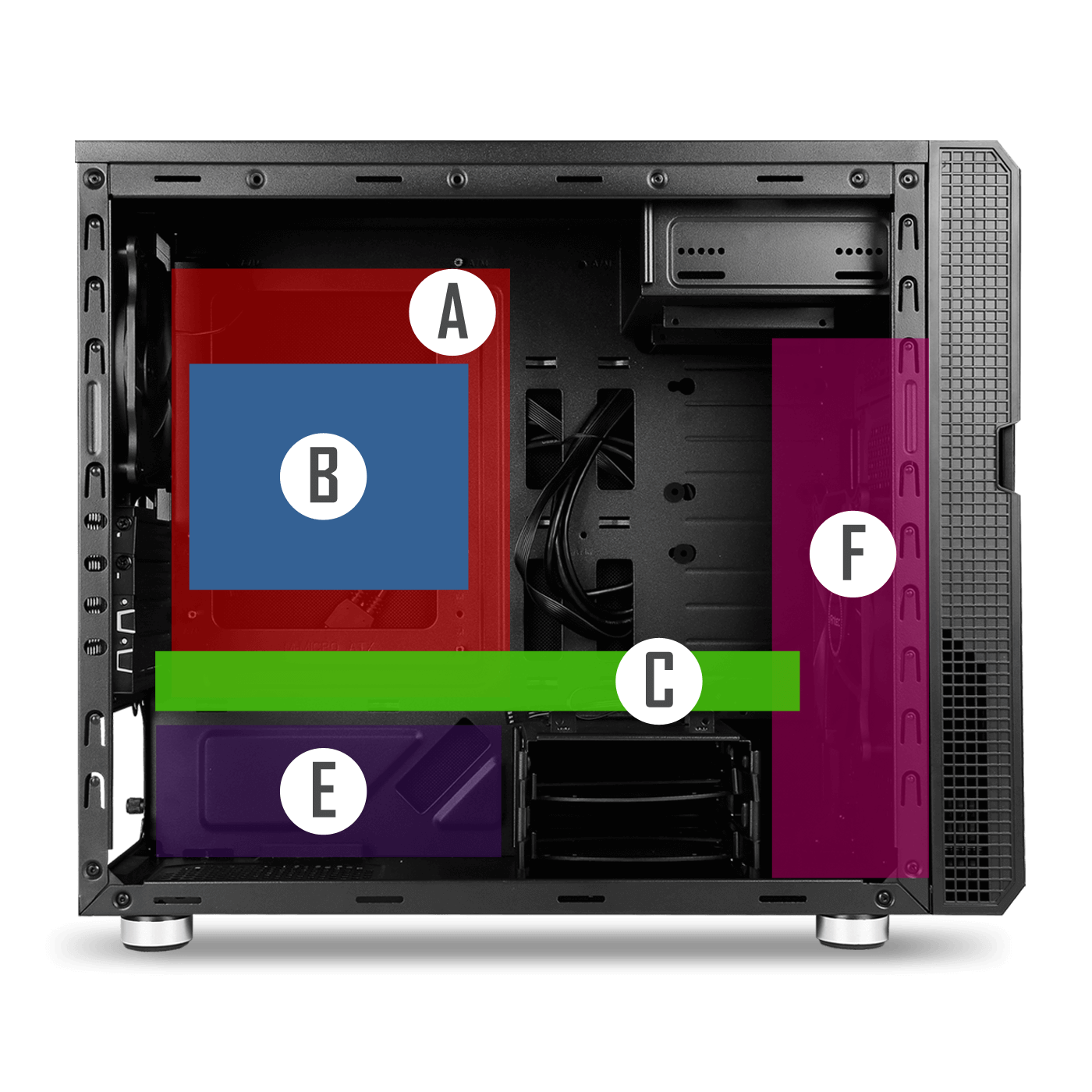

Flexible Interior Layout
- Motherboard Support: Micro-ATX, ITX
- Maximum CPU Height: 155 mm
- Supports VGA Cards up to: 360 mm

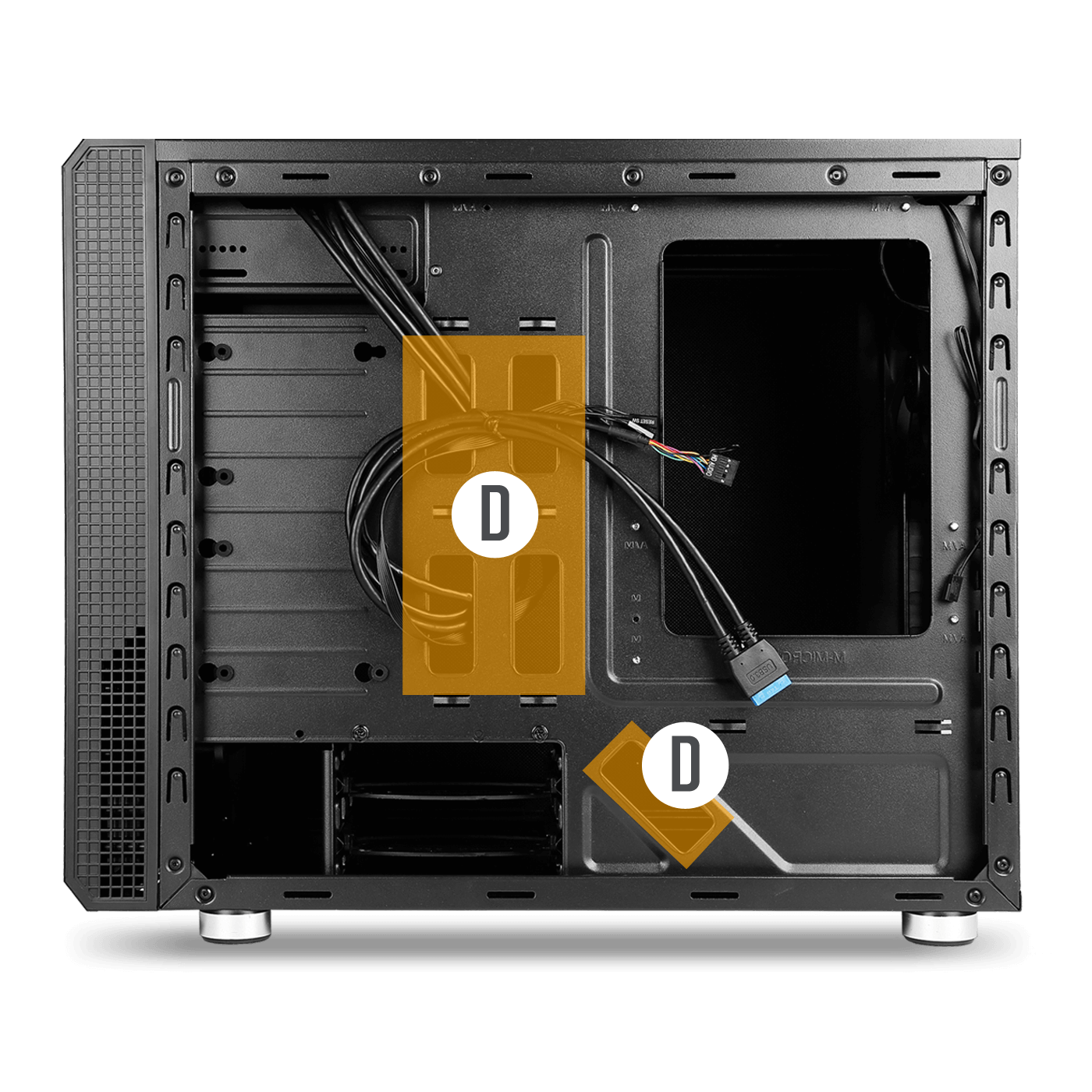

- Ample Routing Holes for Cable Management
- Max PSU Length: 200 mm
- Front Radiator Space = 70mm Thickness with Fan

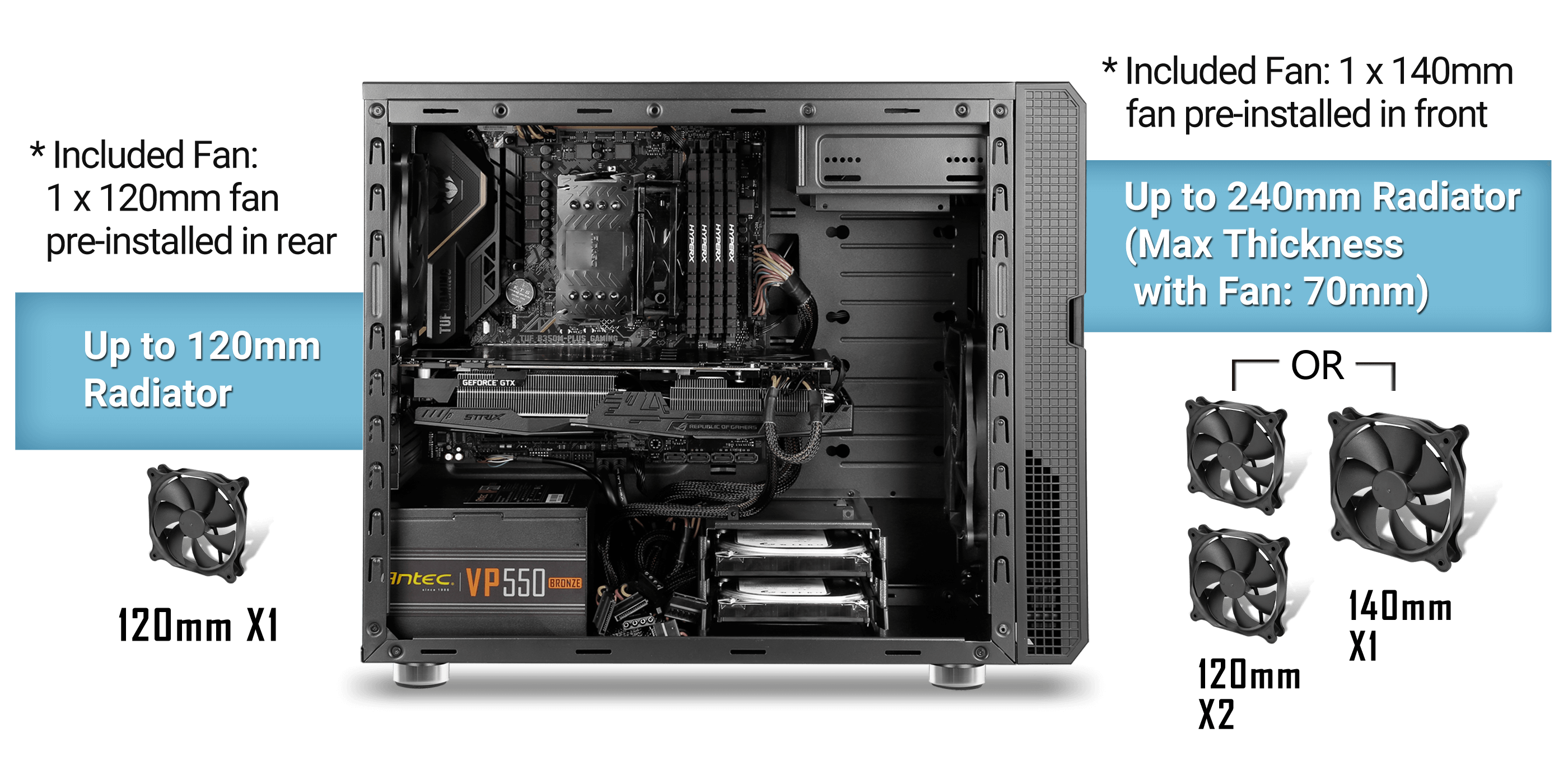

Cooling Options

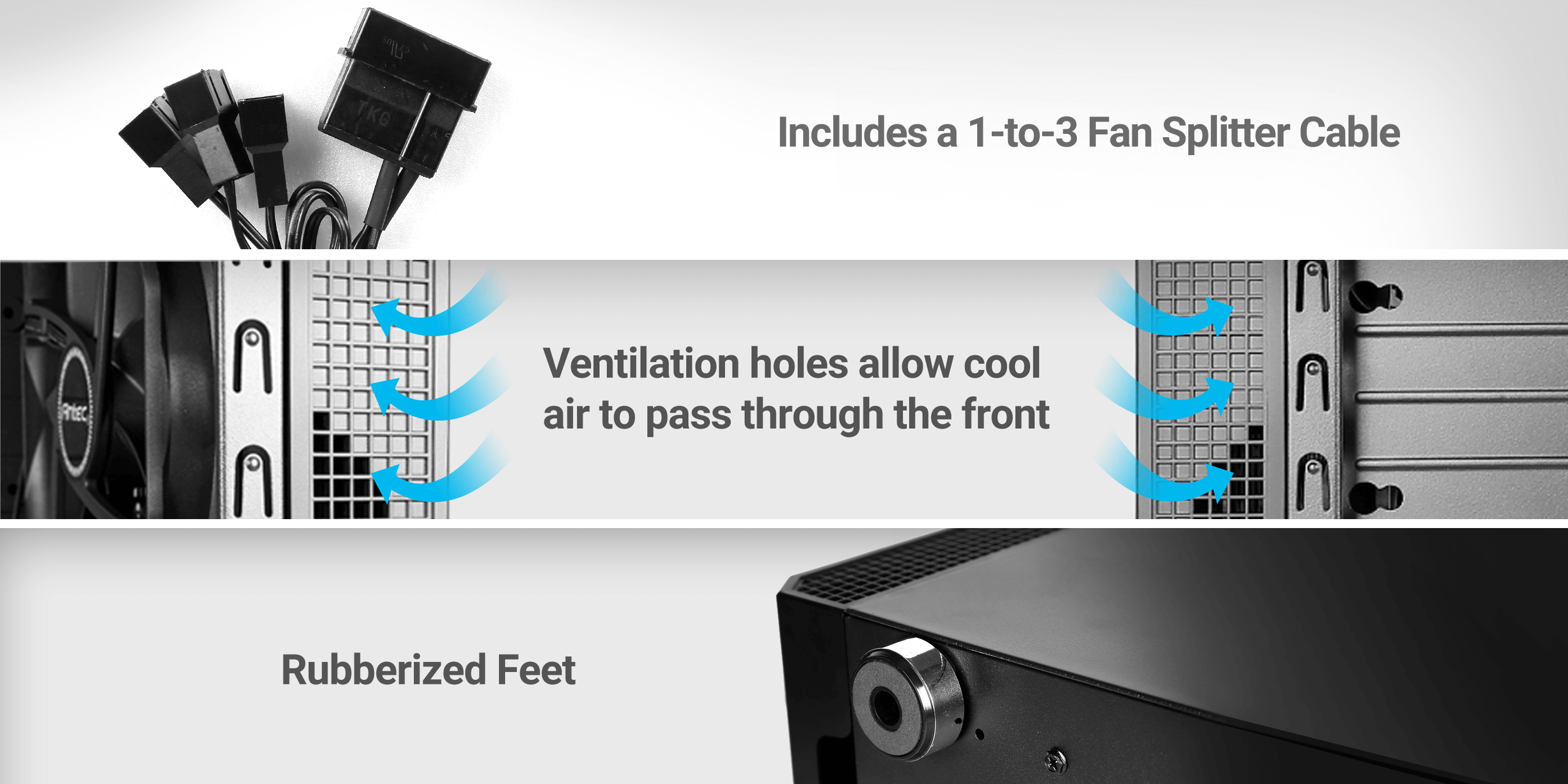

Functional Design Features
Specifications
|

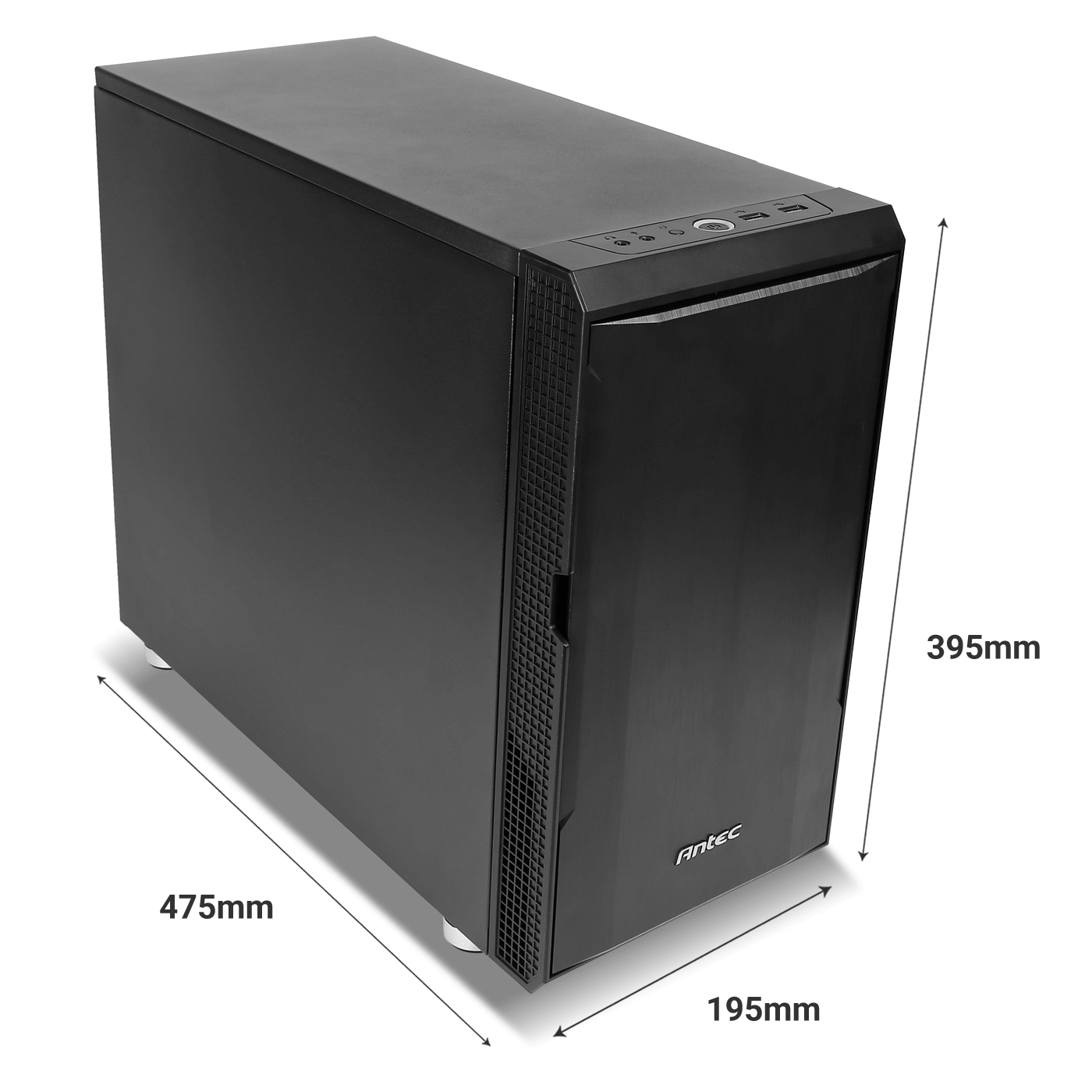

Dimensions |
475
x 195 x 395mm (DxWxH) |
|
Form
Factor |
Mini
Tower |
|
Materials |
Steel
+ Plastic |
|
Mainboard
Support |
Micro-ATX,
ITX |
|
I/O
Ports |
USB3.0
x 2, MIC/AUDIO(HD), Power, Reset |
|
Side
Panel |
Sound
Dampening Panel |
|

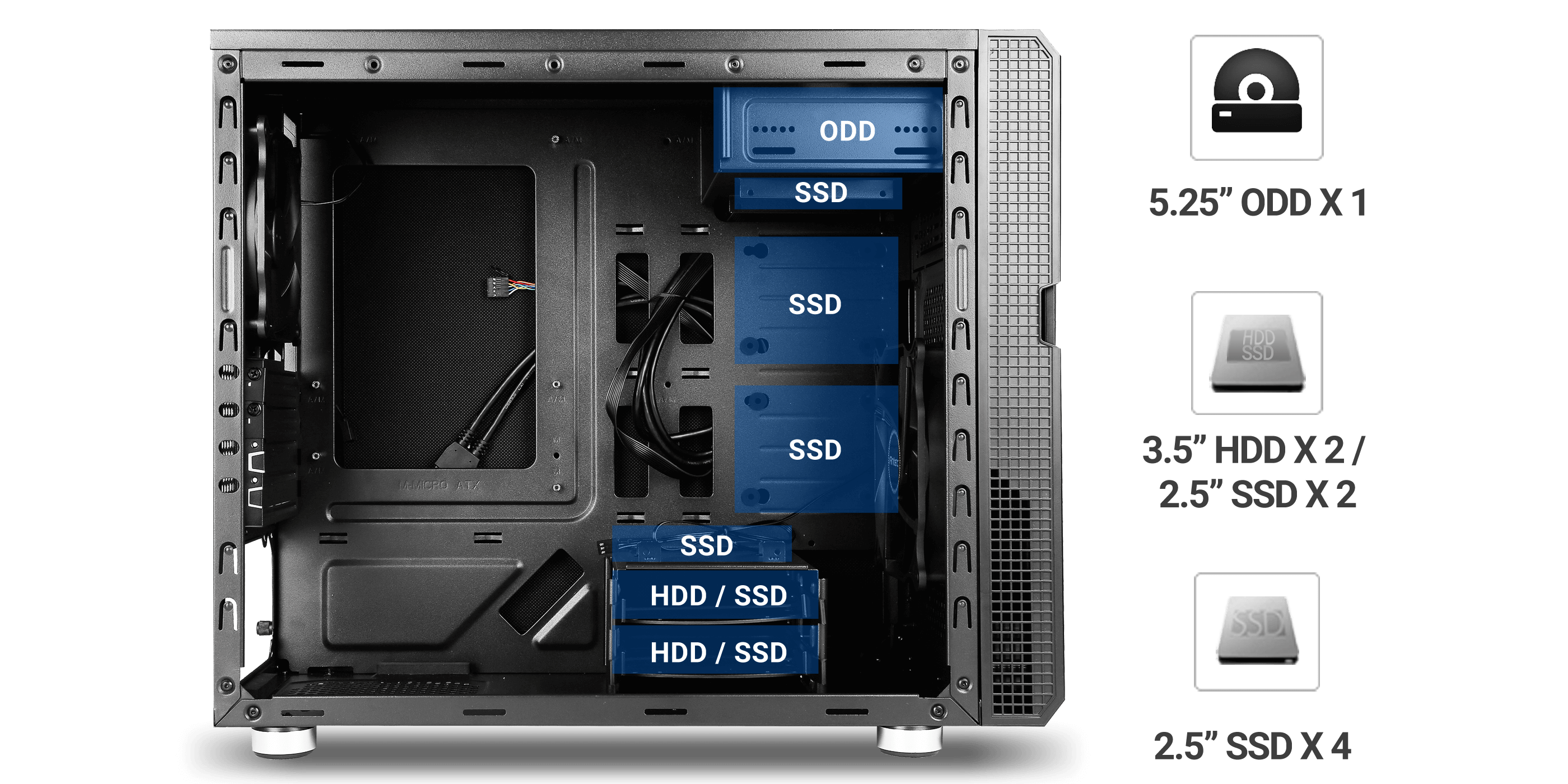

Expansion
& Drive Bays |
|
|
Expansion
Slots |
4 |
|
5.25" |
1 |
|
3.5"
/ 2.5" (convertible) |
2 |
|
2.5" |
4 |
|
Fan
Support |
|
|
Front |
2
x 120mm or 1 x 140mm |
|
Rear |
1
x 120mm |
|
Included
Fan(s) |
1
x 140mm Fan in Front & 1 x 120mm Fan in Rear |
|
Radiator
Support |
|
|
Front |
≤
240mm (up to 70mm Thickness with Fan) |
|
Rear |
≤
120mm |
|
Clearance |
|
|
Max
GPU Length |
≤
360mm |
|
Max
CPU Cooler Height |
≤
155mm |
|
Max
PSU Length |
≤
200mm |
|
Miscellaneous |
|
|
Dust
Filters |
Front
/ Bottom |
|
Net
Weight |
6.5Kgs |
|
Gross
Weight |
7.2Kgs |
|
Warranty |
2
years |
