All stock codes associated to this product
Tera2140SPF, Tera 2140 SPF, 11L2140SPF
Leadtek Tera 2140 SPF Quad-DVI Zero
Client
Product Model
- TERA2140 Quad-DVI Zero Client (RJ45 edition)
- TERA2140 Quad-DVI Zero Client (SFP Fiber edition)
- TERA2140 Quad-DVI Zero Client (RJ45, Smart Card Reader Edition)
- TERA2140 Quad-DVI Zero Client (SFP, Smart Card Reader Edition)
Overview
Do it all with total security. The era of complex, non-secure PC solutions is
almost over. In a traditional desktop environment, all computing resources and
data are on the desktop, thus increasing the chance of corporate data leakage.
Leadtek PCoIP-enabled virtual desktop solution, on the other hand, enables all
computing resources and data to be transferred to a centralized server in a
secure data center and lowers support overheads for the enterprise. This
enhances enterprise data management and security while delivering an immaculate,
uncompromised end user experience over standard IP networks. PCoIP zero client
makes it possible to deliver workstation class performance for professional
applications including 3D CAD/CAM, Digital Content Creation, video editing and
advanced knowledge worker level business software.
VMware Ready
As a result of collaboration with VMware, VMware Horizon View incorporates
PCoIP technology as the remote desktop protocol for virtual desktops, providing
a significantly better user experience than is provided with other remoting
protocols. Corporations deploying VMware Horizon Views latest versions can
achieve all of the advantages of virtual desktop deployments with all of the
advantages of the PCoIP protocol and with the manageability and performance
advantages of PCoIP zero clients.
Go Green with Ultra-Low Power and Noiseless
Offers industry-leading low power consumption design and engineering
technology. The net result is a small, quiet, low power and reliable device that
requires minimal IT administration and support.
Virtually NO Desktop Management
Unlike traditional thin clients which are basically small PCs running a
version of Windows or Linux, Leadtek PCoIP products are the only true zero
clients that have no CPU, no operating system (no Windows or Linux), no device
drivers, no hard drive, no fan, no noise, etc. This means it requires no OS
patches, no driver updates or virus signature files. Once its set up, users
never have to touch it again.
True PC Experience over IP
PCoIP sessions are established from PCoIP hardware zero clients to
workstations with PCoIP remote workstation host cards for full workstation-class
performance, or to VMware Horizon View servers or Amazon WorkSpaces with the
PCoIP protocol integrated to deliver enhanced security and performance. Leadtek
PCoIP products are the only remoting solution that puts absolutely no load on
the host CPU or graphics card, so CPU/GPU can devote all its energy for
full-featured graphics. Maximum performance of 250 mega pixels per second (Mpps)
capable of driving full screens of changing pixels or application refresh rates
up to 60 frames per second (fps) ensures the best remote user experience.
High Security and Authentication
PCoIP solution allows ALL desktop computing hardware, including existing PCs,
workstations, and servers, to be moved into a secure location. PCoIP transmits
pixels NOT data so all data stays secure in your datacenter. PCoIP zero clients
simply receive and decode encrypted image information, do not store any
application data, and are immune to viral attack. It uses high standard AES 256
and NSA Suite B ciphers encryption. And extensive USB security and
authentication features are provided, including single sign-on capabilities for
use with smart cards.
Resolution up to 2560x1600
A more powerful image engine and zero client processor core to support up to
four displays at 1920x1200, or dual 2560x1600 resolution and the highest pixel
processing power.
Features
- A book-size desktop device for any system that has the PCoIP server
installed with VMware Horizon View, VMware Horizon DaaS, Amazon WorkSpaces, or
a PCoIP remote workstation host card
- True PC experience while enabling all IT resources and management into the
data center
- Supports two ultra high-resolution 2560x1600 or four high-resolution
1920x1200 video, four USB, a Speaker, a Microphone, a Headphone and Ethernet
connectors
- No CPU, no OS, no device drivers, no hard drive, no fan and no noise so it
requires no management at all
- Input comes from the enterprise network via a standard Ethernet connector.
Output is driven by the DVI ports for video and USB ports for peripheral and
I/O connections
- The net result is a low cost and reliable client-side module that requires
minimal IT administration and support because all processing resides in the
centralized server, host PC or workstations
- Go green with noiseless cooling and low power consumption
- Completely driverless and stateless while it never stores any user or
configuration data
Specifications
Specifications
Model |
TERA2140
Series |
|
Max Number of
Displays |
4 |
|
Processor |
TERA2140 |
|
Imaging
Performance |
50 Mpps
(VDI) |
|
250 Mpps
(Workstation)* |
|
Maximum
Resolution |
Two 2560x1600
or |
|
Four
1920x1200 |
|
Memory
Type |
512 MB
DDR3 |
|
Device Physical
Dimensions |
7.21 (height) x 5.22
(length) x 1.76 (thinness) inches without stand |
|
Power
Management |
Full Wake-on-LAN and
Wake-on-USB |
|
Typical Device
Power |
12W |
|
Encryption |
AES-128/AES-256 |
|
Suite B Ciphers
(Workstation) |
|
Connectors |
Single-link DVI-D or
DisplayPort connector |
|
Second Single-link
DVI-D or DisplayPort connector |
|
Third Single-link DVI-D
or DisplayPort connector |
|
Forth Single-link DVI-D
or DisplayPort connector |
|
(or Two Dual-link DVI-D
with adapters) |
|
Two front USB 2.0
connectors** |
|
(Smart card reader zero
clients have one front USB connector) |
|
Two rear USB 2.0
connectors |
|
Smart Card Reader port
(Optional) |
|
Headphone
jack |
|
Microphone
jack |
|
Speaker
jack |
|
RJ45 or Fiber Ethernet
connector |
|
12VDC Power
jack |
|
LED |
PCoIP
LED |
|
Zero Client Power
Button LED |
|
Button |
Zero Client Power
Button |
|
Thermal Cooling
Solution |
Passive heat
sink |
Operating System
Support |
Completely operating
system independent |
Package
Content |
PCoIP Zero
Client |
Power adaptor and power
cord |
Ethernet cable
(Optional) |
Dual-link DVI adapter
cables (Optional for TERA2140 Quad-DVI and TERA2321 Dual-DVI zero
clients)*** |
Quick installation
guide |
VESA mount package
(Optional) |
* Workstation: when used in conjunction with PCoIP hardware host solution
** USB devices like webcams and DVD writers use USB1.1 isochronous transfer
mode

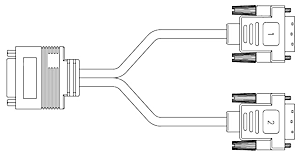

*** How do I use the Dual-link DVI adapter cable?
1. Specification
Dual (18+1) pin male single-link DVI-D to single (24+1) pin female dual-link
DVI-D cable, 100mm length (cable only; without connectors)
2. Functionality
Dual link displays need to be correctly connected with the dual-link DVI
adapter cable(s) to ensure the best experience possible.
TERA2140 Quad-DVI and TERA2321 Dual-DVI zero clients support dual-link DVI
monitors with resolutions up to 2560 x 1600.
Connection Instructions
(1) Connecting a TERA2140 Quad-DVI device to dual-link DVI monitors
supporting resolutions of 2560 x 1600.
For
Dual-Link Monitor 1:
-
Plug the Dual-link DVI adapter cable connector labeled 1 into port 1 on
the TERA2140 zero client.
-
Plug the Dual-link DVI adapter cable connector labeled 2 into port 3 on
the TERA2140 zero client.
-
Plug the Dual-link DVI adapter cable connector (Dual Link side) into
the monitor.
For Dual-Link Monitor 2:
-
Plug the Dual-link DVI adapter cable connector labeled 1 into port 2 on
the TERA2140 zero client.
-
Plug the Dual-link DVI adapter cable connector labeled 2 into port 4 on
the TERA2140 zero client.
-
Plug the Dual-link DVI adapter cable connector (Dual Link side) into
the monitor.
(2) Connecting a TERA2321 Dual-DVI device to a dual-link DVI monitor
supporting resolutions of 2560 x 1600.
- Plug the Dual-link DVI adapter cable connector labeled 1 into port 1 on
the TERA2321 zero
- Plug the Dual-link DVI adapter cable connector labeled 2 into port 2 on
the TERA2321 zero client.
- Plug the Dual-link DVI adapter cable connector (Dual Link side) into the
monitor.
