GA-Z370-AORUS-GAMING-5 | Gigabyte Aorus Gaming 5 Motherboard

Gigabyte GA-Z370-AORUS-GAMING-5 Gaming Motherboard

Overview

Intel Z370 Gaming motherboard with RGB Fusion, Digital LED support, Triple M.2, 120dB SNR ALC1220, Intel Gaming LAN, Front USB 3.1 Gen 1 Type-C & Rear USB 3.1 Gen 2 Type-C, Smart Fan 5, Anti-Sulfur Resistors

• Supports 8th Gen Intel® Coreâ„¢ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel® Optaneâ„¢ Memory Ready
• ASMedia 3142 USB 3.1 Gen 2 with USB Type-Câ„¢ and Type-A
• Front USB 3.1 Gen 1 Type-Câ„¢ Header
• Multi-Way Graphics Support with Dual Armor and Ultra Durableâ„¢ Design
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
• Sound BlasterX 720°, the top-of-the-line audio engine solution for 4K gaming and entertainment
• Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
• Intel 1x1 802.11ac Wireless – AC 3165
• RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
• Swappable Overlay for Accent LED
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Triple Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
• USB DAC-UP 2 with Adjustable Voltage
• Anti-Sulfur Resistors Design
• Ultra Durableâ„¢ 25KV ESD and 15KV Surge LAN Protection
• Lightning-Fast Intel® Thunderboltâ„¢ 3 AIC Support
• APP Center Including EasyTuneâ„¢ and Cloud Stationâ„¢ Utilities

SUPERCHARGED PERFORMANCE

AORUS Z370 GAMING Motherboard

The AORUS Z370 enthusiast motherboards are faster and more powerful than any other motherboards the world has seen. With aggressively redesigned armor and thermal heatsinks, its performance capabilities and durability are second to none. Performance is no stranger to AORUS, with exotic cooling and an ability to be tuned to peak performance, AORUS motherboards will exceed expectations.

Next Gen 8^thGen Intel Core Platform

Exceptional Performance & Responsiveness

• Excellent multi-thread performanceUp to 6 Processor Cores
• Enhanced core & memory overclocking
• IntelTurbo Boost Technology 2.0

Impressive Media & Display

• Rec.2020 & HDR Support
• HEVC 10-bit HW decode/encode and HDCP2.2
• VP9 10-bit HW decode
• Premium UHD/4K content support

Compelling Platform Integration

• Support for next generation IntelOptane memory

AORUS STYLE

RGB Fusion with Digital LEDs

With AORUS Z370 Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGBW/ Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on Z370 Series AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

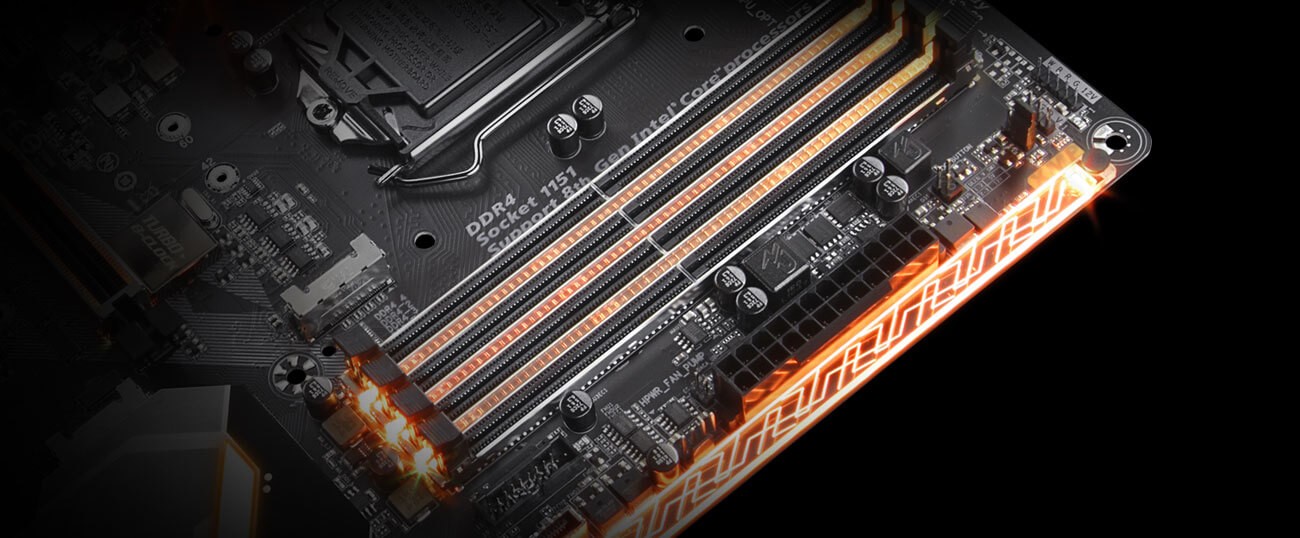

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Basic

Advanced

Surround Lighting

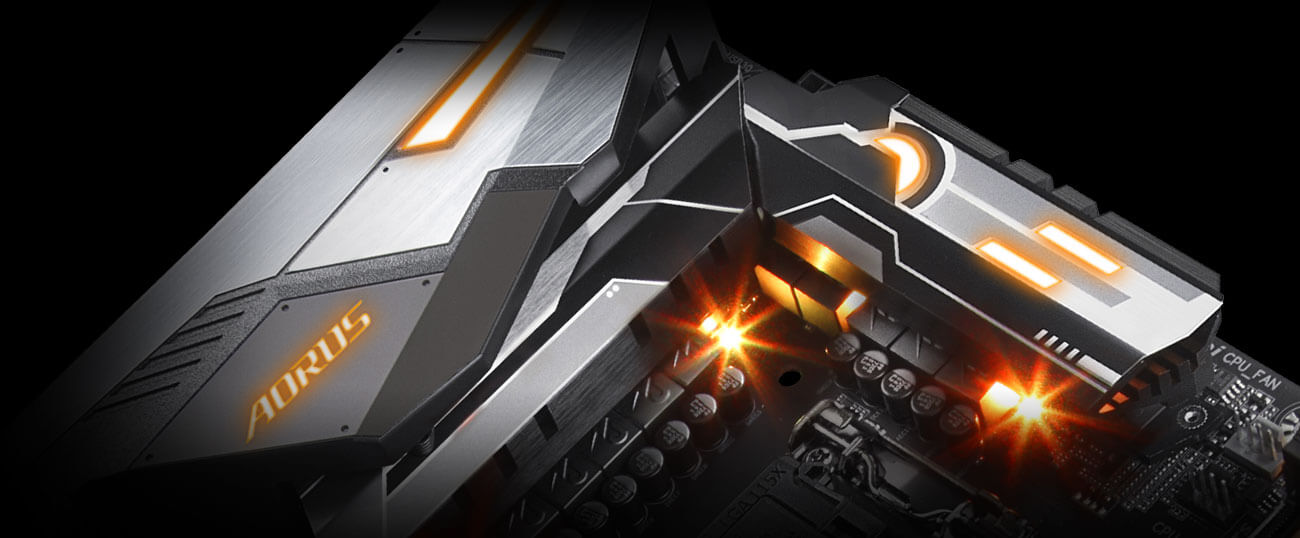

Swappable Overlay for Accent LED

AORUS brings even more color and life to your system with an Accent LED Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.

Supports RGBW & UV Light Strips

Independently Programmable Onboard Pin Header for RGBW/UV LED Strips

Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors.

When using RGB/UV LED strips, users can give their systems a fluorescent glow with the use of UV reactive liquid, neon braided cables, and acrylic paint for a wicked-looking gaming PC.

No need to worry when choosing light strips as AORUS motherboards support a wide variety of RGBW/-UV light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.

RGB Fusion (Advanced mode)

With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times.

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

With a dazzling array of products supported, RGB Fusion is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like have them match, dazzle and impress.

AORUS AUDIO

ALC1220 120dB SNR HD Audio with Smart Headphone Amp

ALC1220 120dB SNR HD Audio

The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.

Smart Headphone AMP

Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamicspreventing issues such as low volume and distortion.

USB DAC-UP 2

Adjustable Voltage USB Port with Dedicated Power Design

AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2. USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.

Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

High-End WIMA & Audio Capacitors

The AORUS Z370 motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and audio grade Fine Gold capacitors. While the Fine Gold capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

Creative Sound BlasterX 720°

Creatives latest top-of-the-line audio engine takes your PC audio to the next level. These comprehensive tools backed by leading technology and algorithms in audio will enrichen your experience, whether its streaming, gaming, listening to music, or other entertainment needs.

Scout Radar

Expand your vision with the worlds first smart gaming companion that enables you not only to hear your enemies from further away but also to visualize and see where enemies are on the radar through your mobile device.

Scout Mode

This proprietary technology allows you to hear your enemies from further away, giving you a distinct tactical advantage.

Creative Sound BlasterX 720° Software

AORUS COOLING

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Temperature Sensors

Hybrid Fan Headers

(Includes support for one High-Current Pump up to 3 Amps)

Temperature Sensor Cable x 2

• 9 Temperature Sensors
• 8 Fan/Water Pump Connectors
• All Fan Pin Headers Upgraded to Hybrid Fan Headers
• Interoperable Fans and Sensors
• Intuitive UI for Fan Control

 Fan pin header

 Fan/Water Pump pin header

 Temperature Sensors

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperatureall of it can be customized to your liking.

Hybrid Fan Pin Headers & Temperature Sensors

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensorsgiving you absolute mastery over your PC.

• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
• Includes support for one High-Current Pump up to 3 Amps with built-in overcurrent protectiona must for high-end high current fans.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

• Interoperable Sensors and Fans - Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).
• Fan Curve - Customize fan curves based on specific temperatures with the intuitive graphical UI.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your systems behavior; these are the possibilities of the System Information Viewer.

AORUS PERFORMANCE

Turbo B-Clock

Built-in Advanced Performance Tuning IC

Turbo B-Clock Tuning IC in the AORUS Z370 series motherboards enables overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

*Turbo B-Clock overclocking range may vary according to CPU, chipset and used devices capabilities.

Support for DDR4 XMP Up to 4133MHz and Beyond*

AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.

What is XMP?

DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated!

AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.

Immersive VR Gaming Experience

• VR requires more performance than Full HD graphics for a steady 90FPS or greater.
• Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC*

• Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output.
• CPU: Intel i5 equivalent or greater
• Motherboard: GIGABYTE Z370 motherboards
• Memory: 8GB RAM or greater
• USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
• OS: Windows 10 64-bit or newer

*Please check VR vendor website for full system requirements.

To create a seamless VR experience AORUS Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that AORUS has the tools you need to start your journey in VR. To set the mood AORUS Motherboards include RGB Fusion to put you in the center of action.

High-Bandwidth(HB) SLI Bridge

Take your gaming performance to a whole new level by configuring multiple GeForce GTX cards with a High-Bandwidth(HB) SLI Bridge.

AORUS CONNECTIVITY

Triple PCIe Gen3 x4 M.2

AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems potential.

Triple NVMe M.2 PCIe SSDs in RAID 0 Support

Extreme Performance with Gen3 x4 NVMe PCIe SSDs

AORUS' Z370 motherboards offer the industrys best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design which can be configured in RAID for record speeds of up to 3551 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

M.2 + M.2 + M.2

• Extreme sequentialRead 3551 MB/s
• SequentialWrite 3063 MB/sspeed

PERFORMANCE FUELED BY OPTANE

The AORUS Z370 Platform is the first enthusiast platform that supports Intels latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

IntelGbE LAN with cFosSpeed Internet Accelerator + Intel 802.11ac WiFi

IntelGbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

The Industry's Leading Static-Electricity & Surge Protection

PURE SPEED

AORUSExtreme USB 3.1Motherboards

The ASMEDIA 3142 USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16 Gb/s, which means you have extra bandwidth to take full control of the 10 Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.

USB Type-C Front Panel Connector

Equipped with next generation connectivity onboard AORUS Z370 Gaming Motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.1 Gen1 makes access convenient when connecting a USB 3.1 Gen1 drive or charging your new mobile device.

AORUS ULTRA DURABLE

GIGABYTE Patented Double Locking Bracket

Ultra Durable Memory Armor

AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

GIGABYTE Patented DualBIOSâ„¢ Design

GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Long Lifespan Durable Blackâ„¢ Solid Caps

AORUS motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on AORUS motherboards.

15µ Gold Plated CPU Socket Design

AORUS motherboards come equipped with a 15 microinch thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

Easy to Install "G Connector" Design

The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.

AORUS EXCELLENCE

GIGABYTE BIOS & Applications

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTuneâ„¢

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

Overclocking to Boost Your Frame Rates. Get the highest levels of performance from your PC with easy-to-use GIGABYTE overclocking features.

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

TriDefSmartCam | Custom Stream Modding

To facilitate being the full streaming solution each AORUS motherboard includes TriDefSmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chatskeeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated IntelHD Graphics via HDMI.

HDMI - The Next Generation Multimedia Interface

HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

CEC 2019 Ready

Saving energy, Environmental Friendly

The Z370 Motherboards are now ready for CEC 2019! The California Energy Commission(CEC) regulation measures PC systems level power consumption. The Z370 Motherboards with selected key components fulfill CEC 2019 power saving requirements.

Specifications
