Introducing the ToughArmor
MB606SPO-B ruggedized mobile rack for hot-swapping 6x SATA/SAS SSDs and
HDDs up to 7mm in height, and 1x Ultra-Slim 9.5mm CD/DVD/Blu-ray ROM
optical disk drive reader for the external 5.25" bay. Featuring
industrial full-metal construction inside and out, and designed for
commercial applications such as military and medical systems, airborne
and shipboard PCs, in-vehicle systems, servers, workstations, and mobile
computer systems. Maintain optimal drive temperatures with the
user-configurable 40mm cooling fan and plenty of ventilation holes
throughout the enclosure. Advanced removable trays with anti-vibration
protect drives in harsh environments, and built-in individual status
LEDs give you drive updates at a glance.
|
|
|

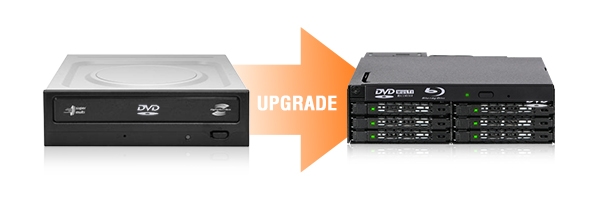

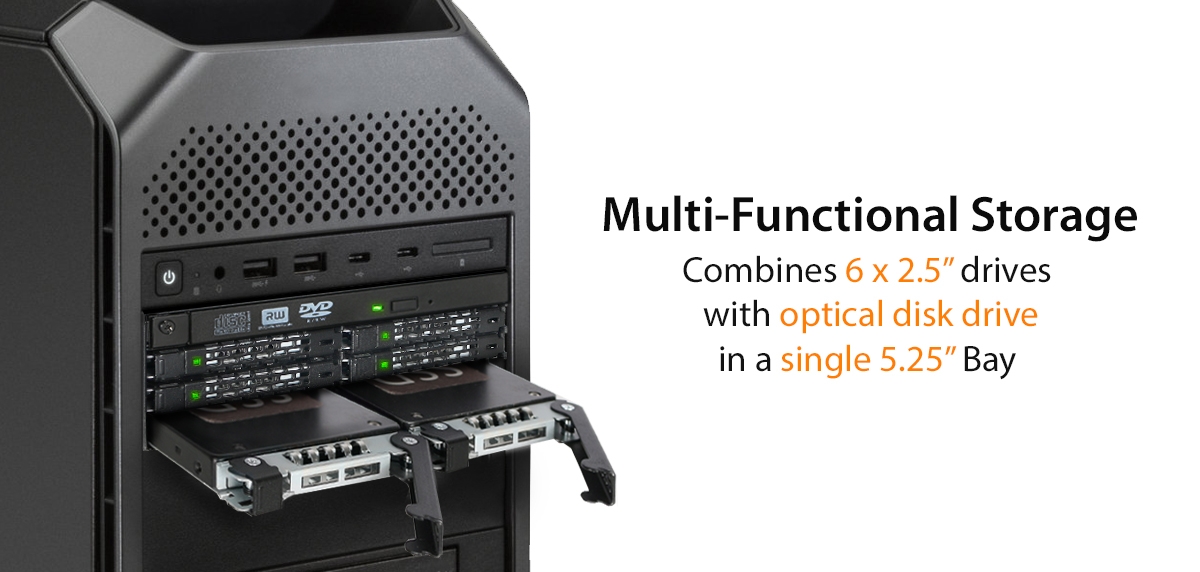

Maximize Space-Efficiency
|
|
 |
|
The high-density design of
ToughArmor MB606SPO-B packs six 5mm-7mm 2.5" SSD/HDD hot-swap bays and
one Ultra-Slim CD/DVD/Blu-ray ROM optical disk drive into a single 5.25"
drive bay, perfect for space-sensitive applications such as powerhouse
PC, portable military workstation, and rackmount industrial PC.
|
 |
|

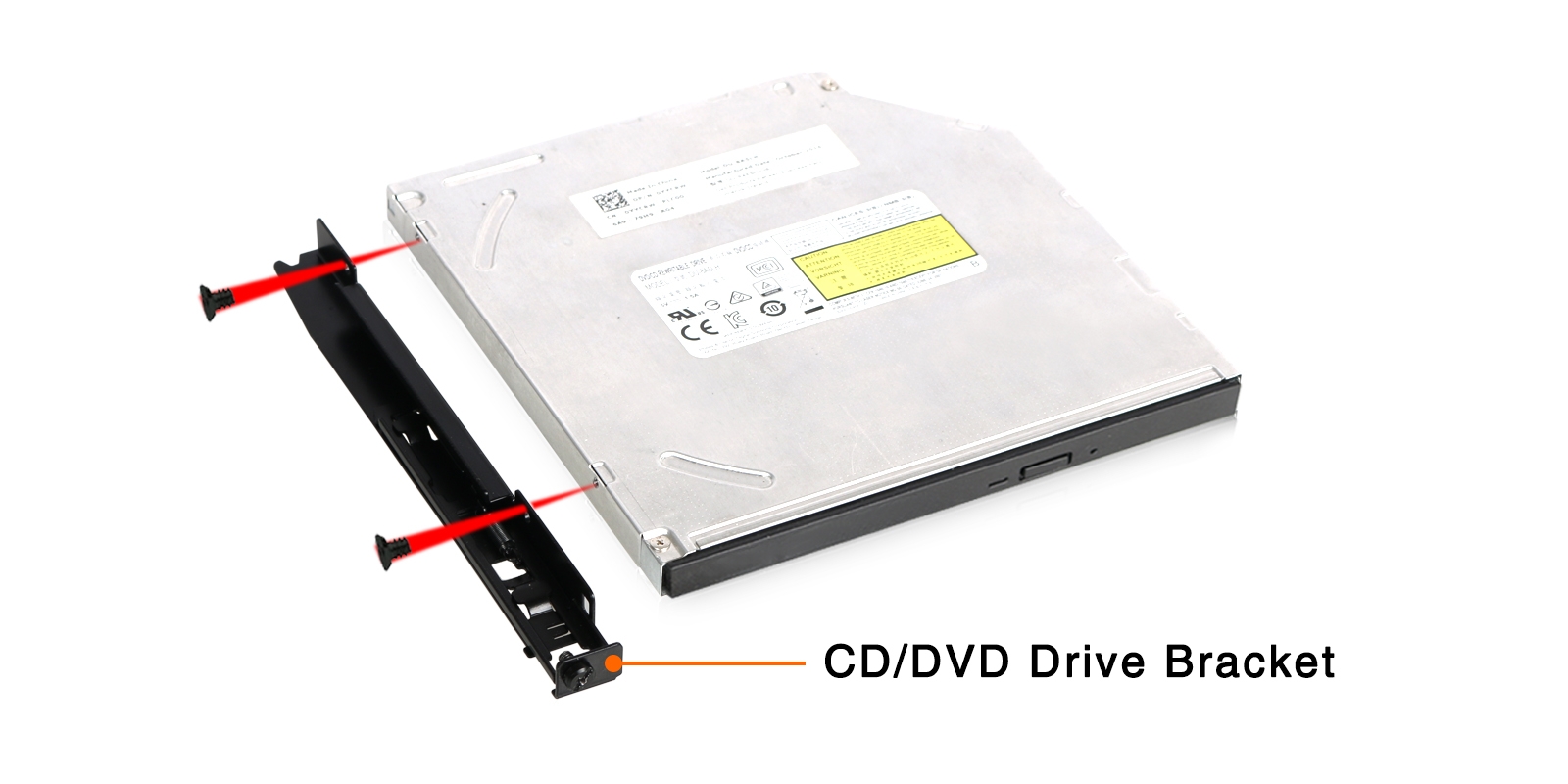

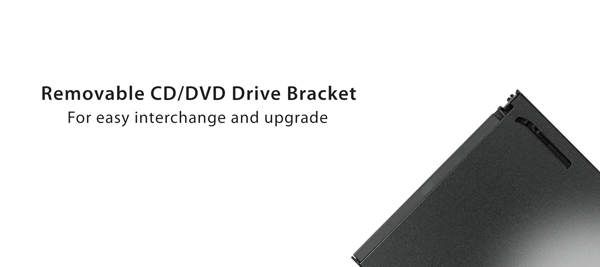

MB606SPO-B's newly designed
optical drive bracket features an adaptable design to support Ultra-Slim
9.5mm CD/DVD/Blu-Ray ROM optical disk drive reader.
|
 |
|

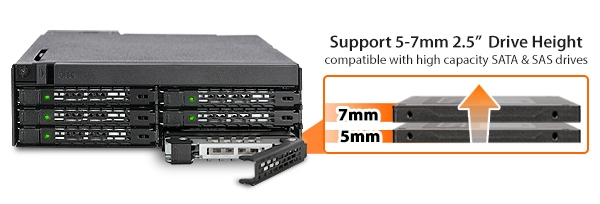

MB606SPO-B's tray is designed
to support HDDs and SSDs up to 7mm in height, making them compatible
with SAS drives as well as SATA drives. SAS drives are used in
enterprise applications such as long-term archival for their long
lifespan and higher reliability
|
|
|
Designed for Versatility
|
 |
|
When you're using an
ultra-slim disk drive, installation is easy using the conveniently
labeled screw holes. Once connected, simply secure the built-in screw
and your drive is locked into place. This ensures that your optical disk
drive reader stays put, even under heavy movement or vibrations.
|
|
 |
|
|
When it's time to replace or
upgrade your CD/DVD/Blu-ray optical disk drive reader, removal is just
as easy. When the bracket screw is loosened, the spring-loaded ejection
arm is revealed. Simply pull the ejection arm to remove the optical disk
drive from the enclosure.
|
|
|

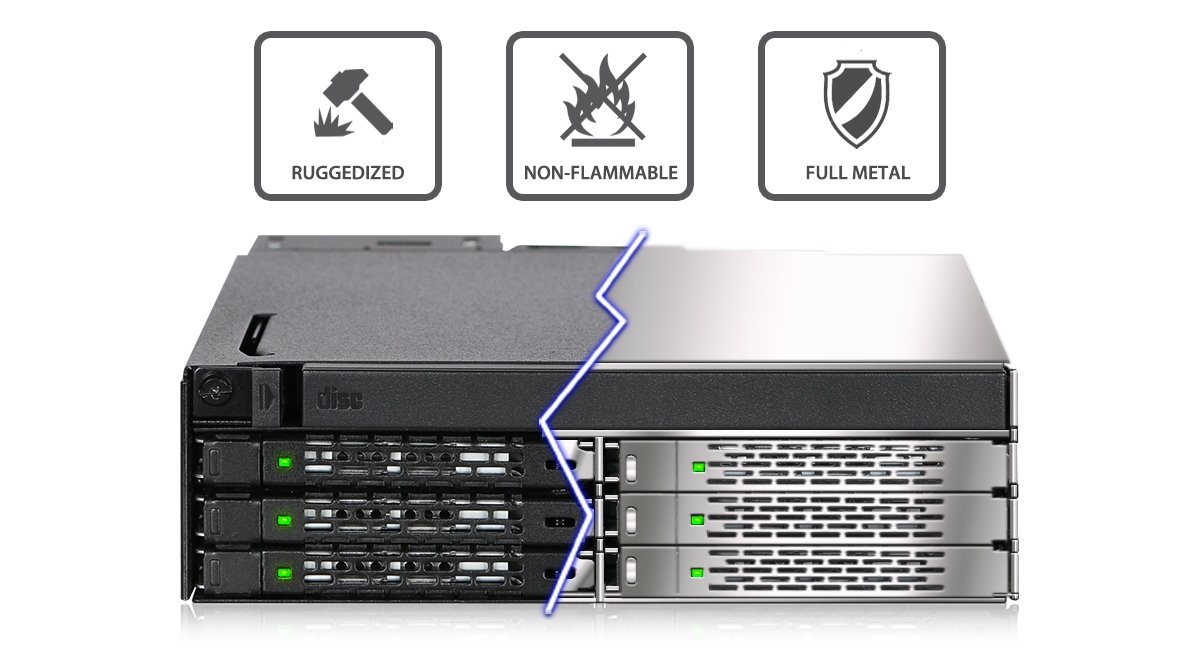

Built Tough
|
|
 |
|
ICY DOCK's ToughArmor uses a
ruggedized full-metal construction throughout the enclosure and trays,
and this trend continues with the MB606SPO-B. ToughArmor is specifically
designed for industrial applications operating in strenuous conditions,
such as in military and medical applications, avionics systems, factory
and warehouse machinery, and any application requiring a flammability
rating.
|
|
|
Packed with Features
|
|
 |
|

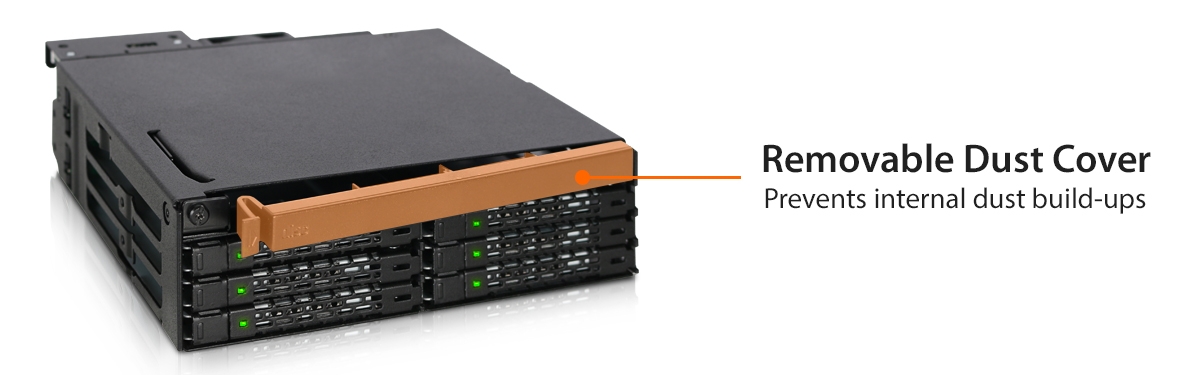

To prevent the build-up of
dust, which over time can clog internal connectors and inhibit airflow,
the included dust cover protects the enclosure when an optical drive is
not in use. When you're ready to install an CD/DVD/Blu-ray optical disk
drive, the dust cover is easily removed without tools or screws.
|
 |
|

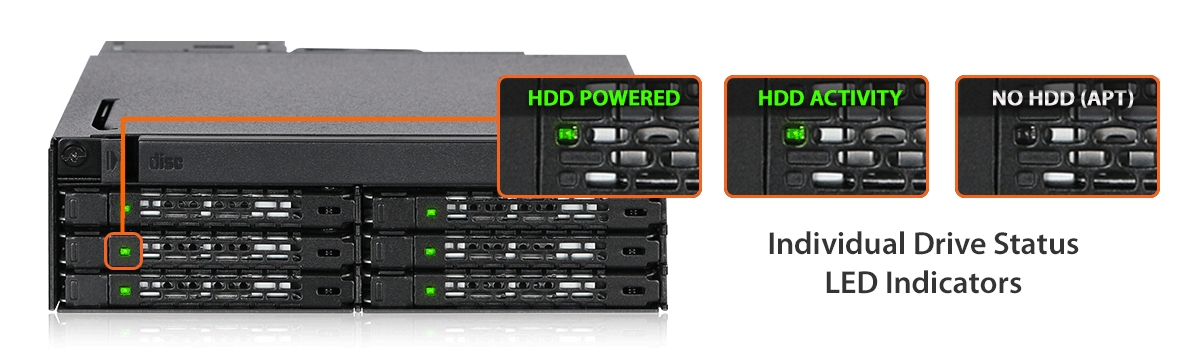

Individual LED lights for each
bay give you drive status updates at a glance, letting you know when
your drives are powered on or in use.
|
 |
|

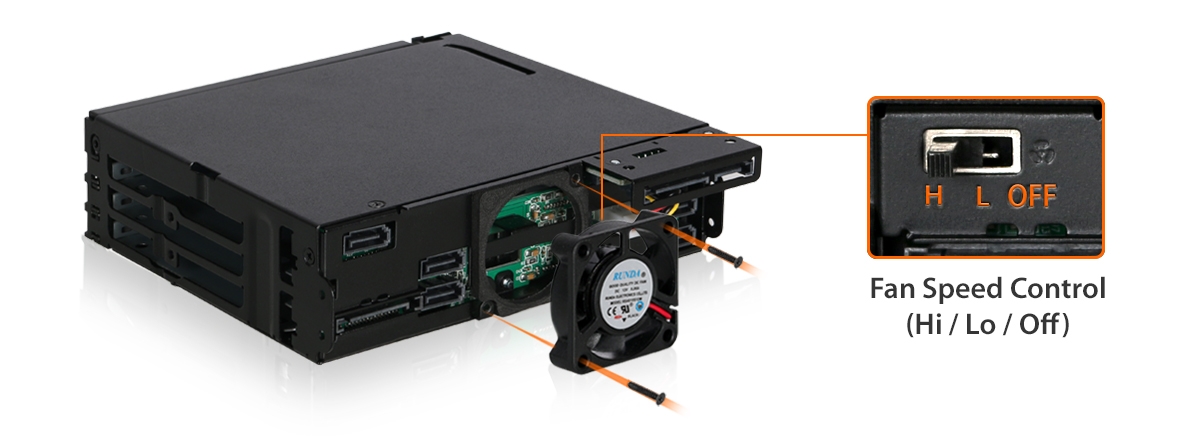

A user-controllable 40mm
cooling fan works with the ample ventilation holes in the tray and
chassis to remove as much heat as possible and keep drives running at
optimal temperatures. The fan can be set to high for intense mechanical
HDD applications, low for use with cooler SSDs, and can be shut off
completely to be cooled by the computers built-in cooling system.
|
 |
|

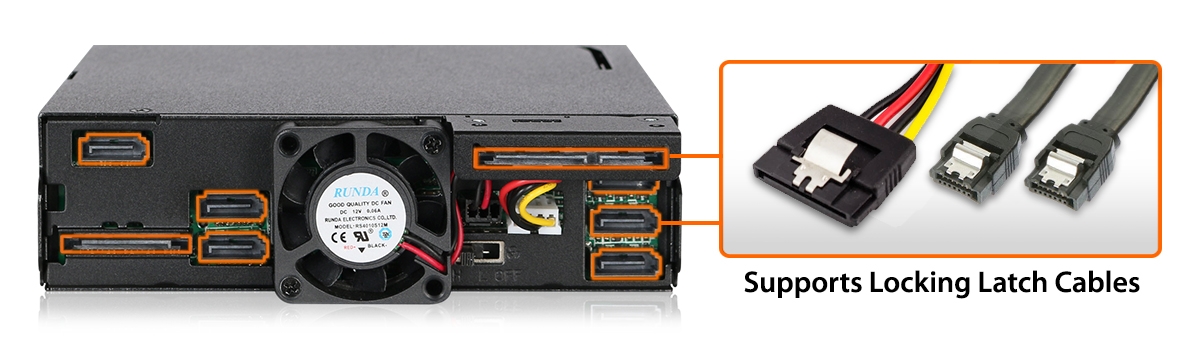

Support for SATA data and
power cables with locking latch designs, so you'll never have to worry
about cables accidently disconnecting while in use. Once these cables
are connected, they'll stay locked into place until manually removed,
providing a reliable power and data connection.
|
|
|

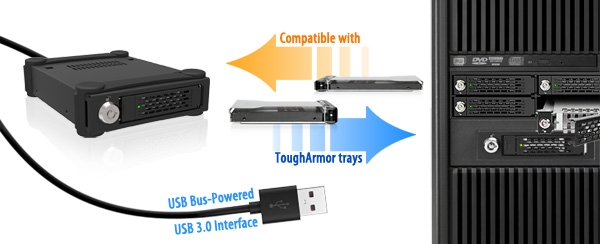

Make ToughArmor On-The-GO!
With MB991U3-1SB
|
To access your data outside of your system or in a remote location, the ToughArmor MB991U3-1SB
is the way to go about. The drive tray slot of MB991U3-1SB is
compatible with a variety of ToughArmor drive trays including the
ToughArmor MB516, MB607, MB991, MB992, MB994, MB996 and MB998 series.
This allows existing ToughArmor users to access their internal drive
externally without opening up the case. It is a great tool for an
individual drive diagnostic test. If you need to do a safe data erase or
just simply expending system storage capacity, just remove the tray
from the internal ToughArmor unit and insert it in the MB991U3-1SB to
perform individual tasks externally with USB 3.0 interface. Best of all,
the MB991U3-1SB uses USB bus-powered and it does not require a power
adapter to operate. Simply connect the USB cable to any system and you
are ready to go.
|
|
|
|
|
|
Drive Tray
|
|
 |
|
EZ-Slide Nano Tray MB998TP-B DriveTray for ToughArmor MB998/MB606 Series
|
|
|
|
|
|
|
|
Suggested Applications
|
|
|
-
|
Perfect for applications
requiring dense storage of SSDs and full-height mechanical hard drives
or solid-state drives, particularly high capacity SATA drives and
enterprise-grade SAS drives; Military and Medical systems requiring
ruggedized construction, and small-form-factor servers using mechanical
2.5 HDDs for mass storage.
|
|
|
|
Key Features
|
|
|
*
|
Rugged heavy-duty steel
construction designed for industrial and commercial applications such as
military and medical, servers, data centers, workstations, and portable
computer systems
|
|
*
|
Perfect for applications that must meet a flammability requirement
|
|
*
|
Fits 6x SSDs or HDDs between 5mm and 7mm in height
|
|
*
|
Supports SATA 3.0 6Gbps / SAS 3.0 12Gbps (single channel)
|
|
*
|
Supports Ultra-Slim (9.5mm) Optical Disk Drive (ODD Drive)
|
|
*
|
Spring-loaded ODD bracket for fast installation and removal
|
|
*
|
Dual SATA power connectors separate ODD from HDD/SSD power for stable power delivery
|
|
*
|
40mm cooling fan with high/low/off setting maintains drive temperatures
|
|
*
|
Ventilation holes located on the trays and throughout the chassis for excellent passive cooling
|
|
*
|
Active Power Technology (APT) - individual LED & cooling fan only powers up if there is a drive installed in the bay
|
|
*
|
Individual drive status LED for each bay
|
|
*
|
Anti-Vibration Technology (AVT) reduces vibration from mechanical hard drives | | |
