CoolerMaster MasterBox MB520 Case - No PSU, Red
  • 3.5"/2.5" Combo Bay(2), 2.5" SSD Bay Support(4), USB3.0(2), 120mm Fan(6), Audio In/Out, Transparent Side Panel, ATX, Micro ATX, Mini ITX

IMG 1 of 5
No Longer Available
Part Number:
446866
(?) Brand:
CoolerMaster Web Site
Manuf No:
MB520-KGNN-S00
MB520KGNNS00
Shipping Weight:
7 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MCBB520KGNNS00, MCB-B520-KGNN-S00, II40738, 2220200561991, MB520KGNNS00, MB520-KGNN-S00, 884102047558

CoolerMaster MCB-B520-KGNN-S00 MasterBox MB520



Overview

Light 'em Up!

  • DarkMirror Front Panel
  • Aggressive Intakes
  • Edge-To-Edge Transparent Side Panel
  • Support for a Total of 6 Fans and Water Cooling
  • Graphic Card Support Up to 410mm
  • Storage Trays and Full-Length PSU Shroud
  • Multiple Trim Colors Available

DARKMIRROR FRONT PANEL

Shade light through a transparent, tinted front panel.

EXCELLENT THERMAL PERFORMANCE

  • Optimized airflow due to the large intakes on each side of the front panel.
  • Additional ventilation on the top panel adds thermal support.

EDGE TO EDGE TRANSPARENT SIDE PANEL

  • Showcase your build through the transparent side panel.

FAN AND RADIATOR SUPPORT

  • Front: Three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
  • Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
  • Rear: One 120mm fan or radiator. All to ensure you don't have to compromise on performance.

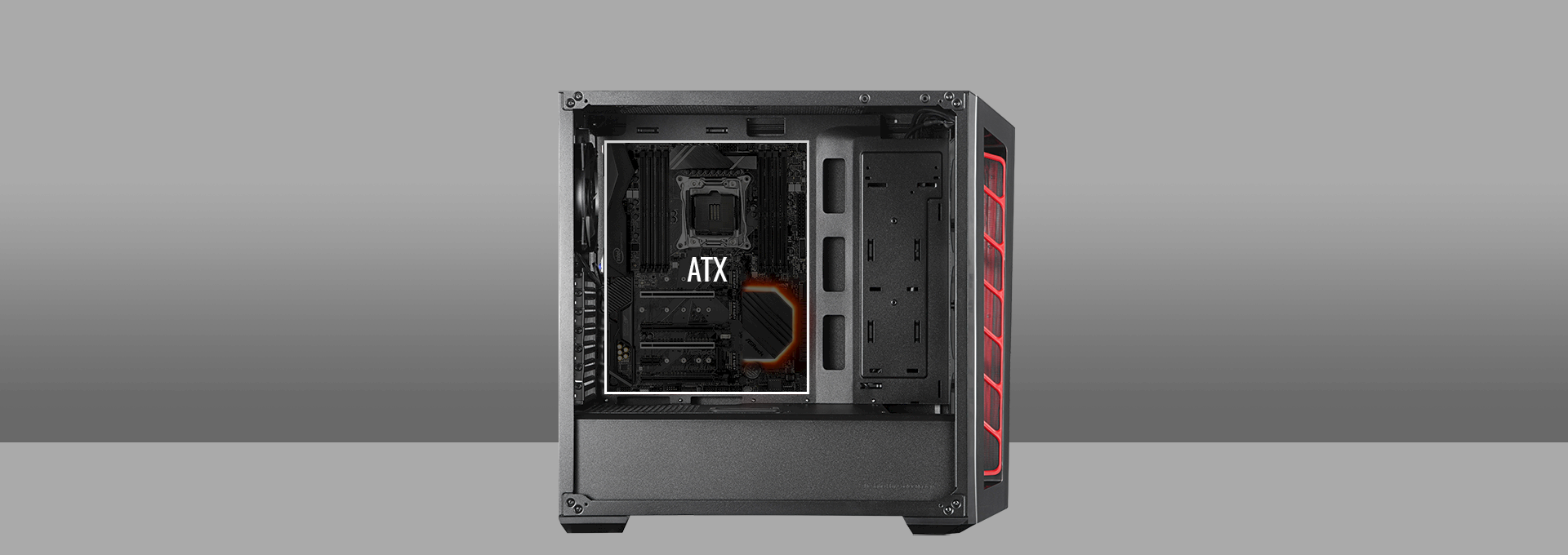

EXPANDING THE POSSIBILITIES

  • The spacious interior fits all standard motherboards for your gaming needs.

ATX

Specifications

MODEL NUMBER

MCB-B520-KANN-S00 (Red)

AVAILABLE COLOR(S)

Red

MATERIALS

Steel, Plastic

DIMENSIONS (LXWXH)

496 x 217 x 468 mm

MOTHERBOARD SUPPORT

ATX, Micro ATX, Mini ITX

EXPANSION SLOTS

7

5.25" DRIVE BAYS

No

DRIVE BAYS SUPPORT - COMBO 3.5" / 2.5"

2(Max.2)

DRIVE BAYS SUPPORT - SSD

4(Max.6)

I/O PANEL

2x USB 3.0, Audio In & Out (supports HD audio)

PRE-INSTALLED FANS - REAR

1x 120mm (Black) Fan

FAN SUPPORT - TOP

2x 120mm, 2x 140mm

FAN SUPPORT - FRONT

3 x 120mm, 2 x 140mm

FAN SUPPORT - REAR

1x 120mm

RADIATOR SUPPORT - FRONT

120mm, 140mm, 240mm, 280mm, 360mm

RADIATOR SUPPORT - TOP

120mm, 240mm

RADIATOR SUPPORT - REAR

120mm

CLEARANCE - CPU COOLER

165mm/6.49"

CLEARANCE - PSU

180mm/7.08"

CLEARANCE - GFX

410mm/16.1"

CABLE ROUTING - BEHIND MOTHERBOARD TRAY

19-27mm / 0.74-1.06"

DUST FILTERS

Front, Bottom, Top

POWER SUPPLY SUPPORT

Bottom Mount, ATX

SIZE

Mid Tower

SERIES

MasterBox Series

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 Year

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.
