Gigabyte GV-N2070WF2-8GD GeForce RTX 2070 Windforce 2X
8G Graphics Card
Features
- Powered by GeForce RTX™ 2070
- Integrated with 8GB GDDR6 256-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- 100mm unique blade fans
- Protection Back Plate
Core Clock
Overview

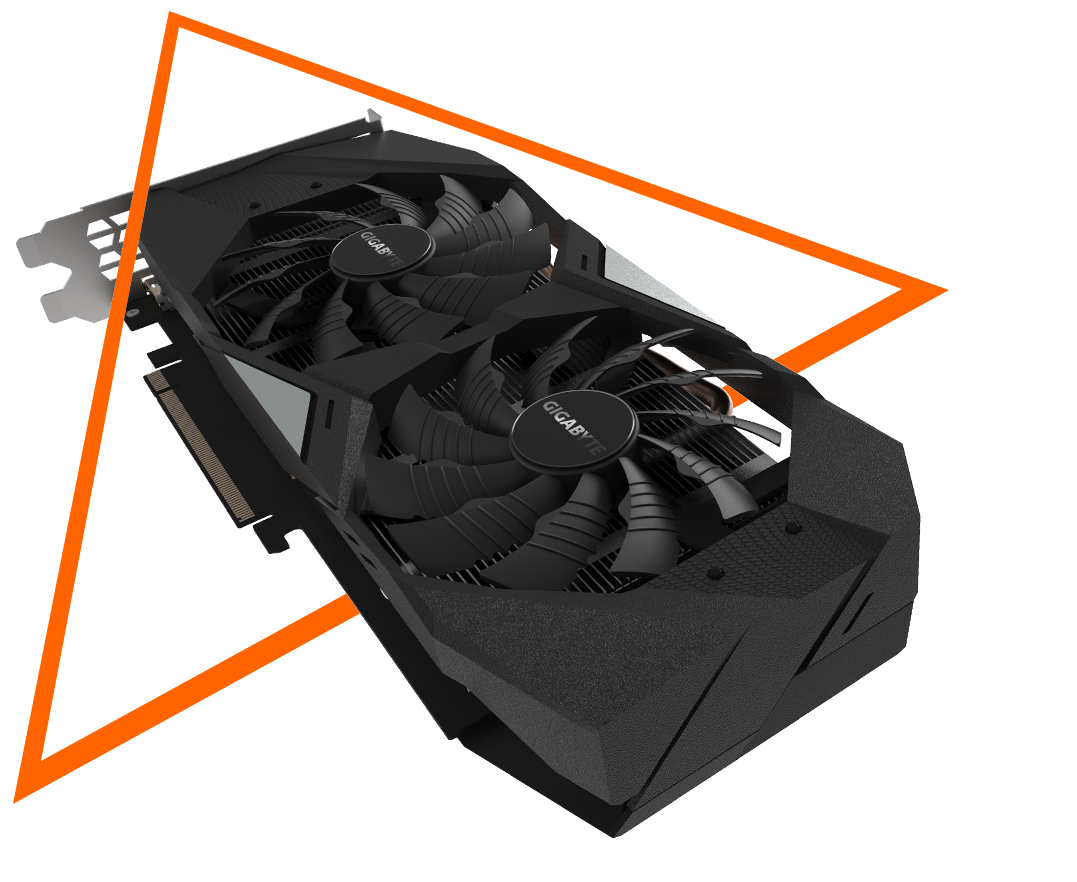

WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features 2x 100mm unique blade fans, alternate
spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan,
together delivering an effective heat dissipation.
ALTERNATE SPINNING
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve
the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the
same direction, the airflow direction is opposite between the fans, which will
cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns
the adjacent fans in the opposite direction, so that the airflow direction
between the two fans is the same, reducing the turbulence and enhancing the
airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through
the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off
when the GPU is in a low load or low power game. It allows gamers to enjoy
gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximizes the direct contact area
with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM
through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to
efficiently manage the heat transfer between two solid interfaces which
increases cooling capacity.
BUILT STRONG
EXTREME DURABILITY
The graphics card uses the better power phase design to allow the MOSFET to
operate at lower temperature, and over-temperature protection design and load
balancing for each MOSFET, plus the Ultra Durable certified chokes and
capacitors, to provide excellent performance and longer system life.
POWER INDICATOR
The smart power LED indicator alerts the player when any PCI-E power supply
is abnormal.
Light on :
power cable disconnected
Light off :
stable power supply
Blinking :
abnormal power supply
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the
structure of the graphics card to provide complete protection.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed,
voltage, fan performance and power target in real-time according to your game’s
requirements.
Specifications
|
Graphics
Processing |
GeForce
RTX™ 2070 |
|
|
|
|
Core
Clock |
1620
MHz |
|
|
|
|
RTX-OPS |
42 |
|
|
|
|
CUDA®
Cores |
2304 |
|
|
|
|
Memory
Clock |
14000
MHz |
|
|
|
|
Memory
Size |
8
GB |
|
|
|
|
Memory
Type |
GDDR6 |
|
|
|
|
Memory
Bus |
256
bit |
|
|
|
|
Memory
Bandwidth (GB/sec) |
448
GB/s |
|
|
|
|
Card
Bus |
PCI-E
3.0 x 16 |
|
|
|
|
Digital
max resolution |
7680x4320@60Hz |
|
|
|
|
Multi-view |
4 |
|
|
|
|
Card
size |
L=264.9
W=120.58 H=40.41 mm |
|
|
|
|
PCB
Form |
ATX |
|
|
|
|
DirectX |
12 |
|
|
|
|
OpenGL |
4.5 |
|
|
|
|
Recommended
PSU |
550W |
|
|
|
|
Power
Connectors |
8
Pin*1 |
|
|
|
|
Output |
DisplayPort
1.4 *3 |
|
|
HDMI
2.0b *1 |
|
|
|
|
SLI
support |
No |
|
|
|
|
Accessories |
1.
Quick guide |
|
|
2.
Driver CD |
