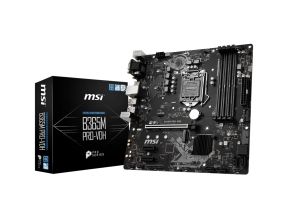

MSI B365 Pro-VDH Motherboard

Overview

Intel LGA-1151 Micro-ATX motherboard with DDR4 2666MHz, Core Boost, DDR4 Boost, Audio Boost and EZ Debug LED.

• Supports 9^th/ 8^thGen IntelCore / PentiumGold / Celeronprocessors for LGA 1151 socket
• Supports DDR4 Memory, up to 2666 MHz
• Turbo M.2:Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
• Audio Boost: Reward your ears with studio grade sound quality.
• EZ Debug LED: Easiest way to troubleshoot.
• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

STRONGER THAN STEEL

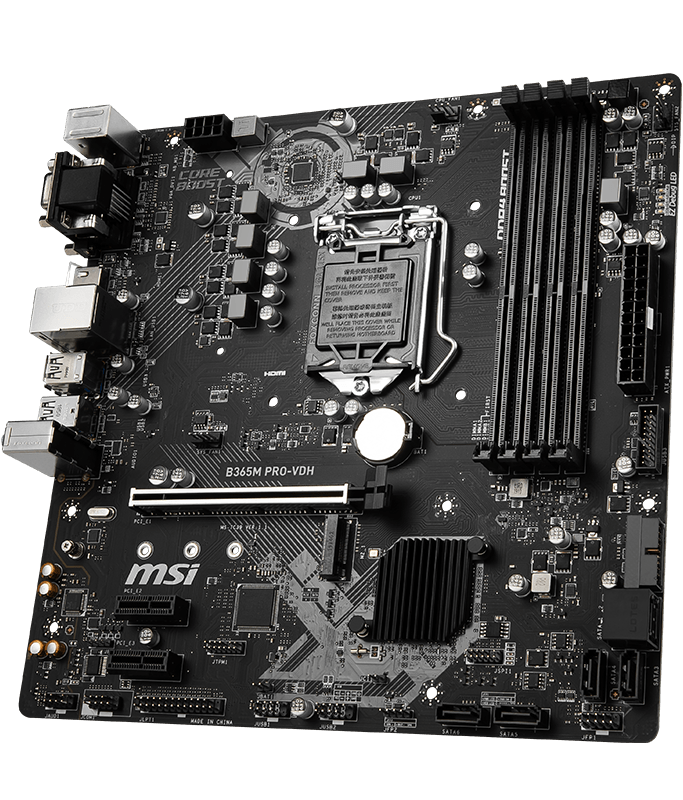

1. Mouse & Keyboard Ports
2. DVI-D & VGA Ports
3. HDMI Port
4. USB 2.0 and LAN Ports
5. USB 3.1 Gen1
6. USB 3.1 Gen1 Type A+C
7. Audio Jacks
8. DDR4 Boost - Optimized traces and isolated memory circuitry
9. PCI-E Steel Armor - Protecting VGA cards against bending and EMI
10. Turbo M.2 - NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
11. Heavy Plated Heatsinks - Leading heatsinks design, for maximum cooling
12. Audio Boost - Reward your ears with studio grade sound quality.

DIY FRIENDLY

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rigthey want.

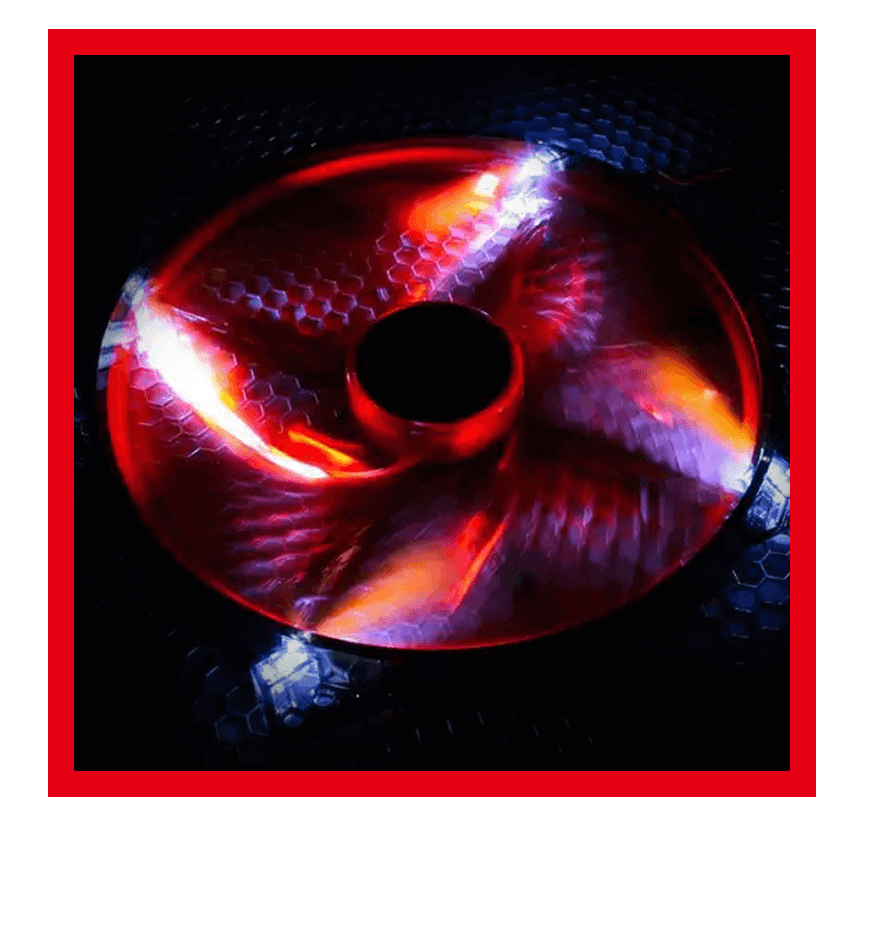

COOLING

STAY COOL FOR RELIABLE SYSTEM

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

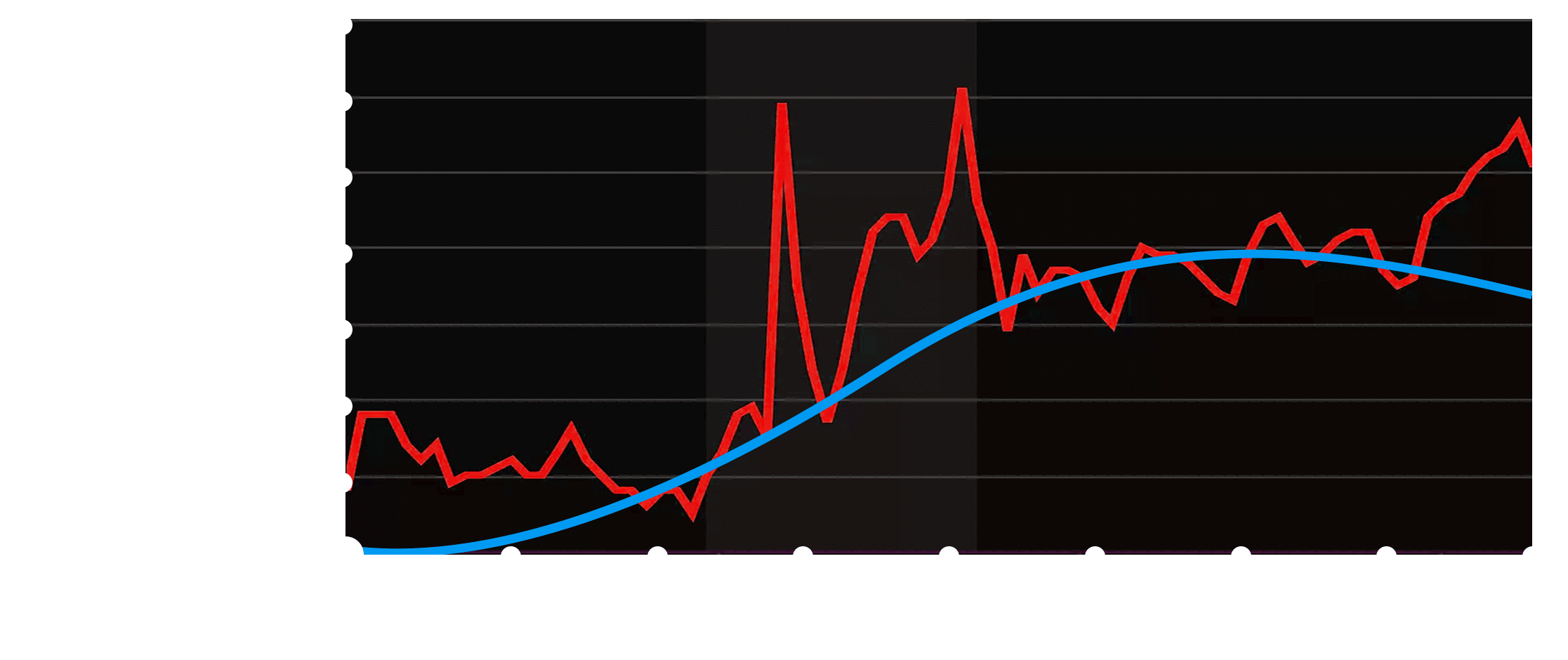

AUTODETECT DC OR PWM MODE WITH HYSTERESIS

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

MSI:

• Smooth fan speeds
• Smooth sound levels

OTHERS:

• Spiking fan speeds
• Annoying sound levels

HARDWARE

USER FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

• XL CLIP - The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
• EZ DEBUG LED - Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.

COMPATIBILITY

MAXIMUM COMPATIBILITY

Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility, so you confirm and choose any gaming rig as you want.

9TH AND 8TH PROCESSORS SUPPORT

MSI B365 motherboards perfectly support Intel® 9th and 8th processors, so you can still enjoy latest MSI motherboard technology if you use 8th processors. Combining MSI Core Boost, you can release maximum performance no matter what CPU you use.

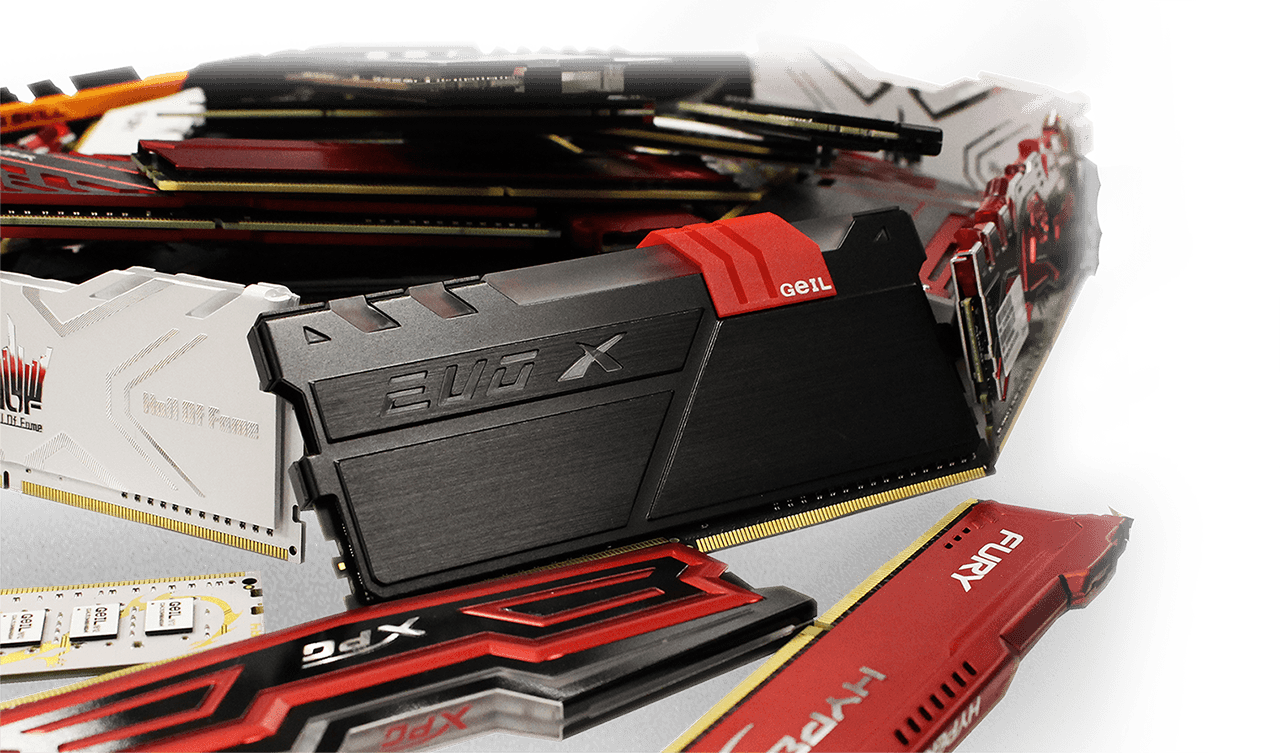

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

BIOS AND SOFTWARE

APPS TO GREATLY IMPROVE EFFICIENCY

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.

DRAGON CENTER

The exclusive and brand-new UI merges all the MSI software functions into one specific application MSI Dragon Center. Not only integrates all the MSI software functions, but also sync all the MSI desktop products to work together, providing the best user experience. No more messy programs or ICONs, just one click and you can enjoy all the functions in Dragon Center.

USB Speed Up

When enabled, it optimizes your devices for even better transfer speeds and can provide up to 20% increase in USB performance, saving a lot of time when transferring data.

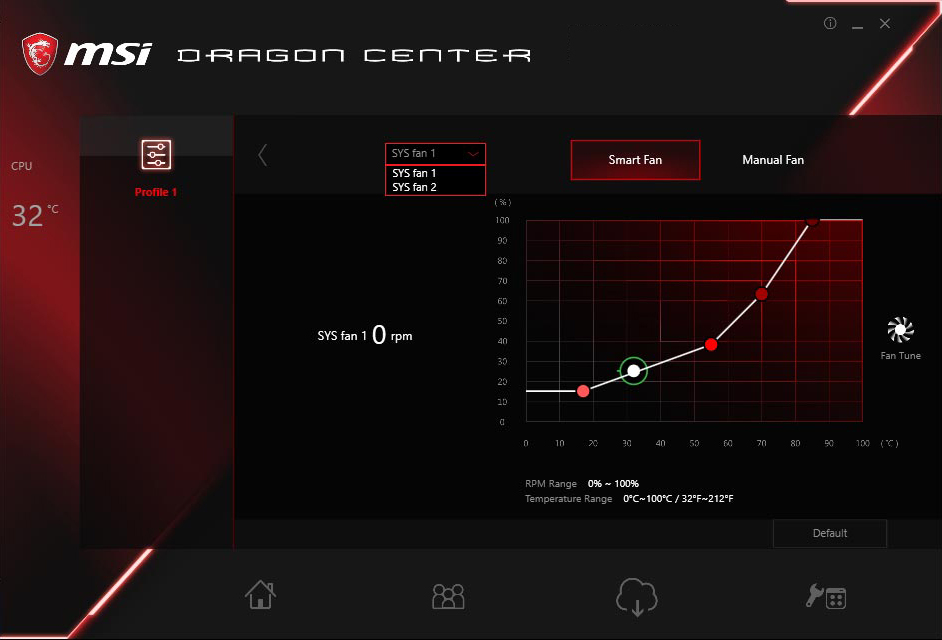

Total Fan Control

Total Fan Control allows you to take control of your fans. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

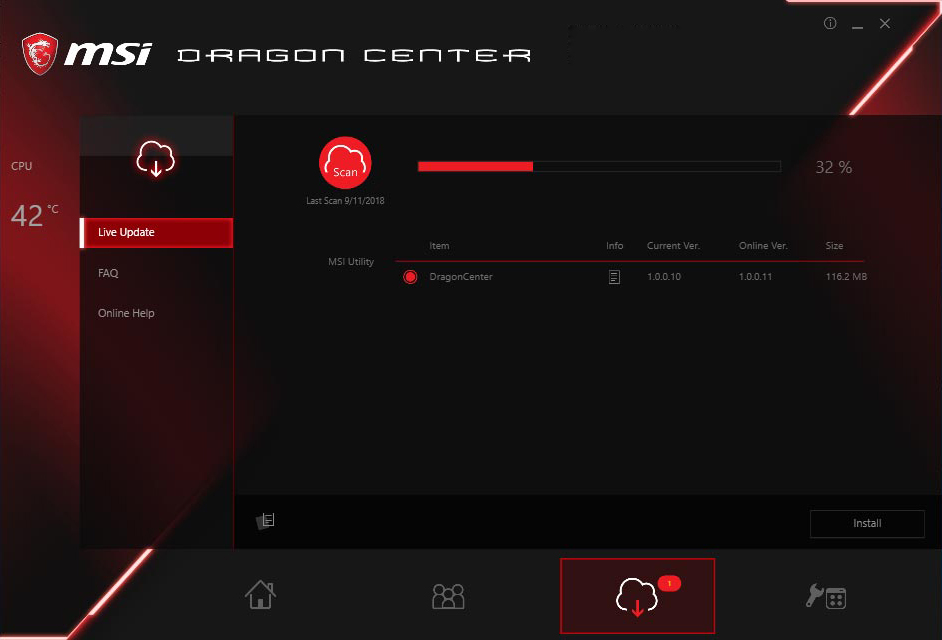

Live Update

Never miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your game.

CLICK BIOS 5

We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.

• XMP - Extreme Memory Profiles which simplified RAM overclocking on Intel motherboards.
• M-FLASH - Allows user to conveniently flash, or upgrade the BIOS from the CMOS Setup Utility.
• HARDWARE MONITOR - Shows you critical hardware information in real-time; temperature, usage, clock speed, and voltage.
• TOTAL FAN CONTROL - Check and manage speeds and temperatures for all your system and CPU fans.
• SECURE ERASE+ - Using an optimized formatting algorithm, lets you enjoy your SSD at maximum speed, making your system feel brand new!
• MEMORY TRY IT - Best way to get maximum speed out of your system memory and gaming performance.
• M.2 Genie - Brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming.
• SEARCH & FAVORITES - A permanent search & favorite option in the top right corner can be used to find what you need.

ENHANCED PERFORMANCE

MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

CPU

LOOKING COOL WHILE KEEPING COOL

High quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers the best performance at all times.

MORE FOR PERFORMANCE

LOAD-LINE CALIBRATION

What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

OVERVOLTAGE PROTECTION

Prevents potential short-circuit damage to the CPU and other critical components.

MEMORY

UNMATCHED MEMORY PERFORMANCE

Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. you never have to worry about your system crashing during games with MSI DDR4 BOOST.

EASY XMP

Enable IntelExtreme Memory Profile with ease using a single option in the BIOS to gain performance and create a perfectly stable system.

STORAGE

FAST AND FUTURE-READY STORAGE

MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

M.2 32 Gbps 6X 6 Gbps

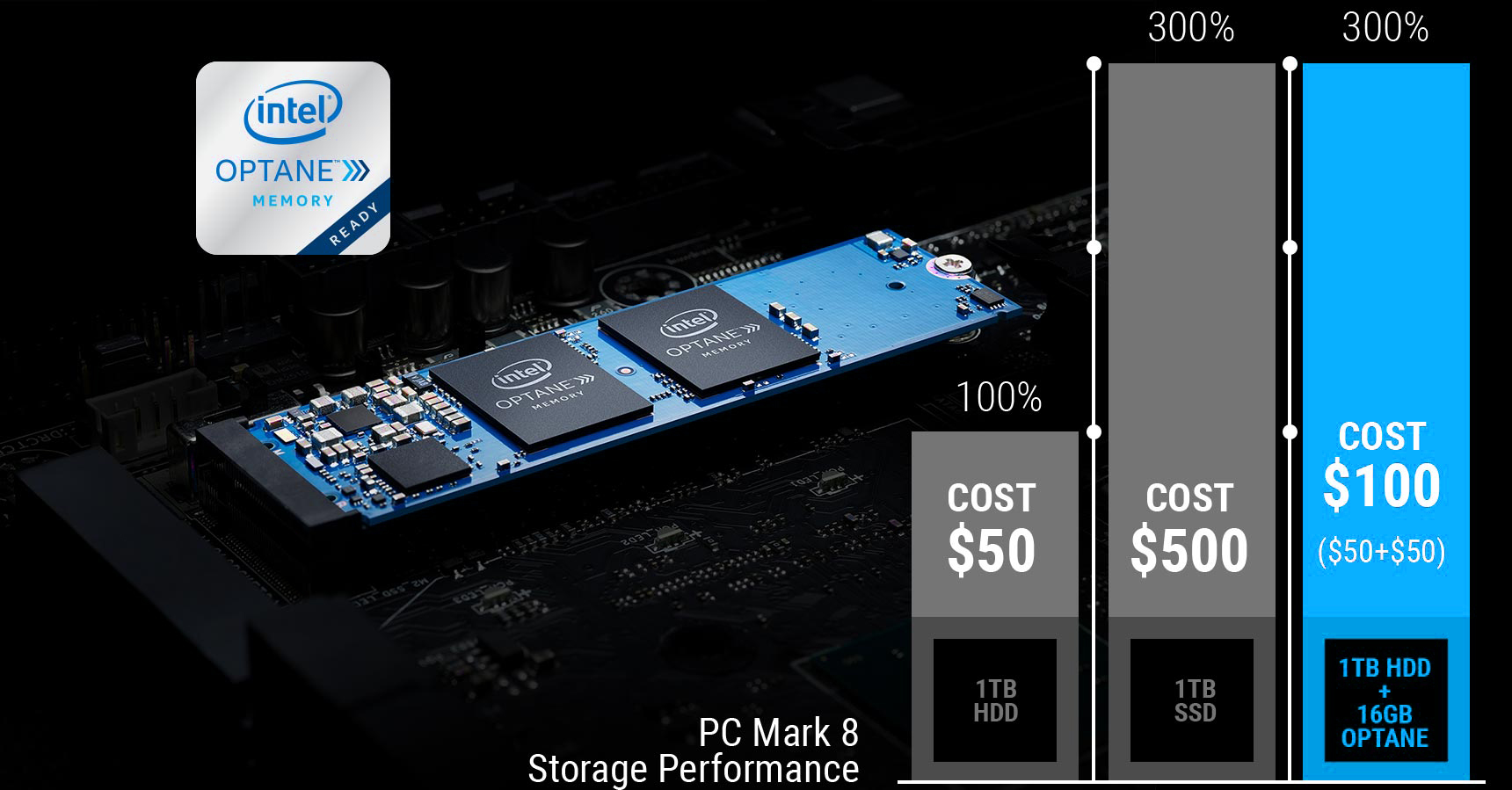

OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD

PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new IntelOptane Memory device. IntelOptane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. All MSI 300 Series motherboards are ready for IntelOptane Memory.

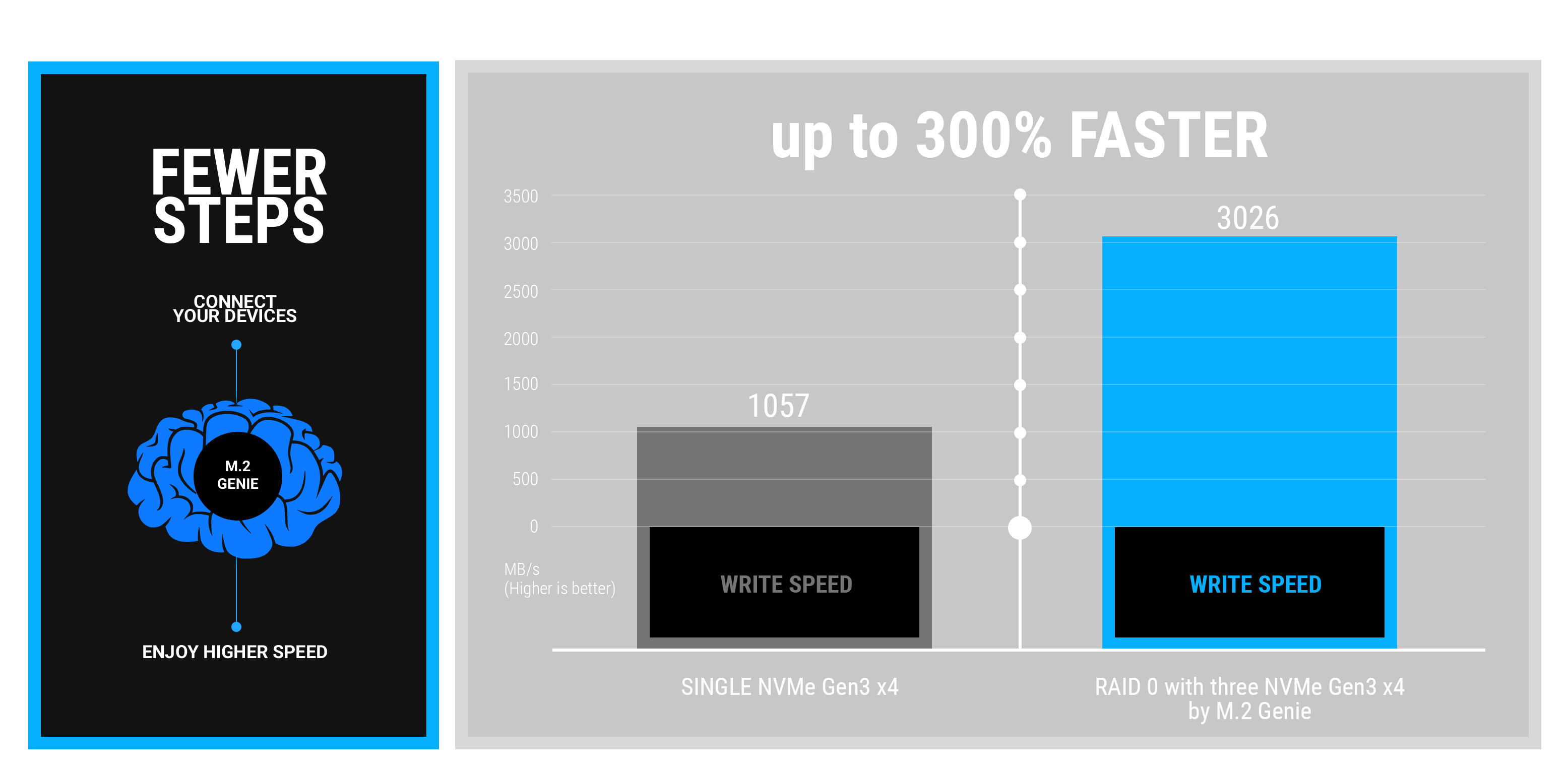

EASY RAID SETUP WITH M.2 GENIE

Looking to go all out in terms of raw data speed and put multiple SSDs in RAID 0? Setting this up can prove to be quite the challenge. That's why we created M.2 Genie, a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming.

EASIER FASTER

IN-STUDIO ADVANTAGE

MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.

AUDIO

SOUND THAT PULLS YOU INTO THE GAME

Reward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience.

AUDIO BOOST

ISOLATED AUDIO DESIGN

EMI-shielded HD audio processors let you enjoy the purest sound quality in front and rear connectors.

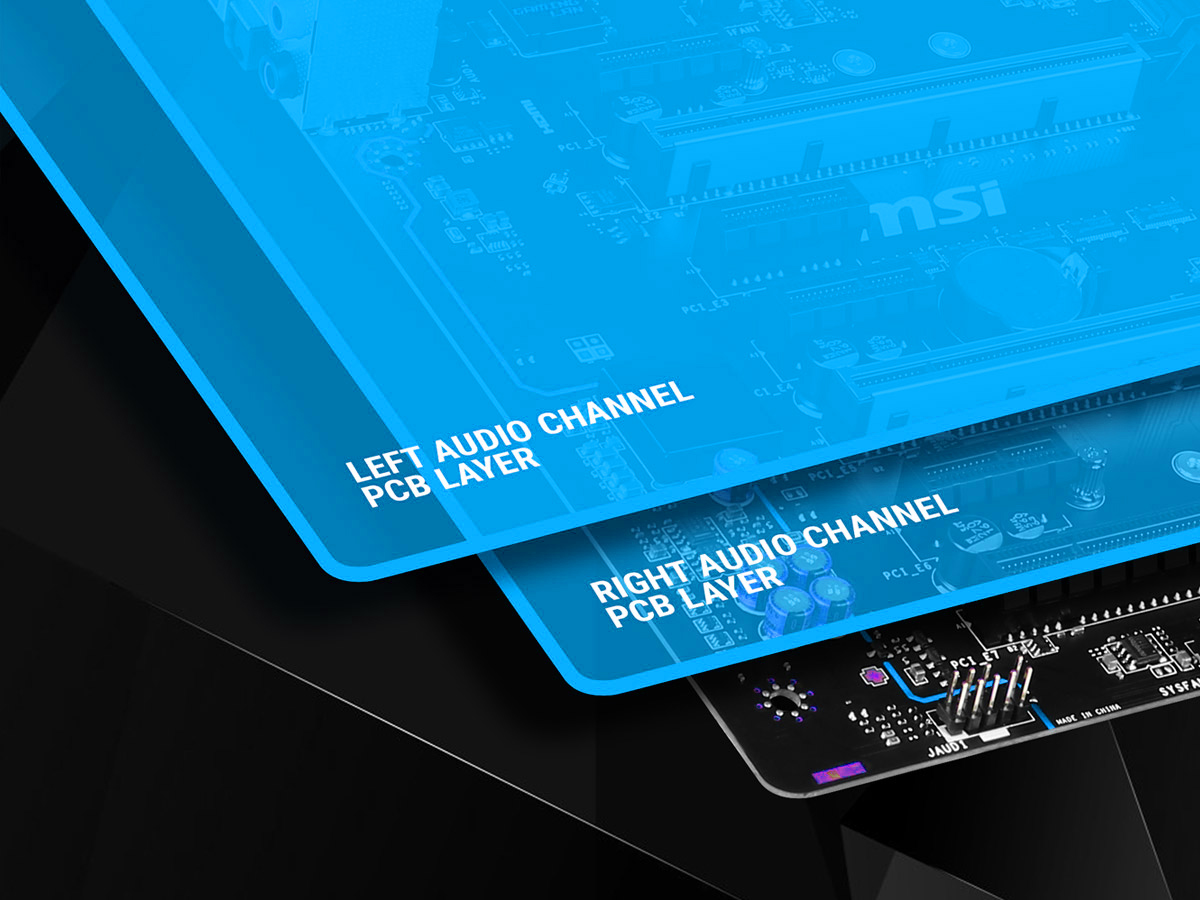

SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS

Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

DE-POP PROTECTION

A de-pop filter eliminates loud popping noises that occur when devices are plugged/unplugged or when the PC is turned on/off.

EXHILARATING AND INSPIRING

Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.

INDUSTRIAL DESIGN

MAKE YOUR PC MORE THAN YOU THINK

PRO Series motherboards combine stable functionality and high quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use.

LOYAL COMRADE

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

COMPONENTS

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

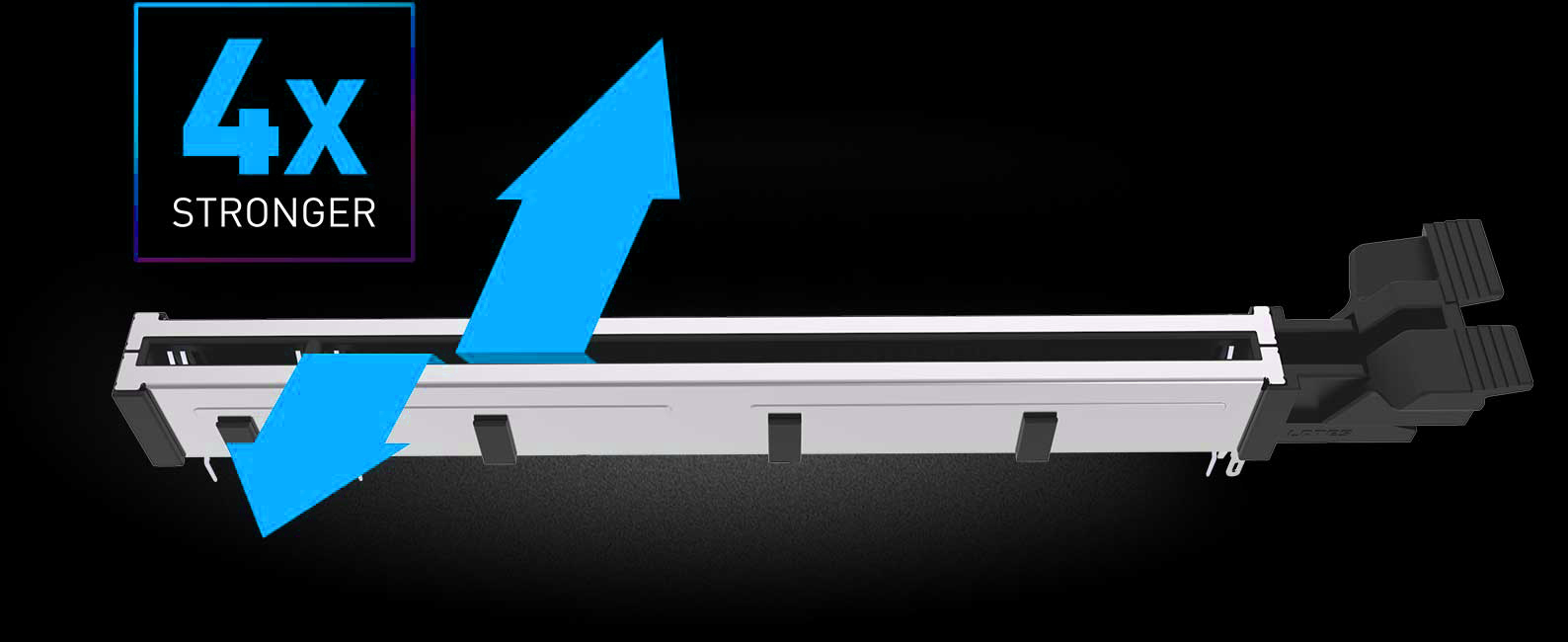

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMO

MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing any damage due to heavy-weight graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference for a pure gaming experience and even higher overclocking.

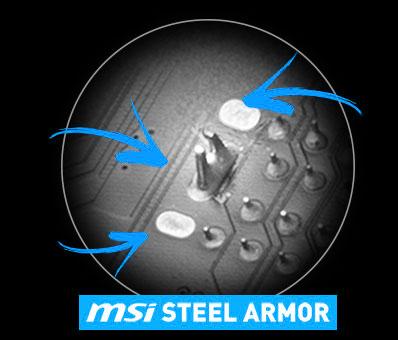

REINFORCED, HEAVY SOLDERED CONNECTIONS

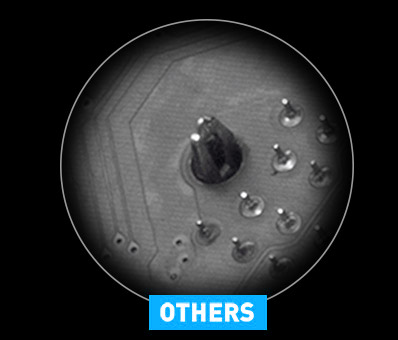

NO STRENGHTENING

SUPER STABLE GAMING WITH THE HIGHEST QUALITY COMPONENTS

MSI uses the high quality components , which is shielded by the best protection to make sure your system runs smoothly under the most extreme conditions.

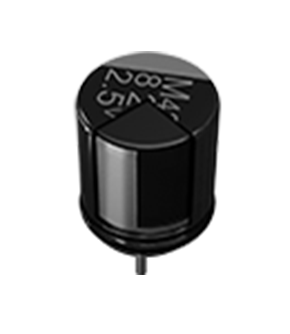

SOLID CAP

With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.

DARK CHOKE

A special core design allows the Dark Choke to run at a lower temperature offering better power efficiency and stability.

• HUMIDITY PROTECTION
• TEMPERATURE PROTECTION
• CIRCUIT PROTECTION
• ESD PROTECTION
• EMI PROTECTION

ULTIMATE MOTHERBOARD PROTECTION

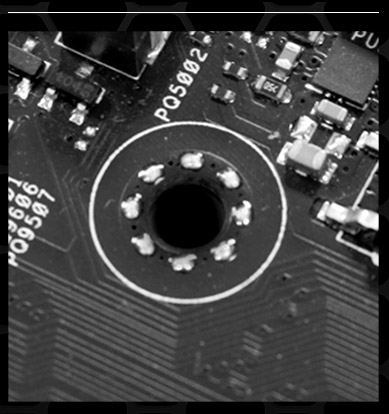

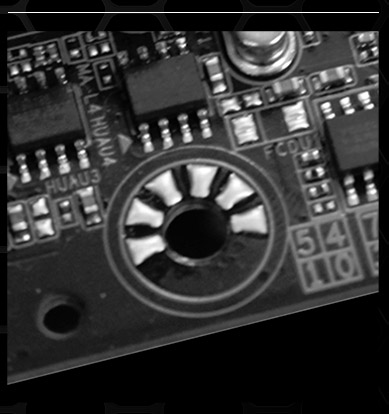

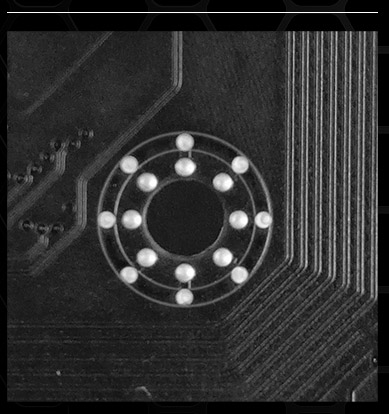

Weve made sure you can enjoy your system endlessly. MSI motherboards feature Double ESD protection with double layer grounding around the motherboard mounting holes, preventing Electrostatic discharge (ESD) surges from damaging the motherboard.

MSI

DOUBLE ESD PROTECTION - BEST

BRAND B

DOBUBLE ESD PROTECTION - AVERAGE

BRAND G

DOUBLE ESD PROTECTION - POOR

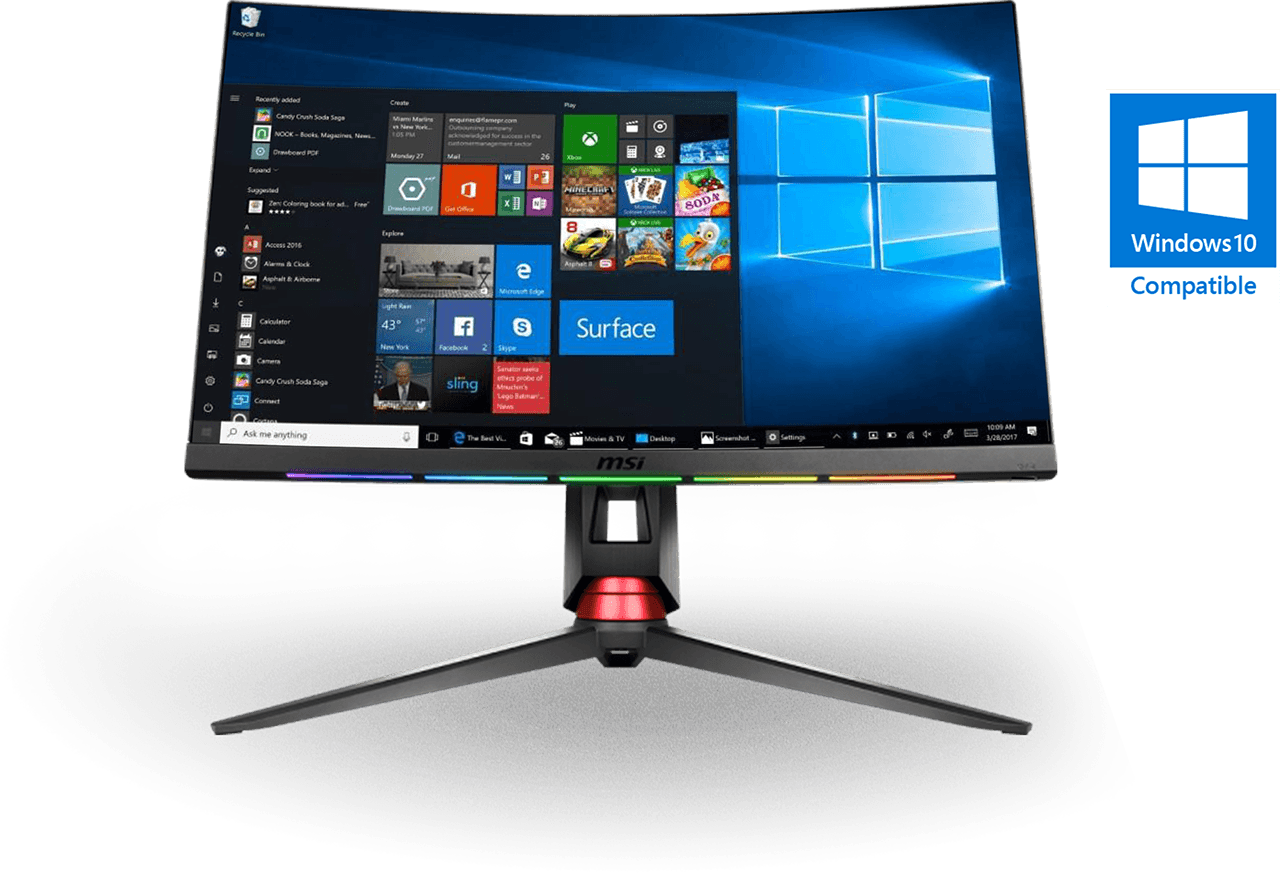

WINDOWS 10 CERTIFIED

With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 10.

With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
