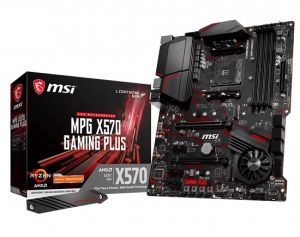

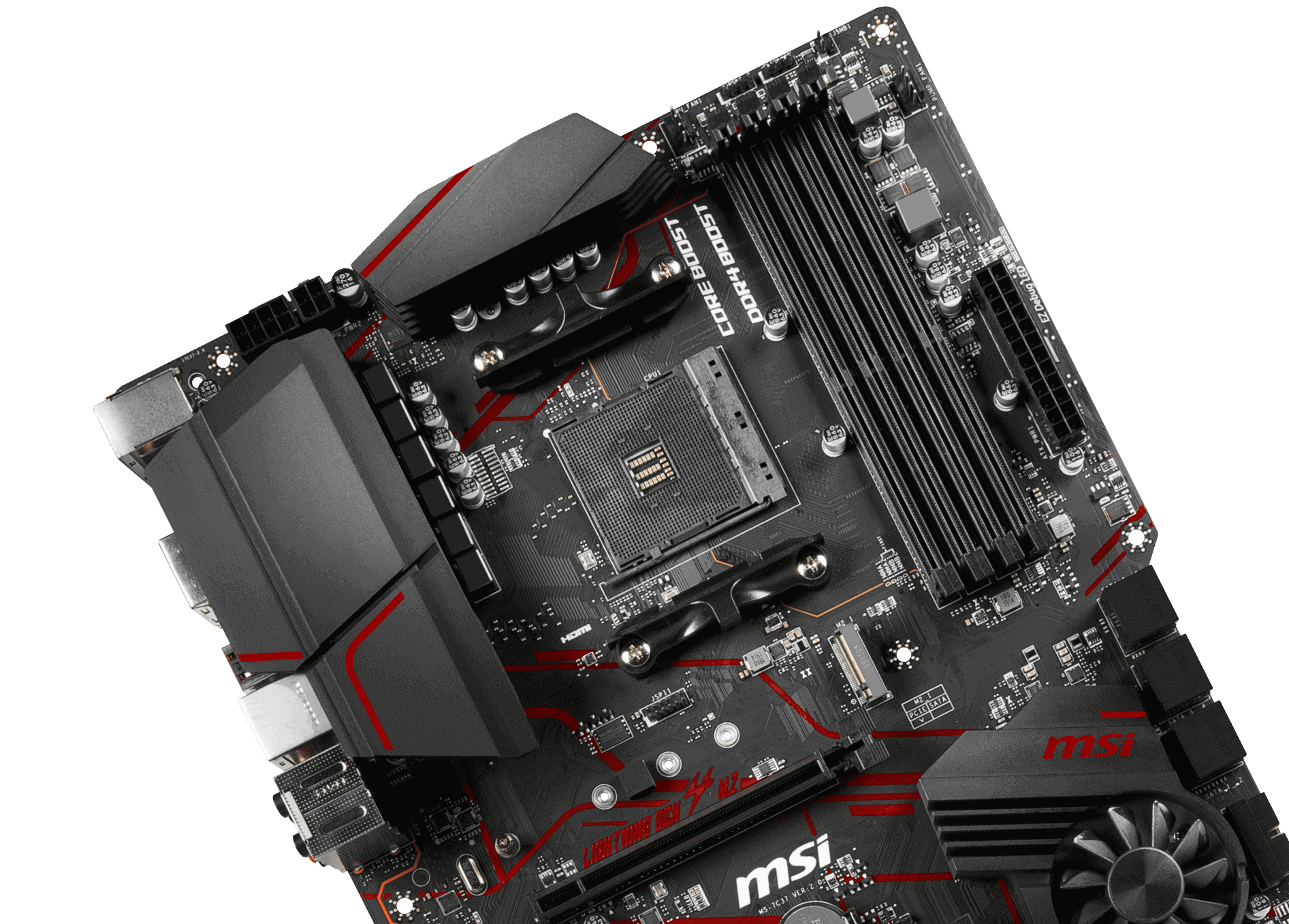

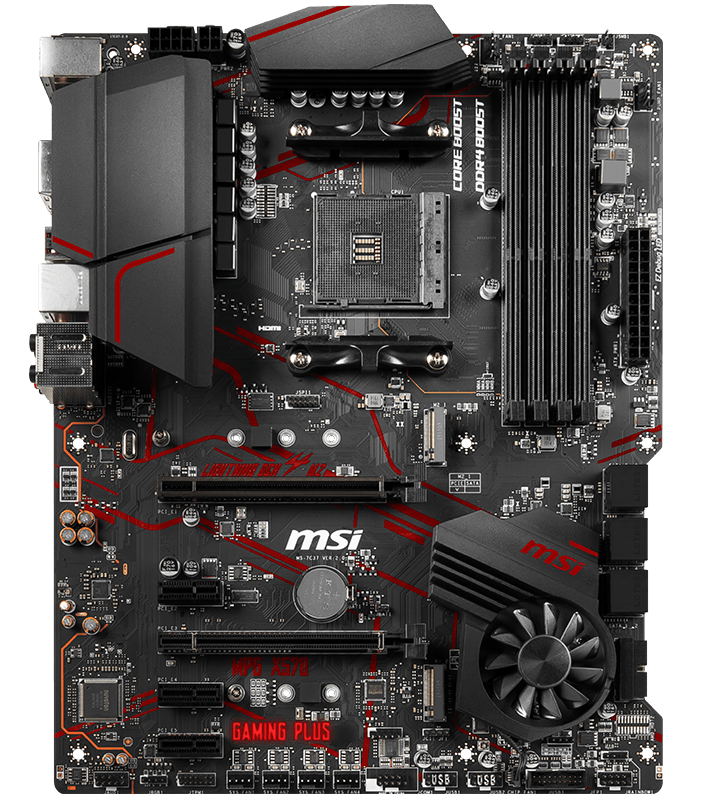

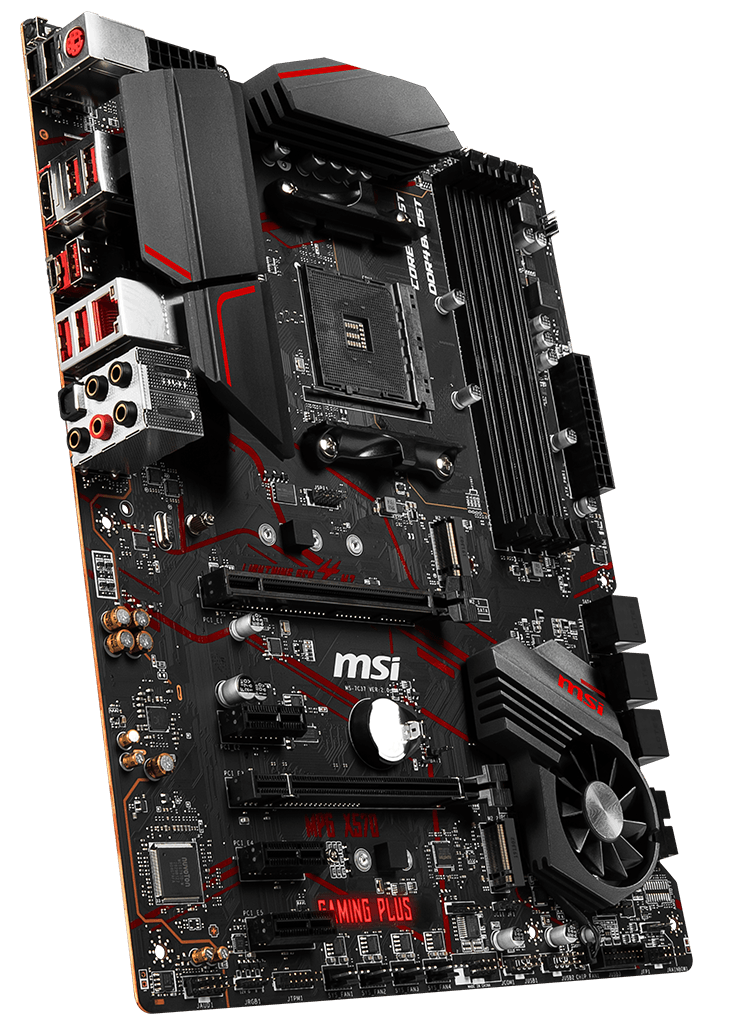

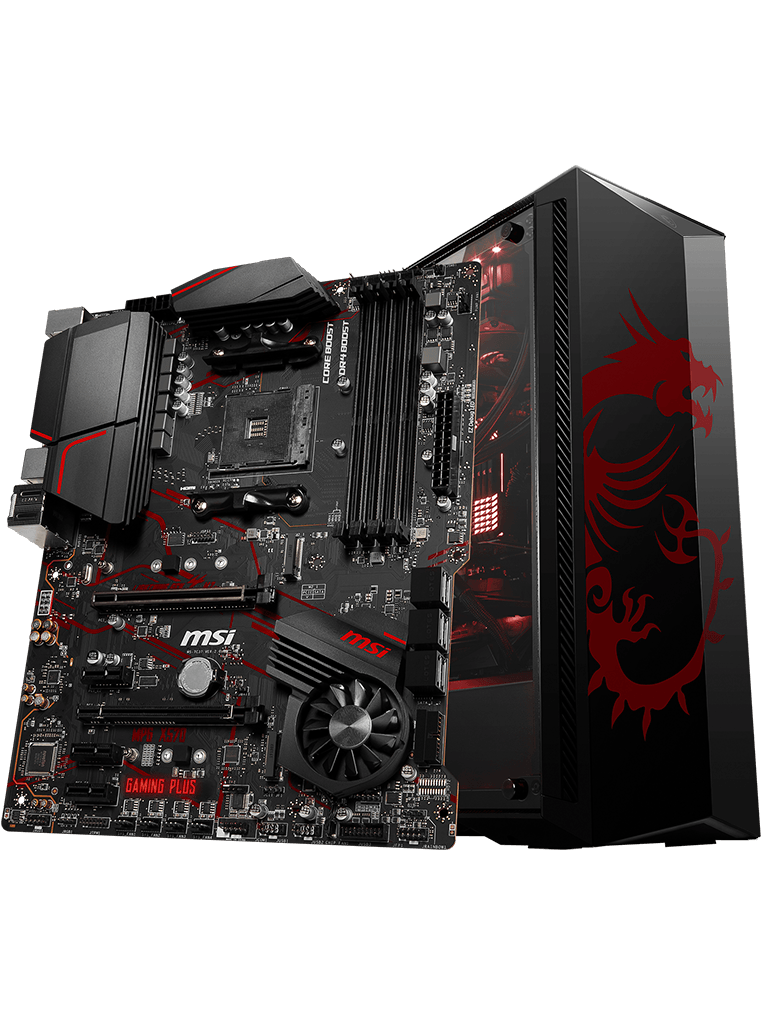

MSI MPG X570 Gaming Plus Motherboard
Overview
Satisfying gamers with what they really need, MPG X570 GAMING PLUS is
equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost,
Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB and MSI latest Dragon
Center.
-
Supports 2nd and 3rd Gen AMD
Ryzen/ Ryzenwith RadeonVega Graphics and 2nd Gen AMD Ryzenwith RadeonGraphics
Desktop Processors for Socket AM4
-
Supports DDR4 Memory, up to
4400+(OC) MHz
-
Lightning Fast Game experience:

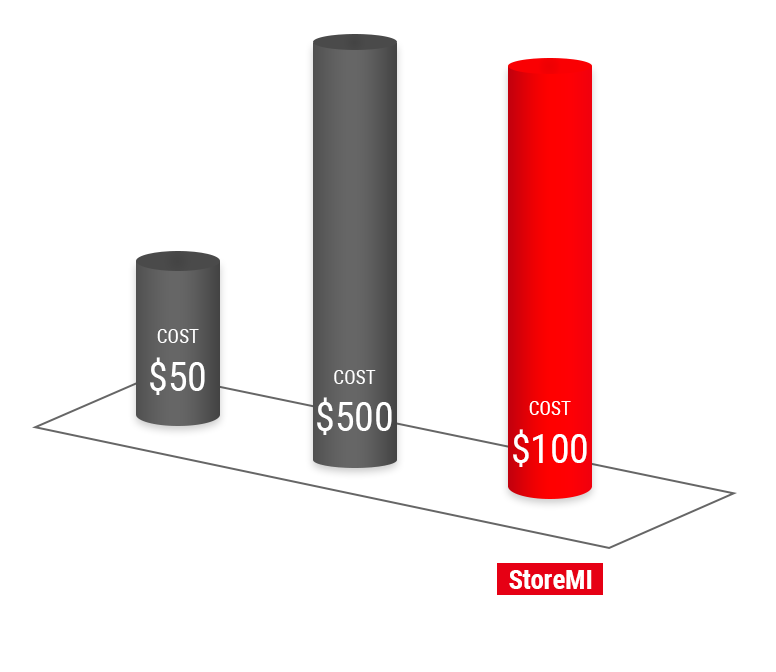

PCIe 4.0, Lightning Gen4 x4M.2 with M.2 Shield Frozr accessory, StoreMI, AMD
Turbo USB 3.2GEN2
-
Frozr Heatsink Design:Designed
with the patented fan and double ball bearings to provide the best performance
for enthusiast gamers and prosumers.
-

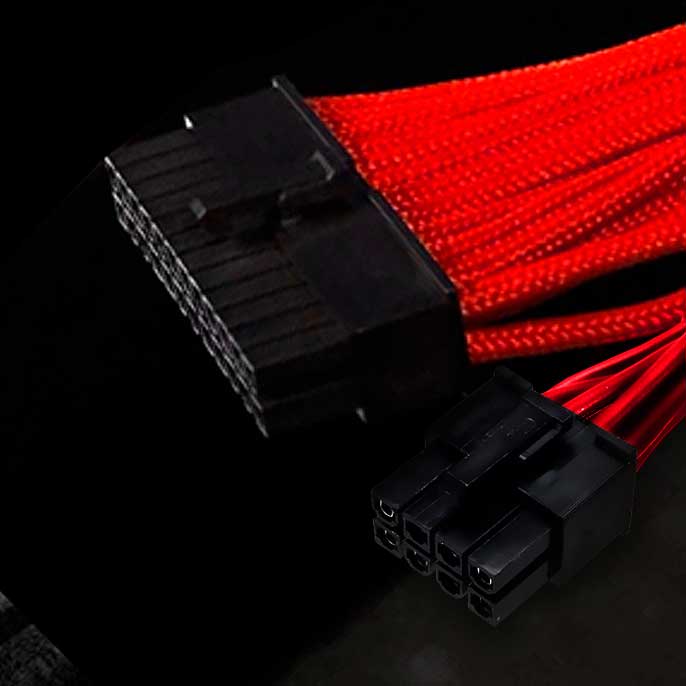

Set Core Power Free: Extended
Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector,
GameBoost, DDR4 Boost
-
MYSTIC LIGHT: 16.8 million colors
/ 29effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB
and RAINBOW LED strip.
-

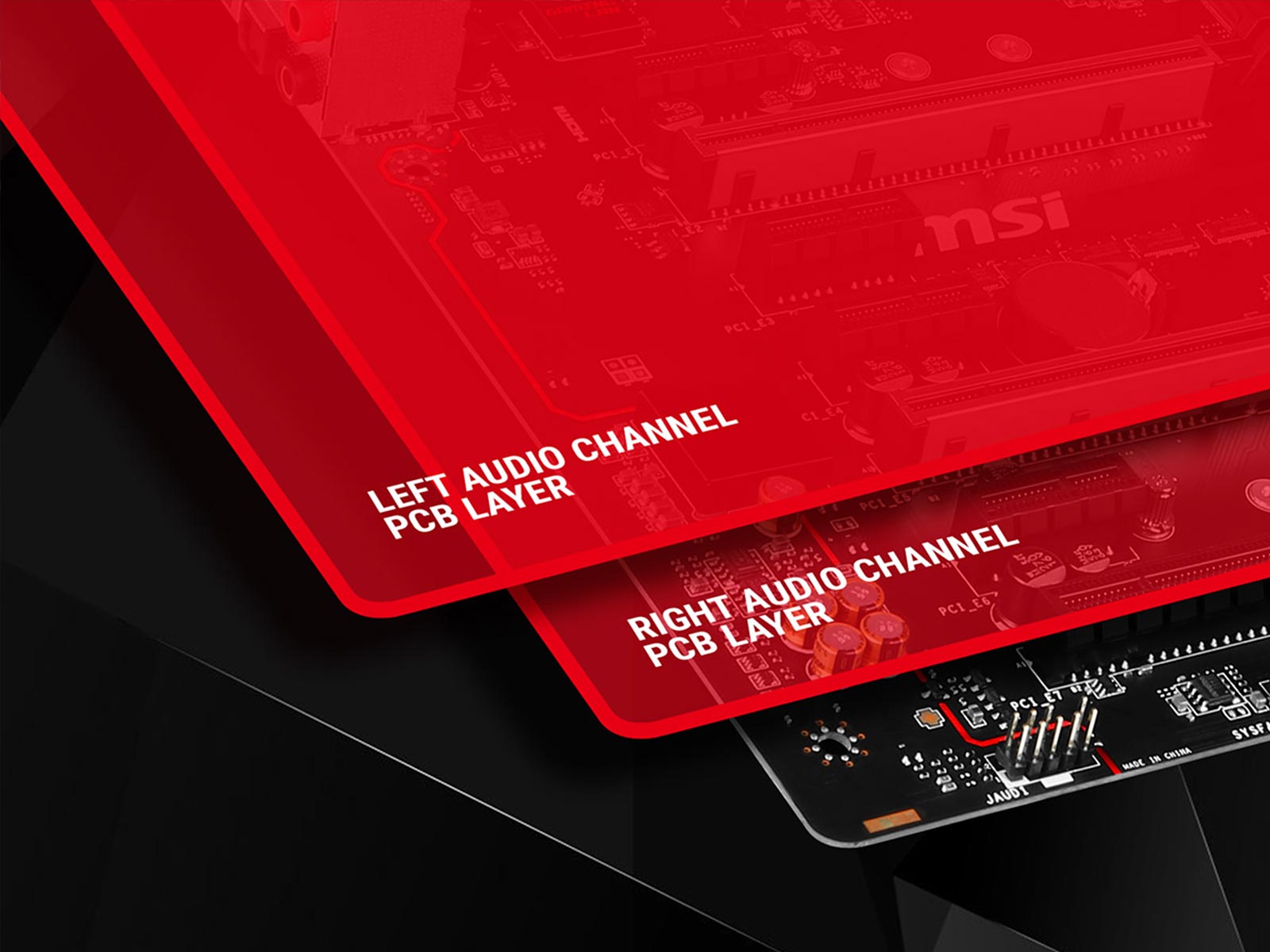

AUDIO BOOST 4: Reward your ears
with studio grade sound quality for the most immersive gaming
experience
-
Dragon Center:A brand new software
which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with
user friendly user interface.

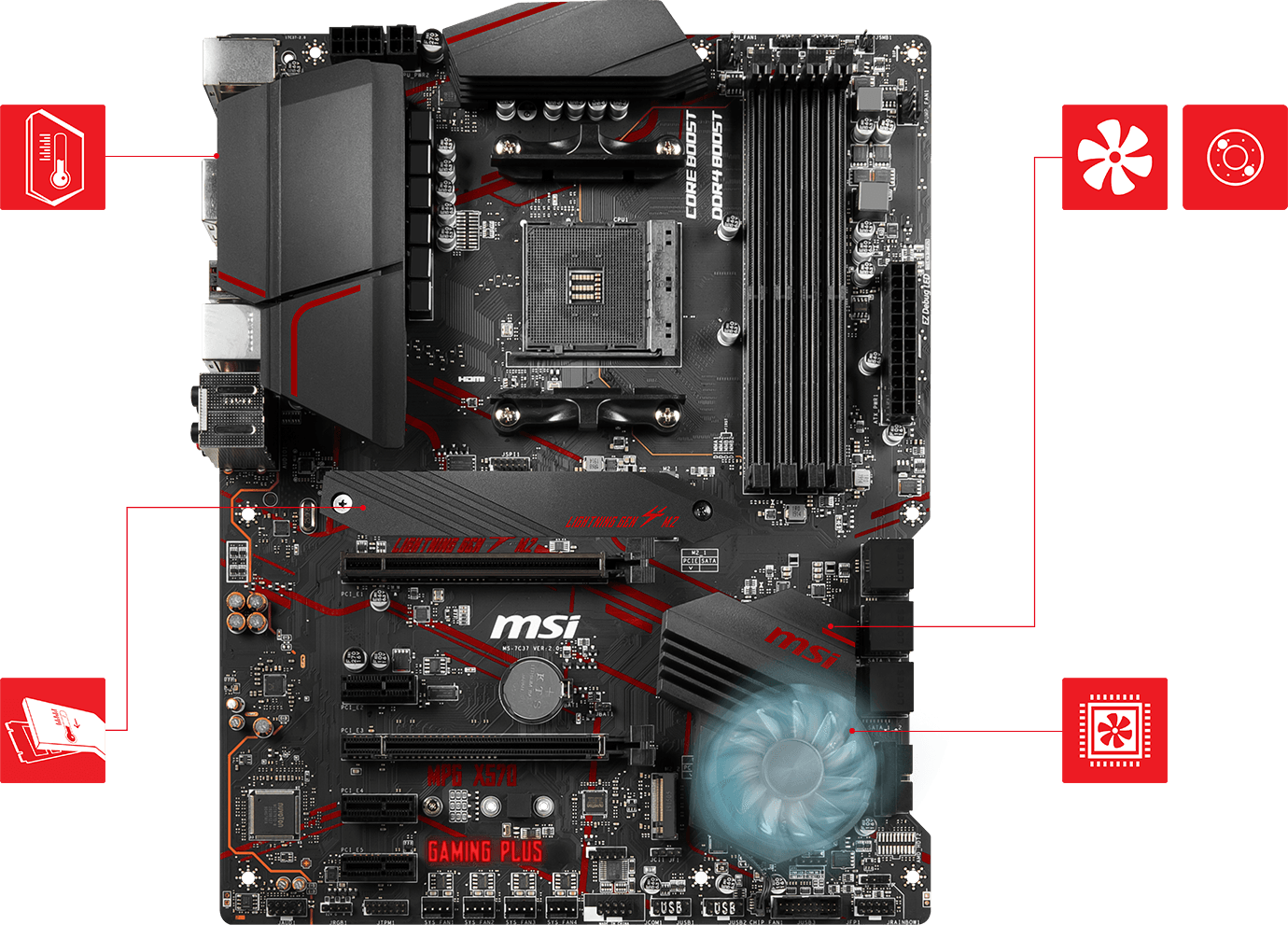

NEXT-GEN THERMAL SOLUTION
Frozr Heatsink Design
- Designed with the patented fan and double ball bearings to provide the
best performance for enthusiast gamers and prosumers.
M.2 Shield Frozr
- Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while
preventing throttling, making them run faster.
Zero Frozr Technology
- AI tuning system that auto-adjust fan speed by chipset temperature, even
eliminates fan noise by stopping the fans in low-load situation.
Extended Heatsink
- MSI extended PWM heatsink and enhance circuit design ensures even high-end
processors to run in full speed.
EXCLUSIVE FEATURE OF PERFORMANCE
Core Boost Technology
- Combining 8+4 pin power connectors and premium layout design, that is
ready for unleashing the maximum performance.

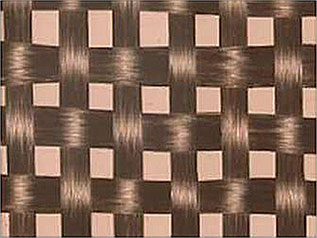

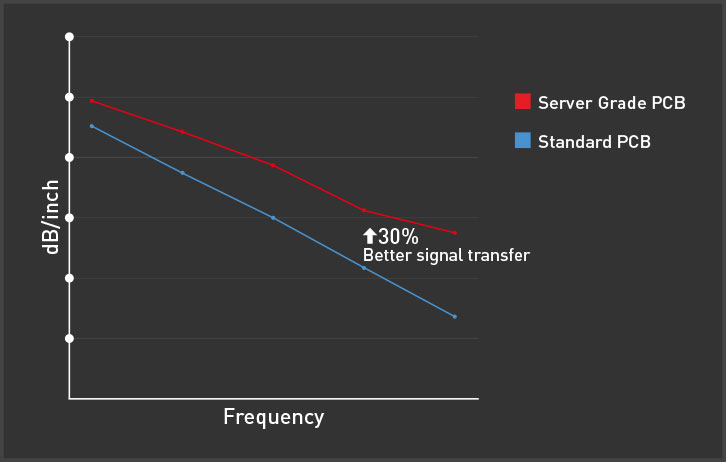

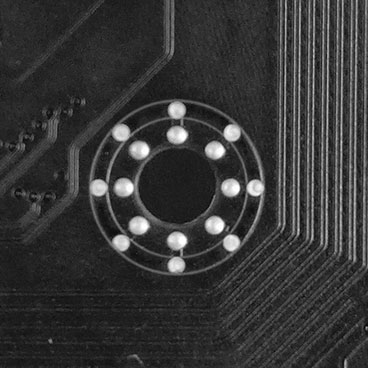

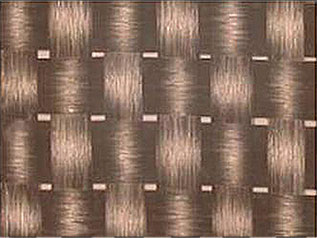

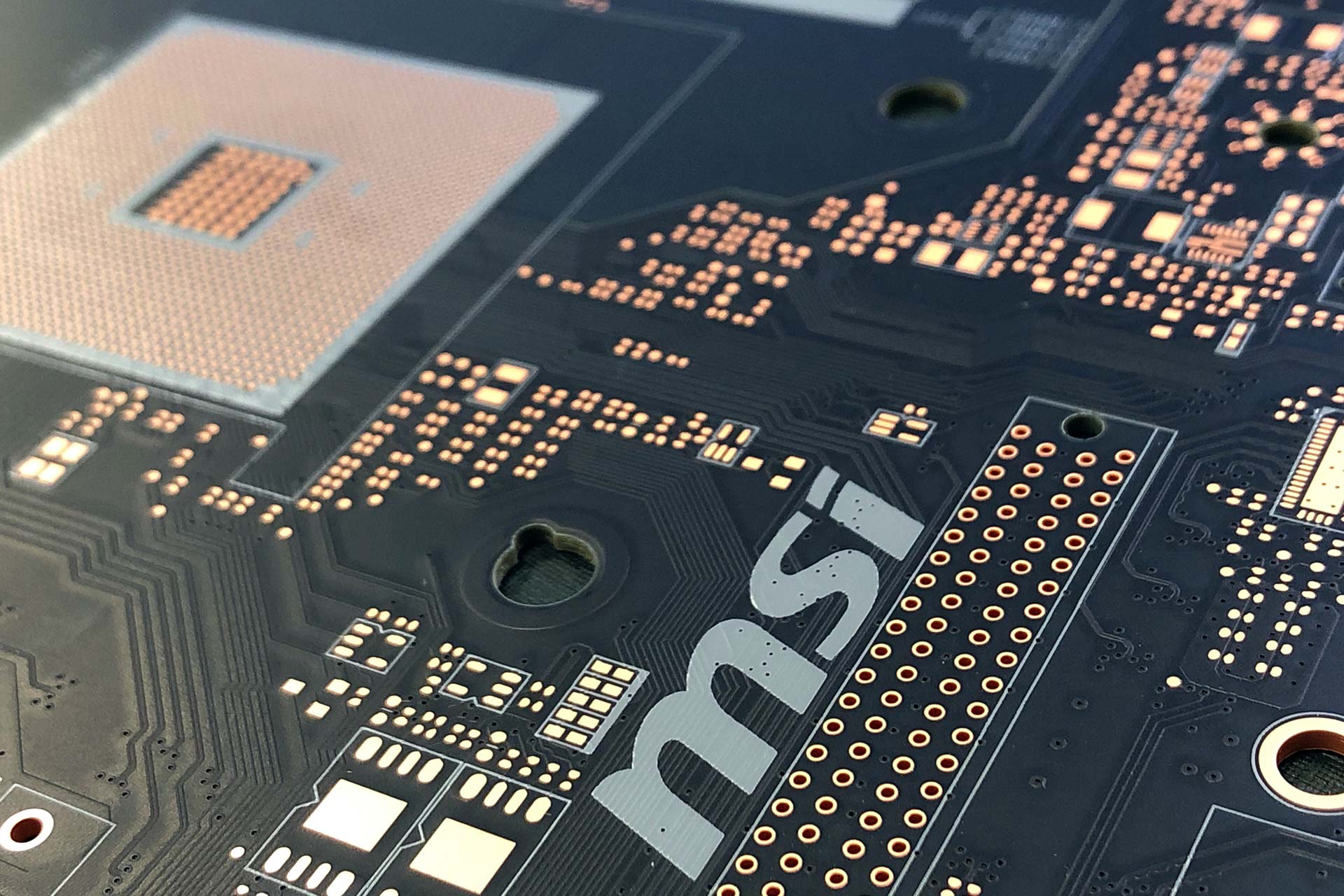

Server-grade PCB
- Server-grade PCB provides higher PCIe 4.0 performance and long-lasting
system stability without any compromised.
IR Digital PWM
- Highest quality component IR digital power makes sure your system runs
smoothly under the most extreme conditions.

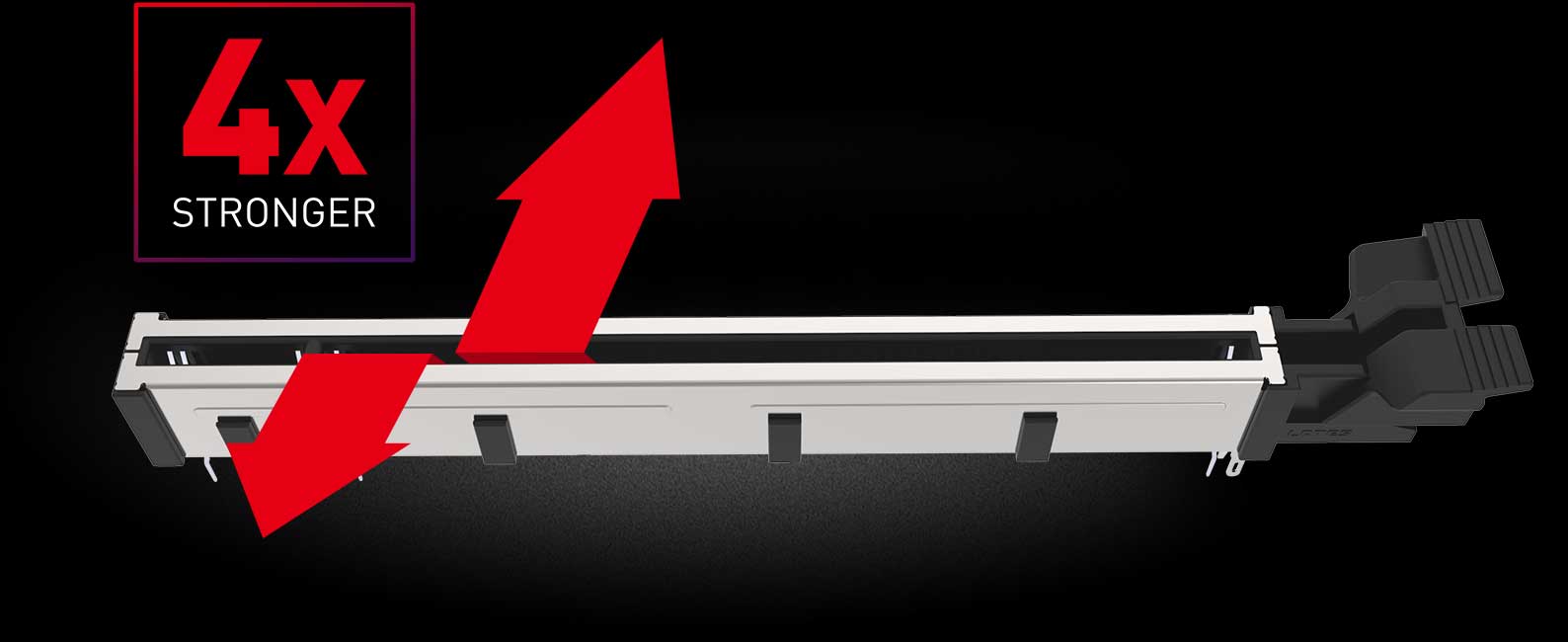

PCIe Steel Armor
- Protecting VGA cards against bending and EMI for better performance,
stability and strength.

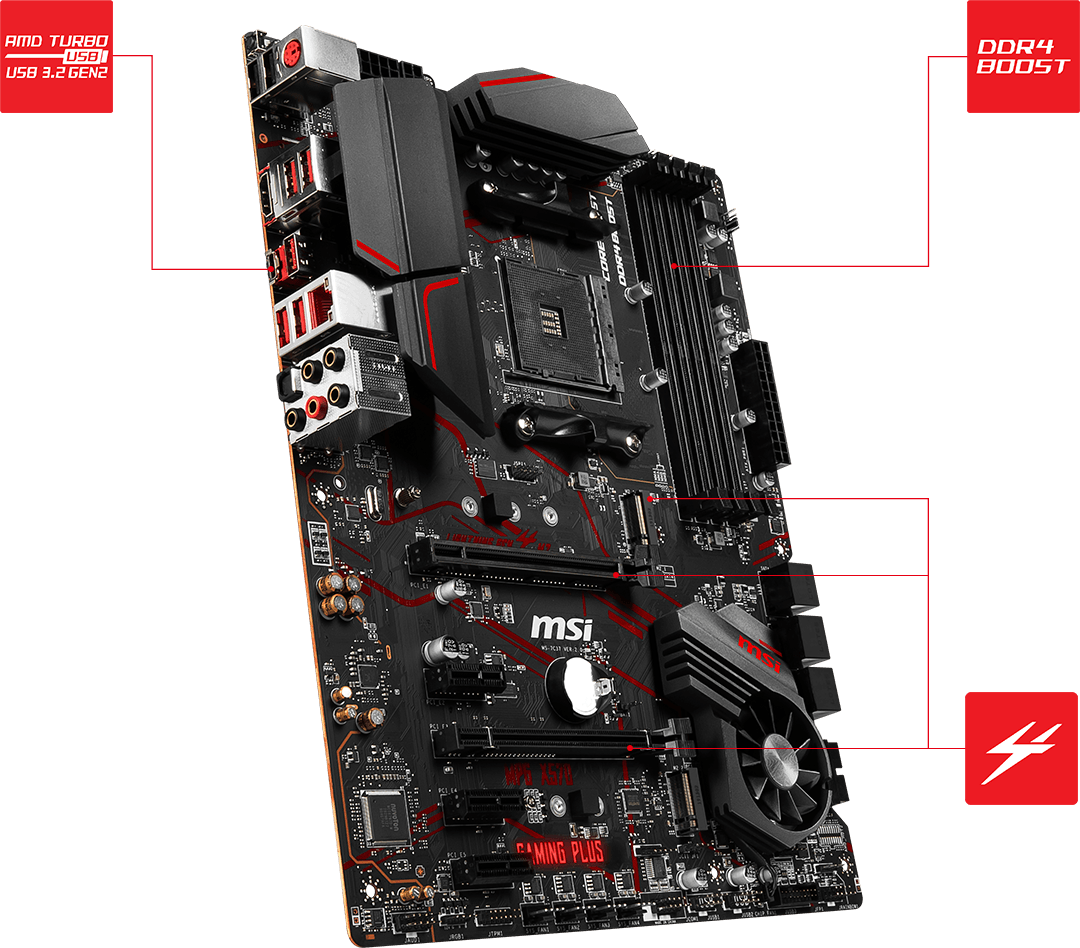

HIGH-SPEED TRANSMISSION
AMD Turbo USB
- Featuring the TURBO USB 3.2 GEN2, with reversible Type-C
connector.
DDR4 Boost
- The Fully isolated DDR circuit to deliver pure data signals for the best
gaming and overclocking performance.

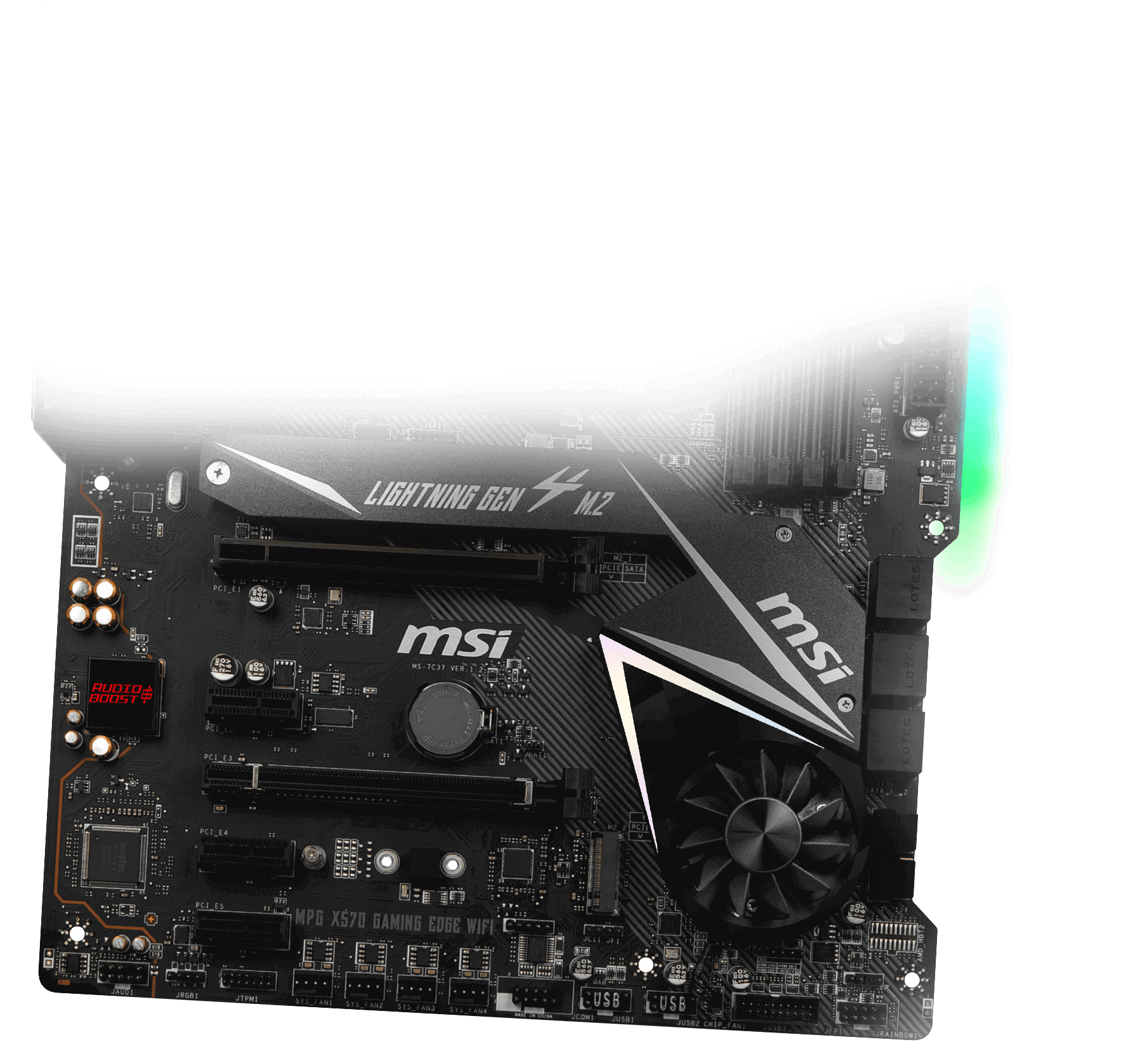

Lightning Gen 4 Solution
- The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for
maximum transfer speed.
DIY FRIENDLY
MSI motherboards been designed with tons of smart features for convenient
setup and usage, such as pin-header keep out zone, friendly SATA &USB
location and multiple cooling solutions, so DIY users can pick and choose any
gaming rigthey want.
COOLING
STAY COOL AND SUSTAIN PERFORMANCE
Cooling is essential for a high performance PC to sustain intense workloads.
MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable
processor power delivery. Numerous fan headers with full fan speed control lets
builders tune their system cooling the way they like it.
LARGER HEATSINK FOR MORE COOLING
Heatsinks on top of the power delivery circuits help to dissipate excessive
heat. Extended heatsinks have even more surface area for more thermal
dissipation.
M.2 SHIELD FROZR
Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR.
Prevent SSD throttling with thermal design that includes a heatsink that extends
across the motherboard.

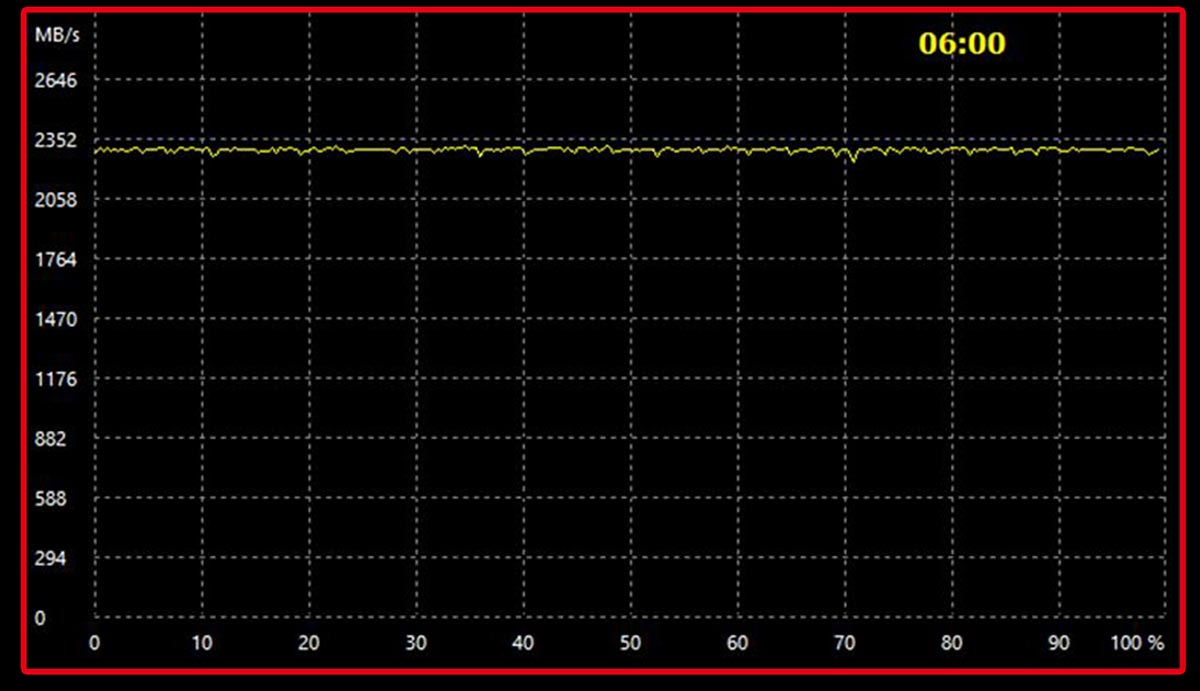

With MSI M.2 Shield FROZR
- Prevents throttling
- Maximizes drive performance
- Higher maximum SSD speeds

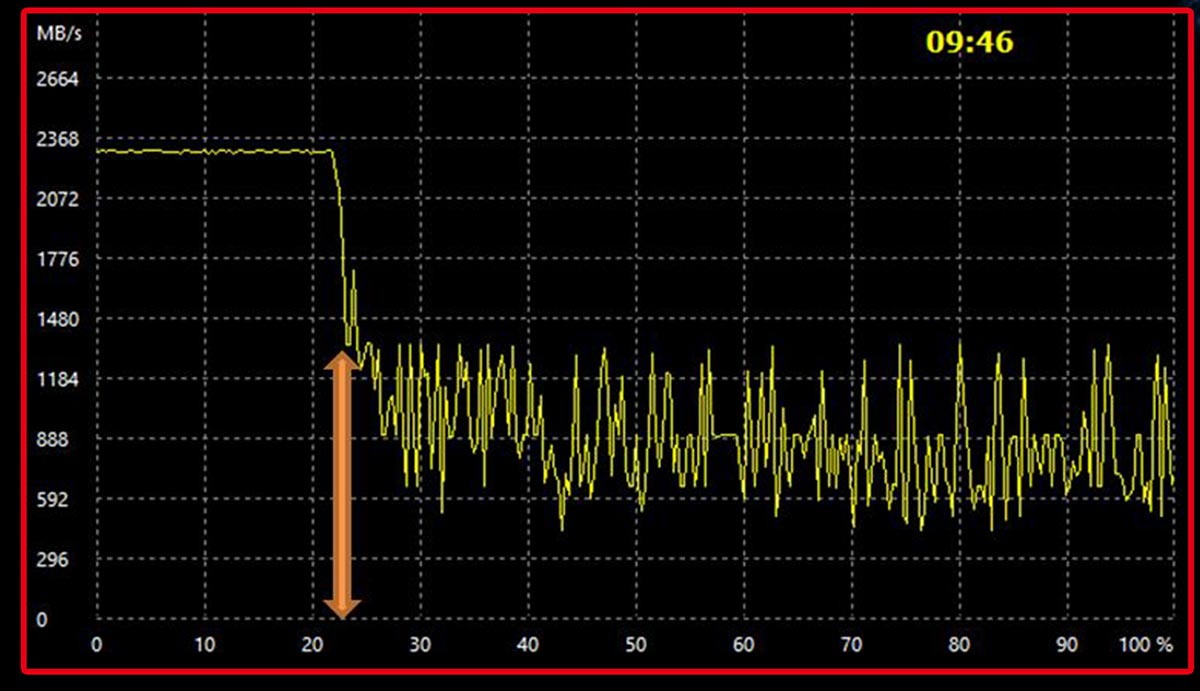

Without M.2 thermal
*performance vary by model configuration

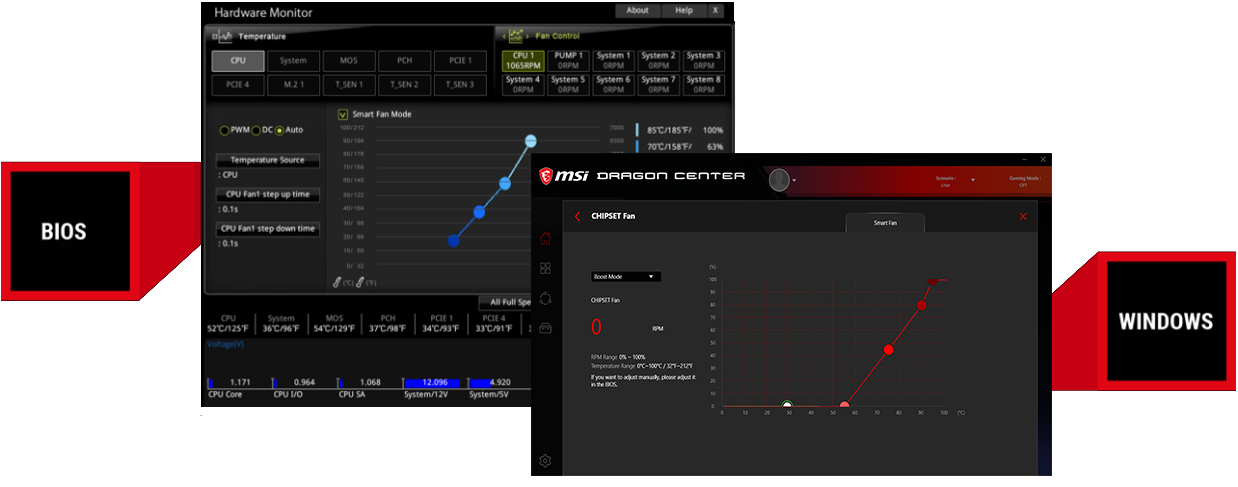

CONTROL FANS IN BIOS AND SOFTWARE
Total Fan Control lets you check and manage temperature and fan speeds within
an easy-to-use graphical interface. Set up to four CPU temperature targets and
the motherboard and fan speeds will be adjusted automatically.

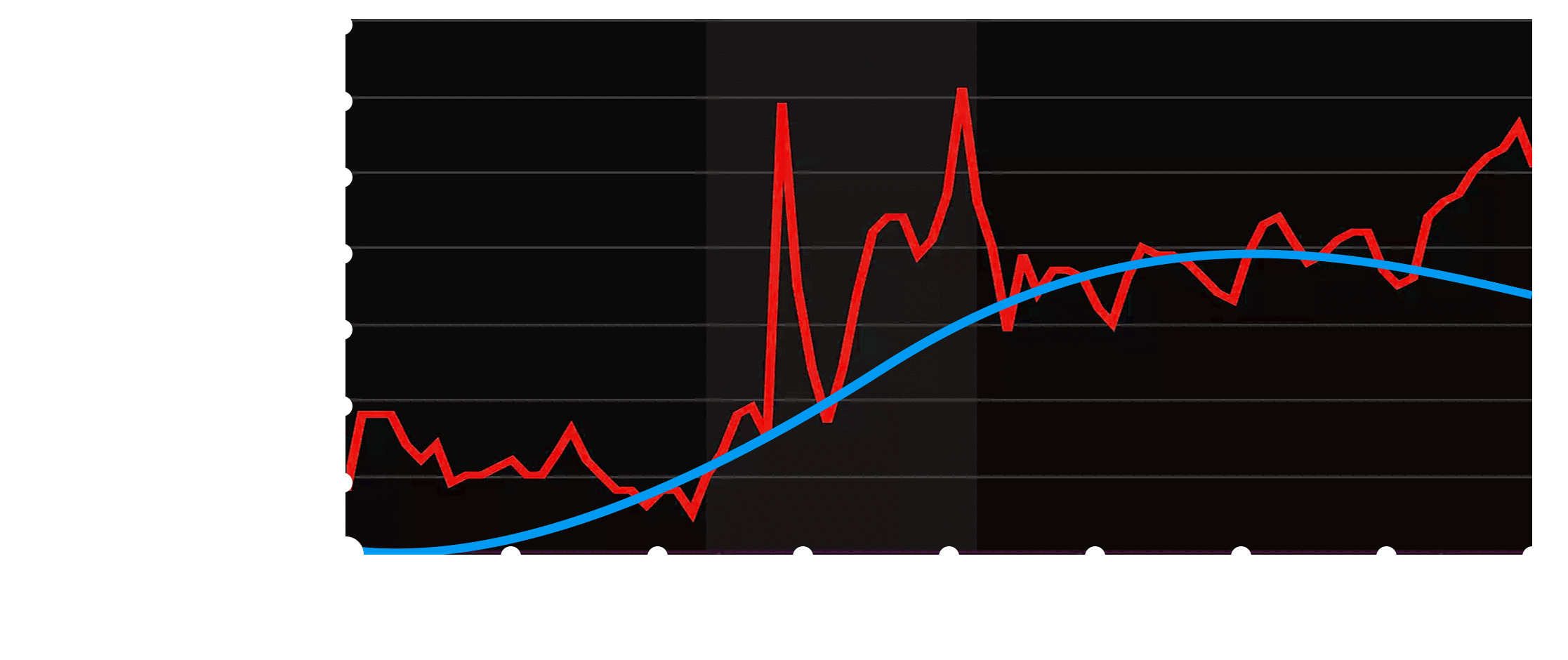

FAN AUTODETECT DC OR PWM MODE
MSI fan headers can automatically detect if a fan needs to run in DC or PWM
mode, streamlining the fan tuning experience.
MSI:
- Smooth fan speeds
- Smooth sound levels
OTHERS:
- Spiking fan speeds
- Annoying sound levels

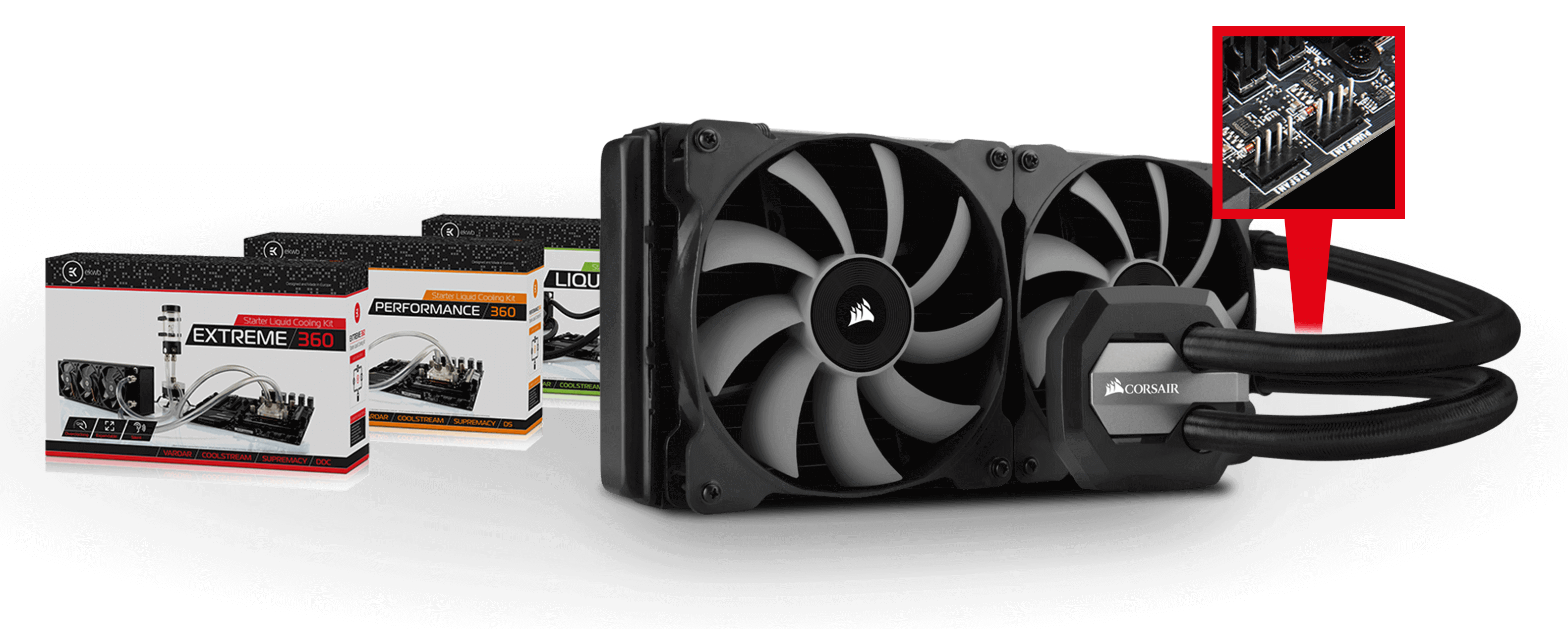

OPTIMIZED FOR WATER COOLING
A dedicated water pump PIN header provides up to 2A current and can control
pump speed. Supports the most popular All-In-One and custom water cooling
solutions on the market.
TESTED TO WORK BEST WITH
- Bitspower
- Coolermaster
- Corsair
- ekwb
- Thermaltake

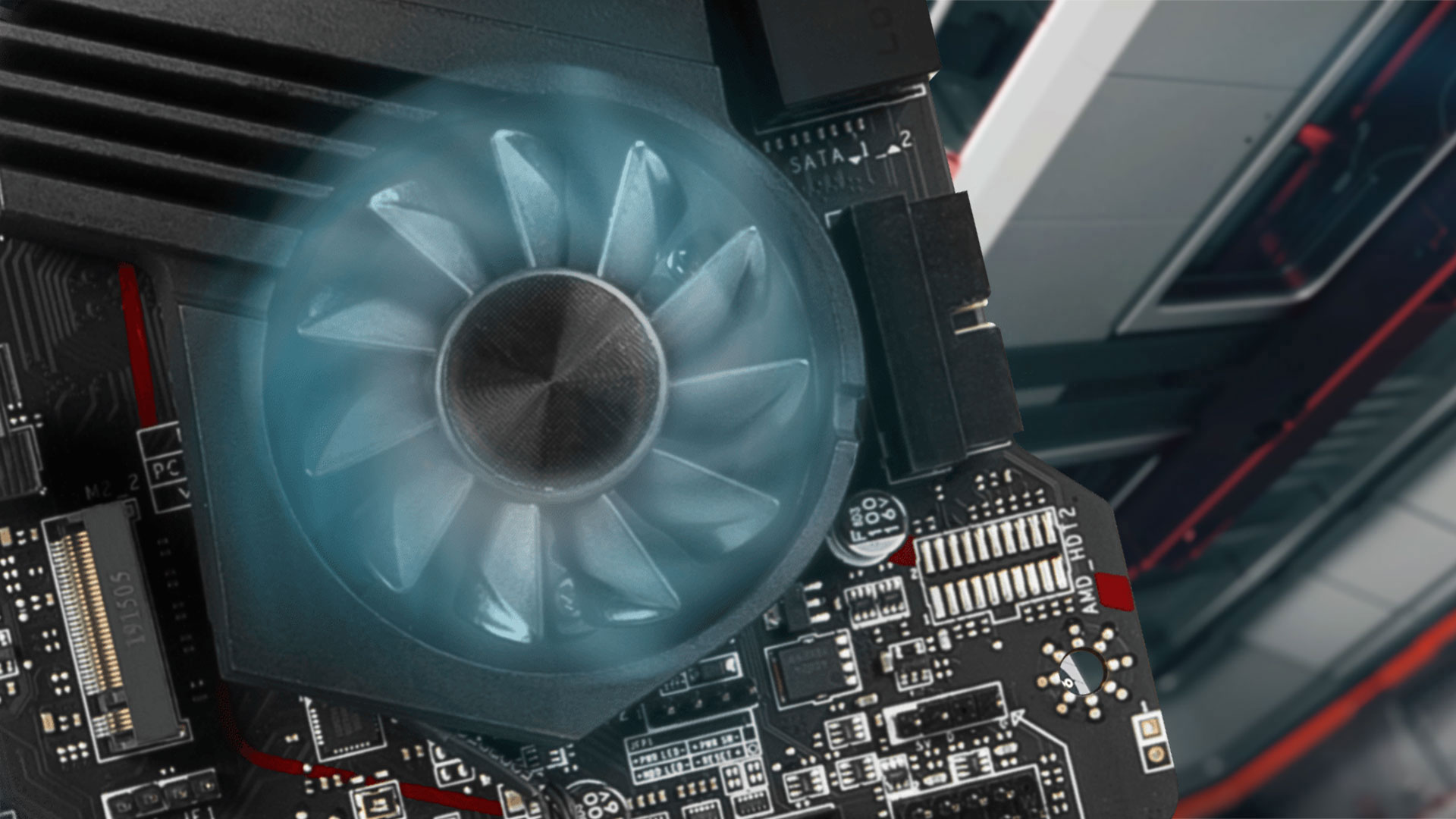

FROZR HEATSINK DESIGN
Higher performance generates more heat. Thermal solution is very important to
X570 chipset which featured latest Gen4 bandwidth. MSI motherboards featured the
patented fan design to provide best performance for enthusiast gamers and
prosumers.
PROPELLER BLADE TECHNOLOGY
Tremendous airflow increases more than 20% and brings better cooling
effect.
BETTER AIRFLOW BENEFITS MORE THAN CHIPSET THERMAL
Worlds fastest SSDs can start to lower performance when getting hot. The
airflow from Frozr Heatsink Design also benefits M.2 cooling to avoid this by
offering the best thermal protection to make sure that SSD maintains maximum
performance.
BOOST mode Enthusiastic gaming / 3A games
Balance mode Party games
Silence mode Game download
NATTIER WAY ON COOLING CONTROL
MSI FROZR Heatsink design combines the power of MSIs exclusive ZERO FROZR and
AI tuning technology to auto-adjust fan speed according to the chipsets
temperature. You can also select from one of three modes (Boost / Balance /
Silence) depending on your preferences via Dragon center or MSI UEFI BIOS and
enjoy the best performance without compromise.
HARDWARE
TROUBLESHOOTING FRIENDLY DESIGN
MSI motherboards been designed to make the system assembly process as
convenient as possible. An array of system tuning features and troubleshooting
tools are available to ease installation and setup.
PRE-INSTALLED I/O SHIELDING
Pre-Installed IO Shielding makes handling the motherboard process easier and
safer. The patent-pending design grounded and protects the IO ports from
potential electrostatic discharge damage from the external environment.
MORE USER FRIENDLY ENHANCEMENTS
- An enlarged PCI-E clip makes it easier to remove and swap your PCI
devices.
- Run into trouble? Onboard LEDs for key components indicate the source of
the problem so you know exactly where to look to get up and running
again.

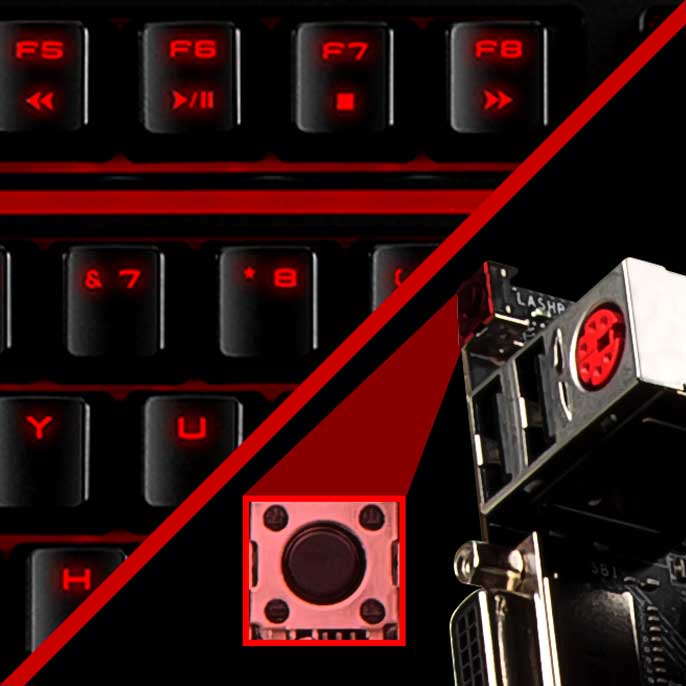

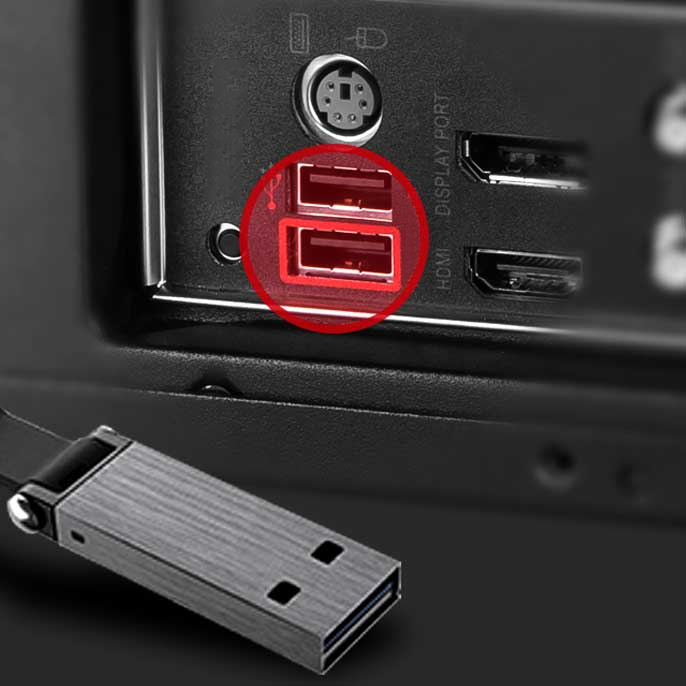

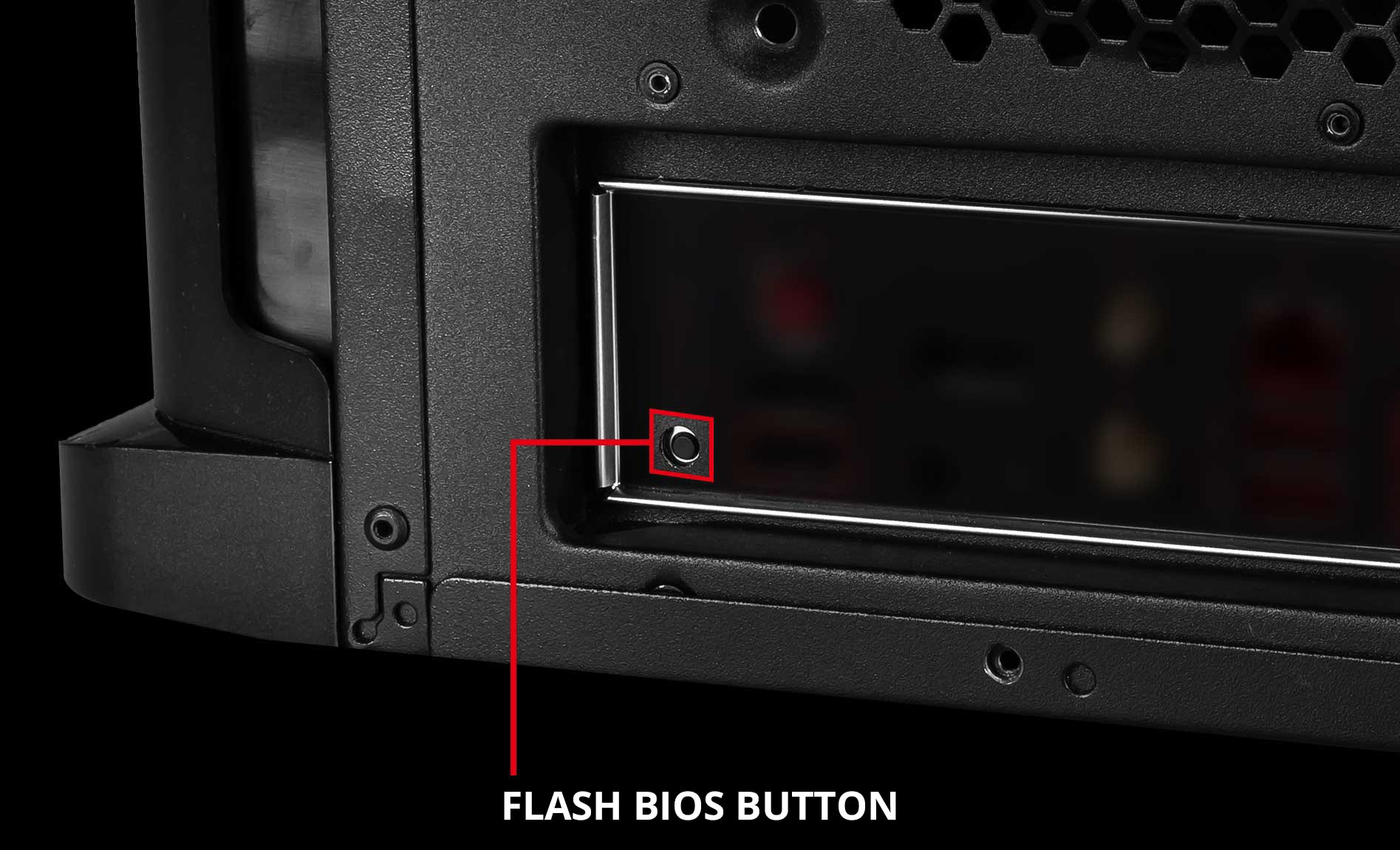

EASY BIOS RECOVERY WITH FLASH BIOS BUTTON
Run into trouble when updating your BIOS? Simply flash the old BIOS version
back and continue gaming within minutes with Flash BIOS Button. Flash BIOS
Button even works without a CPU, memory or graphics card installed!
STEP 1 No CPU/DDR/VGA required
STEP 2 Connect 24-pin &CPU power
STEP 3 Insert dongle with BIOS file
STEP 4 Use Flash BIOS Hotkey/Button
COMPATIBILITY
TROUBLESHOOTING FRIENDLY DESIGN
MSI motherboards are designed with both physical and device compatibility in
mind. Pin-headers, SATA, and USB connectors are positioned away from other
components and devices. A comprehensive DDR memory Qualified Vendor List (QVL),
the result of extensive memory testing and tuning, makes it easier to pick from
compatible products.

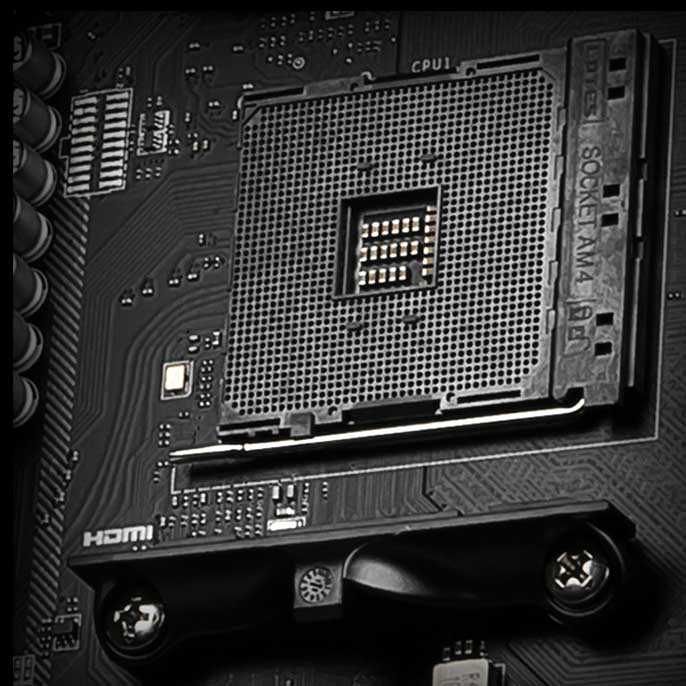

RYZEN PROCESSOR SUPPORT
MSI X570 motherboards support latest generation RYZEN processors from AMD
with updated features and capabilities. Ascend to new heights with a platform
built for both creators and gamers.

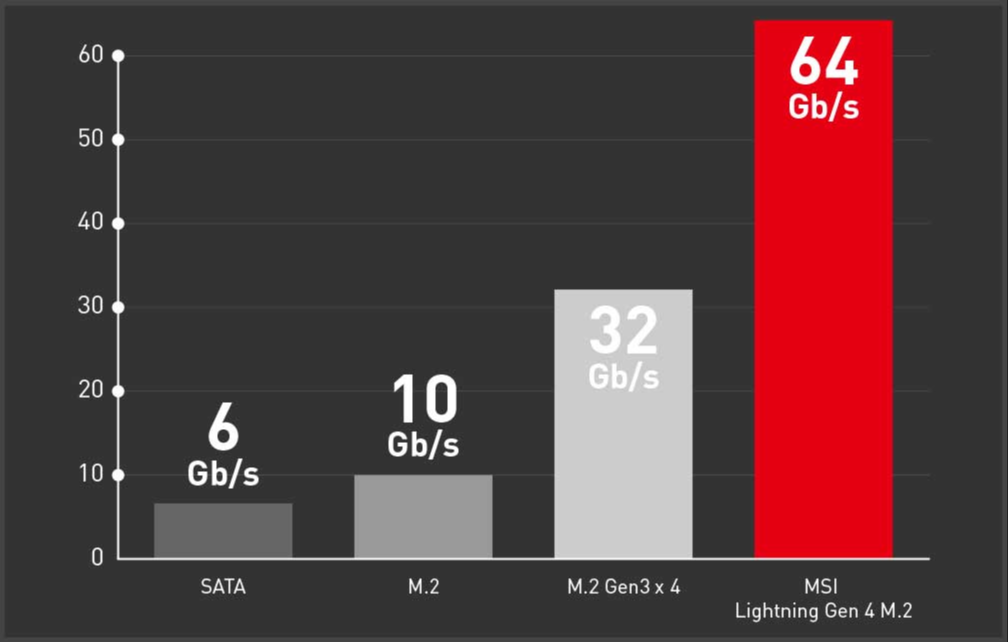

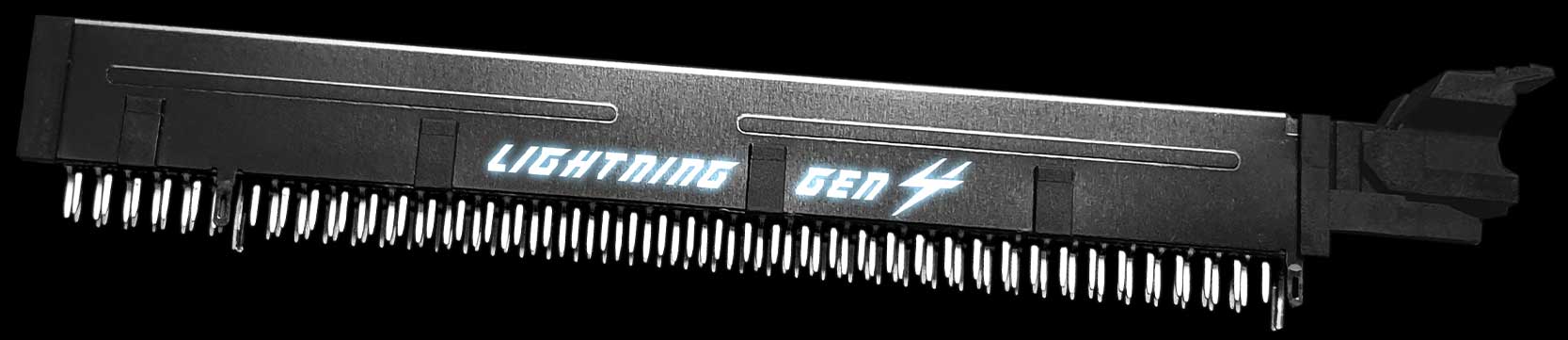

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer
solution with 64GB/s of unidirectional transfer bandwidth that has doubled
compared to its previous generation. PCIe 4.0 maintains both backward and
forward compatibility with older and newer specifications. Optimized by steel
armor design and server grade PCB, you can enjoy next-gen devices without any
compromise.

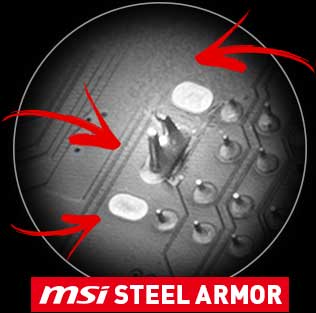

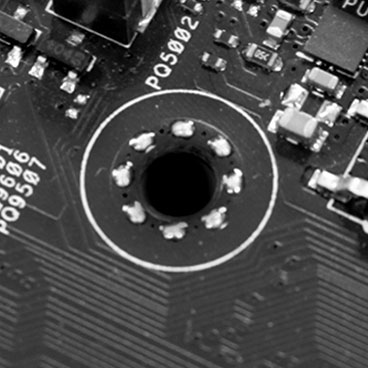

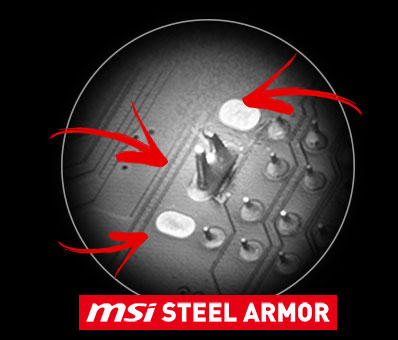

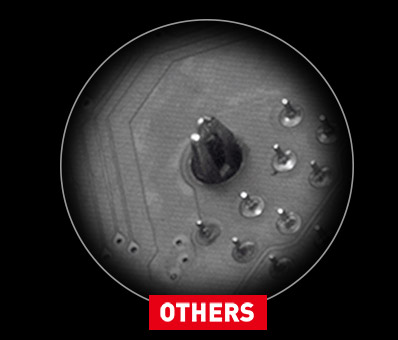

REINFORCED, HEAVY SOLDERED CONNECTIONS

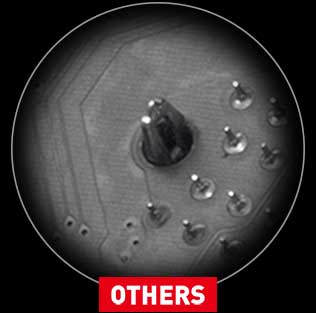

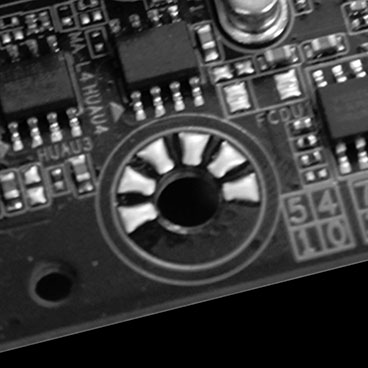

NO STRENGTHENING

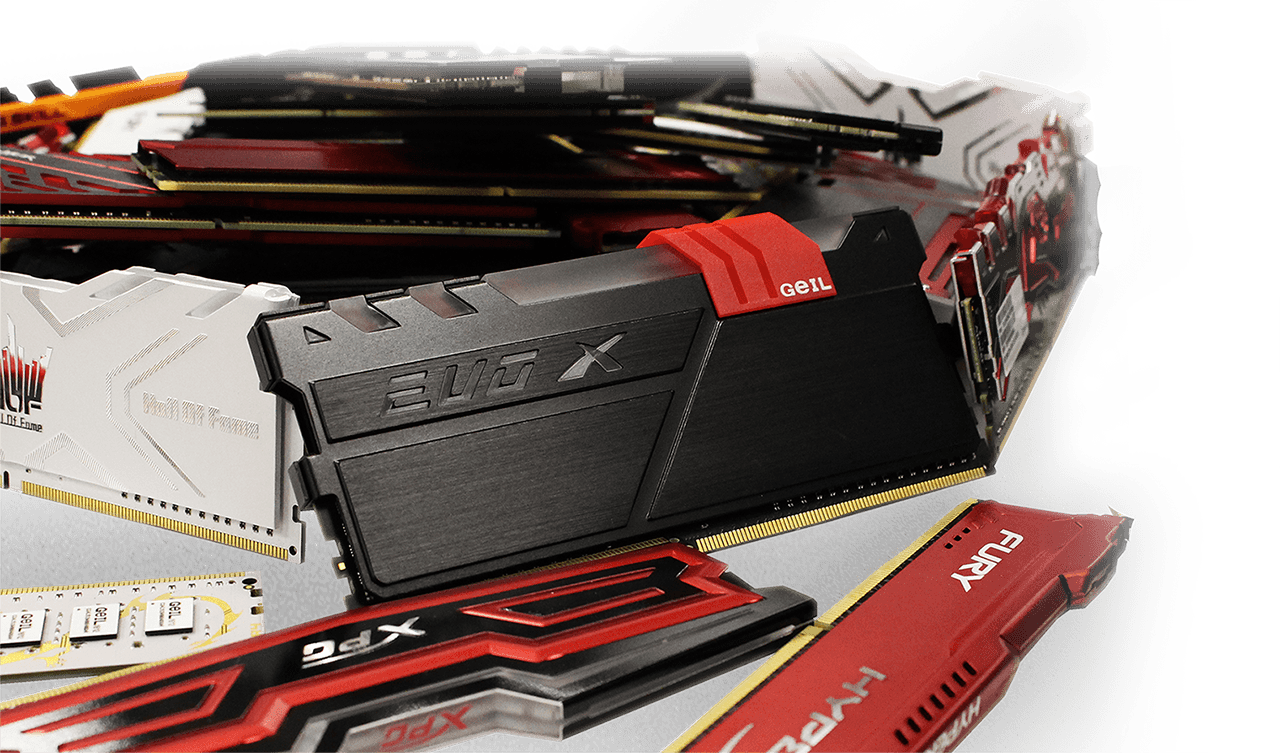

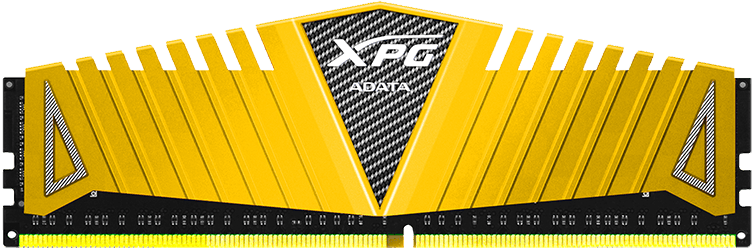

MEMORY COMPATIBILITY &TESTING
Get stability out of MSIs extensive and aggressive memory testing and
optimization. Working alongside partnered brands like Corsair, Crucial,
Kingston, G.SKILL, and many more, MSI has worked hard to get the most out as
many memory configurations as possible
BIOS AND SOFTWARE
PERFORMANCE ENHANCING APPS
Complete your high performance experience with an array of performance
enhancing software from MSI. From a loaded yet easy to use BIOS to potent live
system tools, get the most out of your motherboard at any moment.
MSI APP PLAYER
Developed under an exclusive partnership with BlueStacks, the MSI APP Player
brings seamless mobile gaming experiences to PCs. Leverage the advantages of
mouse and keyboard controls, better graphics, and multi-tasking for mobile
gaming supremacy.

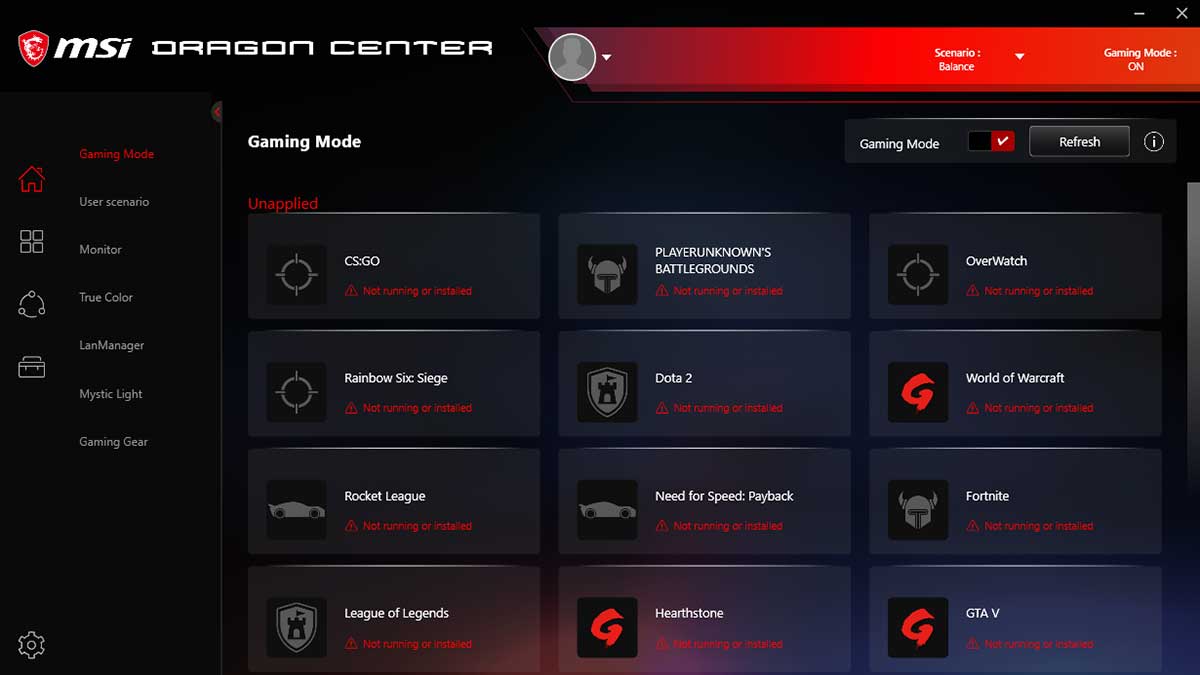

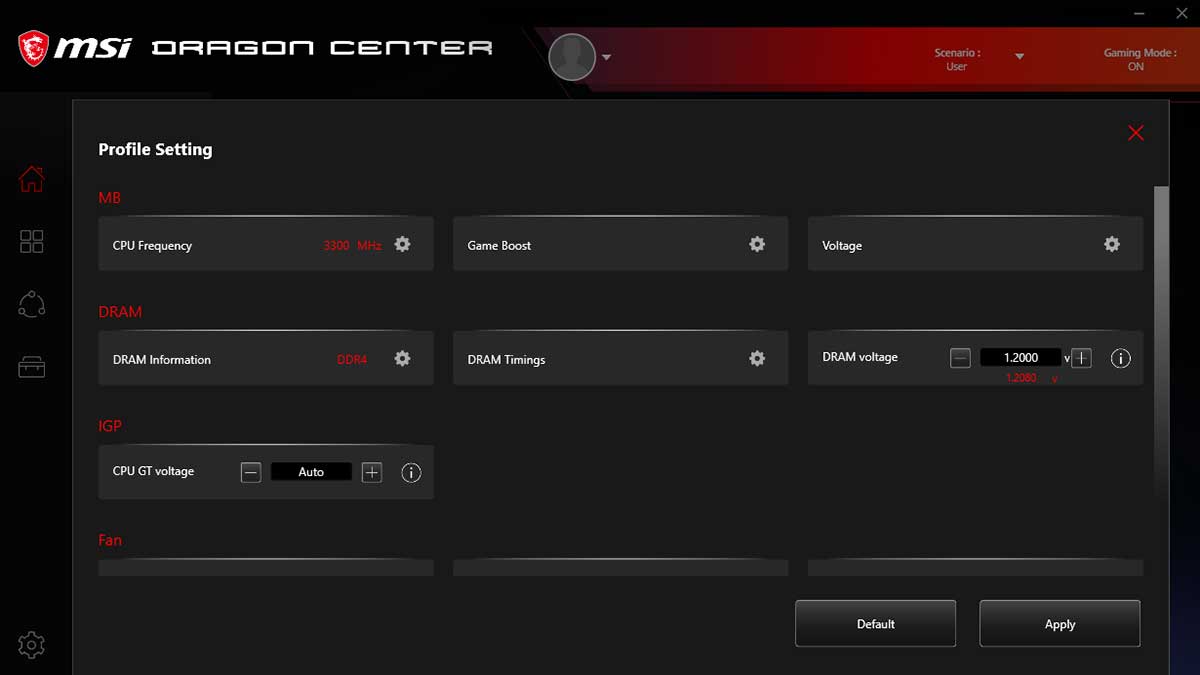

DRAGON CENTER
MSI Dragon Center unifies a suite of MSI software utilities into a single
centralized application. Take control of advanced motherboards features and
unleash endless possibilities.
Gaming Mode
- Gaming Mode automatically optimizes for smooth gaming performance with one
click!

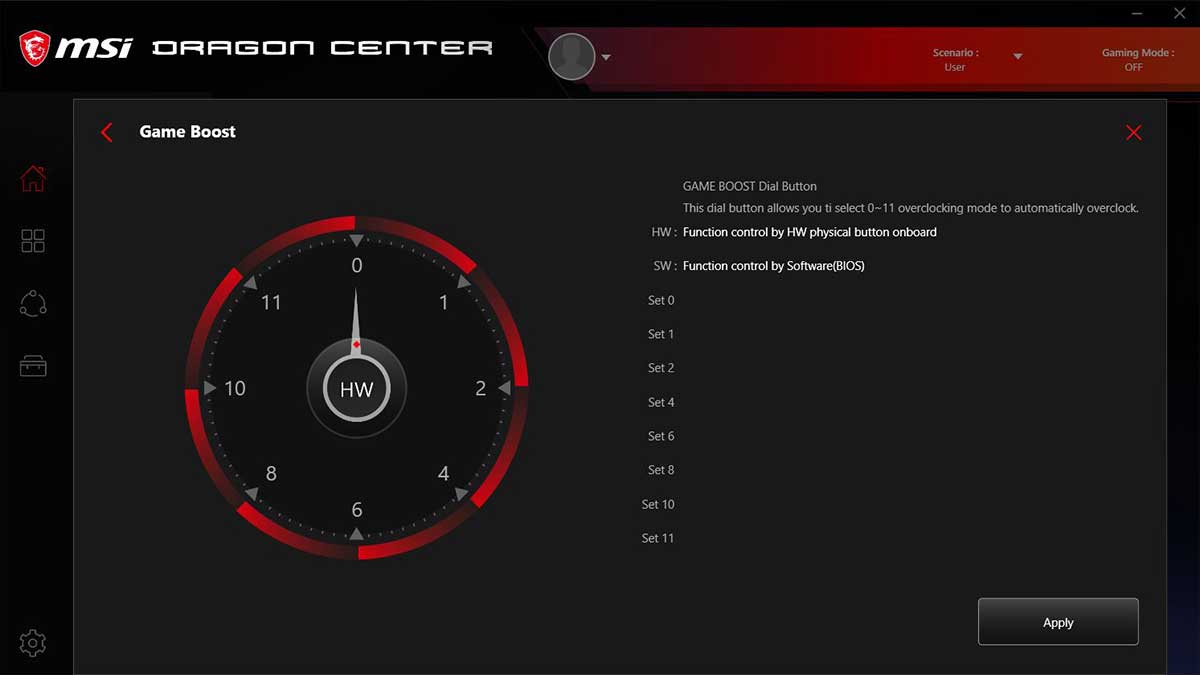

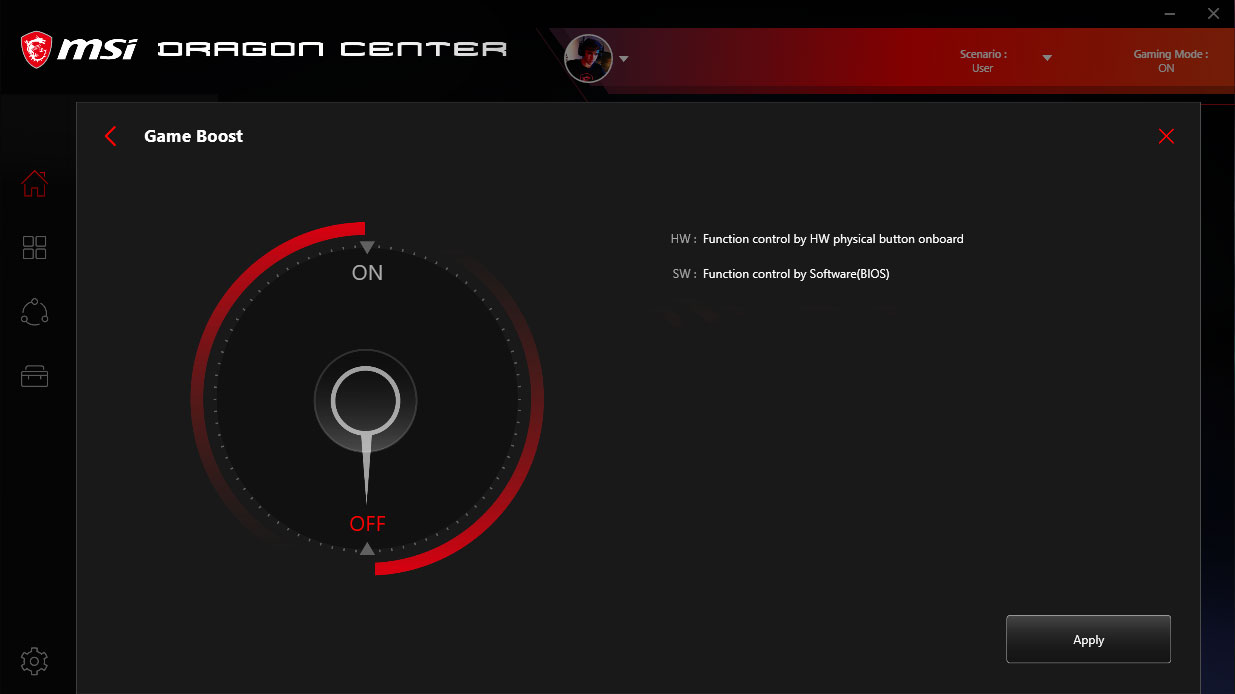

Game Boost
- Need more power from your CPU and memory to get more FPS? MSI Game Boost
enables quick automated overclocking, giving you the performance boost you
need.

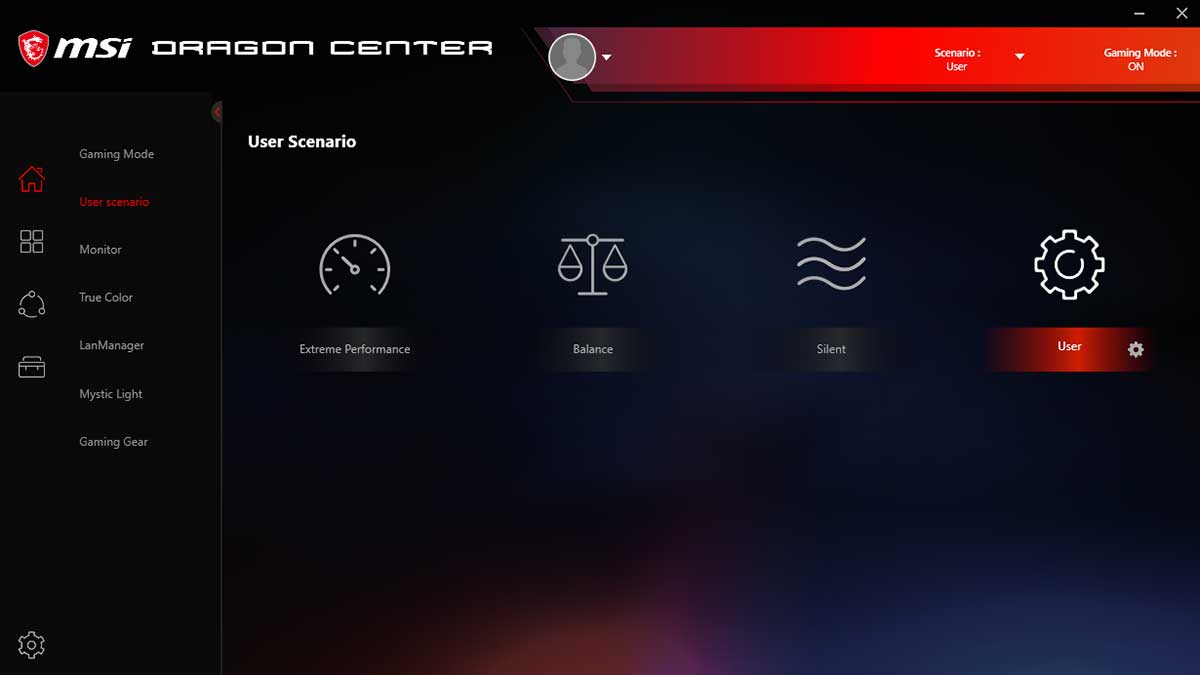

User Scenario
- One click for setting your computer, even customize own profile as your
preference.

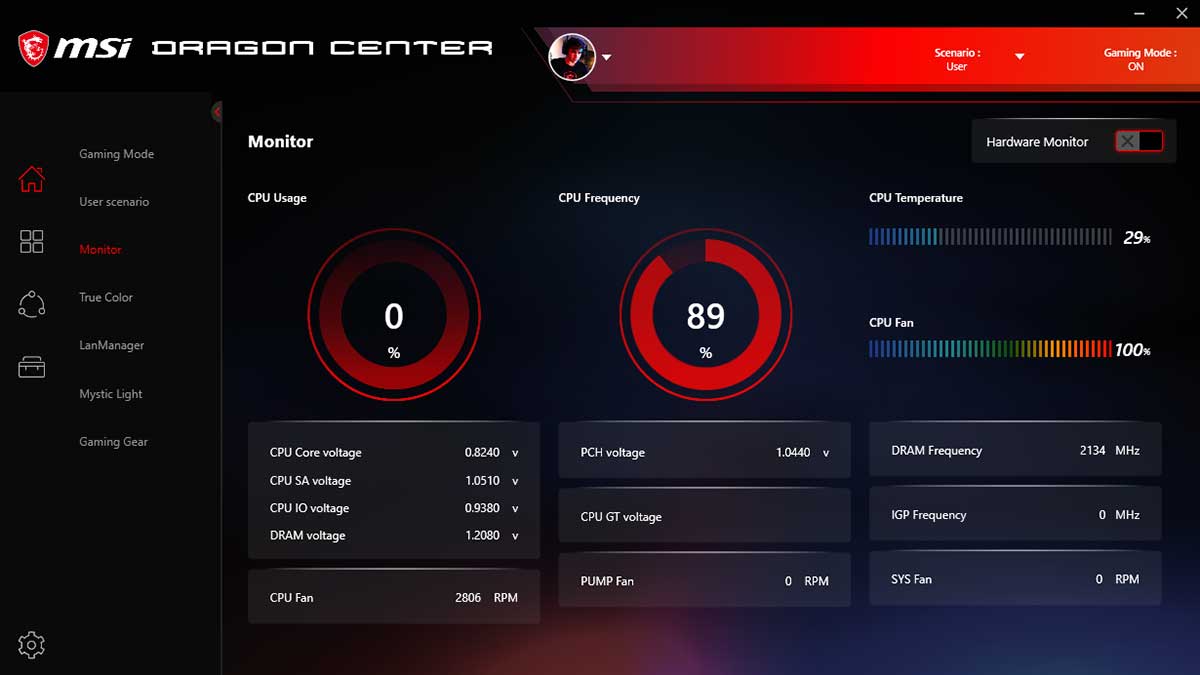

Hardware Monitor
- Get immediate access to your critical hardware information in
real-time.
OC Setting
- Tune select motherboard settings in the OC Setting menu, where options to
boost core performance and optimize system cooling are presented in an
intuitive interface.

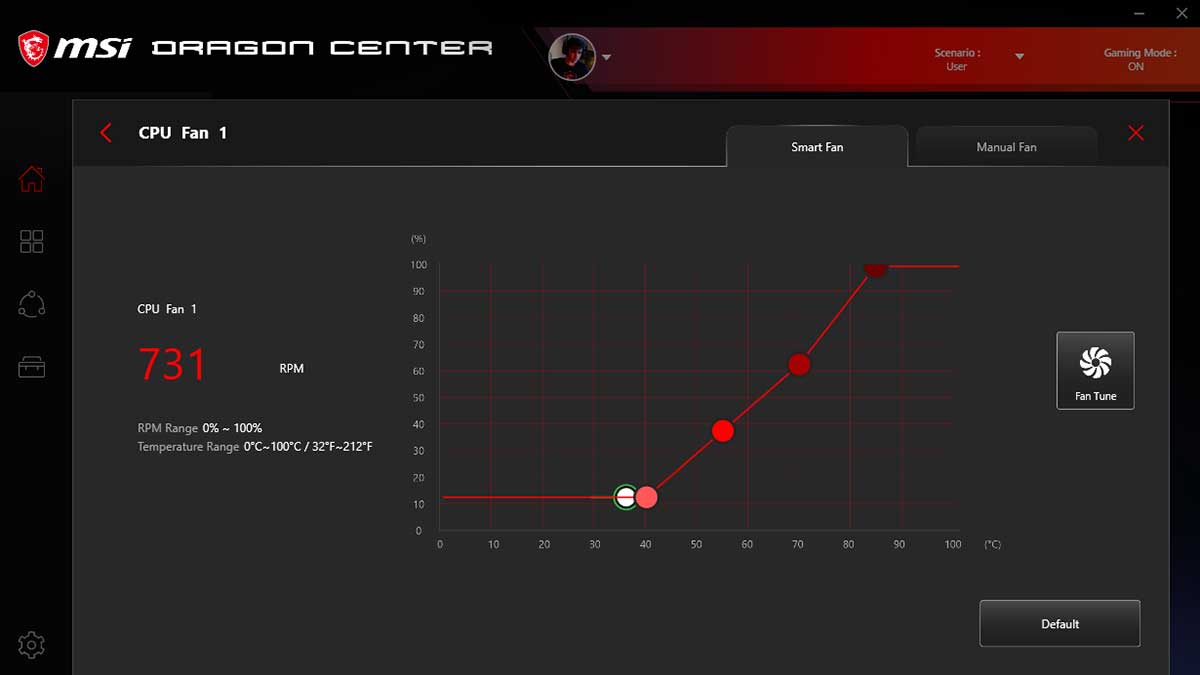

Total Fan Control
- Assume complete control of your fans with Total Fan Control. Set up to
four CPU temperature targets and the motherboard will adjust fan speeds
automatically.

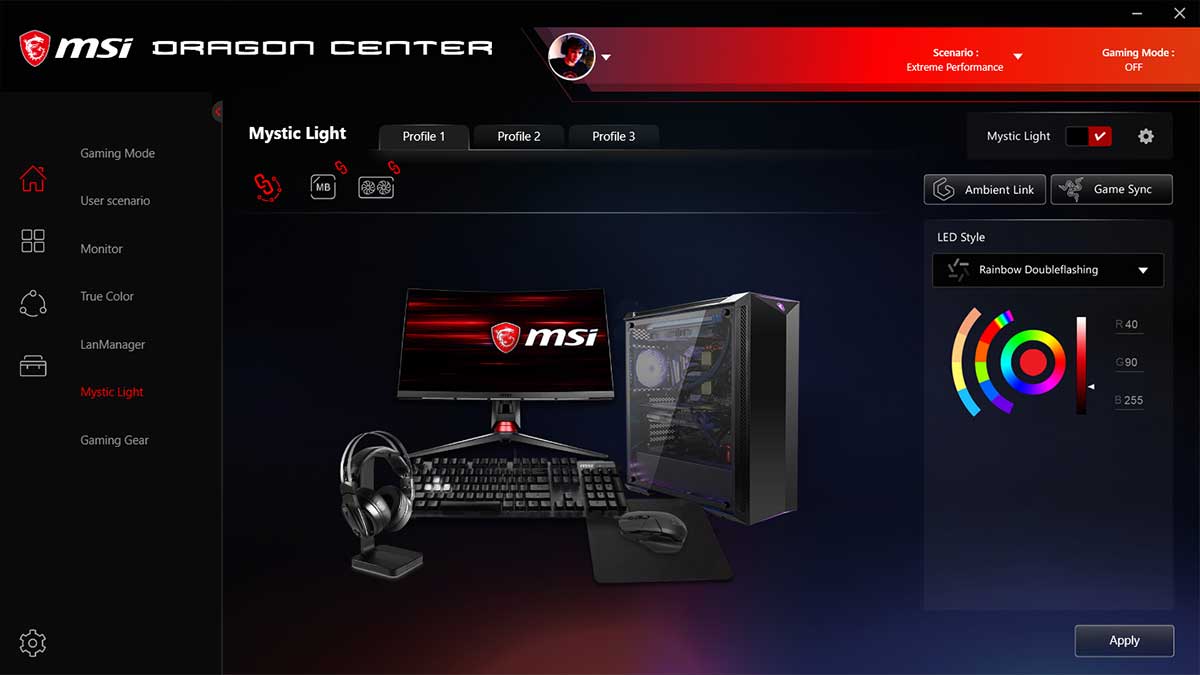

Mystic Light
- Create your own colorful masterpiece with ease. Splash any color you want
with just a few clicks!

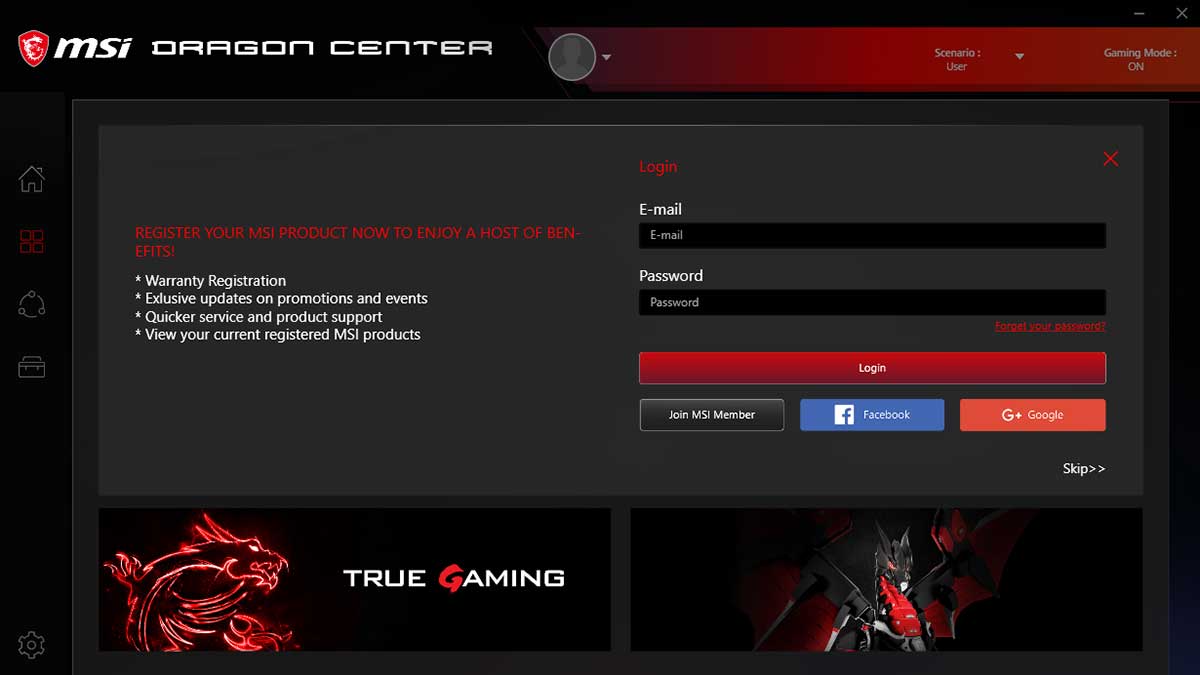

Product Registration
- Register your MSI product to enjoy a host of benefits!

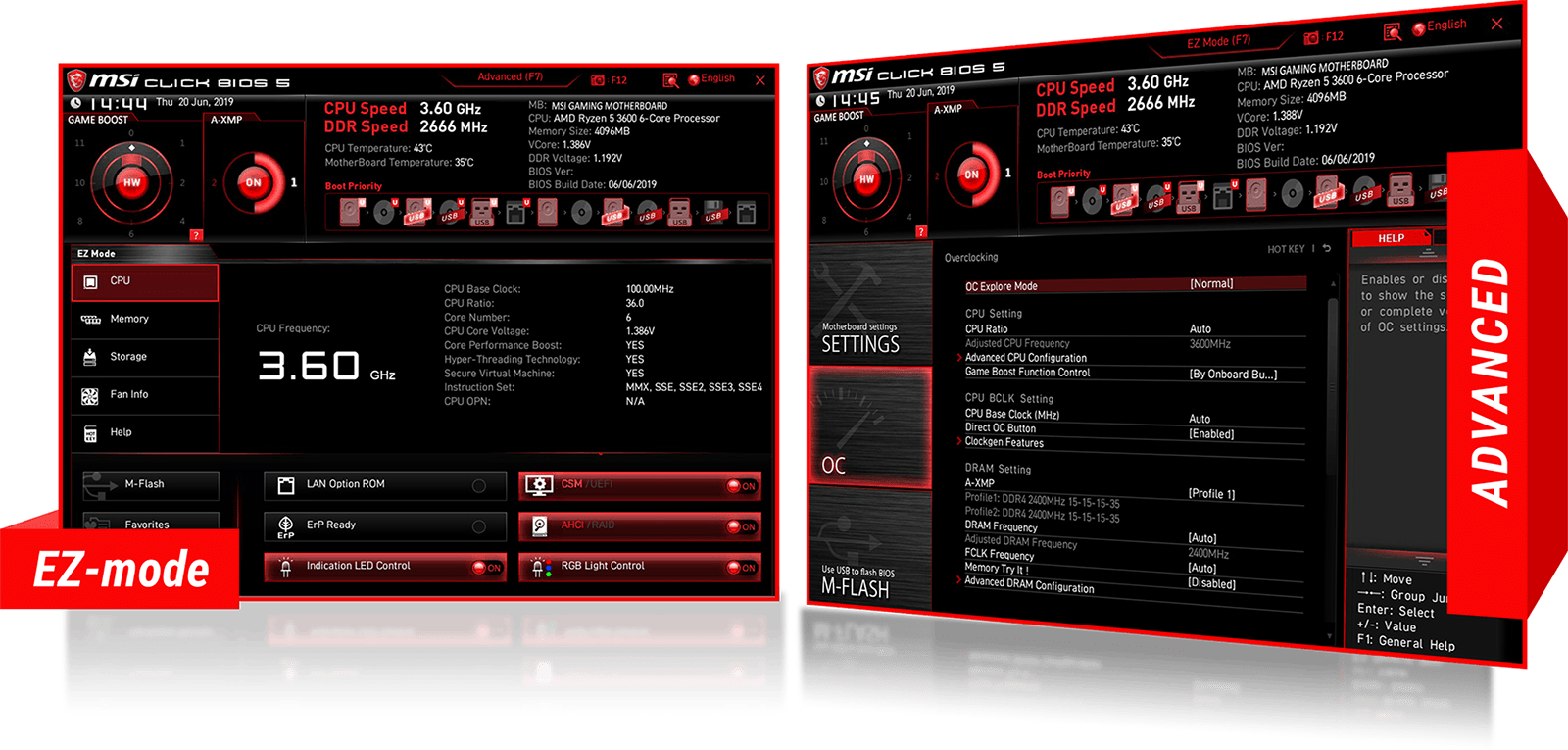

CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the
motherboard for gaming performance, efficiency, or overclocking world
records!
GAME BOOST
- Quickly overclock your CPU with a single button for more
performance.

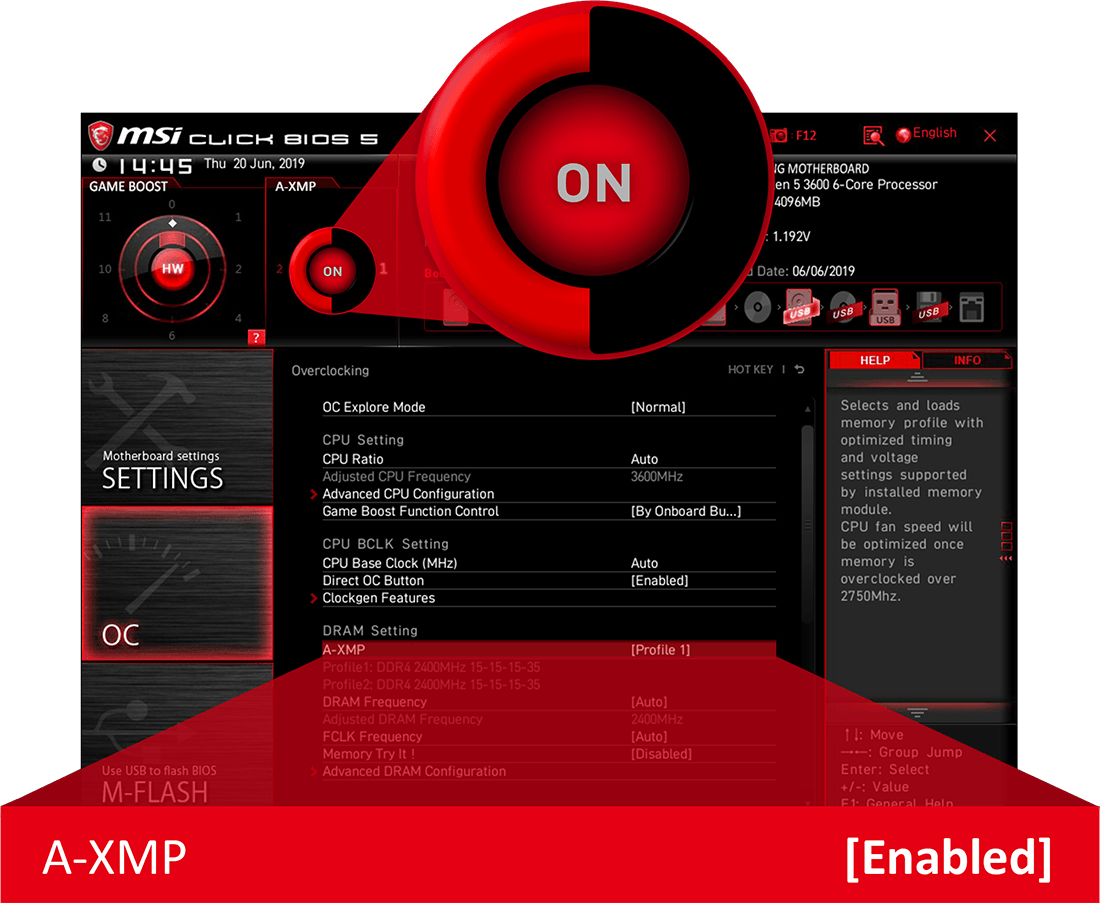

A-XMP
- Choose from a preset A-XMP profile and automatically overclock compatible
DDR memory.
M-FLASH
- Conveniently flash or upgrade the BIOS in a few minutes from the CMOS
Setup Utility.
HARDWARE MONITOR
- Get immediate access to your critical hardware information in real-time
including temperature, memory capacity, clock speed, and voltage.
TOTAL FAN CONTROL
- Monitor and manage fan speeds for system and CPU fans.
SECURE ERASE+
- Wipe an SSD with an optimized formatting algorithm and enjoy an SSD with
maxed free space!
MEMORY TRY IT
- Get extreme speed out of your system memory and get more
performance.

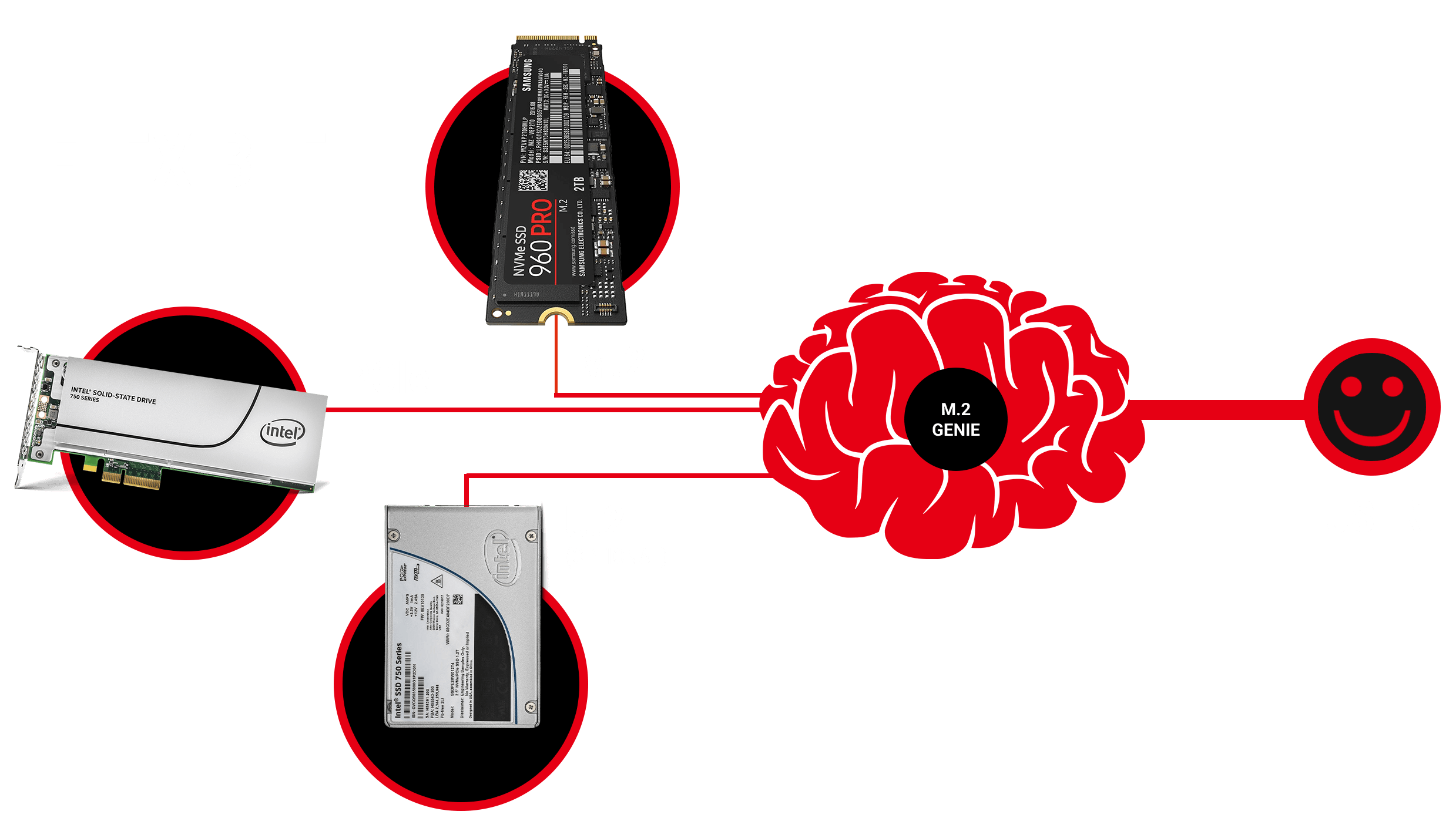

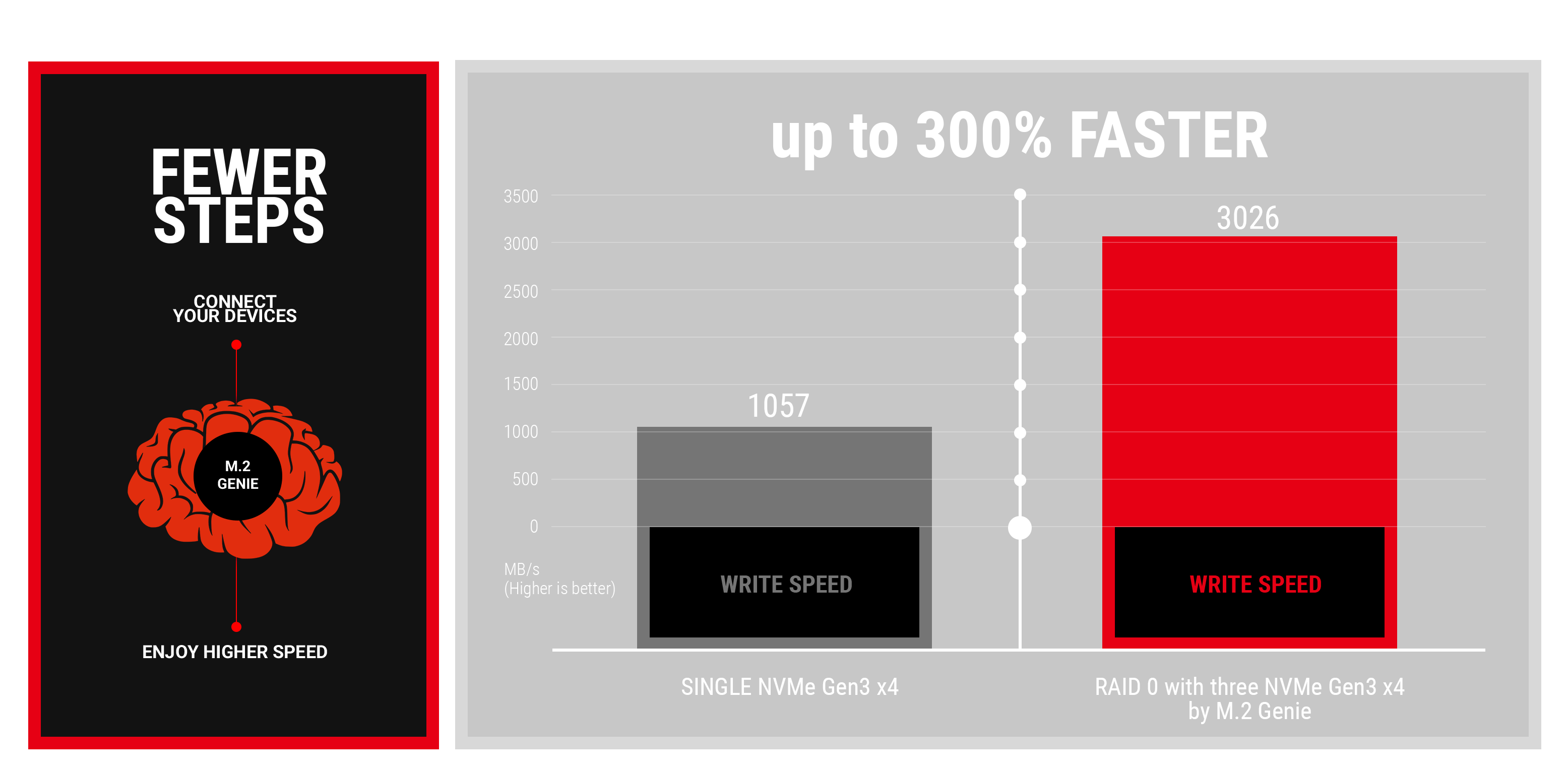

M.2 Genie
- Quickly and easily set up a RAID 0 array for M.2 and U.2 SSDs with this
automated utility.
SEARCH &FAVORITES
- A permanent search &favorite option in the top right corner moves you
through the BIOS menus quickly.
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the
latest technology to overwhelm any challenge at hand no matter whether youre a
gamer, prosumer, or PC enthusiast.
CPU
HIGH POWER EFFICIENCY
Power on your RYZEN processor with optimized circuit layouts and high quality
power delivery parts for an incredibly stable operation.
CORE BOOST
Core Boost is the latest advancement of MSIs motherboard CPU power delivery
system. A reserved zone of premium power delivery components on an optimized
circuit design results in a highly efficient power system capable of precise
current output to the CPU.
1-SECOND OVERCLOCKING!
MSI Game Boost provides easy overclocking, giving you a performance boost
from the preset profile.
MORE FOR PERFORMANCE
LOAD-LINE CALIBRATION
- What you set, is what you get! LLC options let you stabilize CPU voltage
under any load.
OVERVOLTAGE PROTECTION
- Mechanisms prevent potential short-circuit damage to the CPU and other
critical components.
DIGITAL POWER DESIGN
- A fully digital electrical power design allows for pin-point precise and
undistorted current delivery to the CPU.
DOUBLE POWER CONNECTORS
- 8+4 pin connectors deliver adequate power even for an overclocked
multi-core CPU.
MEMORY
UNMATCHED MEMORY PERFORMANCE
MSI takes memory stability and performance to the extreme. Weve designed an
optimized memory circuit design for reliability and tested compatibility
extensively in partnership with major memory manufacturers.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compare to X470
motherboard memory support, MSI does have great improvement on performance and
efficiency.
LOWER LANTENCY AND MORE EFFICIENCY
RELEASE HIGHER MEMORY FREQUENCY
- X570 with 3rd Gen Ryzen processors - Up to 4800 MHz
- X470 with 2nd Gen Ryzen processors - 3600 MHz
TRUSTED BY MEMORY PARTNERS DDR4 BOOST 2
The MSI OC lab has worked closely with major memory manufacturer to get as
many DDR4 modules validated as possible. MSI motherboards are going to free the
these selected memories performance with stability.
A-DATA
- AX4U360038G17-DRZ
- AX4U360038G17-SRZ
THESE SELECTED DDR MODULES PASSED CRITICAL TESTS, THEY ARE HIGHLY COMPATIBLE
WITH MSI X570 MOTHERBOARDS.
EASY OVERCLOCKING WITH A-XMP PROFILES
Choose from a preset A-XMP profile in CLICK BIOS 5 and automatically
overclock compatible DDR memory. The MSI OC lab has tested and certified these
settings for speed and stability.
STORAGE
FAST AND FUTURE-READY STORAGE
Connect any ultra-fast storage device and get into the game sooner.
BOOST YOUR STORAGE PERFORMANCE
Enabling the Storage Boost tool will automatically check and optimize SSDs,
keeping them fast with maximized storage performance.
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI X570 motherboards feature latest
Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market
with up to 64 Gb/s transfer speed.
PCMARK10 STORAGE SCORE
AMD STOREMI
All MSI X570 motherboards are shipped with StoreMI, the new AMD SSD
technology to improve storage performance. This tool helps create a virtual SSD
by blending capacity storage, treats flash as primary storage and optimizes data
access with monitoring continuously. All these functions can enhance read/write
speed for active data and provide fast boot times and application startup.
-
Lower
Cost
-
More
Performance
-
More
Usable Capacity
-
Use
any SSD you want
EASY RAID SETUP WITH M.2 GENIE
The M.2 Genie utility takes the work out of setting up M.2 SSDs in a RAID 0
array. Drive your data transfer to extreme speeds without the challenge of a
tricky setup and configuration.
USB
MAXIMIZE YOUR USB DEVICE PERFORMANCE
Plug in and start moving files lightning fast with high-speed USB, supported
by all the latest connectors and boost tools.
MORE STABILITY WITH AMD TURBO USB 3.2 GEN2
The latest USB standards and protocols are supported including USB 3.2
GEN2.
TYPE-C REVERSIBLE CONNECTOR INCLUDED
- Reversible USB Type-C devices and cables are supported.
IN-GAME ADVANTAGE
MSI motherboards are built with enhanced audio and advanced LAN networking
capabilities that turn any gaming experience into an immerse one.
AUDIO
SOUND THAT PULLS YOU INTO THE GAME
Deliver the highest sound quality through the use of premium quality audio
components and get the most immersive sound experience when gaming. MSI
motherboards let you enjoy breathtaking, gaming-changing sound.
AUDIO BOOST 4
ISOLATED AUDIO DESIGN
Like a dedicated sound card, audio components and circuits have been laid on
a reserved motherboard section and electrically isolated.
SEPARATED AUDIO LAYERS FOR CLEAN LEFT &RIGHT
CHANNELS
Audio circuits laid on separate layers in the PCB ensure equally pristine
sounding audio for both left and right audio channels.
DE-POP PROTECTION
A de-pop filter eliminates loud popping noises that occur when devices are
plugged/unplugged or when the PC is turned on/off.
DEDICATED HEADPHONE AMPLIFIER THAT AUTO-DETECTS
IMPEDANCE
A dedicated headphone can drive audiophile headphones up to 600 impedance,
delivering studio-grade sound quality from your gaming PC. Audio Boost 4
automatically detects the optimal impedance and adjusts the output for the best
sound quality.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match
different tastes and favors. Furthermore, MSI also adopts the modern style to
design the heatsink through huge surface and sleek but simple cuts in order to
make the heatsink and appearance looks ripped and powerful. Combined with
neutral color, such as black, grey and silver, as the main background, MSI
motherboard can perfect fit different RGB LED effects and strongly shows the
gamers tunes.
INDUSTRIAL DESIGN
GAME IN STYLE
Inspired by supercars, the latest CARBON iteration from MSI is more
astonishing than ever. The new MPG GAMING PRO CARBON has been updated with a
distinctive look and feel and continues a tradition of colorful customization
with MSI Mystic Light RGB.
MYSTIC LIGHT
Illuminate with MSI Mystic Light and bring the motherboard RGB lighting to
life. Choose from millions of colors and sync across compatible devices.
- 16.8 MILLION COLOR CUSTOMIZABLE
- 29 LED EFFECT
MYSTIC LIGHT ON MOTHERBOARD
- OFF
- Rainbow
- Meteor
- Stack
- Breathing
- Flashing
- Double-flashing
- Steady
- Lightning
- CPU Temperature
- Random
- POP
- RAP
- JAZZ
- Movie
- Planetary
- Double Meteor
- Energy
- Blink
- Clock
- Color Shift
- Color Wave
- Rainbow Flashing
- Rainbow Double Flashing
- Double Meteor
- Rainbow Wave
- Visor
- Rainbow Flashing
- Rainbow Double Flashing
- Default
MYSTIC LIGHT EXTENSION
Extend vibrant RGB effects from the motherboard to attached compatible RGB
lighting including LED strips.
JRGB
The JRGB pin header provides the max 3A(12V) power supply for the up to 3
meters 5050 RGB LED strips showing single color.
MYSTIC LIGHT SYNC
Control compatible RGB peripherals with the Mystic Light application. An open
source SDK is available for developers to integrate Mystic Light with RGB
devices.
LOYAL COMRADE
With years of experience, MSI is no stranger to building high-performance
motherboards. Our R& and engineering teams have reviewed countless designs,
evaluated a wide selection of high quality components, and developed products
for reliability even under extreme conditions.
COMPONENTS
BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest
technological innovations delivers the best possible professional experience.
Rigorous quality testing under the most extreme conditions ensures a super
reliable, long-lasting and high performance motherboard.
SERVER GRADE PCB
MSI X570 motherboards have adopted server grade PCB to fully support the
higher bandwidth and faster transfer speeds of PCI-E Gen 4.
Standard PCB construction
Server grade PCB construction
Server grade PCB offers up to 3 times the heat resistance, keeps PCB stable
when high temperature
Server grade PCB are more rigid and warp and twist less prevents PCB
bending
Server grade PCB better shield transmissions reducing signal loss up to
30%
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra
solder points and support the weight of heavy graphics cards. When every
advantage in games counts, Steel Armor shields the point of contact from
electromagnetic interference.
REINFORCED, HEAVY SOLDERED CONNECTIONS
NO STRENGTHENING
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting
holes, preventing static discharge surges from damaging the motherboard.
MSI - DOBUBLE ESD PROTECTION BEST
BRAND A - SINGLE ESD PROTECTION AVERAGE
BRAND B - SEMI ESD PROTECTION POOR
CERTIFIED FOR GAMING
MSI motherboards has been built and tweaked for hardcore gaming. Feedback
from the worlds best esports players and rigorous testing sessions with
demanding PC games has resulted in a motherboard thats both powerful and
reliable.
Specifications
|
SOCKET |
AM4 |
|
CPU (MAX
SUPPORT) |
RYZEN
9 |
|
CHIPSET |
AMD X570
Chipset |
|
DDR4
MEMORY |
1866/ 2133/ 2400/ 2667/
2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266
/4400 + Mhz by JEDEC and A-XMP OC MODE |
|
MEMORY
CHANNEL |
Dual |
|
DIMM
SLOTS |
4 |
|
MAX MEMORY
(GB) |
128 |
|
PCI-E
X16 |
1 |
|
PCI-E
X4 |
1 |
|
PCI-E
X1 |
3 |
|
SATAIII |
6 |
|
M.2
SLOT |
2 |
|
RAID |
0/1/10 |
|
TPM
(HEADER) |
1 |
|
LAN |
1x Realtek 8111H
Gigabit LAN Controller |
|
USB 3.2 PORTS
(FRONT) |
4(Gen1, Type
A) |
|
USB 3.2 PORTS
(REAR) |
4(Gen1, Type A),
1(Gen2, Type A), 1(Gen2, Type C) |
|
USB 2.0 PORTS
(FRONT) |
4 |
|
USB 2.0 PORTS
(REAR) |
2 |
|
SERIAL
PORTS(FRONT) |
1 |
|
AUDIO PORTS
(REAR) |
5+ Optical S/PDIF
(Realtek ALC1220 Codec) |
|
HDMI |
1 |
|
DIRECTX |
12 |
|
FORM
FACTOR |
ATX |
|
CROSSFIRE |
Y |
|
OPERATING
SYSTEM |
Support for Windows 10
64-bit |
