Gigabyte B365 M AORUS ELITE (rev. 1.0) Motherboard

Key Features

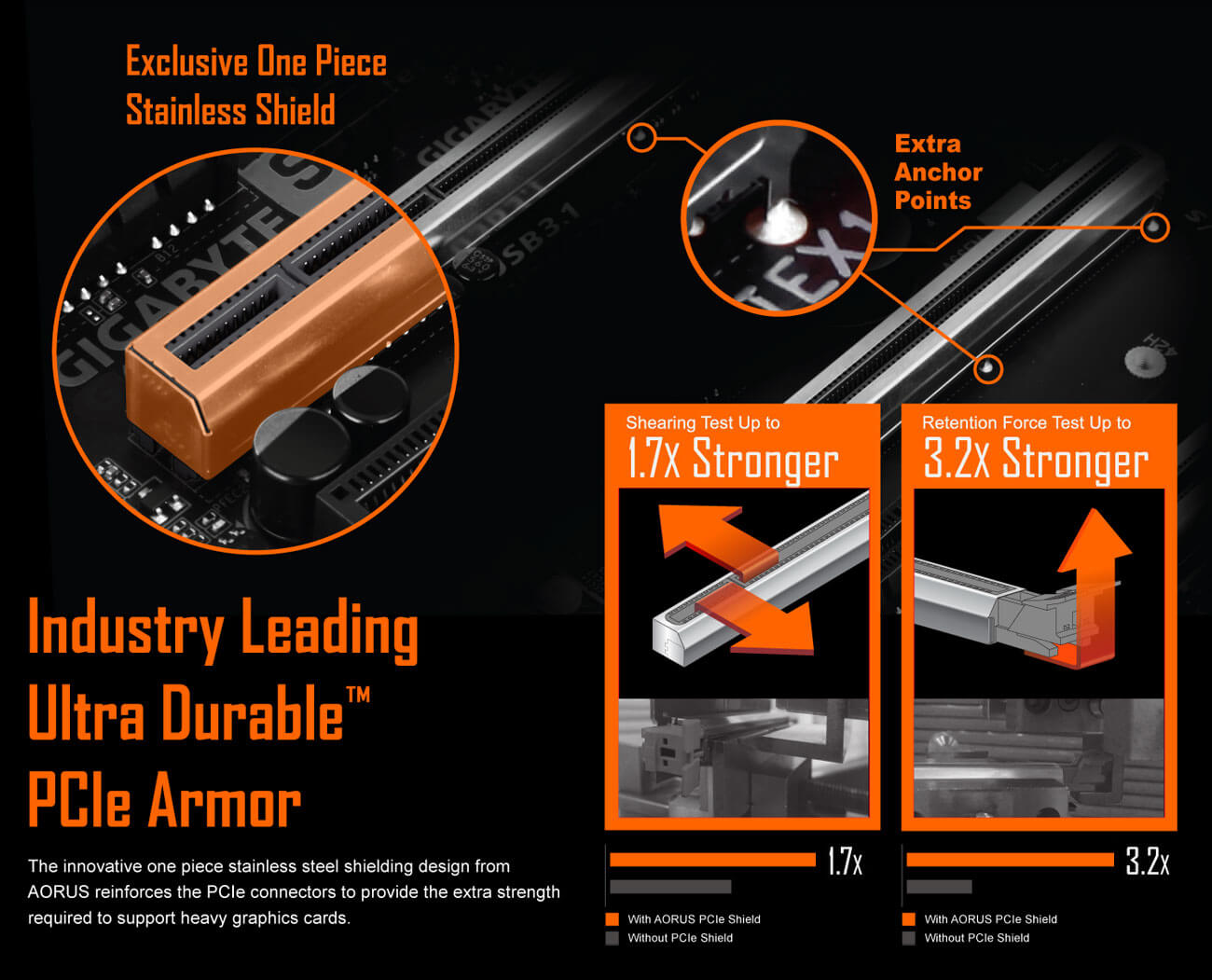

Intel B365 AORUS motherboard with RGB Fusion 2.0 with Digital LEDs, Intel GbE LAN with cFosSpeed, Dual M.2 slots, Ultra Durable PCIe Armor, Anti-Sulfur Resistor, Smart Fan 5, DualBIOS, CEC 2019 ready.

• Supports 9th and 8th Gen IntelCore Processors
• Dual Channel Non-ECC Unbuffered DDR4
• New Hybrid Digital PWM Design
• M.2 Socket 1 slot for WIFI upgradable
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• Dual Ultra-Fast M.2 with PCIe Gen3 X4/X4 &SATA interface
• RGB FUSION 2.0 with Digital LED Light Show design
• IntelUSB 3.1 Gen1 USB Type-C
• IntelGbE LAN with cFosSpeed Internet Accelerator Software
• CEC 2019 Ready, Save the Power as Easy as One Click
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design
• Ultra Durable 25KV ESD and 15KV Surge LAN Protection
• IntelOptane Memory Ready

AORUS CONNECTIVITY

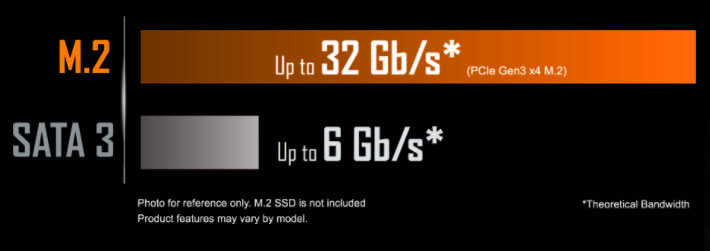

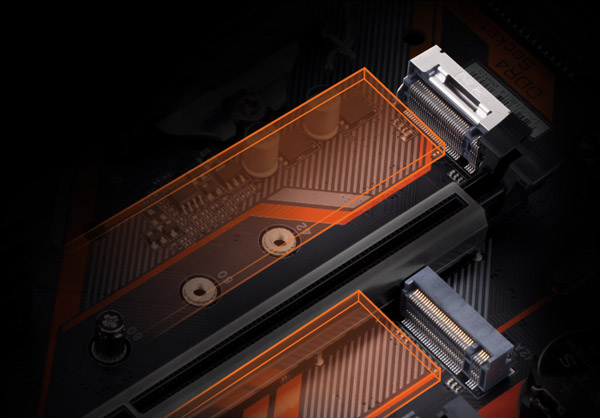

Dual NVMe PCIe Gen3 M.2 Slots (x4,x4)

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems potential.

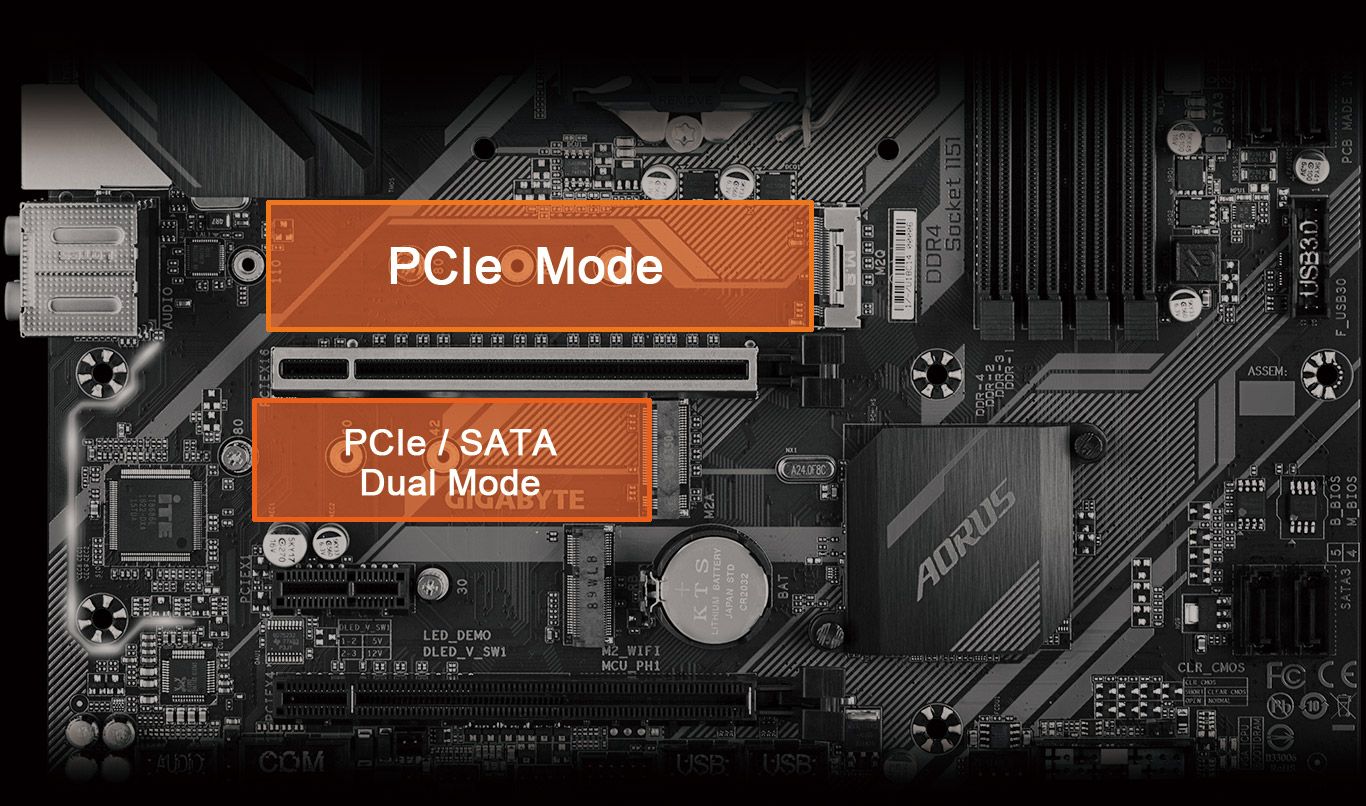

Dual-Mode M.2 Slot Design

GIGABYTE Motherboards are built with dual M.2 slots. This configuration is designed for flexibility and adaptation to fit most users' and gamers' requests.

PERFORMANCE FUELED BY OPTANE

The AORUS H370/B365/B360 Platform supports Intel's latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Intel GbE LAN with cFosSpeed Internet Accelerator Networking

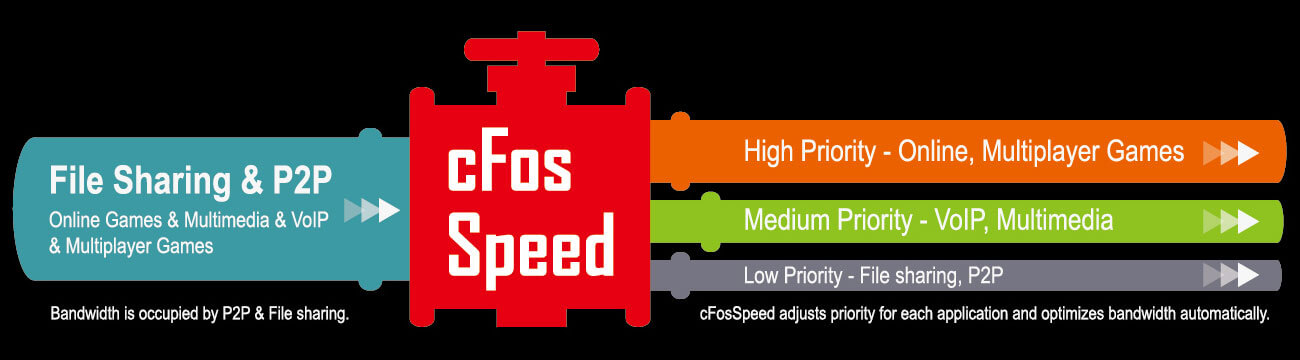

IntelGbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

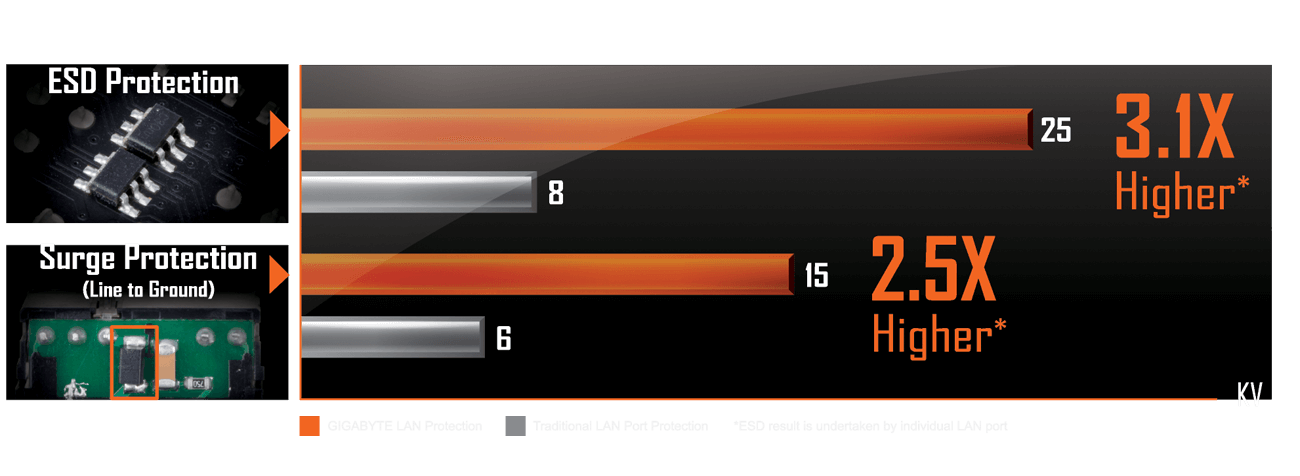

The Industry's Leading LAN Static-Electricity &Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity.GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

AORUS STYLE

RGB Fusion 2.0

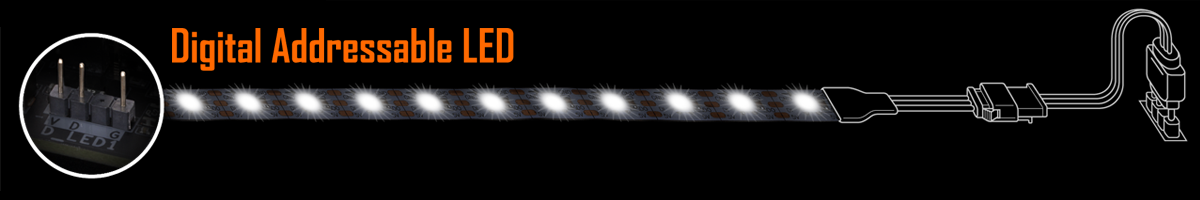

With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B360 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

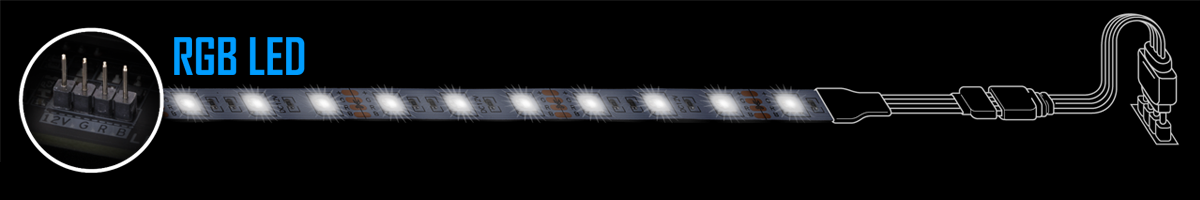

AORUS Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

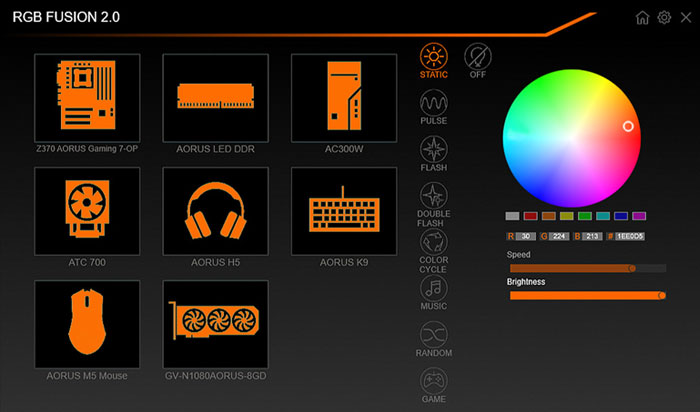

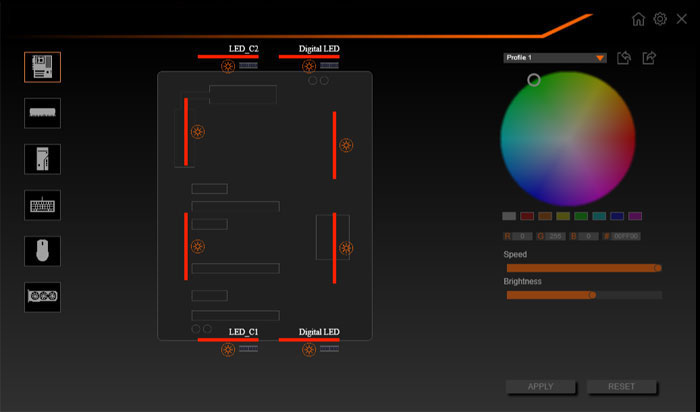

RGB Fusion 2.0 Software

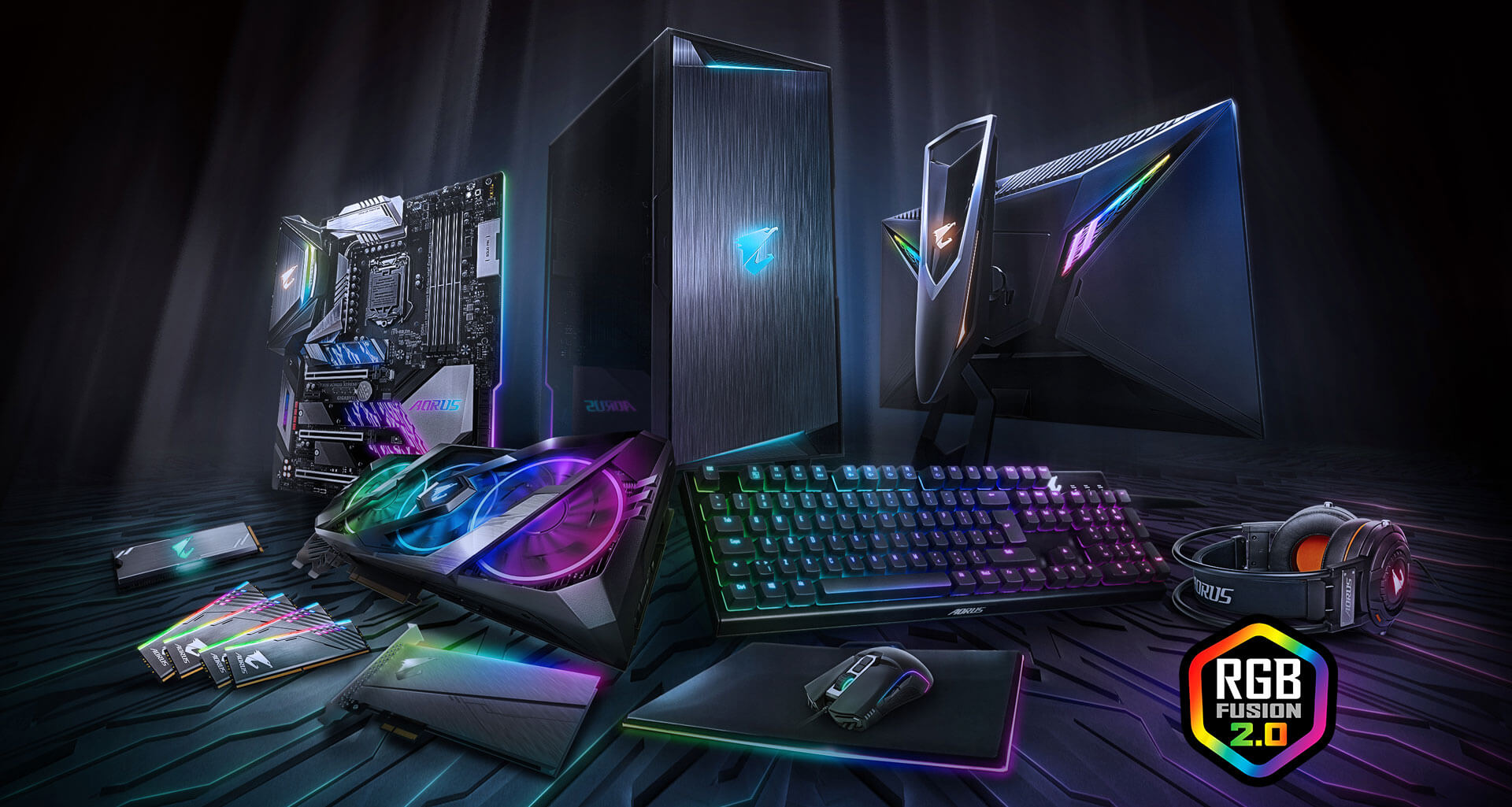

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

Sync with one click

Individual control as you wish

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

AORUS PERFORMANCE

Immersive VR Gaming Experience

• VR requires more performance than Full HD graphics for a steady 90FPS or greater.
• Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC*

• Graphics Card: NVIDIA GTX 1060 / AMD RX 480 or greater, Compatible HDMI 1.4 video output.
• CPU: Intel i5 equivalent or greater
• Motherboard: GIGABYTE H370 / B365 / B360 series motherboards
• Memory: 8GB RAM or greater
• USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
• OS: Windows 10 64-bit or newer

To create a seamless VR experience AORUS Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that AORUS has the tools you need to start your journey in VR. To set the mood AORUS Motherboards include RGB Fusion 2.0 to put you in the center of action.

2-Way CrossFireMulti-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

AORUS COOLING

Advanced Thermal Design

MOSFET Heatsinks

Multiple cuts on heatsinks improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic.

Thick Thermal Pad

Improved thickness of the thermal pad to 1.5mm, gives superior heat dissipation of MOSFETs.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

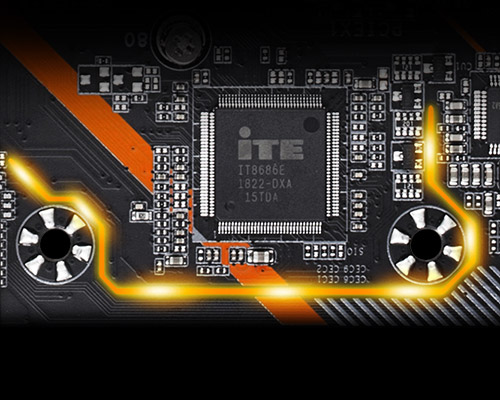

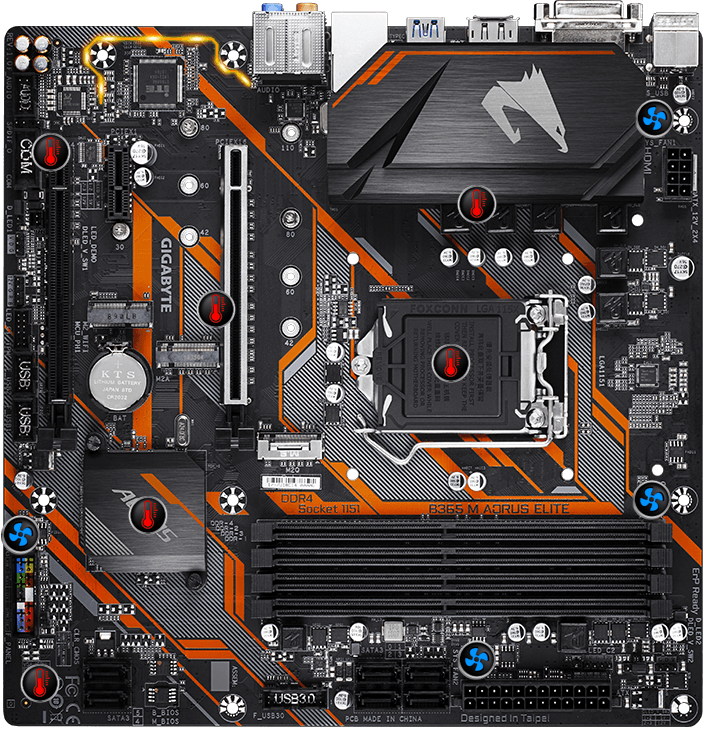

 Temperature Sensors

 Fan Pin Headers

Temperature Sensors

Hybrid Fan Headers

• 6 Temperature Sensors

• 4 Fan Pin Headers

• All Fan Pin Headers Upgraded to Hybrid Fan Headers

• Interoperable Fans and Sensors

• Intuitive UI for Fan Control

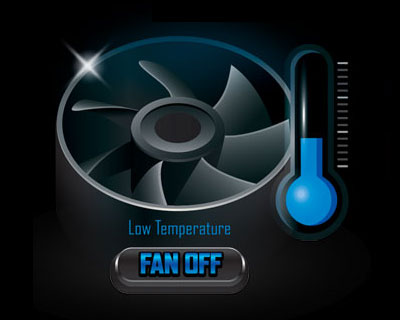

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperatureall of it can be customized to your liking.

Intelligent Fan Control Design

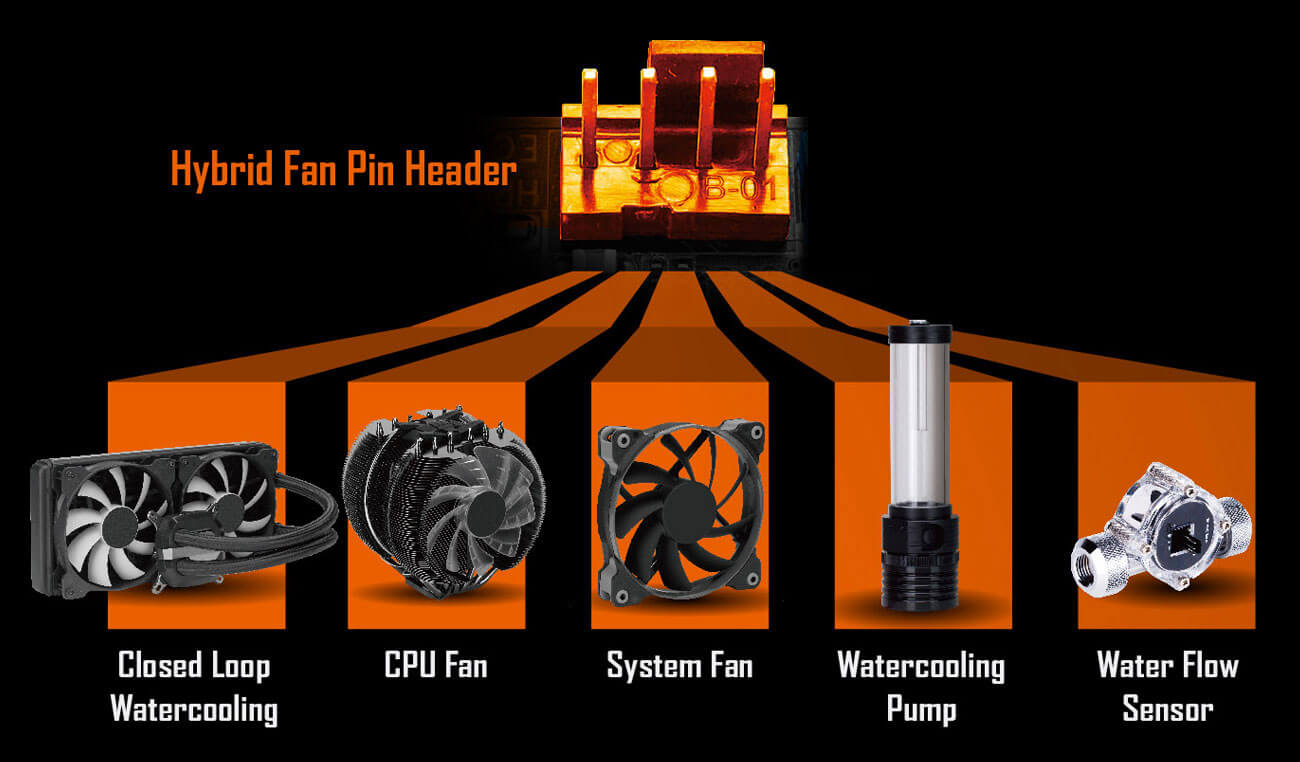

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headersgiving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

AORUS AUDIO

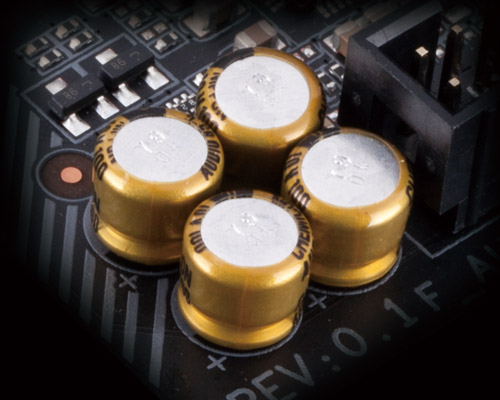

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the boards sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.

AORUS ULTRA DURABLE

Solid Pin Power Connectors

B365 M AORUS Elite features solid plated ATX 24pin &ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

Solid Pin Power connector advantages

• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan

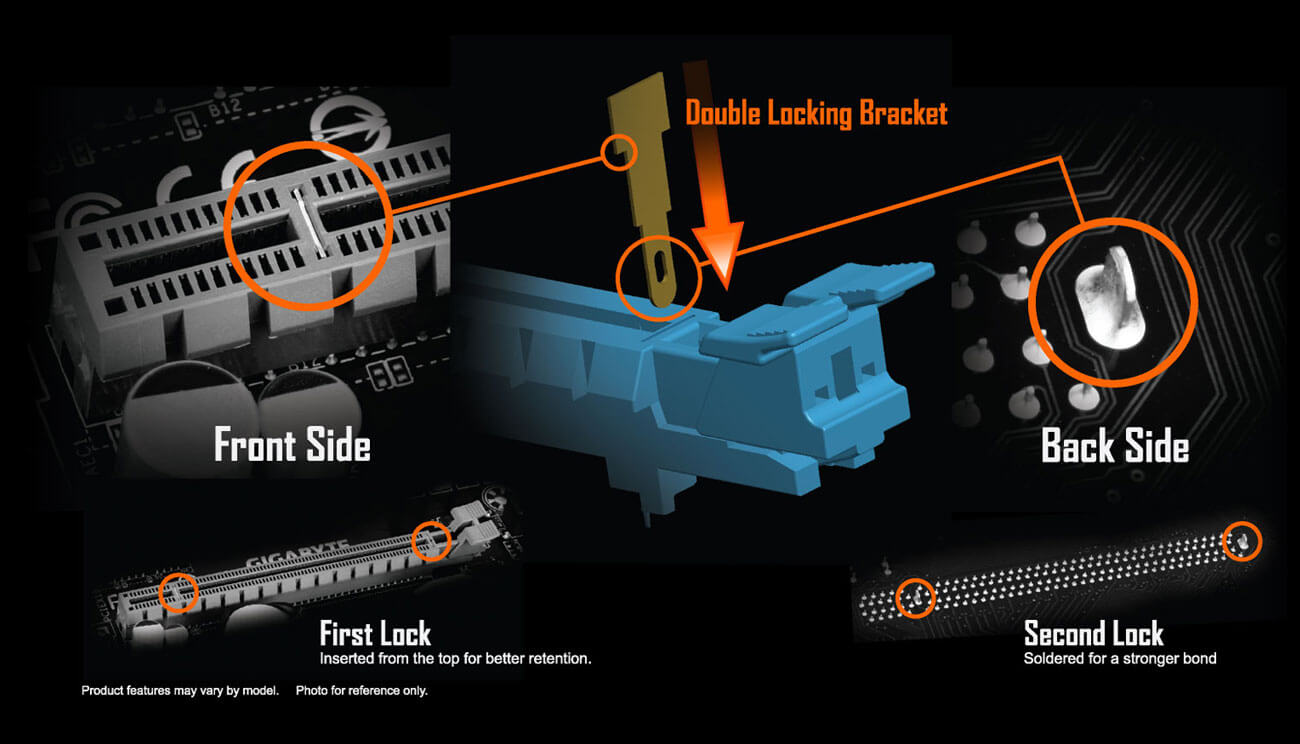

GIGABYTE Patented Double Locking Bracket

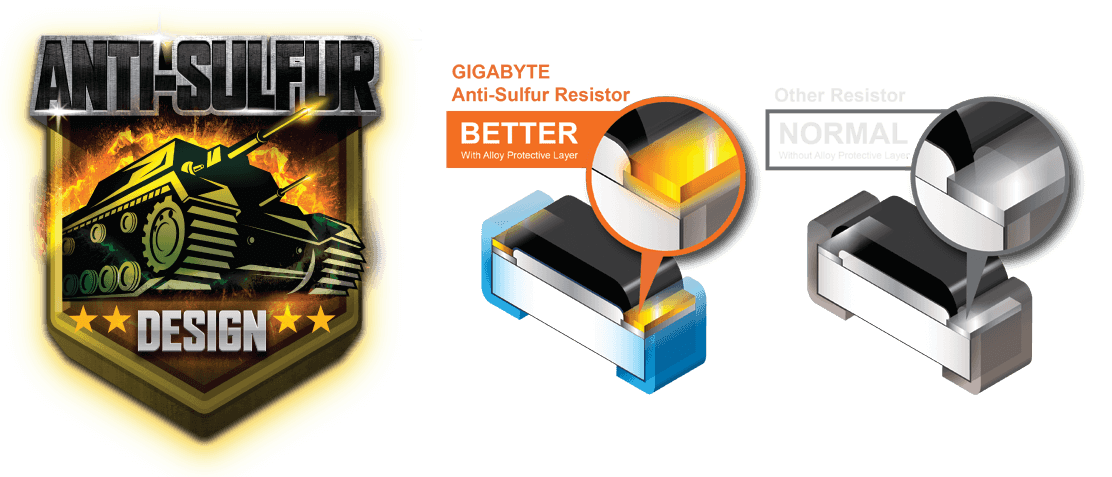

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

AORUS EXCELLENCE

CEC 2019 Ready

Save the power as easy as one click

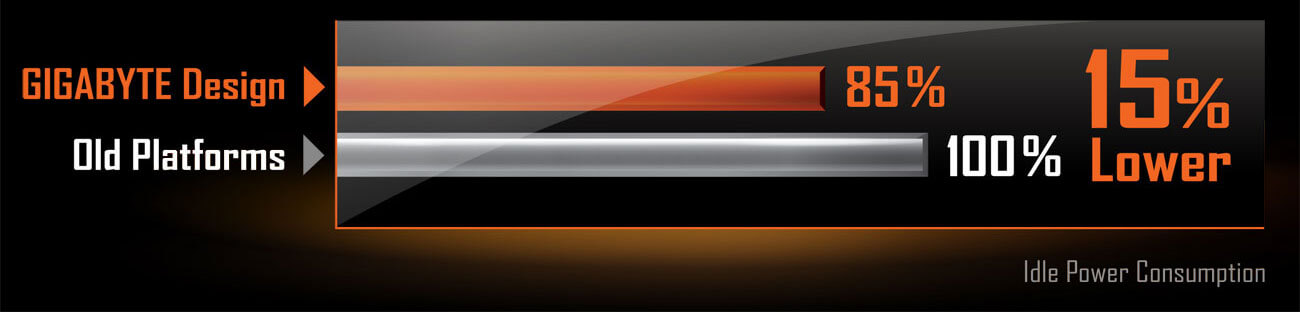

CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

GIGABYTE BIOS &Applications

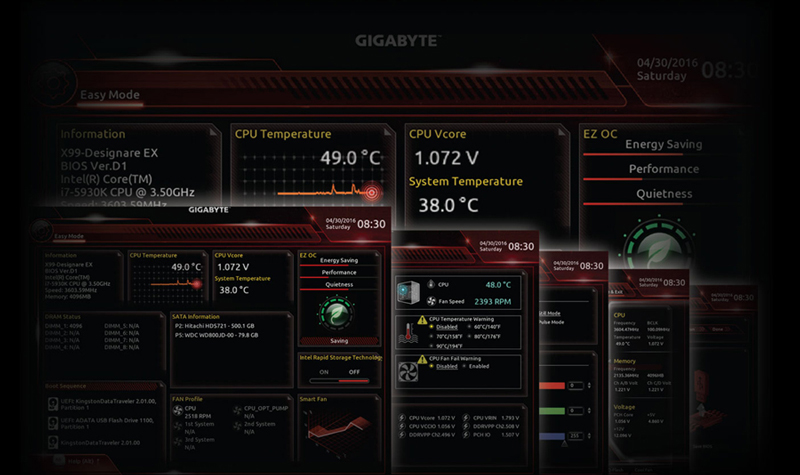

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

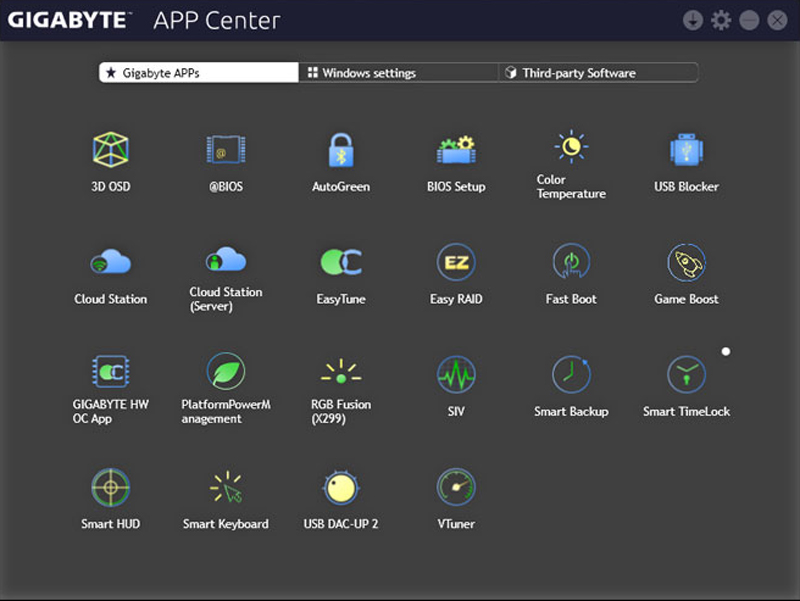

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

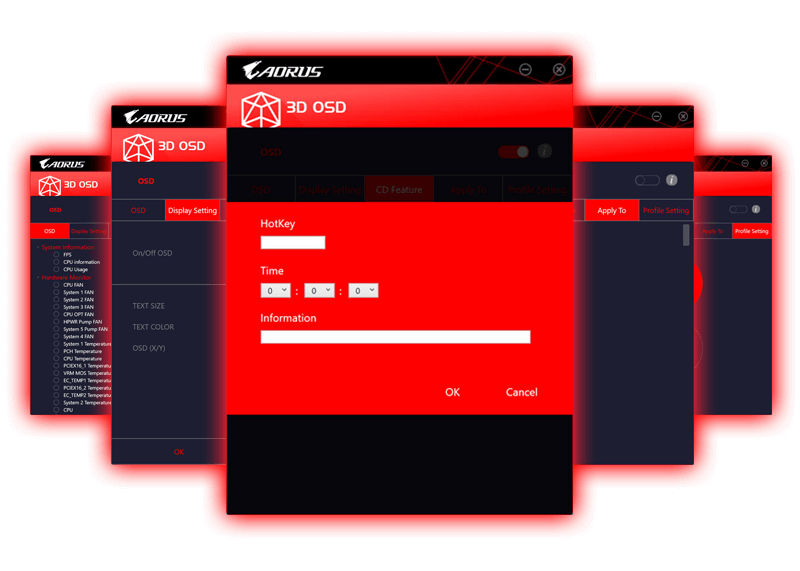

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chatskeeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
